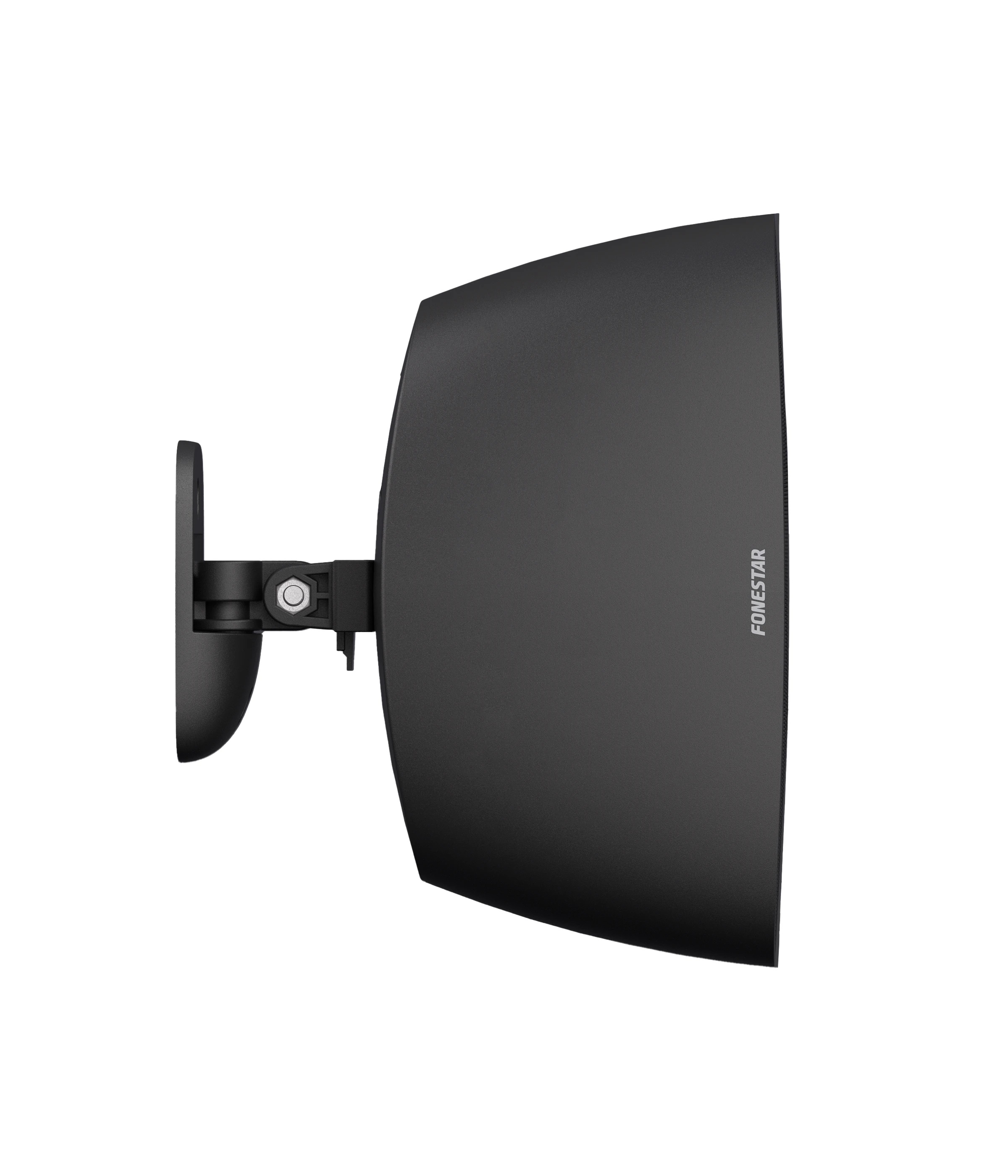

Fonestar SONORA-5N

Fonestar SONORA-5N - Passive speaker with low impedance, specially designed for public address (PA) applications, music and ambient sound. With a sleek design and high-quality finish, the SONORA-5N integrates perfectly into any space, whether it be a restaurant, café, supermarket or shopping centre.

The speaker is fully prepared for outdoor use, featuring an aluminium grille and protection against water and marine environments, in accordance with IP-66 standards. The SONORA-5N offers superior audio quality, with clear sound and no distortion, ensuring an optimal acoustic experience in any environment. Installation is simple and quick, thanks to the included accessories: weather-resistant adjustable bracket, stainless steel screws, and a safety cable made of steel.

FEATURES:

• Speaker with low impedance
• Ready for outdoor use, with IP-66 protection

POWER:

• Maximum power: 80 W
• RMS power: 40 W

SPEAKERS:

• 1 x 5 ¼" polypropylene woofer
• 1 x 1" tweeter

FREQUENCY RESPONSE:

• 80 - 20,000 Hz

IMPEDANCE:

• 8 Ω

SENSITIVITY:

• 3 dB @ 1 W/1 m

MAXIMUM ACOUSTIC PRESSURE:

• 2 dB @ maximum power / 1 m

COVERAGE ANGLES:

• Horizontal/Vertical:
  • 200°/200° @ 500 Hz
  • 135°/135° @ 1 kHz
  • 100°/120° @ 2 kHz
  • 60°/80° @ 4 kHz (-6 dB)

PROTECTION:

• IP-66 according to EN 60529 standard
• IEC 60068-2-11 (environmental test with salt spray)

MATERIAL:

• ABS housing with UV resistance
• Aluminium grille with electrostatic painted finish
• Weather-resistant bracket
• Stainless steel screws

CONNECTORS:

• Euroblock input and output for cable with cross-section between 0.25 - 2.5 mm²

OPERATING TEMPERATURE:

• -10°C to 60°C

COLOUR:

• Black (RAL 9005)

DIMENSIONS:

• Speaker: 162 x 263 x 147 mm (depth)
• Wall mount plate: 68 x 110 mm
• Speaker with mount: 216 mm depth

WEIGHT:

• 6.5 kg

ACCESSORIES:

• Adjustable bracket for mounting ± 60° in all directions
• Safety cable made of steel
