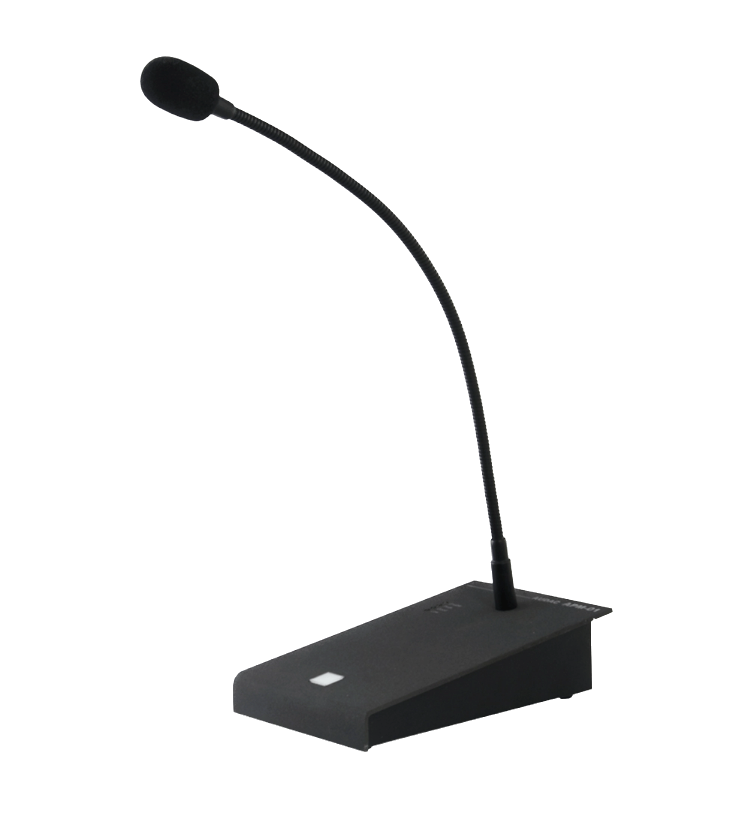

Audac APM 101 MK2 - is a digital paging/announcement microphone for a single zone, equipped with a condenser element, featuring a cardioid pattern, mounted on a 30 cm goose-neck. Through an integrated compressor/limiter, the output level of the microphone signal is kept constant. The status of the reproduced signal is indicated on the front panel to assure the speaker that the message is clear and audible in any situation. The console features a Push To Talk button.
Specifications:
- Microphone type: electret condenser
- Goose-neck length: 350 mm
- Polar pattern: Cardioid (unidirectional)
- Frequency response (± 3 dB): 100 Hz - 20 kHz
- Sensitivity (1 W/1 m): -42 dB
- Buttons: 1 x programmable PTT (push-to-talk)
- Indicators: Button with 3-colour illumination
- LEDs for level and status indication
- Internal storage: 10 minutes of audio recording or messages distributed in up to 30 files
- Power consumption: 4.8 W (max.)
- Power supply: 24 V DC (min. 16 V DC)
- Connectors: RJ45 (data + power)
- Maximum cable length without external power source: 113 m
- With external power source: 300 m
- Connection standard: TIA/EIA T568B
Features:
- Dimensions: 120 x 55 x 190 mm
- Weight: 1.350 kg
- Data protocol: RS-485
- Audio protocol: Analog
- Digital (configurable)
- Required cabling: Analog UTP CAT5E
- Digital UTP CAT6
- Colours: Metallic grey metal front panel
- Construction: Steel
- Included accessories: Windshield (MWS05/B)
