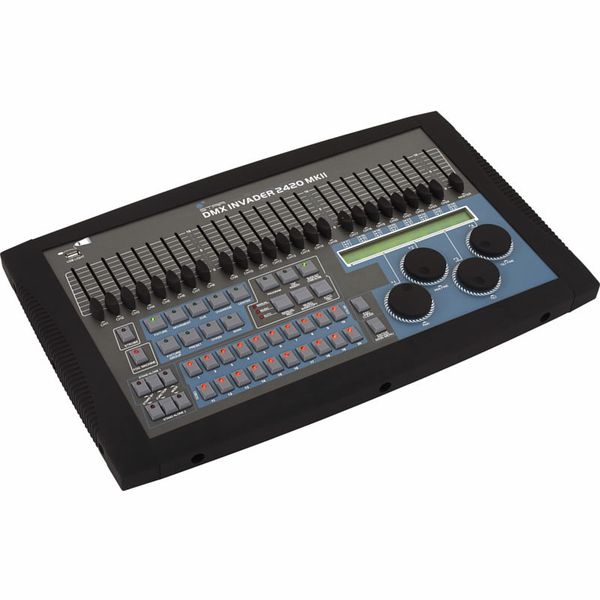

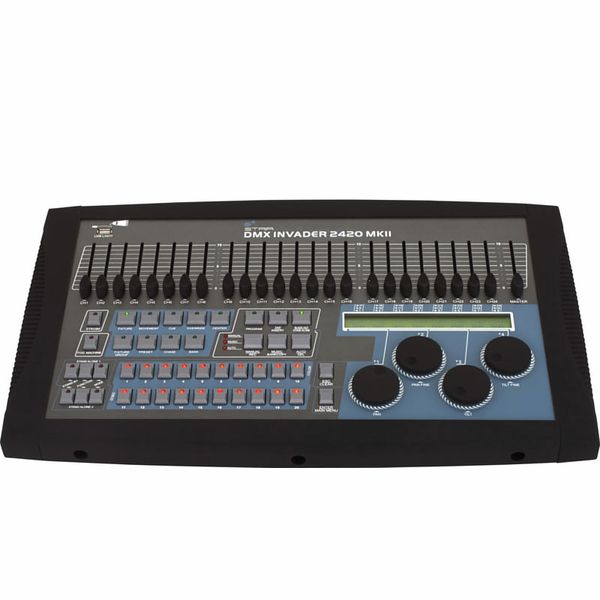

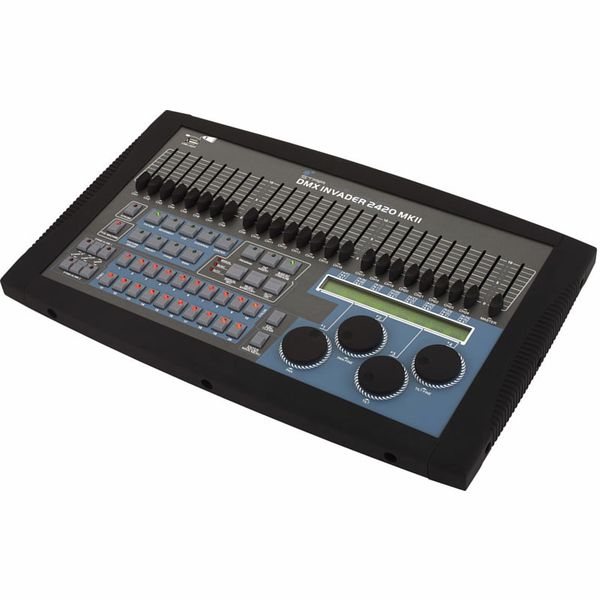

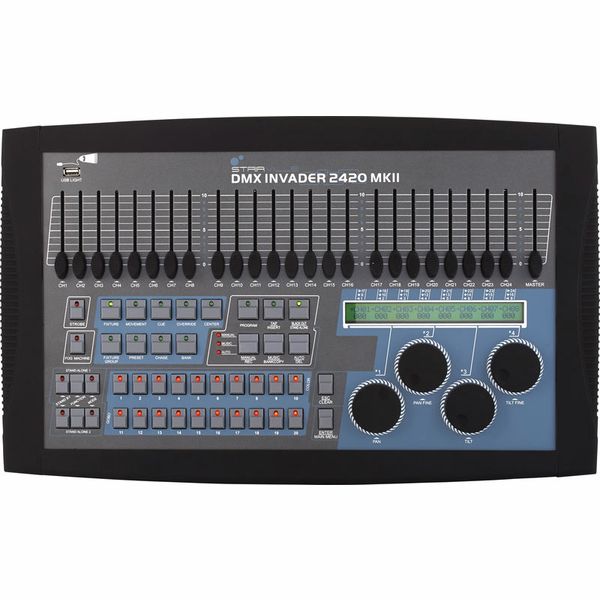

Stairville DMX Invader 2420 MK II - The remake of the DMX Invader 2420 with a master fader, many new features and software improvements. A contemporary controller for DMX fixtures such as moving heads, LED spots with RGBA/RGBW colour mixing and many more. Show backups or firmware updates can now be easily performed via the USB port. Software innovations include phase change effects in motion and colour mixing of RGBW or RGBA LED spots.
Features:
Controls up to 20 fixtures/devices, each with up to 24 channels
20 presets each with 10 colours and 10 gobos
1200 scenes can be programmed (60 banks, each with 20 scenes) and 20 chases
“Effect generator” with 10 preprogrammed movement patterns (adjustable pan/tilt position, range, “fade” time, “wait” time, and loop), which also allows new users to quickly program complex shows
Up to 50 user-defined device types can be created and stored in the “device library”

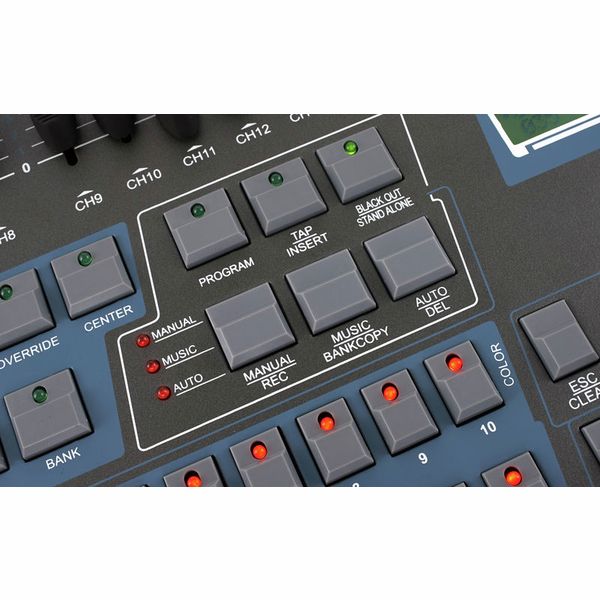

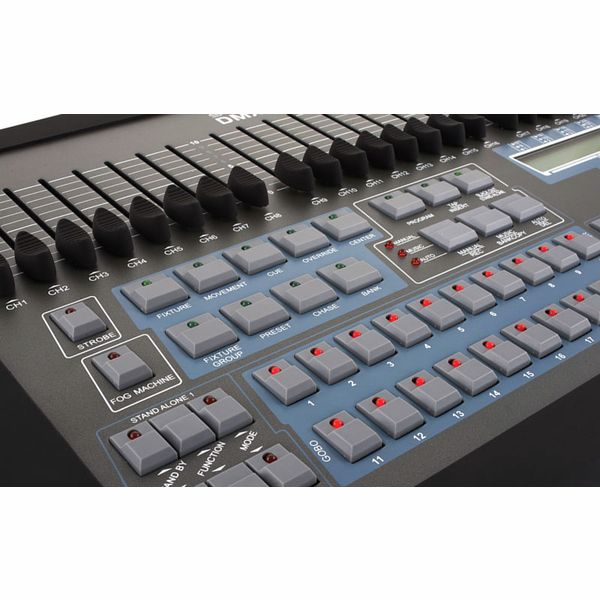

Clearly structured layout of controls and LCD display for intuitive operation and simple programming of light shows
Technical Specifications:

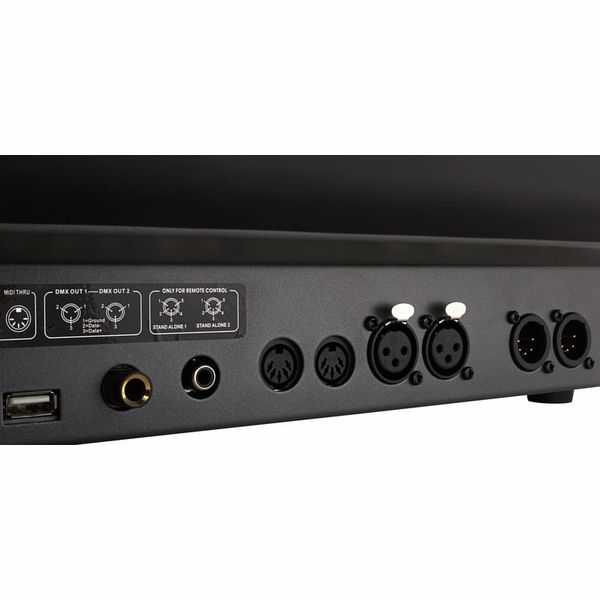

2 DMX outputs with 3 pins
484 DMX channels (including channel 481 for the DMX smoke machine and channels 483-484 for a DMX strobe)
10 preprogrammed movement patterns
20 programmable chases (200 scenes per chase)
1200 programmable scenes (60 banks x 20 scenes)
20 presets, each with 10 colours and 10 gobos
20 devices, each definable with up to 24 channels

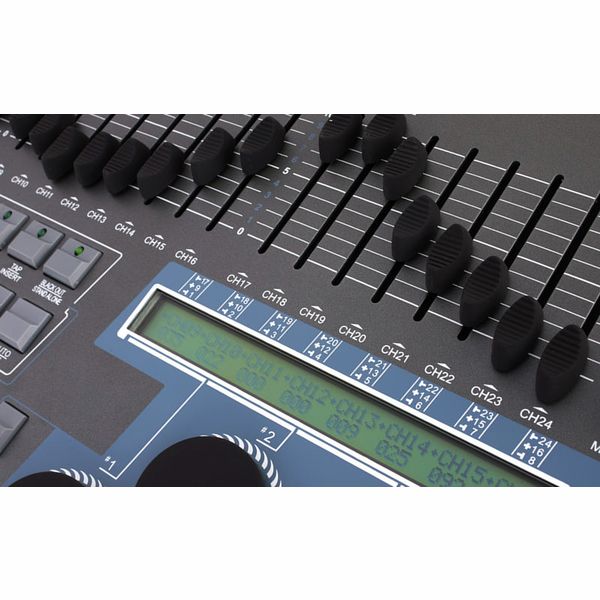

24 faders controlling the 24 DMX channels of each device
20 markers (combining chases in a show)
20 Override functions to change channels in an ongoing show
20 central positions (for each device, a separate zero point is defined)
Password protection possible
Standard MIDI connector
USB connector for gooseneck lamp (included)
Controllable DMX and analog strobe
USB connector for desk lamp

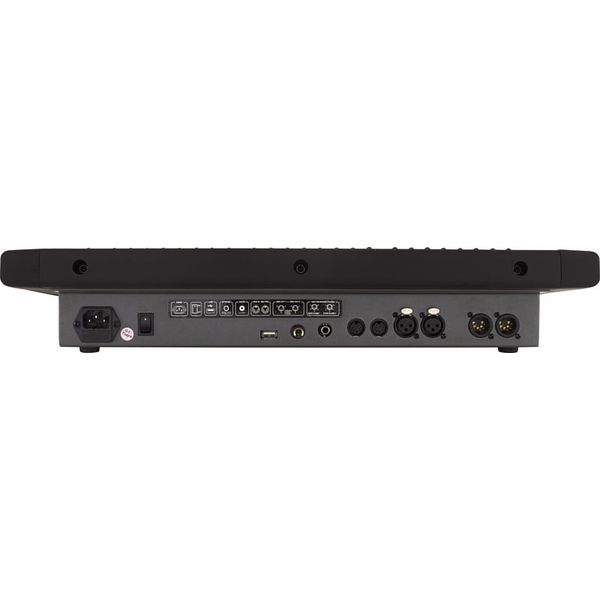

Additional USB port on the back for backups or firmware updates
