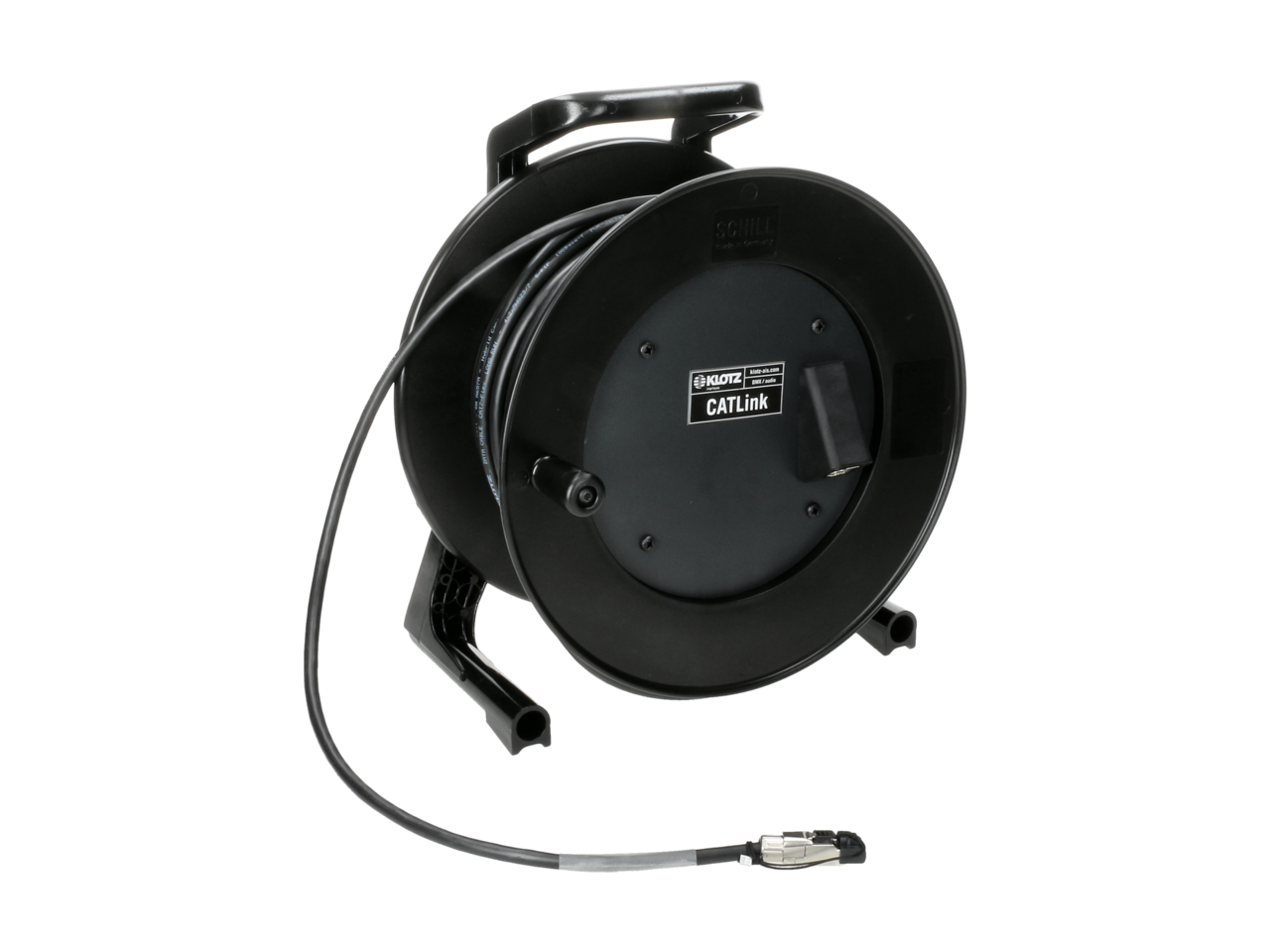

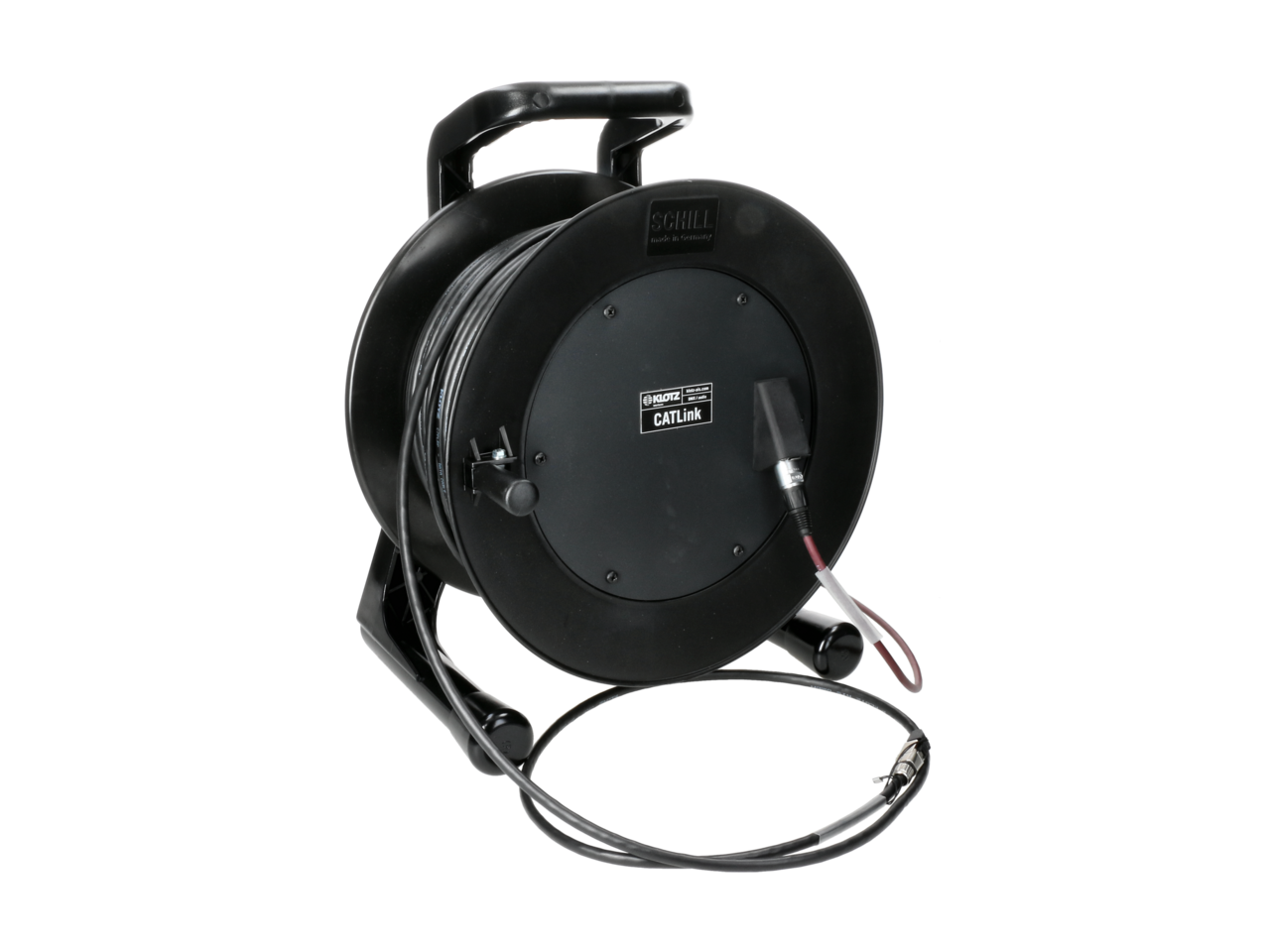

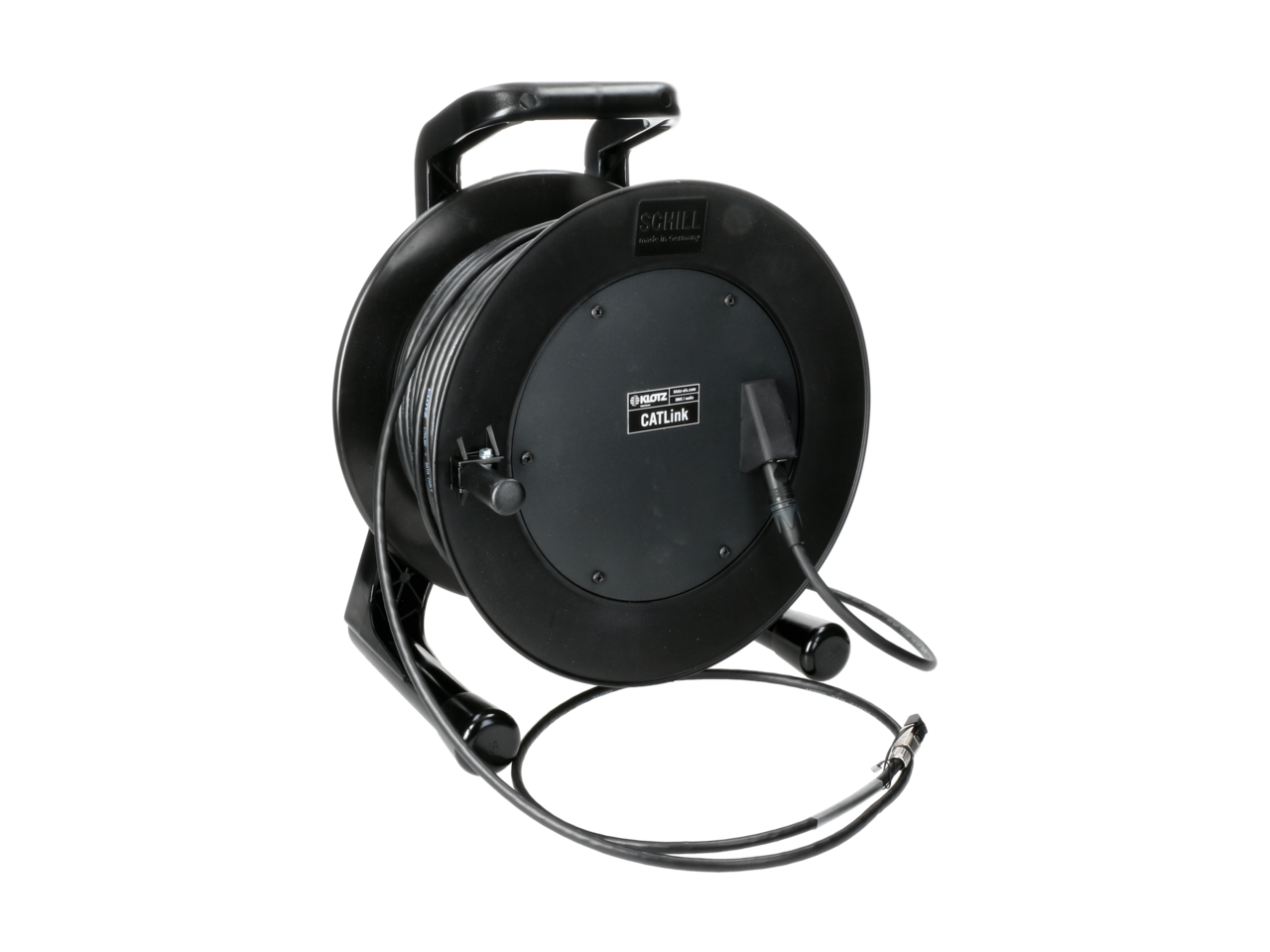

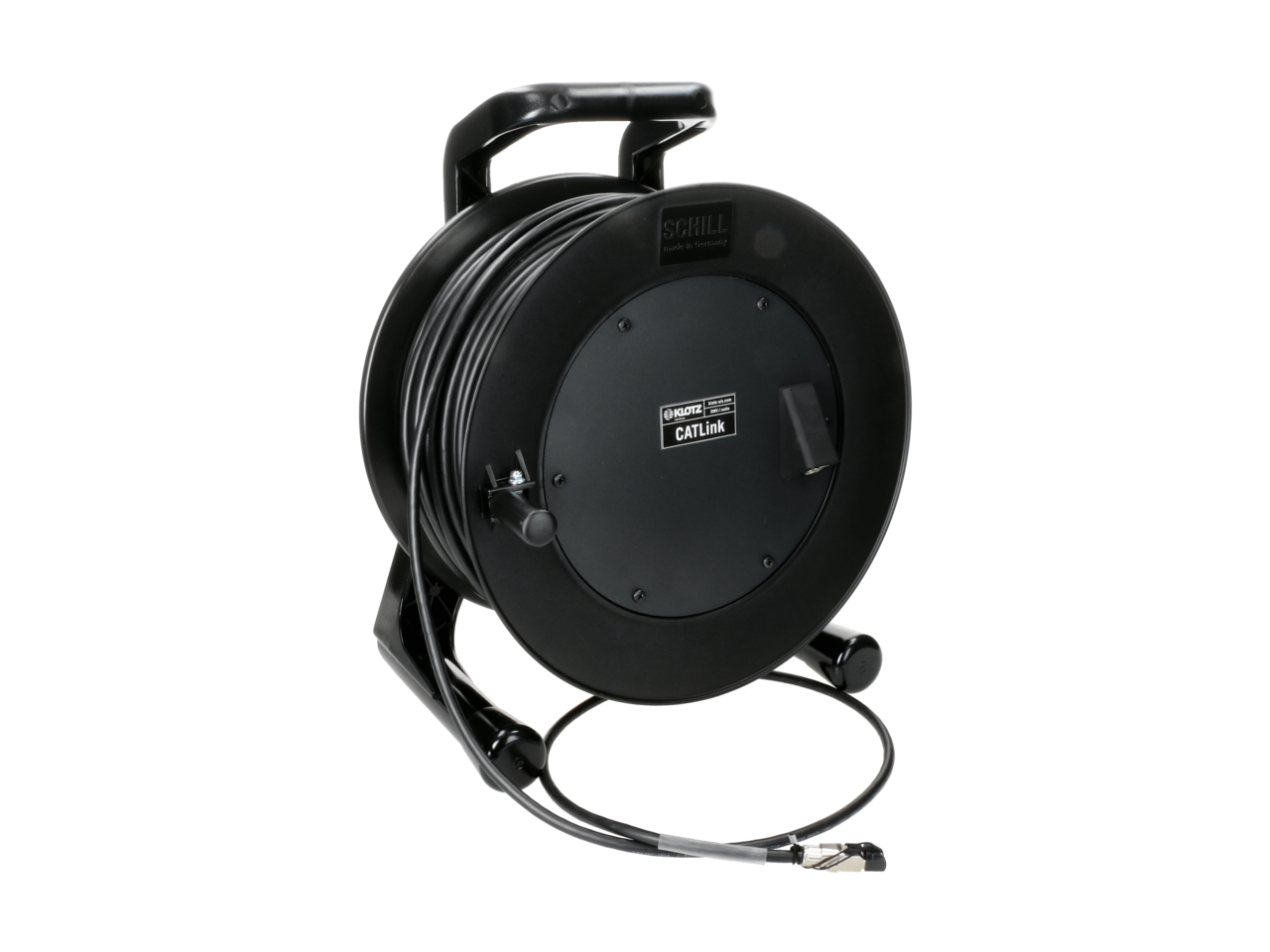

Klotz flexible professional long run patch cable with PUR jacket on cable drumCAT7 (S/FTP) / RJ45 - etherCON F - GT380 - 100 m

• CAT7 LONG RUN 10GBase-T LINK (Channel EA) up to 100 m
• flexible, robust and abrasion resistant data cable, flame retardant down to -40°C
• robust PUR jacket
• frequency range up to 600 MHz
• use in class D, E, EA and F applications like 10Base-T, 100Base-T, 1000Base-T, 10GBase-T, audio networks like Ethersound™ and DMX lighting controls
• for a wide range of applications as device connection, patch or link cable
• Telegärtner RJ45 8p M, metal, shielded - etherCON CAT6A RJ45 panel jack with angled outlet 60°
• with transparent heat shrink for free labeling

Flexible CAT7 LONG RUN 10Gbit network cable and data cable for transmission lengths of up to 100m. For analog and digital signals in the frequency range up to 600 MHz. For use in class D, E, EA and F applications such as 10Base-T, 100Base-T, 1000Base-T, 10GBase-T, audio networks such as Ethersound™; AES67, Dante, Ravenna and many others, video networks such as AVB, SMPTE ST2110 and DMX lighting control systems. The cable meets the requirements for category 7 patch cables according to ISO/IEC 11801, EN 50173-1, IEC 61156-6 and EN 50288-4-2. The small diameter and flexibility make the cable easy to handle, it is ideally suited for mobile applications with RJ45 or etherCON connectors indoors and outdoors and enables problem-free use on cable drums. The PUR outer jacket is extremely abrasion-resistant, flexible at low temperatures down to -40°C, flame-retardant, halogen-free and resistant to oil, microbes and chemicals.

cable

cable typ: C7PLRP - 4x 2x AWG 23/7 - S/FTP - 100 Ohm, robust PUR overall jacket, Ø 8,5 mm

max. data transmission rate: 10 Gbit/s

cable drum (pdf): Graphics/eyebase.com/GT310RM_.pdf

cable drum sub-title: technical data cable drum

connectors

connector 1: professional, screened RJ45 CAT6a cable plug

connector 2: etherCON RJ45 CAT6a panel jack shielded

Caracteristici

connectors	etherCON - RJ45
shell/sleeve	black
cable color	black
cable jacket	PUR
cable drum	GT380
heat shrink	1x transparent
length	100 m
