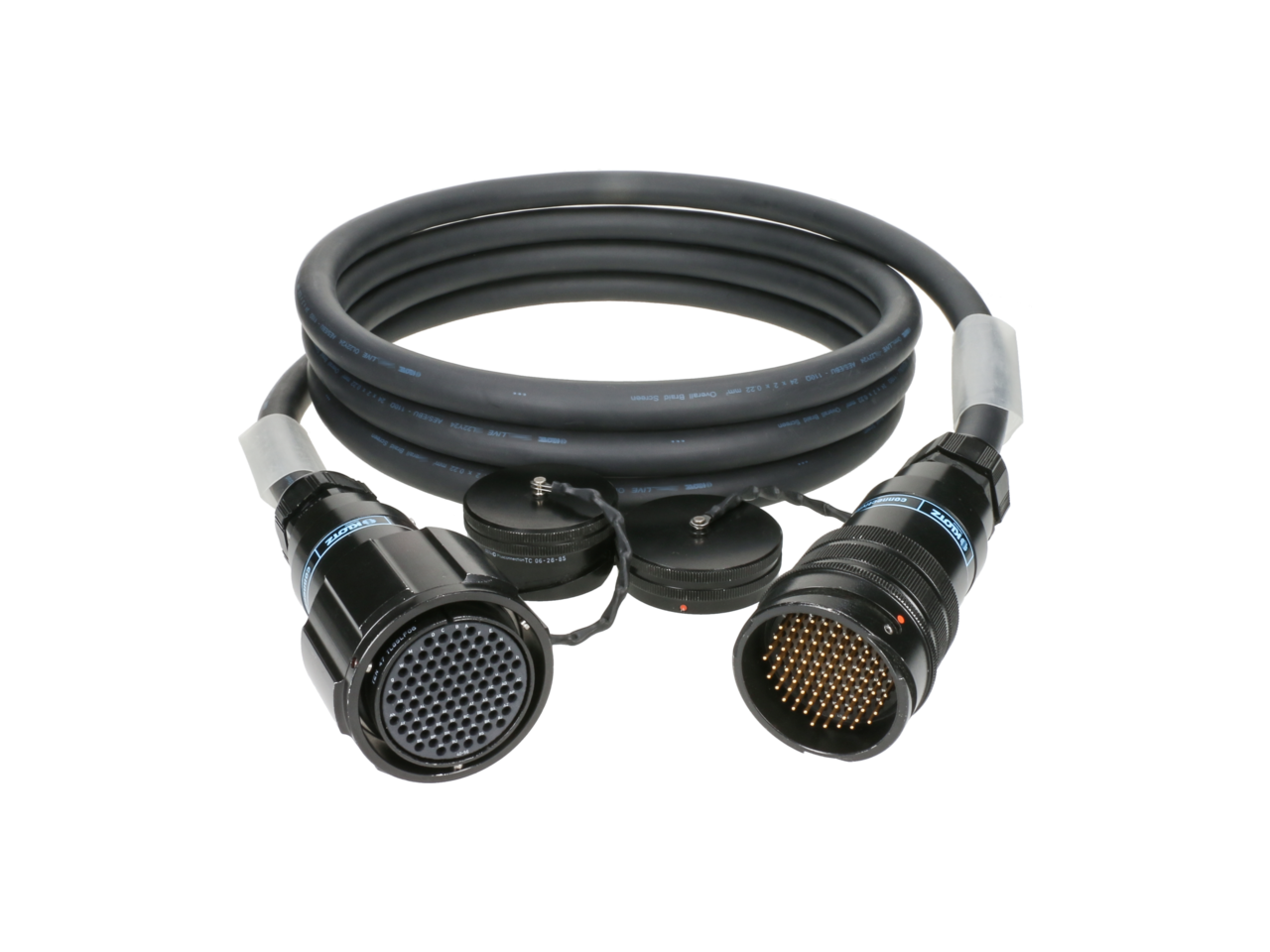

Klotz PolyLIVE - RMP 85p F/M24-channel - analog multicore - PVC - plastic / ZEP - PL22Y24 - 30 m

Robust multipin cable

2x conectori multipin RMP 85p cu pini auriti și capace de protecție
conexiune robustă, peste 2000 cicluri, carcasă aluminiu IP67
compatibil cu LK, Tourline, CIRLK și MIL C 5015
cablu PolyLIVE compact, atenuare redusă, ecranare dublă
lungime cablu 30 m, protecție la tensionare plastic/metal

Variants:

1 621⁰⁷ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

8325 points of loyalty

Shipping free

Warranty 12 months

Returns 14 days

request details

Klotz PolyLIVE - RMP 85p F/M24-channel - analog multicore - PVC - plastic / ZEP - PL22Y24 - 30 m Add to cart: 1 621⁰⁷ €

2x RMP 85p (two round multipin connectors) with gold-plated female and male pins and protective covers
quality, robust and reliable connection> 2000 plug cycles even under adverse conditions
stainless aluminum housing state with bayonet, IP67 when plugged and closed (cover)
strain relief optionally made of plastic (ZEP) or metal (Remke)
compatible with LK connectors, Tourline and CIRLK, as well as other connectors according to MIL C 5015 standard
PolyLIVE, compact analog audio cable with low signal attenuation
robust and flexible cable with pair shield AL/PETP foil and additional over all braid shield

Very compact multicore cable with 0.22 mm² conductor cross section achieved by foil shielded pairs without jackets. Special properties: due to over all braid screen, low diameter and low weight especially - recommended for drum storage.

cable

cable typ: PolyLIVE, compact analog audio cable with low signal attenuation

connectors

pins: 85

connector 1: RMP (round multipin connector) female

contact 1: gold-plated

pinout: pinout female insert - wiring side

connector 2: RMP (round multipin connector) male

contact 2: gold-plated

pinout: pinout male insert - wiring side

Caracteristici

pins	85
multipin connection	2x RMP F/M
strain relief	plastic / ZEP
cable type	PL22Y24
cable color	black
length	30 m
