Klotz PolyLIVE - RMP 25p F - 8x XLR M8-channel - analog fanout - PVC - Neutrik® - 15 m

Robust audio multicore

conector multipin RMP cu contacte placate cu aur și protecție IP67.
compatibil cu mai multe tipuri de conectori standard.
cablu audio PolyLIVE robust, cu atenuare redusă și ecranare dublă.
fanout XLR cu 8 ieșiri, marcaj canale prin gravare sau imprimare.
prevăzut cu protecție la tensionare și capac de protecție.

Variants:

632¹⁶ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

Shipping free

Warranty 12 months

Returns 14 days

request details

Klotz PolyLIVE - RMP 25p F - 8x XLR M8-channel - analog fanout - PVC - Neutrik® - 15 m Add to cart: 632¹⁶ €

RMP (round multipin connector) with gold-plated contacts and protective cover
quality, robust and reliable connection> 2000 plug cycles even under adverse conditions
stainless aluminum housing state with bayonet, IP67 when plugged and closed (cover)
compatible with LK connectors, Tourline and CIRLK, as well as other connectors according to MIL C 5015 standard
PolyLIVE, compact analog audio cable with low signal attenuation
robust and flexible cable with pair shield AL/PETP foil and additional over all braid shield
with strain relief, pins and protective cover
variant with KLOTZ XLR: channel labeling by laser engraving on the XLR connectors
variant with Neutrik® XLR: channel labeling by printed heat shrink tubing

Our Multicore Fanouts are the ideal choice for applications where analogue or digital audio signals have to be distributed and processed. The RMP connectors have rustproof aluminium housing and bayonet connections, providing IP67 rating in both connected and closed states. They are also incredibly reliable (over 2000 mating cycles) even in the harshest outdoor conditions.

cable

cable typ: PolyLIVE, compact analog audio cable with low signal attenuation

connectors

pins: 25

connector 1: RMP (round multipin connector) female

contact 1: gold-plated

pinout: pinout female insert - wiring side

connector 2: XLR fanout with braided sleeve: 8x male

contact 2: gold-plated

Caracteristici

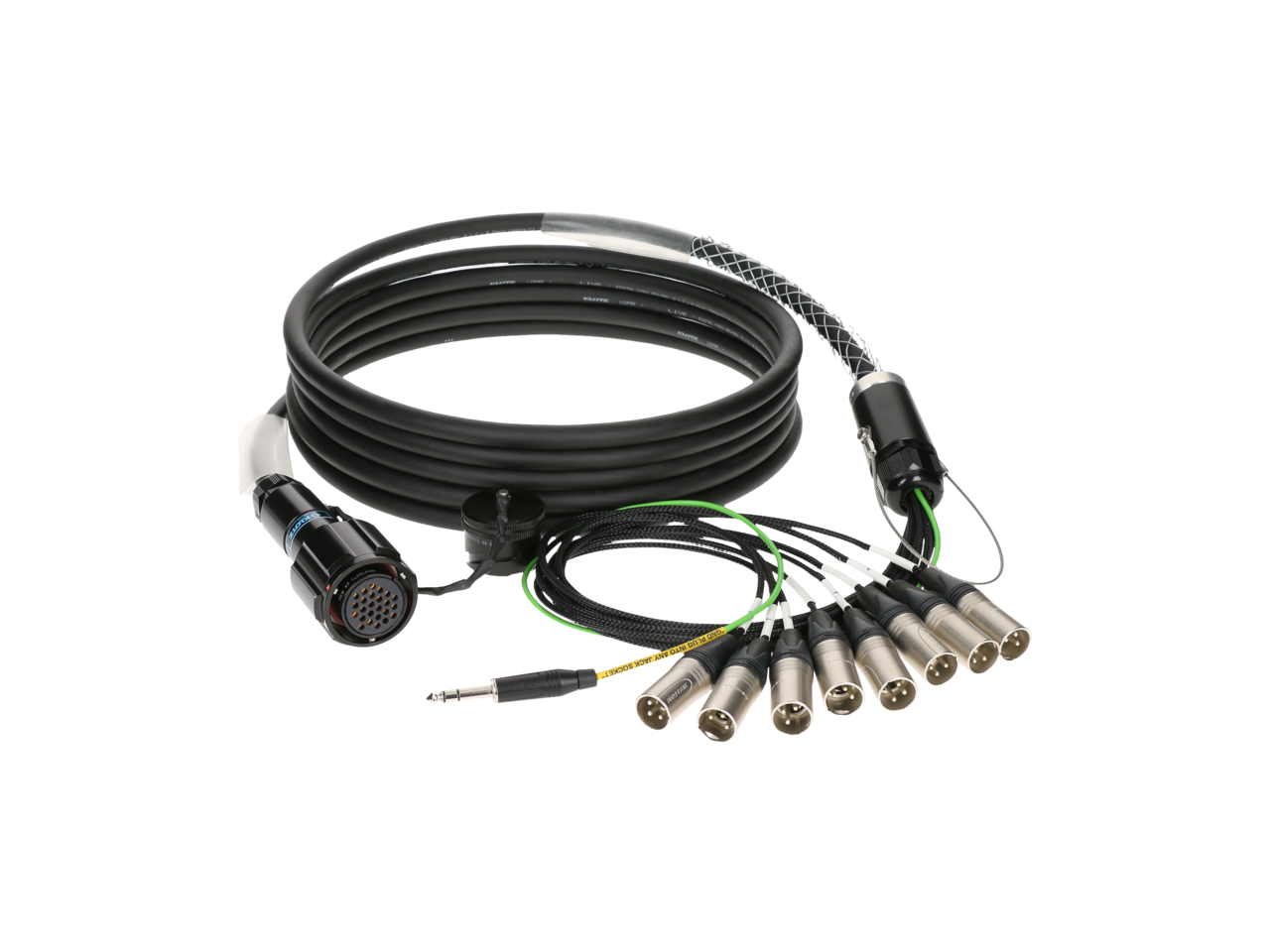

fig. shows	similar 8-channel fanout
multipin connection	RMP F
pins	25
cable type	PL22Y08
XLR inputs	0
XLR outputs	8
manufacturer XLR	Neutrik®
cable color	black
fanout	with braided sleeve
fanout length	400 mm
strain relief	plastic / ZEP
length	15 m
