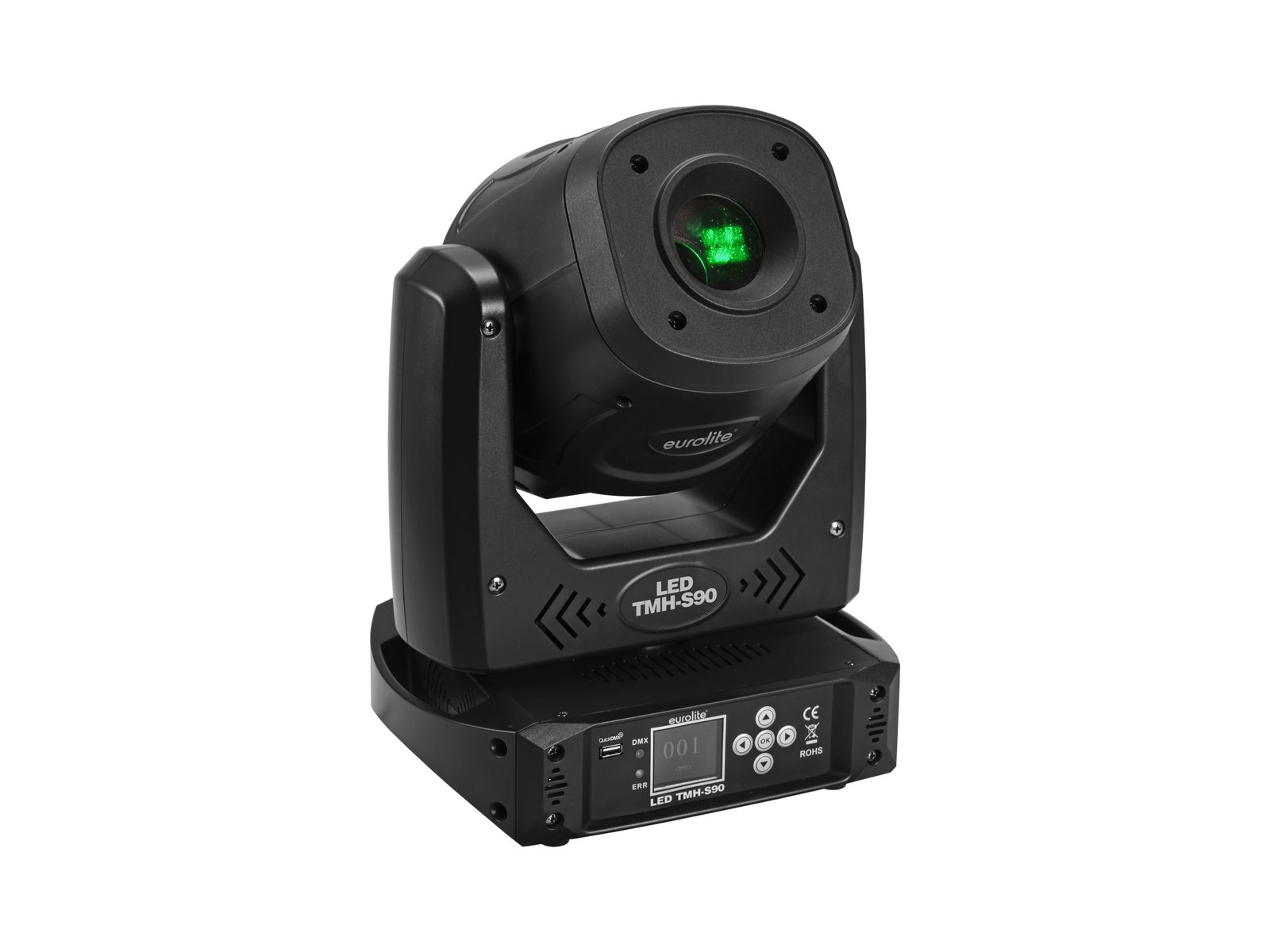

Eurolite LED TMH-S90 Moving-Head Spot

Moving Head LED

rotating 3-facet prism with variable speed
1 powerful LED 90 W COB (chip-on-board) cold white (CW)
positioning within 540° PAN and 200° TILT
auto position correction (feedback)
exact positioning (16 bit resolution)

Variants:

391⁶⁹ €

In stock and deliverable.

Central warehouse: 2

Add to cart

2016 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details better price?

Eurolite LED TMH-S90 Moving-Head Spot Add to cart: 391⁶⁹ €

LED Moving Head spot with color wheel, static and rotating gobo wheel, prism and focus

Rotating 3-facet prism with variable speed
1 powerful LED 90 W COB (chip-on-board) cold white (CW)
Positioning within 540° PAN and 200° TILT
Auto position correction (feedback)
Exact positioning (16 bit resolution)
Prism 3-fold; gobo wheel with rotating gobos; gobo wheel with static gobos; Focus motor-driven; color wheel
Color wheel with 7 dichroic filters plus open
half colors selectable, Rainbow effect with adjustable speed in both directions
Gobo wheel with static gobos, 6 gobos,1 multi color gobo and open
shake effect
Gobo wheel with rotating gobos, 6 gobos and open
shake effect
Gobos changeable
Slot-in gobo system for easy gobo replacement
Integrated show programs
The device is cooled by cooling fan
Control via DMX; Sound to light via Microphone; stand-alone; Master/slave function; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional)
Flicker-free
With a beam angle of 12°
Dimmer electronic
Preprogrammed in EASY SHOW 1; Light Captain; EASY SHOW 3
For application areas such as: Clubs/dancing school; Wedding/gala/events; Stage; mobile djs/entertainer
Application possibility: Standing; suspended

Package contents

1 x moving light, 1 x user manual, 1 x power cord, 1 x omega bracket, 1 x safety eyelet

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	140 W
IP classification:	IP20
Protection class:	Protection class I
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug
Power output:	P-Con (gray), mounting version
Fuse:	5 x 20 mm, T 2 A
Lamp type:	LED lamp
LED:	1 x 90 W COB (chip-on-board) cold white (CW)
Max. TILT movement:	200° Exact positioning (16 bit resolution) Auto position correction (feedback)
Max. PAN movement:	540° Exact positioning (16 bit resolution) Auto position correction (feedback)
Flash rate:	2 - 30 Hz
Equipment:	Prism 3-fold; gobo wheel with rotating gobos; gobo wheel with static gobos; Focus motor-driven; color wheel
Color generation:	Color wheel with 7 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed in both directions
Gobos:	Gobo wheel with static gobos, 6 gobos,1 multi color gobo and open Shake effect Gobo wheel with rotating gobos, 6 gobos and open Outside diameter 21,8mm Image diameter 16mm Shake effect Gobos changeable Slot-in gobo system for easy gobo replacement
DMX channels:	15
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	Cooling fan
Control:	DMX; Sound to light via Microphone; stand-alone; Master/slave function; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional)
Preprogrammed in:	EASY SHOW 1; Light Captain; EASY SHOW 3
Beam angle:	12°
Beam angle (1/2 peak):	12°
Illuminance in Lux (lx):	Cold white (CW) 1m: 52772 lx, 3m: 6198 lx, 6m: 1543 lx
Housing color:	Black
Dimensions:	Width: 25,0 cm Depth: 20,5 cm Height: 35,0 cm
Weight:	6,20 kg
Noise classification:	Class 3 (clearly perceptible sounds)
Photobiological safety:	Risk Group 0
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Product code: 51786075

Unit of sale: piece

Specifications:
