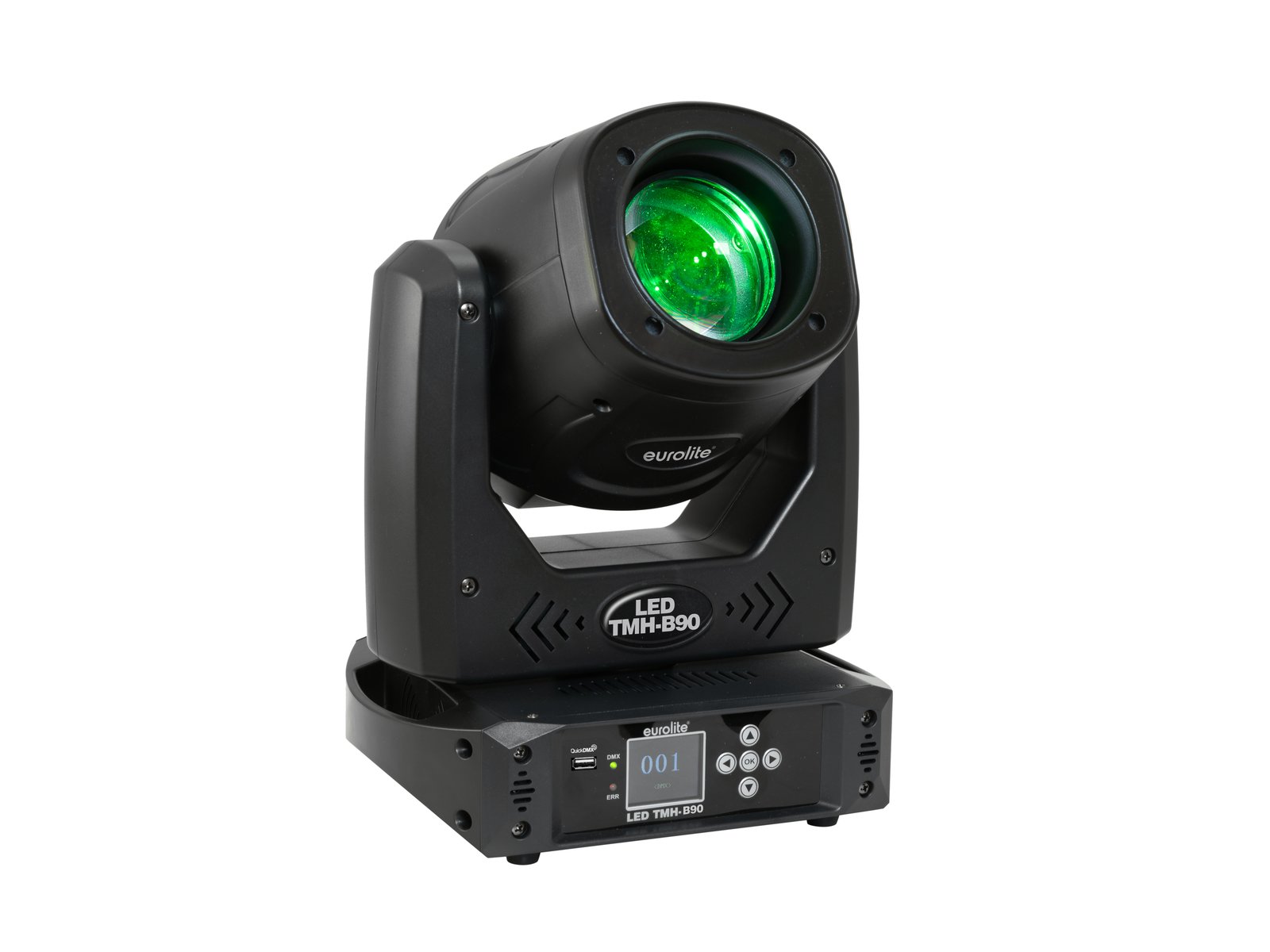

Eurolite LED TMH-B90 Moving-Head Beam

Moving Head

1 powerful LED 90 W COB (chip-on-board) cold white (CW)
positioning within 540° PAN and 200° TILT
auto position correction (feedback)
exact positioning (16 bit resolution)
color wheel; gobo wheel with static gobos; Focus motor-driven; Prism 8-fold rotating; frost filter

499²² €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

2569 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

Eurolite LED TMH-B90 Moving-Head Beam Add to cart: 499²² €

LED moving head beam with color wheel, static gobo wheel, prism and focus

1 powerful LED 90 W COB (chip-on-board) cold white (CW)
Positioning within 540° PAN and 200° TILT
Auto position correction (feedback)
Exact positioning (16 bit resolution)
Color wheel; gobo wheel with static gobos; Focus motor-driven; Prism 8-fold rotating; frost filter
Beam effect
Color wheel with 7 dichroic filters plus open
half colors selectable, Rainbow effect with adjustable speed in both directions
Gobo wheel with static gobos, 13 gobos und open
shake effect
Integrated show programs
The device is cooled by cooling fan
Control via stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Flicker-free
With a beam angle of 3°
Good color rendering index (CRI)
LCD display
Dimmer electronic
Preprogrammed in Light Captain; EASY SHOW 3; Light´J
Mains input and output for power linking up to 8 units
For application areas such as: Clubs/dancing school; Wedding/gala/events; Stage; mobile djs/entertainer
Application possibility: Standing; suspended

Package contents

1 x moving light, 1 x user manual, 1 x power cord, 1 x omega bracket, 1 x safety eyelet

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	125 W
IP classification:	IP20
Protection class:	Protection class I
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:	P-Con (gray), mounting version
Device fuse:	5 x 20 mm, T 2 A Fuse replaceable
Lamp type:	LED lamp
LED:	1 x 90 W COB (chip-on-board) cold white (CW)
Max. TILT movement:	200° Exact positioning (16 bit resolution) Auto position correction (feedback)
Max. PAN movement:	540° Exact positioning (16 bit resolution) Auto position correction (feedback)
Flash rate:	2 - 20 Hz
Equipment:	Color wheel; gobo wheel with static gobos; Focus motor-driven; Prism 8-fold rotating; frost filter
Color generation:	Color wheel with 7 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed in both directions
Gobos:	Gobo wheel with static gobos, 13 gobos und open Shake effect
DMX channels:	14
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	Cooling fan
Control:	Stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in:	Light Captain; EASY SHOW 3; Light´J
Beam angle:	3°
Beam angle (1/2 peak):	3°
Color rendering index (CRI):	80 Ra
Illuminance in Lux (lx):	Cold white (CW) 3m: 33839 lx, 6m: 10454 lx
Housing color:	Black
Display type:	LCD display
Dimensions:	Width: 25,5 cm Depth: 20,5 cm Height: 33,0 cm
Weight:	6,55 kg
Noise classification:	Class 2 (slight noise)
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Product code: 51786080

Unit of sale: piece

Specifications:
