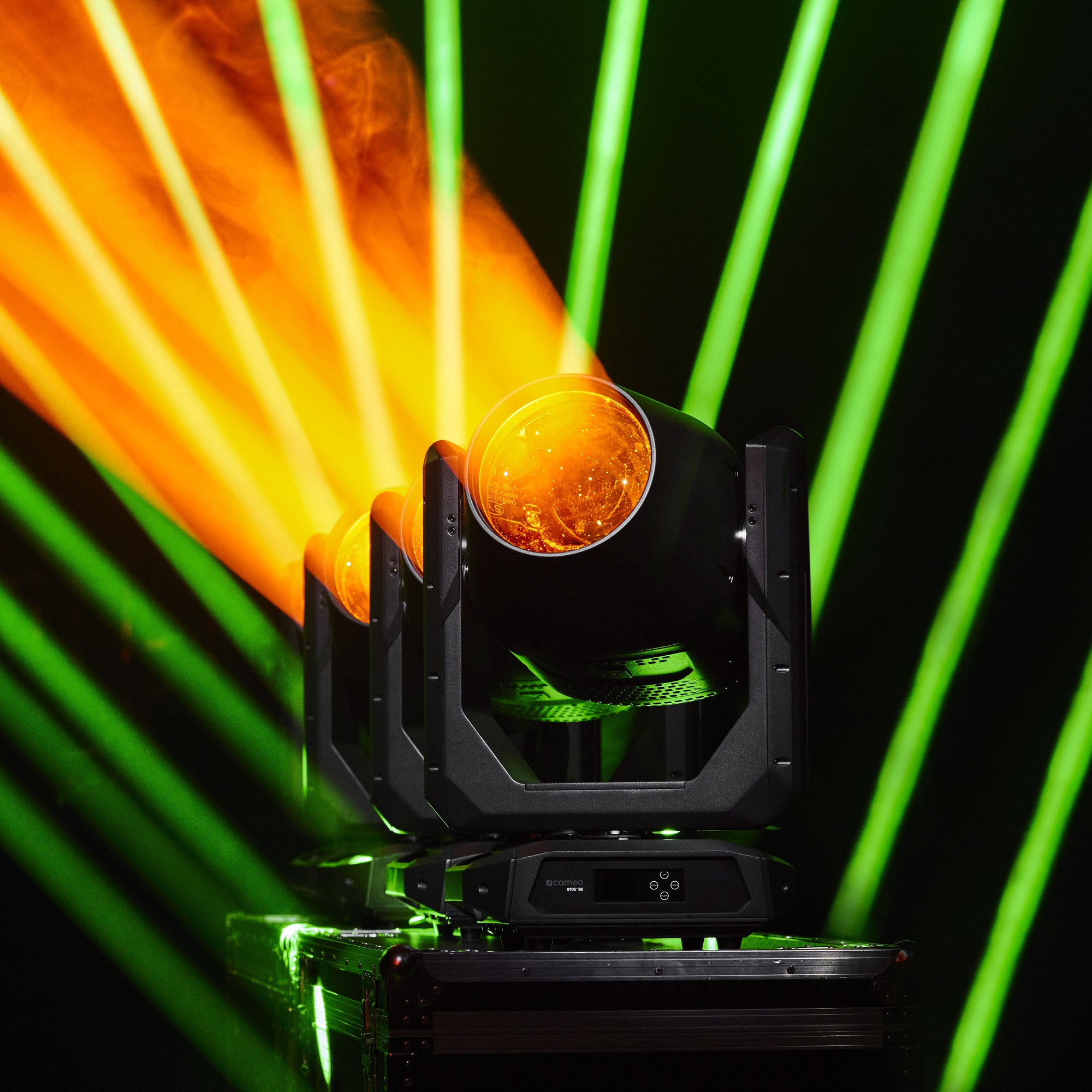

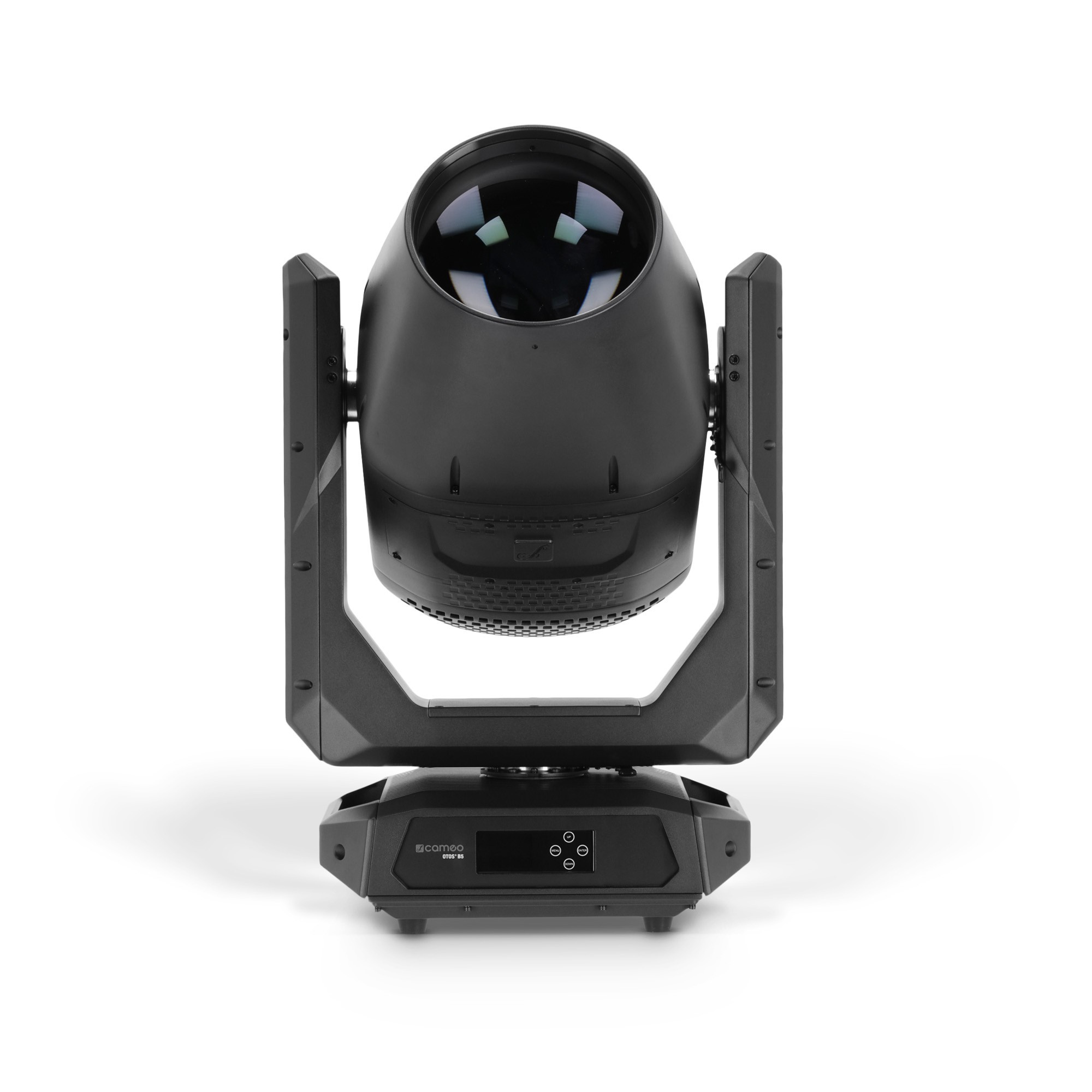

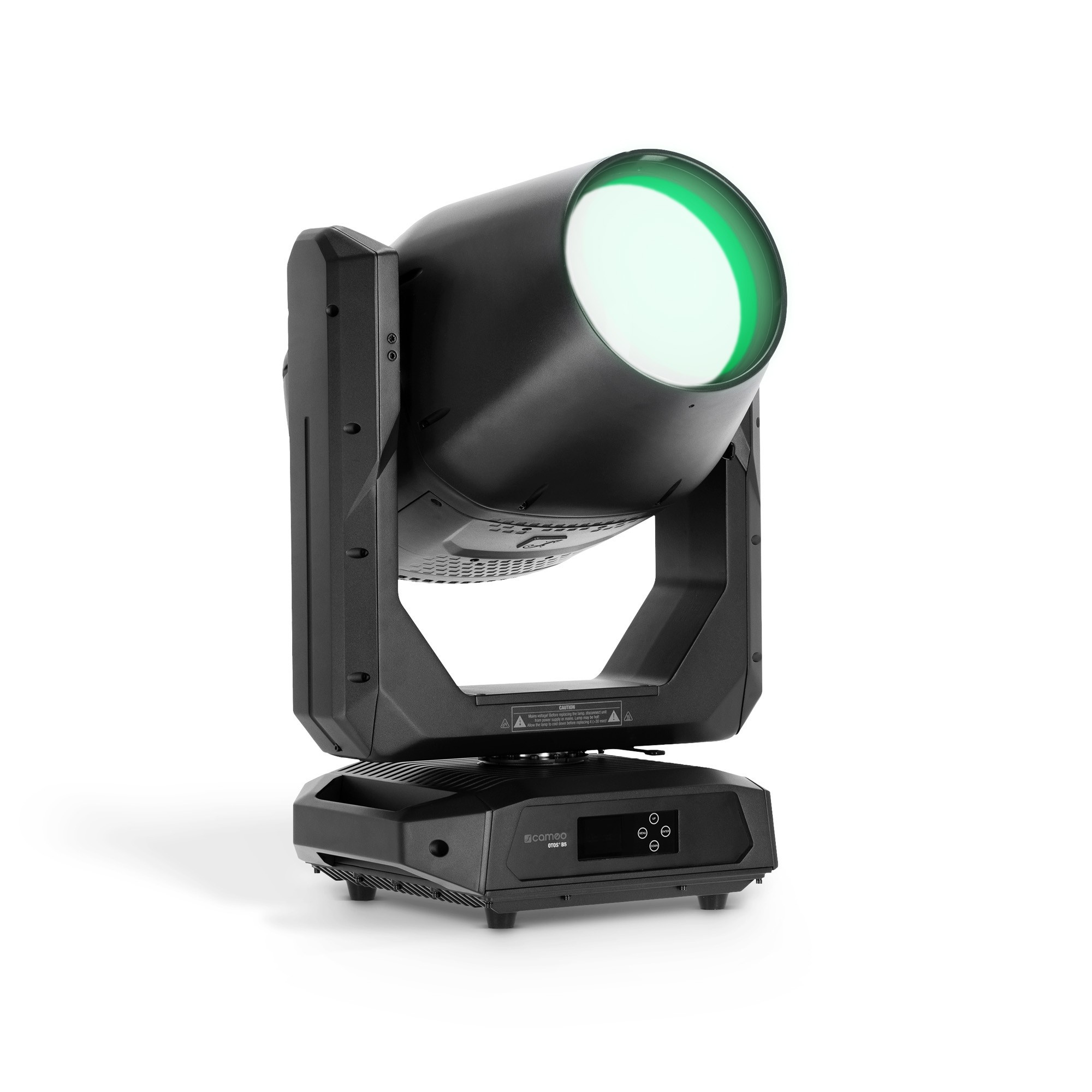

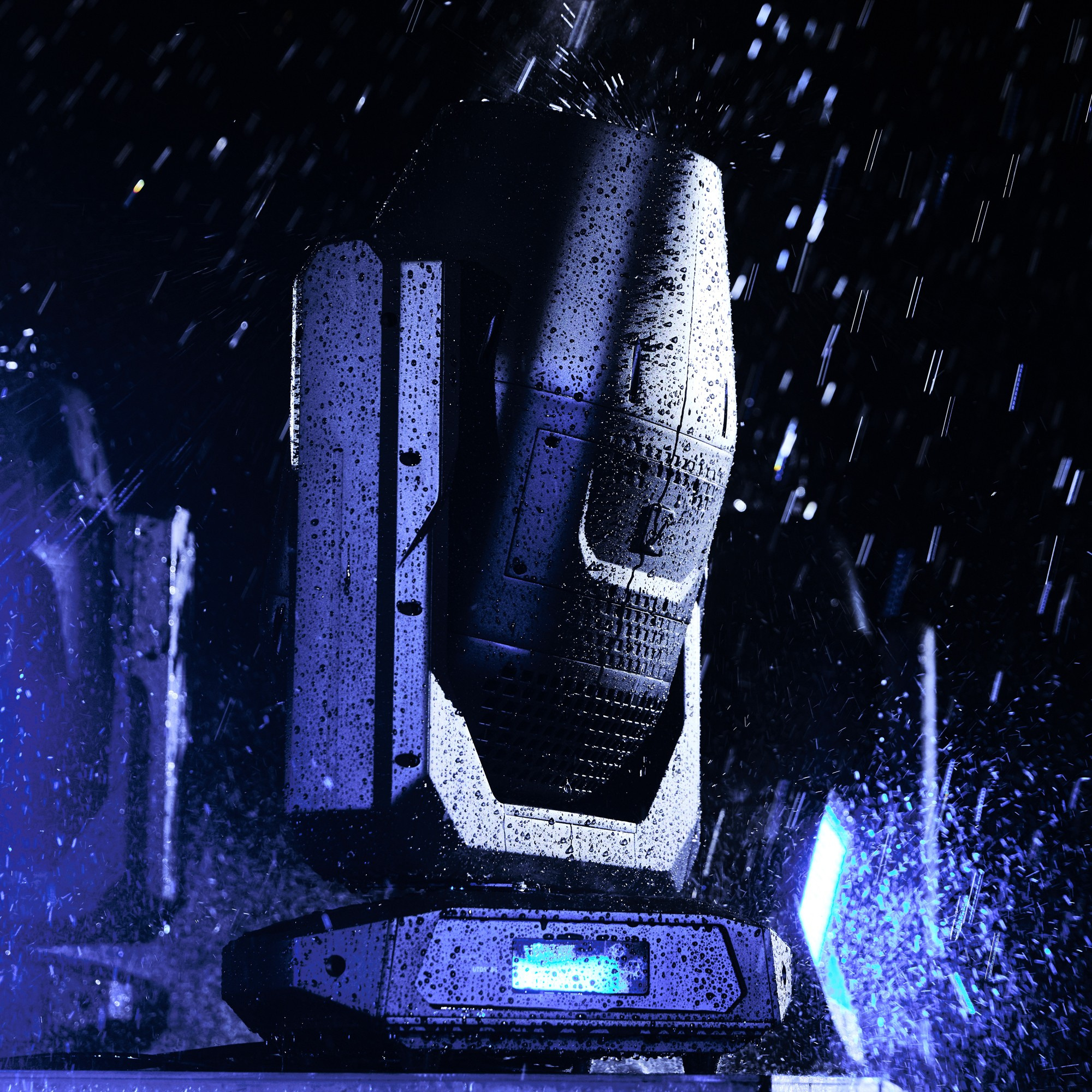

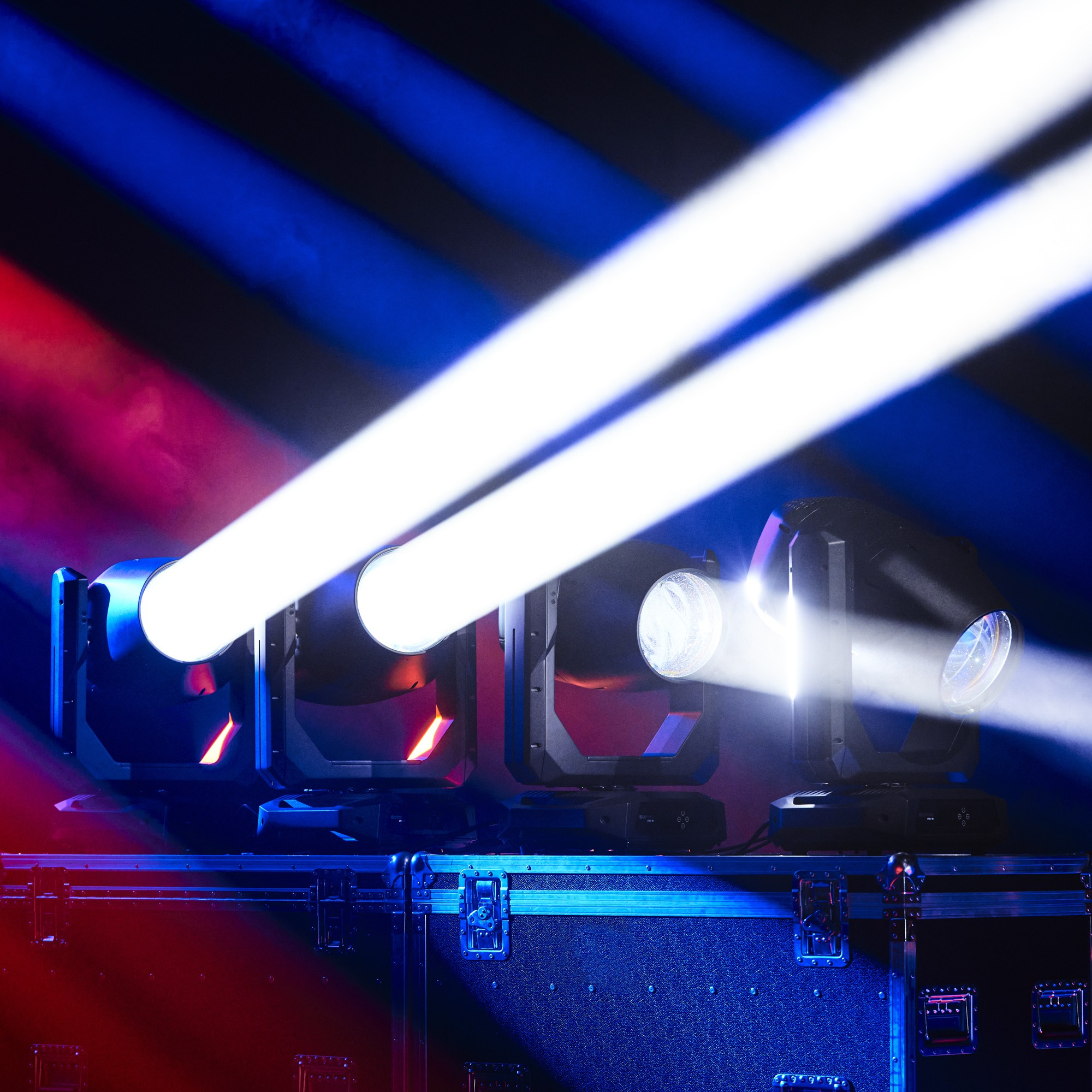

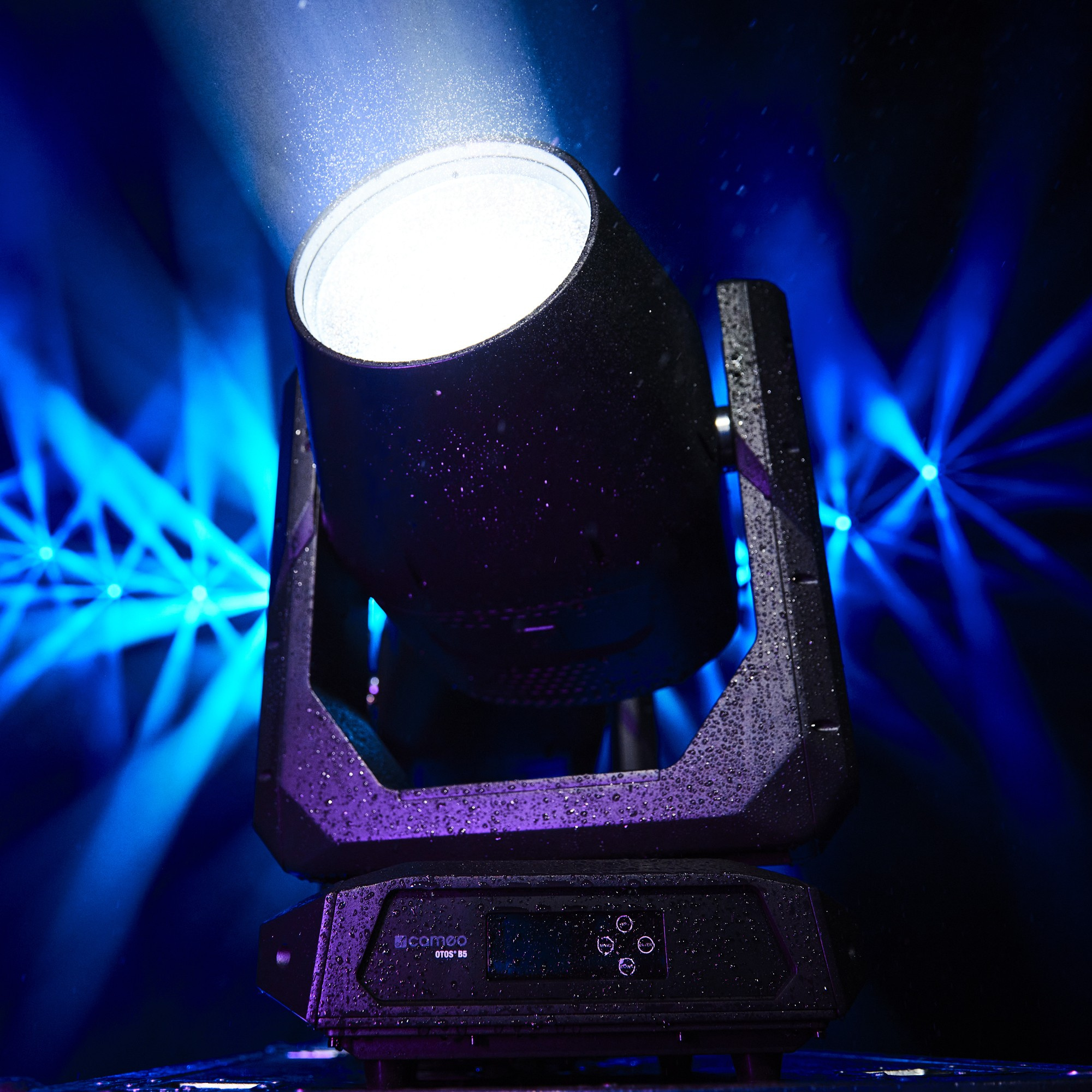

Razor-sharp, dazzlingly bright beams still characterise the appearance of modern lighting designs. With the OTOS® B5, you can create these expressive looks on any indoor or outdoor stage. The IP65- compliant beam moving head is a light-intensive powerhouse based on a 480 watt discharge lamp and delivers an illuminance of 11,500 lux at 100m. Via the high-quality optical system with 205 mm front lens, the OTOS® B5 shoots out its beams with an impressively narrow 1° beam angle and sets precise, assertive accents on concert and festival stages, in the context of outdoor events or in large TV show productions.

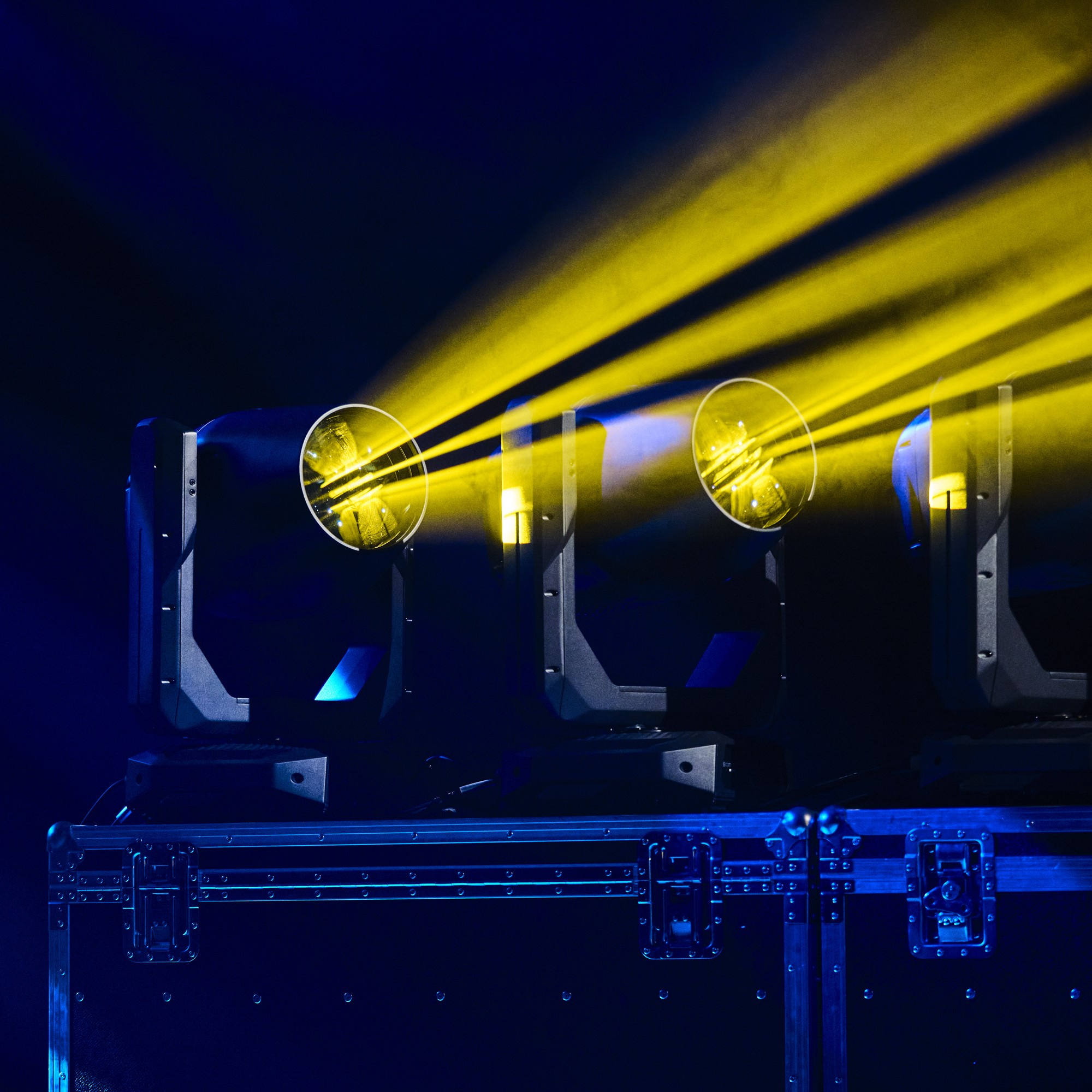

The effects section of the OTOS® B5 includes a static gobo wheel with 19 gobos + open and three rotatable and indexable prisms on two planes that allow you to create a variety of mid-air effects and add depth to your designs. You can also create a wide range of colours thanks to the CMY colour mixing and the additional colour wheel with 14 dichroic filters for particularly saturated colours.

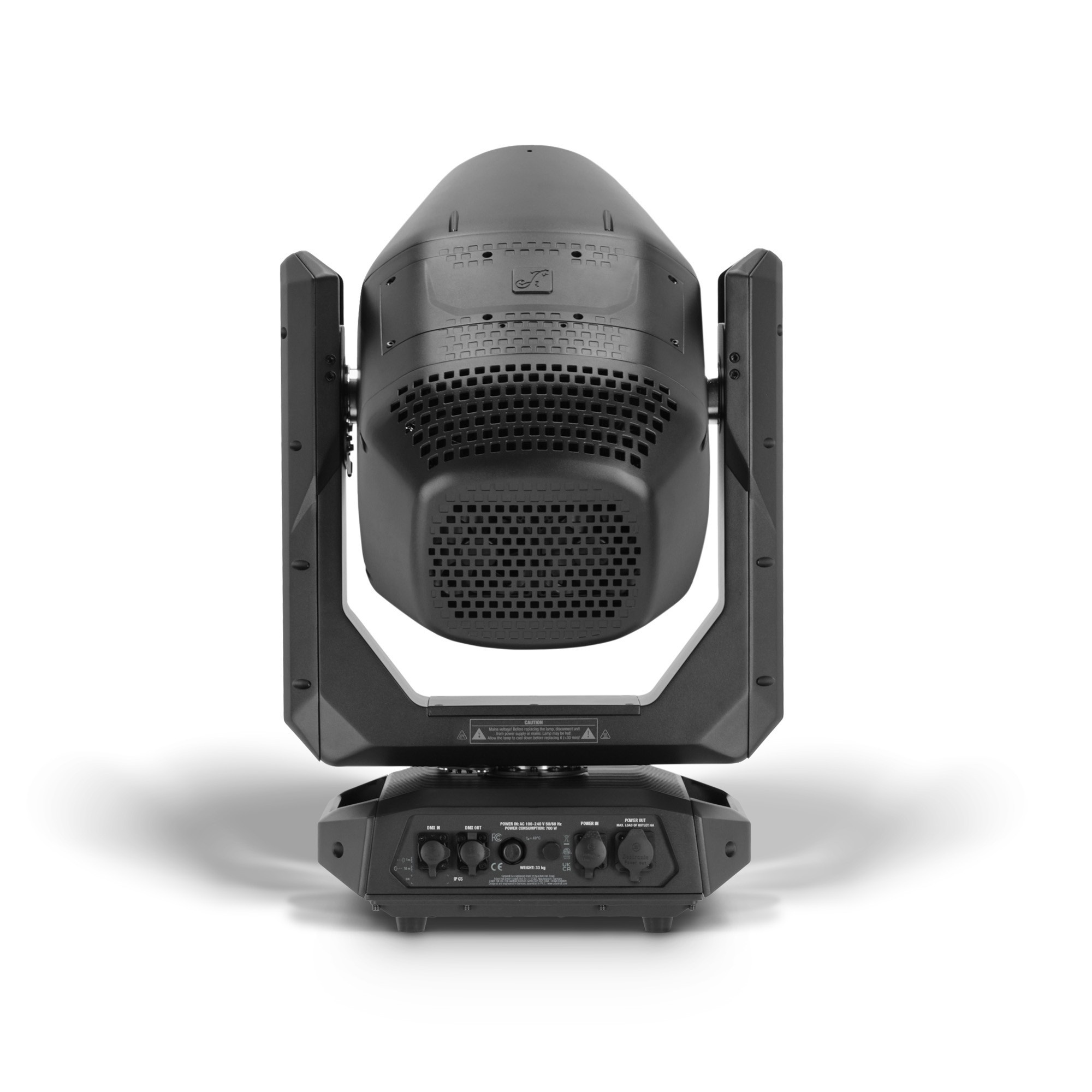

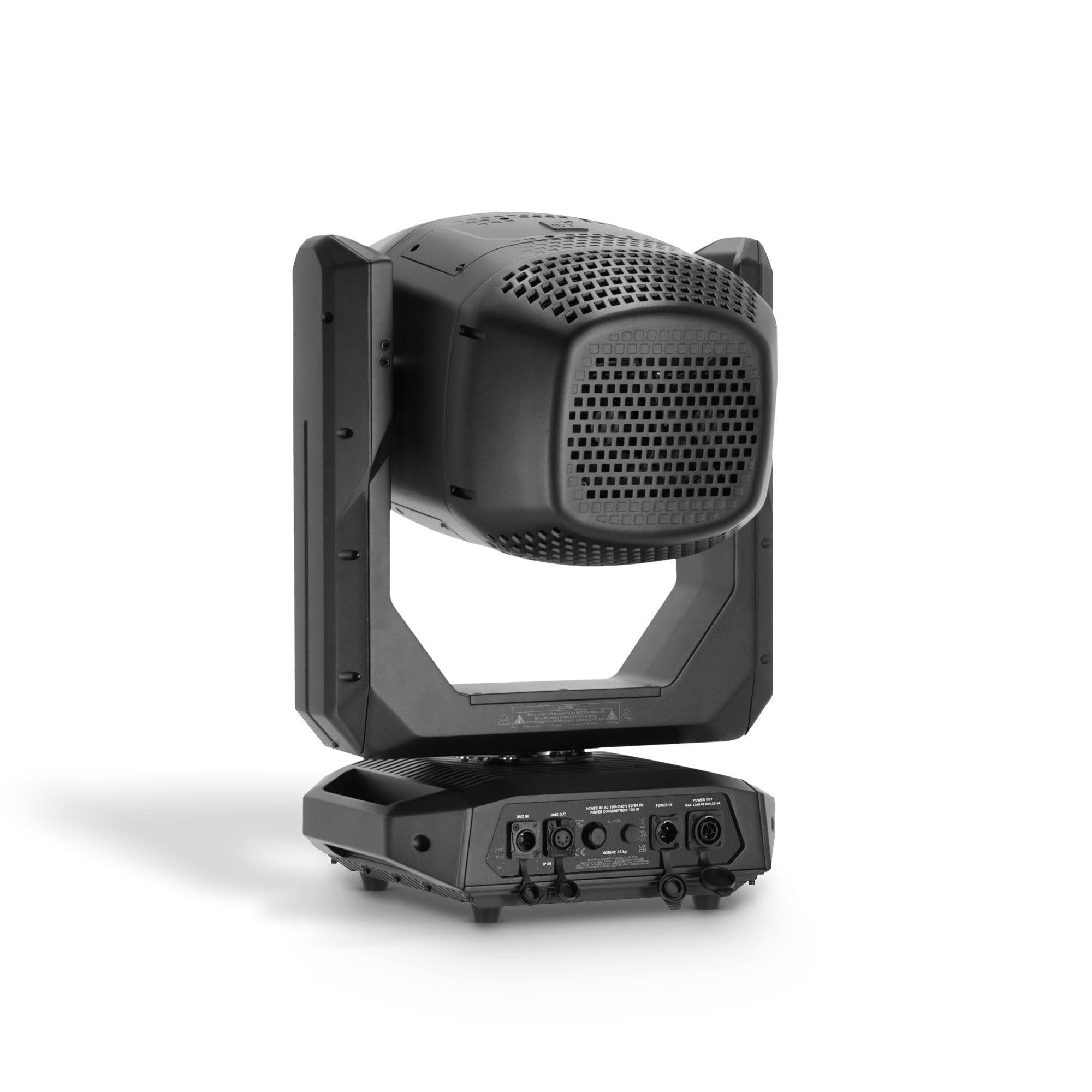

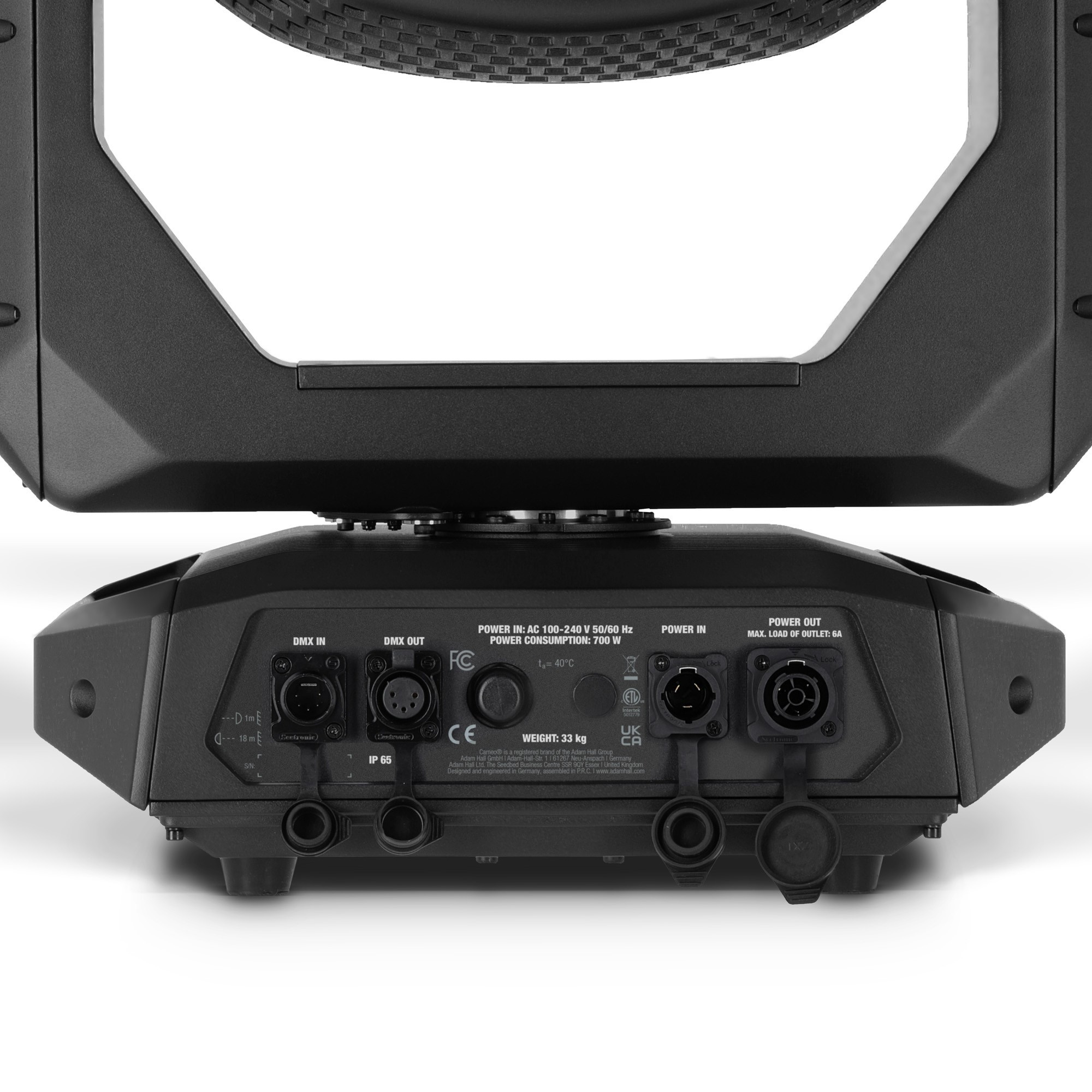

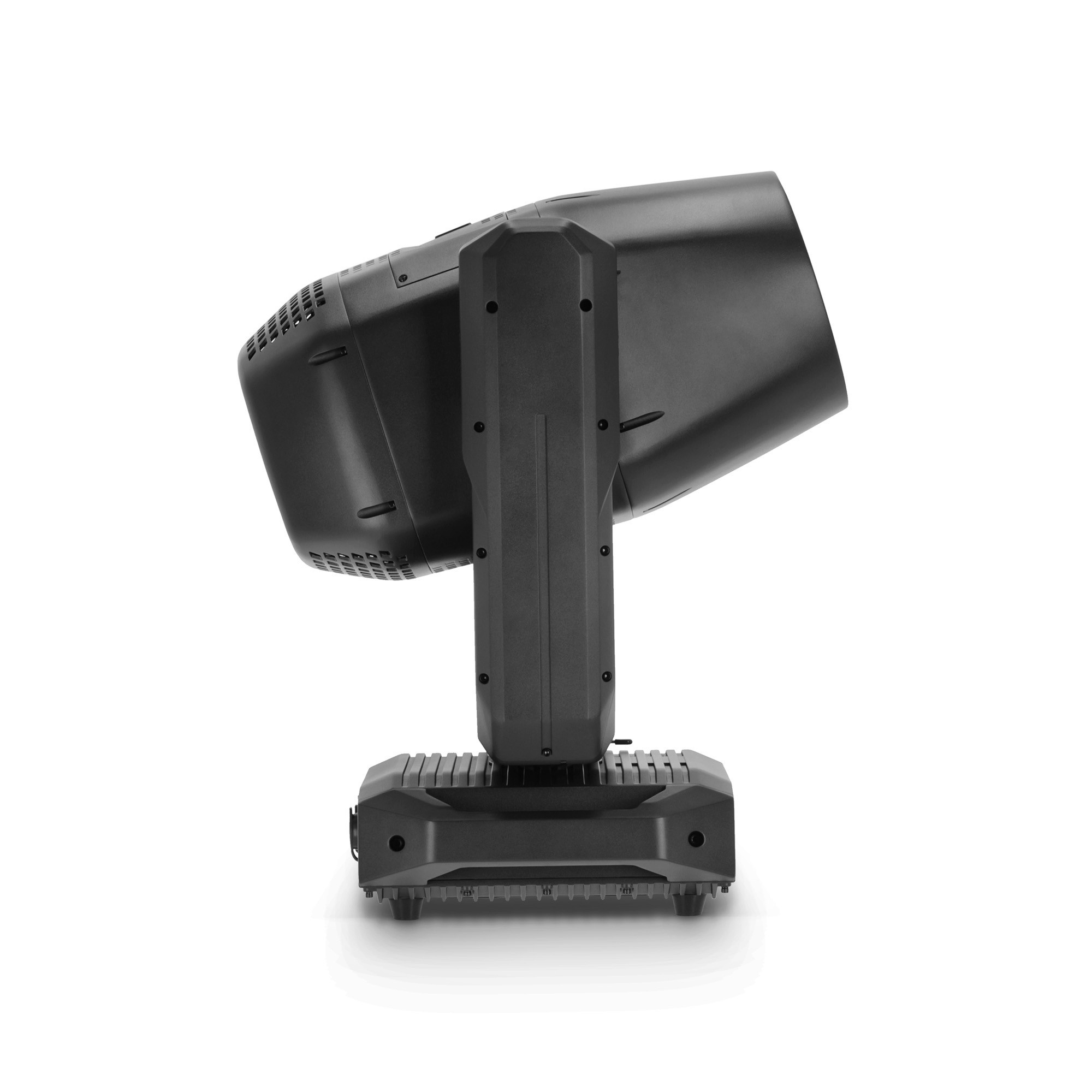

Apart from the specific front lens, the housing of the OTOS® B5 is identical in construction to the IP65 hybrid moving head OTOS® H5, which ensures a harmonious appearance in the rig or even in the flight case when both fixtures are used together. In addition, the complete OTOS® series can be controlled via DMX, RDM and W-DMX™ (integrated transceiver). With a weight of only 33 kg, the OTOS® B5 Beam Moving Head is one of the lightest representatives of its performance class.
Specifications:
Product type: Discharge Moving Lights
Type: IP65, Moving Head
Number of lamps: 1
Type Lamp: Signify MSD Silver 480 W
Operating time of illuminant at rated power: 1500 Hours
Maximum lifetime of illuminant: 3000 Hours
Color temperature: 6800 K
Colour spectrum: Cold white
Colour mixing function: CMY
Colour rendering index (CRI): 77
Color wheel Number of colors: 14 + open and continuous positioning
