Omnitronic ALT-105 Audio Link Module WAMS-05

Speaker Pairing Module

aplicabil pentru transmisia audio fără fir către unitățile de recepție ale altor sisteme WAMS-05 (mod link audio) sau ca înlocuitor
funcționare în banda UHF cu interferență scăzută (863-865 MHz) cu 16 frecvențe selectabile
lED-uri pentru purtător și semnal audio
ecran LCD
uHF 863 - 865 MHz Fără licență și aprobat în Europa

149⁴⁹ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

768 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

Omnitronic ALT-105 Audio Link Module WAMS-05 Add to cart: 149⁴⁹ €

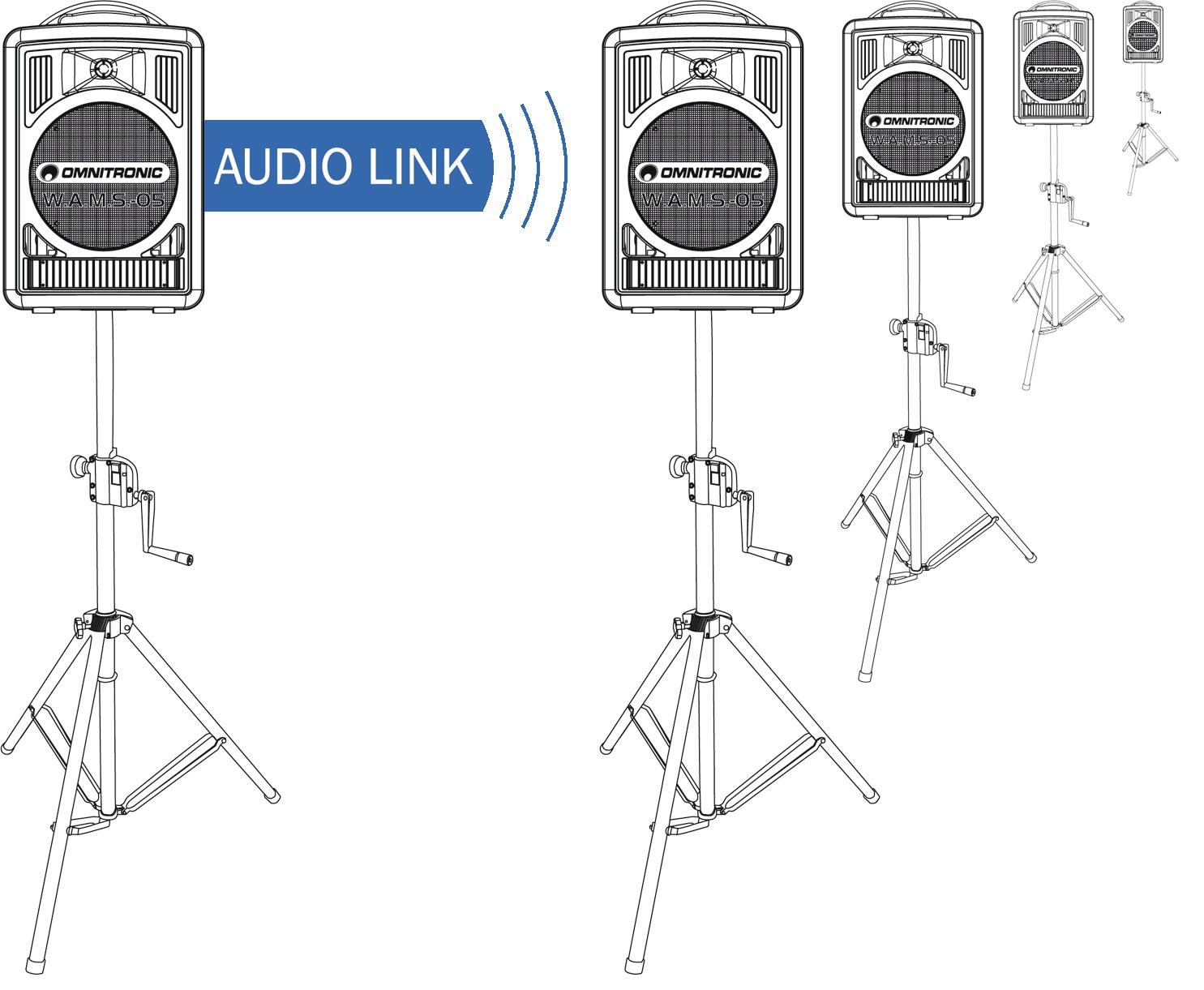

The multi-frequency transmitter ALT-105 serves as a spare part or an extension for the WAMS-05 PA system. The unit operates in the UHF range of 863.100 - 864.900 MHz. The frequency range is divided into 16 channels, which can be selected as desired. The transmitter module allows for the wireless transmission of the audio signal from the speaker system to the RM-105 receiver units of other WAMS-05 systems (audio link module). The unit is tuned to the frequencies of the receiver module.

Multi-frequency transmission unit for WAMS-05

Applicable for wireless audio transmission to the receiver units of other WAMS-05 systems (audio link module) or as a replacement
Operates in the UHF band with low interference (863-865 MHz) with 16 selectable frequencies
LEDs for carrier and audio signal
LCD display
UHF 863 - 865 MHz license-free and approved in Europe
Operating range up to 30 m

Type:	Audio transmission
Power supply:	12 V DC 150 mA
Frequency range:	70 - 16000 Hz
Display type:	LCD display
Display:	Channel, frequency
Control elements:	Level control
Input sensitivity:	130 mV
Frequency band:	UHF 863 - 865 MHz; UHF
RF output power:	10 mW
Range:	Operating range up to 30 m
Diversity:	True diversity
Dimensions:	Width: 8.8 cm Depth: 4.3 cm Height: 11 cm
Weight:	230 g
