Neumann Monitor Alignment Kit 1

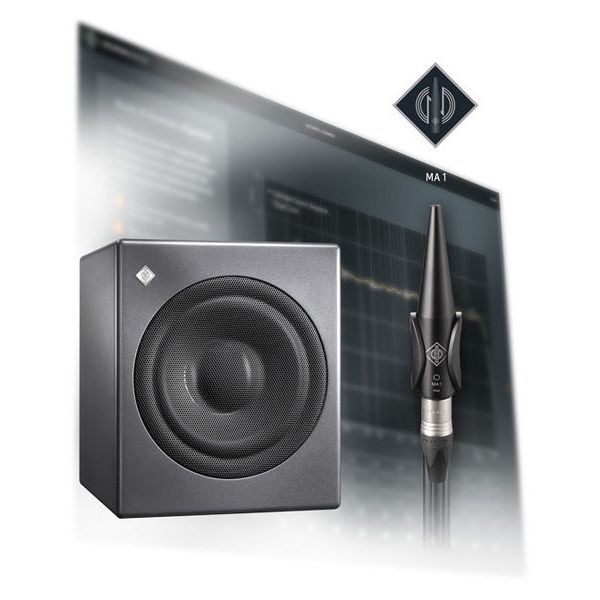

Neumann Monitor Alignment Kit 1 - Package consisting of Neumann KH 750 DSP șand Neumann MA 1.

Neumann KH 750 DSP

• Active studio subwoofer with DSP
• Equipped with: ultra-long excursion 10-inch woofer
• Power: 256 W
• Max SPL: 105.0 dB
• Frequency response: 18 - 750 Hz (+3 dB)
• 4 selectable different LFE modes
• Crossover frequency: 80 Hz
• Acoustic control with 8 fully parametric filters via the Neumann.Control app
• FIR phase correction for analog Neumann monitors connected via the Neumann.Control app or optional MA 1
• Switchable standby mode
• Analog inputs/outputs in XLR
• Digital inputs/outputs in BNC (75 Ohm, AES3)
• Optional control and configuration via the Neumann.Control iPad app
• Automatic calibration, including connected Neumann monitors via the optional MA 1 software (MAC/PC)
• Dimensions: 383 x 330 x 383 mm
• Weight: 19.5 kg

Neumann MA 1

• Automatic monitor alignment
• Calibration system for stereo settings with Neumann KH 80 DSP and all analog Neumann monitors (without DSP) in connection with the KH 750 DSP subwoofer
• Calibration algorithms developed together with Fraunhofer IIS
• Individually calibrated measurement microphone
• Adaptive room tuning curve
• Phase and amplitude optimisation for analog Neumann monitors
• Frequency range: 20 - 20,000 Hz
• Polar pattern: omnidirectional
• For Mac șand PC
• Dimensions (length x diameter): 117 x 23 mm
• Weight: 37 g
• System requirements: Windows 10 (64-bit) or macOS 10.13 / 10.14 / 10.15, audio interface with balanced analog input with 48 V phantom power and 2 balanced analog outputs or digital AES3 output (only KH 750 DSP), ASIO driver (for Windows), network switch
