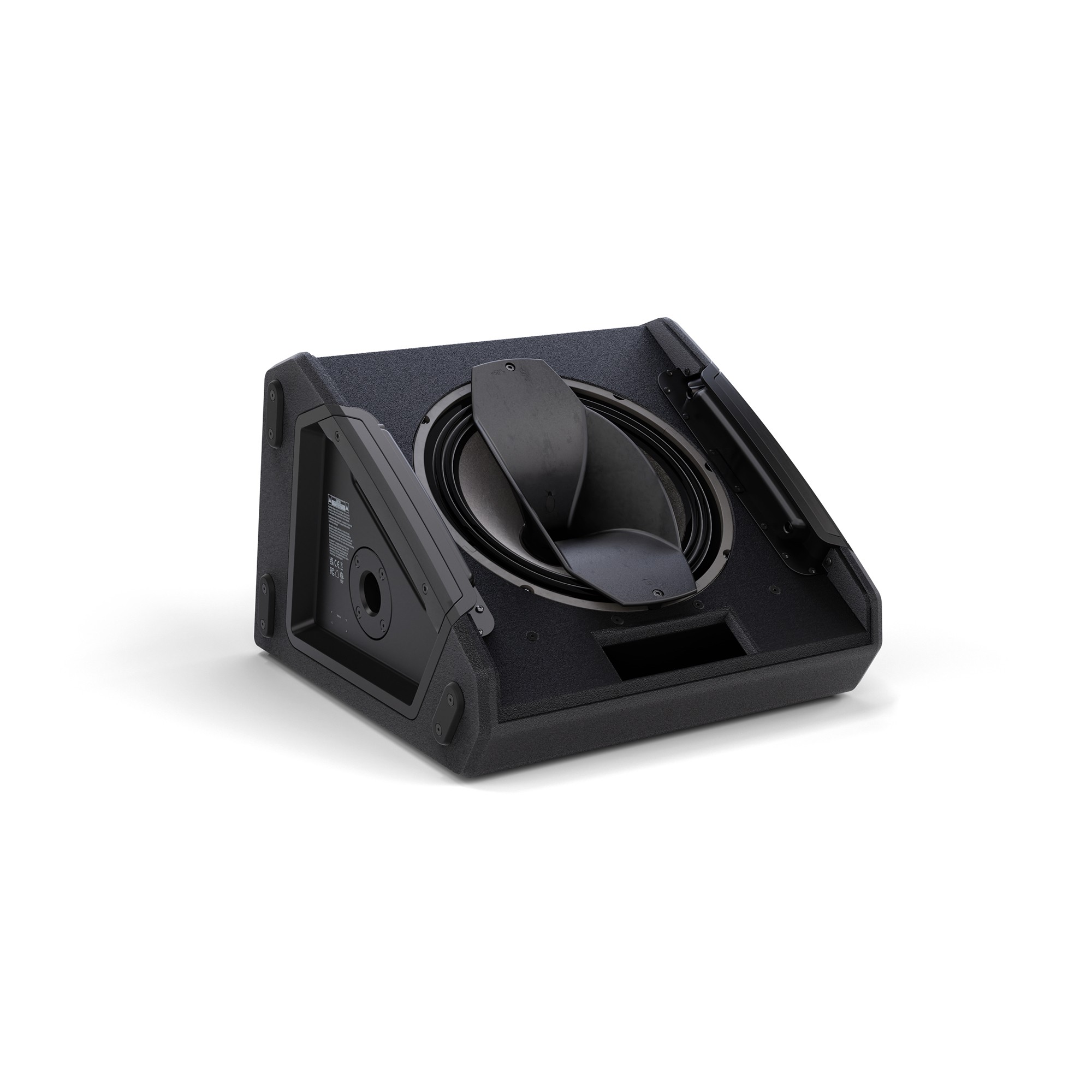

LD Systems MON 12 A G3

LD Systems MON 12 A G3 - The MON 12 A G3 is part of a newly developed family of powered stage monitors for high performance. The MON G3 series incorporates advanced technology and premium materials found in the latest generation of monitors typically rented by professionals, making this quality available to all. These include, for example, advanced coaxial speakers with an integrated CD horn of 50° x 90°, which ensure the ideal acoustic of a true point source and, therefore, remarkable audio characteristics even at short listening distances. In addition, the series offers a high level of robustness, a comprehensive set of features, and the elegant design of LD Systems.

A maximum sound pressure level of 127 dB and superior bass reproduction make the MON 12 A G3 the best choice for stages with loud bands. For a 12-inch stage monitor, it is unusually compact and elegant, so despite its impressive performance data, it harmoniously blends into the stage decor.

Both the signal (combo XLR/jack) and the power connection (compatible with PowerCON) can be looped through. This allows for neat and tidy cabling in multi-monitor setups or for reinforcing distributed sound.

Technical Specifications:

• System Power (RMS): 300 W
• System Power (peak): 1200 W
• Max. SPL average (sinusoidal burst): 120 dB (100 Hz - 12 kHz, full space at 1 m, 10% THD)
• Max. Peak SPL (sinusoidal burst): 127 dB (full space @1m, 10% THD)
• Frequency response (-3 dB): 68 - 18,000 Hz
• Frequency response (-10 dB): 55 - 20,000 Hz
• Crossover frequency: 1400 Hz
• Monitor angle 33°:
• Dispersion (H x V): 50° x 90°
• Dimensions: 425 x 453 x 315 mm
• Features 3-band EQ (High, Mid, Low), Delay line, Notch filter
• Weight: 17.4 kg
• Low/mid woofer:
  • Low/mid woofer size: 12"
  • Woofer magnet: Ferrite
  • Coaxial speaker
  • Woofer voice coil: 2.5"
  • Cabinet construction: Bass Reflex
  • Cabinet material: 15 mm birch plywood, 15 mm MDF
• HF:
  • Horn: CD Horn
  • Tweeter size: 1"
  • Tweeter magnet: Ferrite
  • Tweeter voice coil: 1.75"
• Amplifier module (integrated):
  • Amplifier: Class D
  • Protection circuits: Multiband limiter, overvoltage, overcurrent, thermal overload
  • Operating temperature: 0 - 40 °C
  • Humidity range: < 80 % (without condensation)
  • Fuse: T4AL 250 V
  • Controls: On/off switch, rotary/push encoder
  • Indicators: LCD display
  • Operating voltage: SMPS
  • Working voltage: 100 V AC - 240 V AC, 50 - 60 Hz
  • Power consumption: 150 W
  • Input/output: PowerCON compatible
  • Line inputs: 2
  • Line input connectors: 6.3 mm jack, XLR - combo
  • Line thru: 2
  • Line thru connector: XLR
