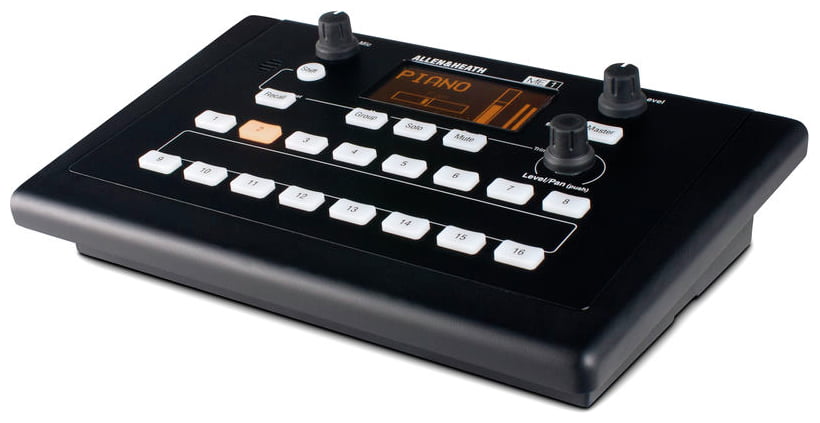

Allen&Heath ME-1

Allen&Heath ME-1 - personal monitoring mixer that allows the configuration of monitoring settings for one person in a monitoring system, ideal for live situations, prayer houses, rehearsal rooms or studios, conference rooms, etc. The mixer can receive input signals from 40 sources via a CAT5 cable (sold separately), from the main console (sold separately), and allows mixing these signals and transmitting the created mix to headphones, in-ear monitors, speakers or other monitoring devices through outputs with 3.5mm or 1/4" jack connectors.

The mixer offers a very simple and intuitive user interface, clear visual feedback, and a customizable naming system. It can be used together with Allen & Heath iLive and GLD digital mixers, and the ME-U Hub monitoring hub. It is also compatible with Aviom Pro16. It features 16 illuminated assignable buttons, local microphone volume control, master volume control, a pan encoder, 16 user presets, an OLED display, and supports up to 40 input signal sources. It allows mounting on a microphone stand via the included mount, provides a headphone output with mini jack and 6.3 mm connectors, and is powered by the included power supply or PoE. Additionally, it has a USB port for firmware updates and an AUX input with a mini jack connector.

• Dimensions 225 x 150 x 55 mm
• Weight 0.9 kg
