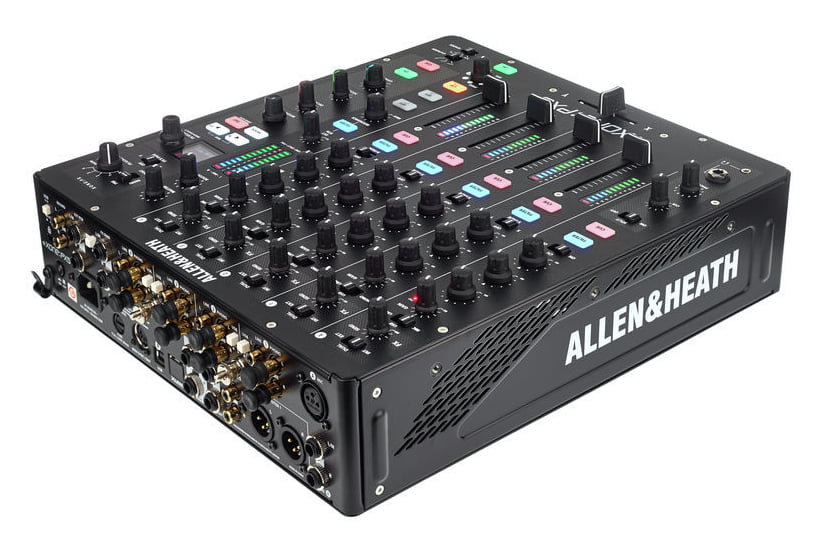

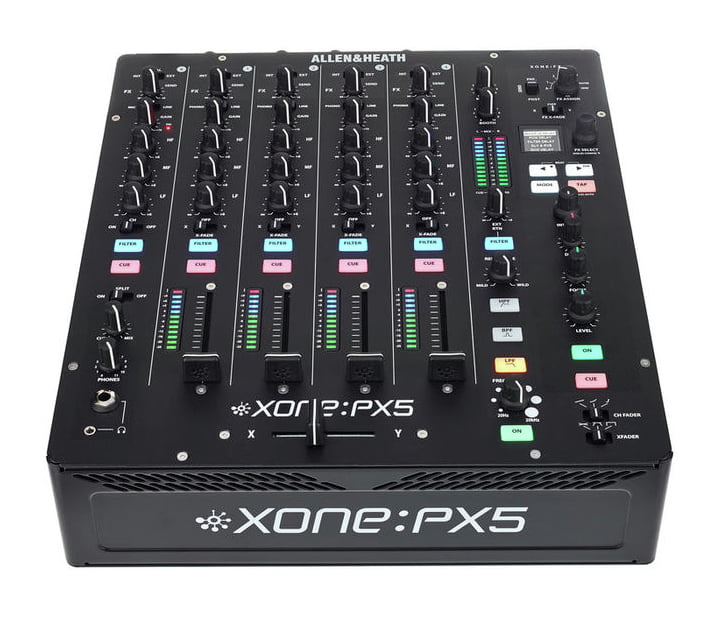

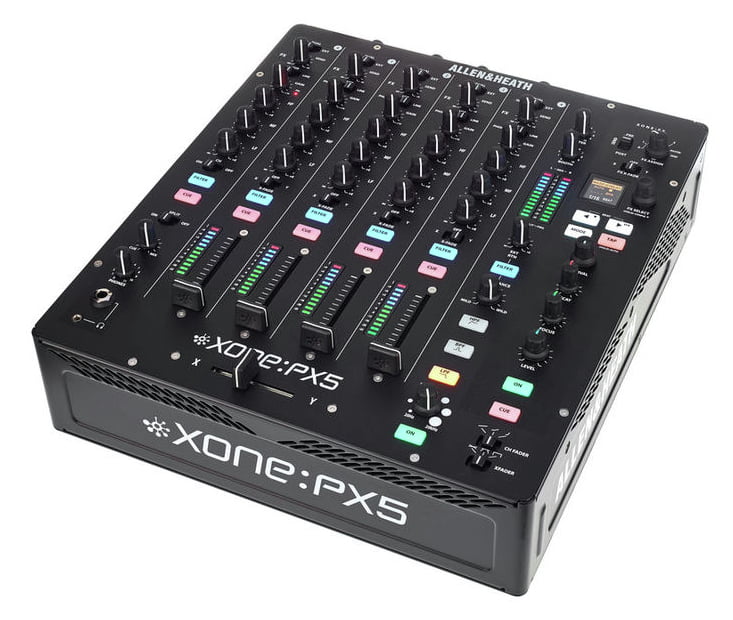

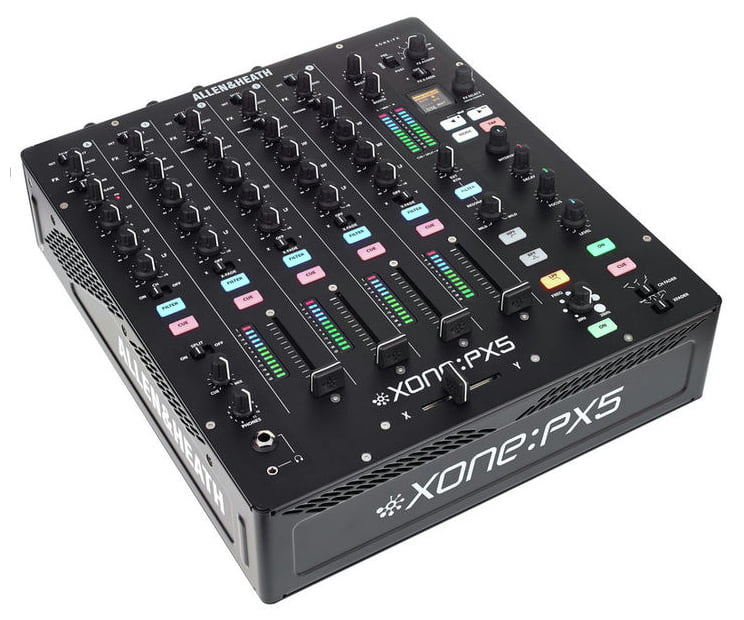

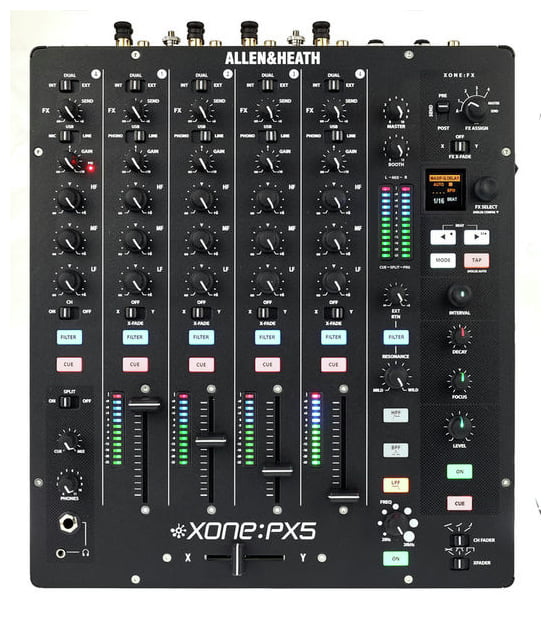

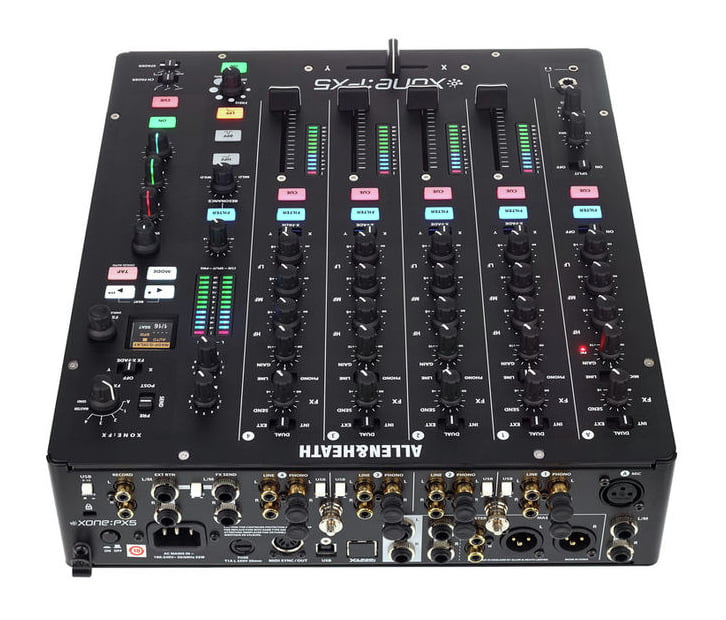

Allen&Heath XONE:PX5 - DJ mixer with 4+1 channels featuring an integrated sound card, XONE analog filter with resonance control, 3-band EQ, VCA crossfader with replaceable option, and X:FX send/return. The built-in FX technology offers new levels of manipulation thanks to the XONE:Xcite FX suite, which provides performance-focused effects such as delay, reverb, modulation, flanger, and distortion, all assignable via hands-on controls for fine-tuning FX effects.

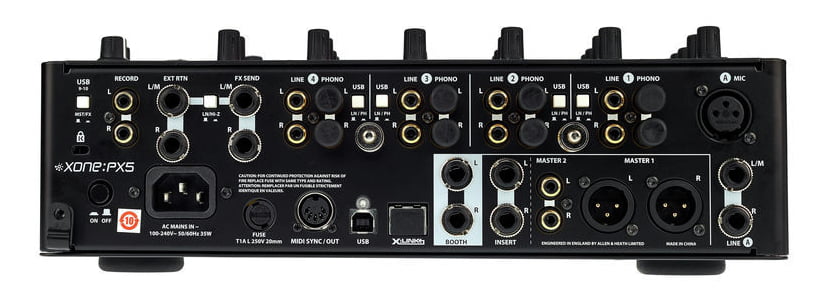

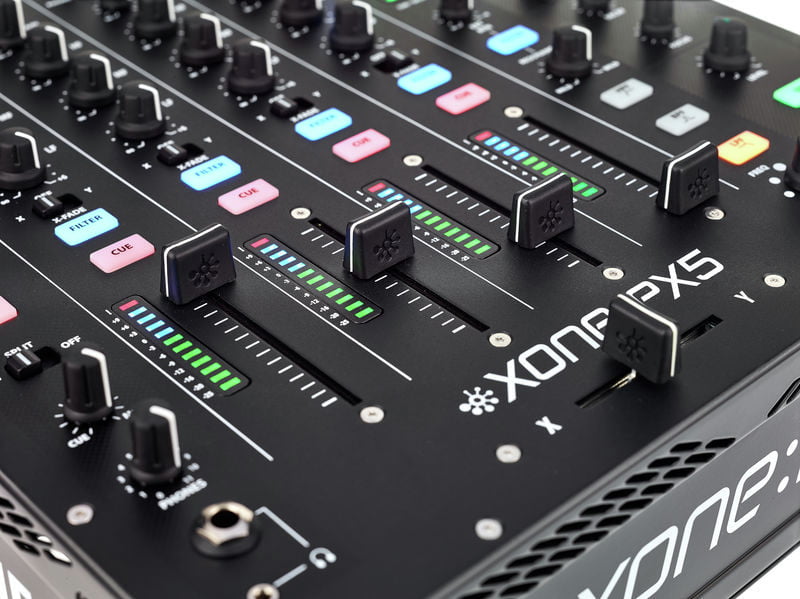

The XONE filter includes selections for high pass, band pass, and low pass filters, resonance control, and frequency sweep. Additionally, X:FX can be routed to the filter to add layers of FX and filtering. The crossfader offers 3 settings for blending and scratching styles, compatible with the custom Innofader. Channel A features a microphone preamplifier and a 3-band EQ, and can be used as an additional auxiliary input via 1/4" stereo jack connectors. The mixer provides main outputs with XLR connectors, independent booth outputs with 1/4" jack connectors, and record outputs with RCA connectors, as well as a stereo master insert with 1/4" jack connectors.
The XONE:PX5 mixer incorporates a professional USB audio interface with 20 channels (10 in / 10 out) for integration into digital DJ workflows, while the X:Link option allows for plug-and-play connectivity to XONE:K series controllers for extended MIDI control. The mixer is delivered with a power cable.
Technical Specifications:
Type: Analog
Channels: 4+1
Equalization: 3-band / total kill (CH 1-4 + CH A)
Sound Card:
USB sound card with 20 channels (10 in / 10 out)
USB2 / Class Compliant
24 bit / 96 kHz
1 x MIDI IN
1 x MIDI Out
Inputs:
Line inputs: 4x RCA stereo (CH 4), 2x 1/4" / 6.35 mm TRS (CH A) Mono/Stereo
