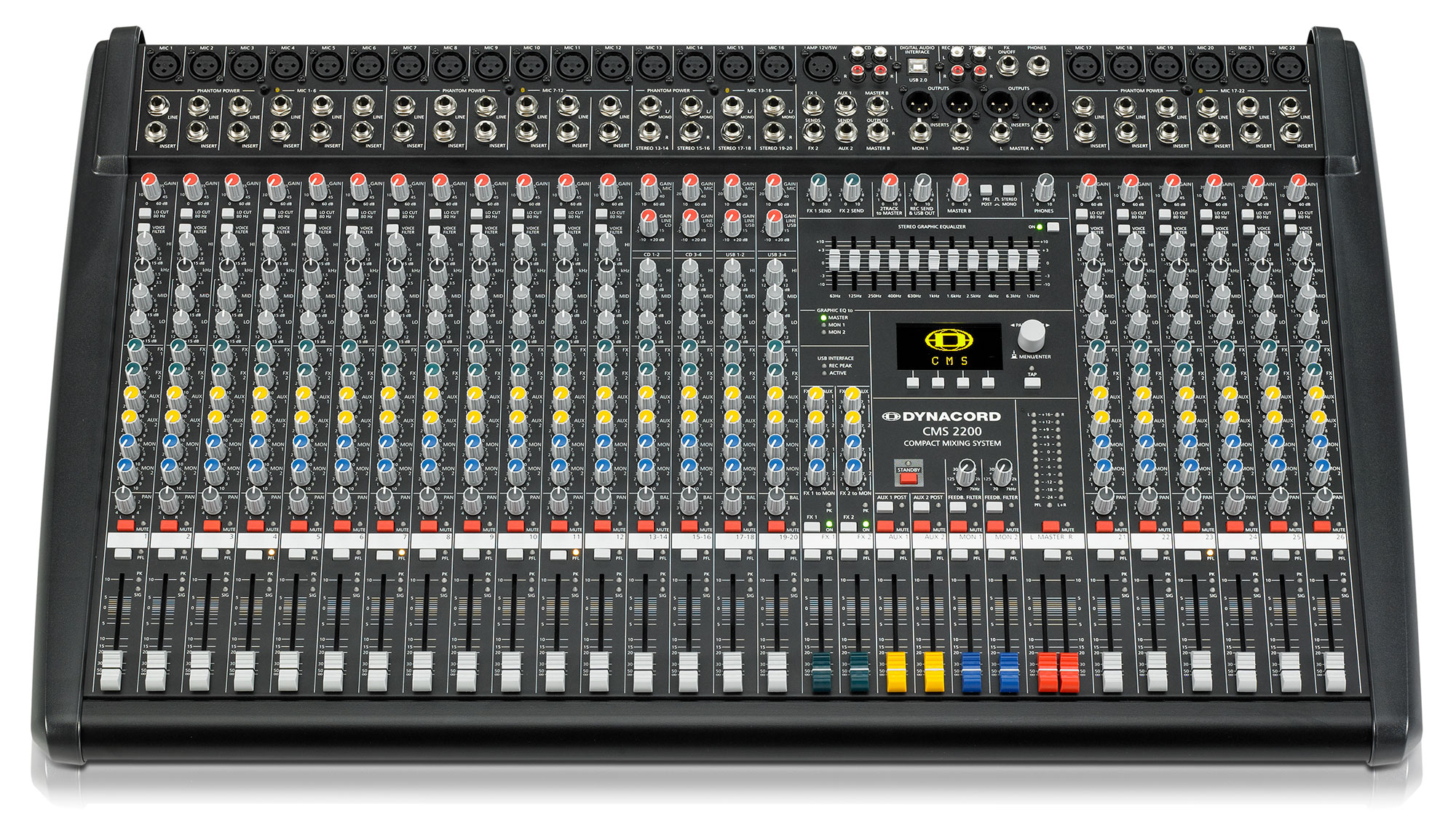

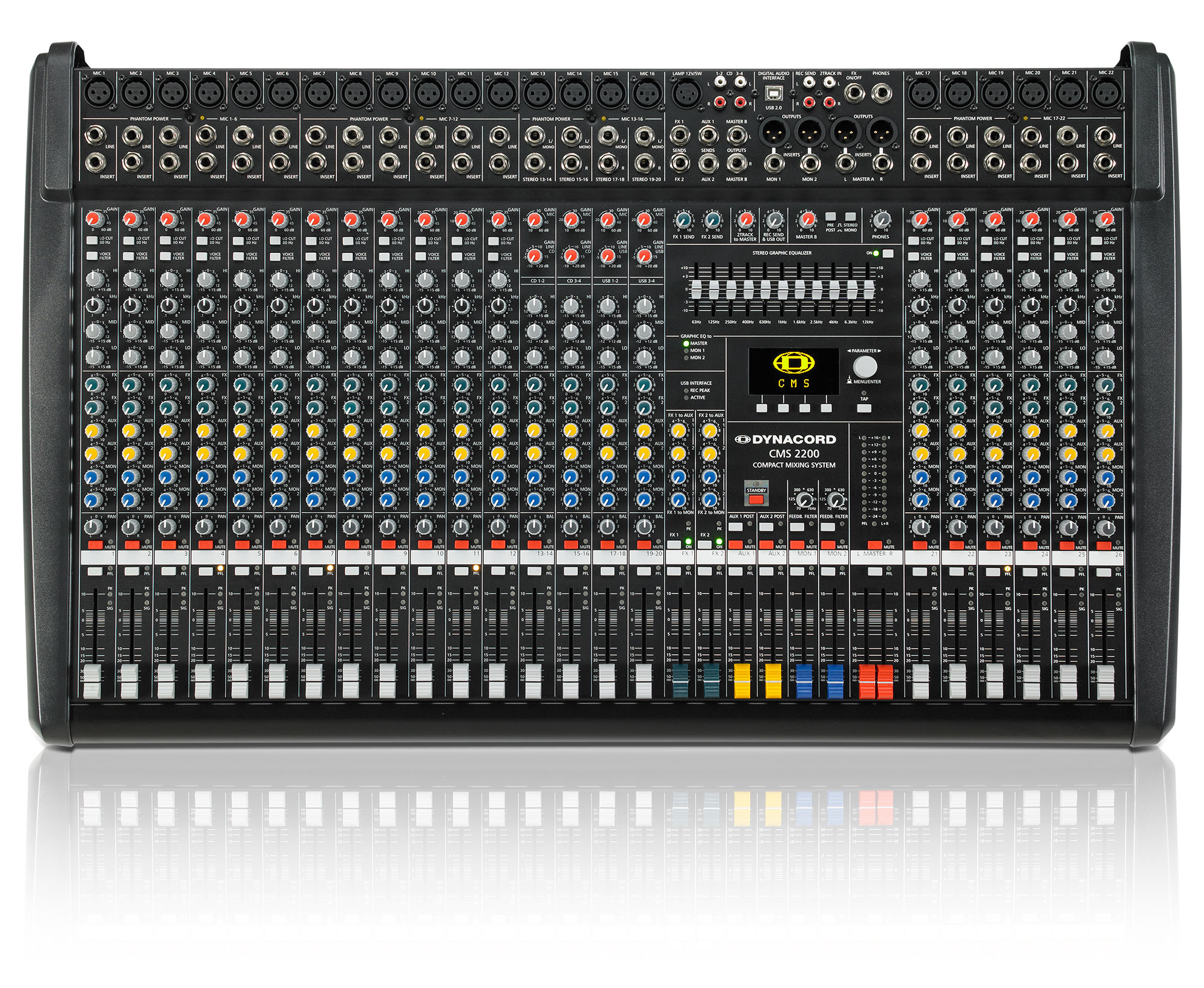

The professional mixing console Dynacord CMS 2200-3 features 22 channels, 18 mono microphone/line channels and 4 stereo/microphone channels, a dual effects processor with 100 factory programs and 20 user programs. The CMS 2200-3 mixer is ideal for any professional application, whether live or in the studio. Gain control is provided by high-quality potentiometers ensuring a range of 60 dB. It also includes filters for vocals, phantom power at +48V, 6 auxiliary channels, a USB interface, and much more.
- channels: 18 mono + 4 stereo
- auxiliary (MON, FX, AUX): 2 Pre, 2 Post, 2 Pre/Post switchable
- microphone gain (mono/stereo): 0 to +60dB / +10 to +60dB
- line/CD/USB gain (stereo): -10 to +20dB
- harmonic distortion THD at 1 kHz, MBW = 80 kHz: less than 0.005%
- frequency response -3 dB, ref. 1 kHz: 15 Hz - 70 kHz
- inter-channel crosstalk at 1 kHz: less than -80dB
- Fader and FX/AUX/MON-Send attenuation > 85 dB
- Channel to Channel < -80 dB
- input sensitivity (with level controls at maximum) MIC / LINE (Mono) / LINE (Stereo) / CD (Stereo): -74 dBu (155 μV) / -54 dBu (1.55 mV) / -34 dBu (15.5 mV) / -34 dBu (15.5 mV)
- maximum level: microphone inputs +21dBu; mono line/stereo inputs +41 dBu / +30dBu; other inputs and outputs: +22dBu
- equivalent input noise, microphone input 150 Ohms: -130dBu
- EQ on channels: low ±15dB/60Hz; mid mono ±15dB/100Hz-8kHz; mid stereo ±12dB/2.4kHz; high ±15dB/12kHz
- master EQ on 11 bands ±10dB: 63, 125, 250, 400, 630, 1k, 1.6k, 2.5k, 4k, 6.3k, 12k Hz
- low cut filter at 80Hz, 18dB/octave
- switchable voice filter
- feedback filter, MON 1/2: 70Hz - 7kHz, Notch, -9dB
- dual effects processor on 24/48 bits
- effects: 100 factory + 20 user, Tap-Delay
- display: 128 x 64 px OLED
- integrated digital audio interface with USB connection: 4 inputs/ 4 outputs, 24-bit AD/DA converter, sampling rates 44.1/48/88.2/96kHz
- integrated MIDI interface
- switchable phantom power on groups +48V
- dimensions: 818.5 x 155 x 498.5 mm
- weight: 14.5 kg
- made in Germany
