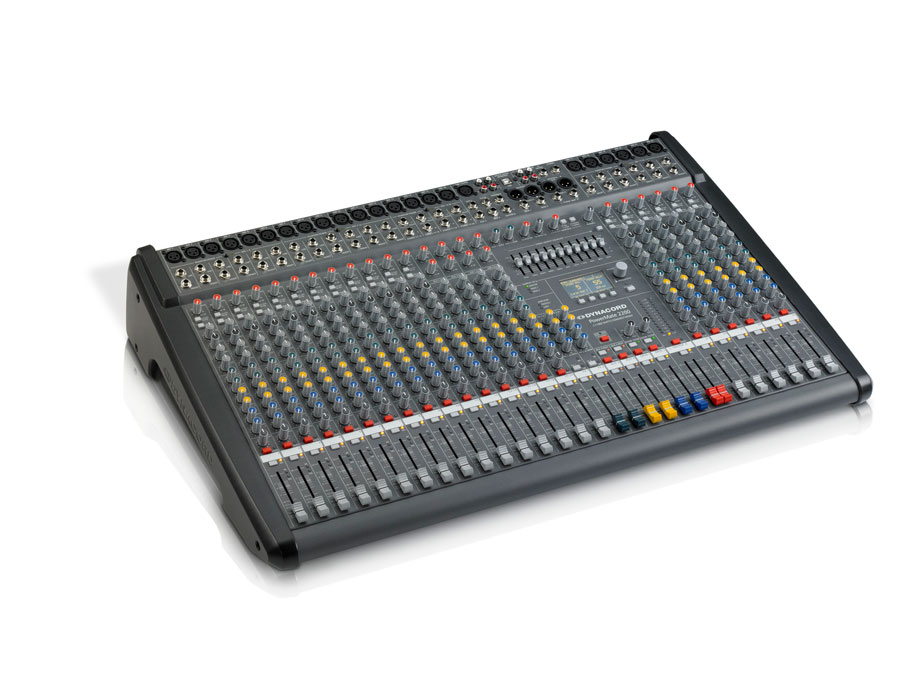

Dynacord PowerMate 2200-3

Dynacord PowerMate 2200-3, mixer with 22 channels, built-in power of 2x1000W and integrated USB audio interface. The knowledge gained through decades of development and research is incorporated into this line of powered mixers. In a compact, ergonomic, and well-thought-out form, the PowerMate series is available for a wide range of application situations.

• channels: 18 Mic/Line + 4 Mic/Line-stereo
• power: 2 x 1000W 4 Ohm; 2 x 600W 8 Ohm, Class D amplification
• distortion: MIC to Master < 0.005%; amplifier inputs to speakers > 0.075%
• signal-to-noise ratio: 105 dB
• EQ: Low shelving +/- 15 dB / 60 Hz; mid peak stereo inputs +/- 12 dB / 2.4 kHz; high shelving +/- 15 dB / 12 kHz
• master EQ on 11 bands: 63, 125, 250, 400, 1k, 1.6k, 2.5k, 4k, 6.3k, 12k Hz
• low-cut filter: f=80 Hz, 18 dB/oct
• voice filter, feedback, mono 1/2: 70 Hz .. 7 kHz, Notch, -9 dB
• display: OLED
• effects processor: dual stereo 24/48 bit
• effects presets: 100 pre-installed + 20 user, Tap-Delay
• integrated audio interface with 4 inputs and 4 outputs
• AD/DA conversion: 24 bit
• sampling rate: 44.1 / 48 / 88.2 / 96 kHz
• computer connection via USB
• MIDI IN/OUT
• switchable phantom power per group
• integrated protections: audio limiters, temperature, short-circuit, peak, current limiters
• included software Cubase LE
• dimensions: 818.5 x 155.0 x 498.5
• weight: 18 kg
• transport case included
