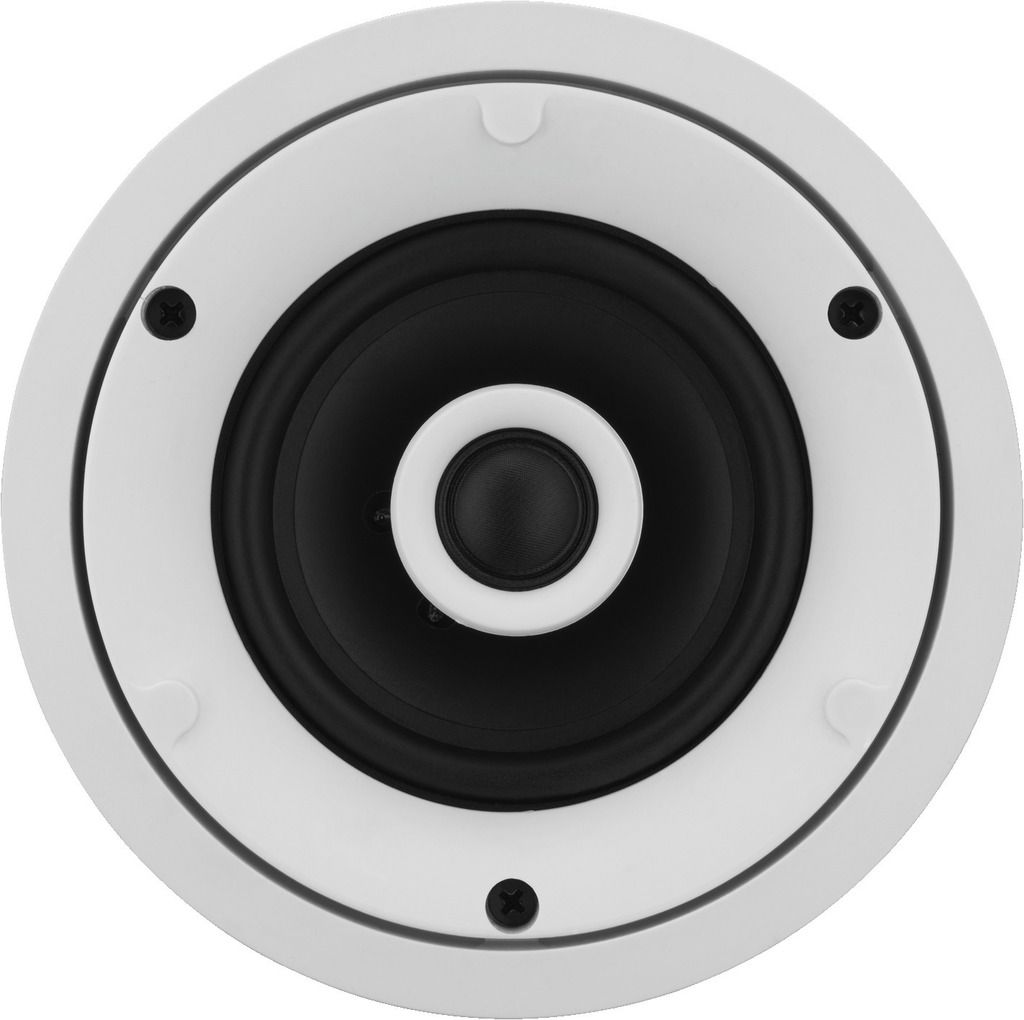

Monacor EDL-42HQ

Monacor EDL-42HQ - Wall and ceiling hi-fi speaker, 15 W.

Features:

• 100 V line technology or 8 Ω operation
• Power taps: 100 V (8/4/2/1 W)
• 2-way version with coaxial dome tweeter
• 10 cm (4") bass speaker with waveguide and 20 mm (3/4") silk dome
• Excellent sound characteristics
• Supplied with 2 elegant metal protection grilles for an individual look
• Magnetically attached protective grille
• For wall/ceiling thickness from 8 to 30 mm

Technical Specifications:

• Impedance (Z): 8 Ω
• Transmission technology: 100 V or low impedance
• Frequency range: 70 - 20,000 Hz
• Resonance frequency (fs): 70 Hz
• Nominal power (RMS): 15 W (8 Ω) 8/4/2/1 W (100 V)
• Maximum music output power (MAX): 30 W
• SPL: 85 dB/W/m
• Max. rated SPL: 96 dB
• Mounting cut-out: Ø 141 mm
• Mounting depth: 69 mm
• Dimensions:
  • Width: Ø 158 mm
  • Depth: 72 mm
  • Outer diameter: Ø 158 mm
  • Packaging dimensions (L x H x L): 0.174 x 0.085 x 0.174 m
• Colour: white
• Ambient temperature range: 0 - 40 °C
• Speaker type: 100
• Weight: 0.930 kg
• Gross weight: 1.08 kg
• Net weight: 0.945 kg
