Neumann MCM 114 Set High Strings

The Neumann MCM 114 Set High Strings gooseneck microphone system is designed to be mounted on violins, violas, mandolins, or other similar musical instruments. The microphone capsule delivers remarkable performance in capturing a clear and detailed sound.

.

Neumann MCM 114 is a microphone set for recording violins, violas, mandolins, and other similar string instruments. The equipment is an excellent technical solution for capturing the detailed and clear sound of these instruments. The set includes an instrument microphone with a miniaturized capsule, a mounting system with a clip, and a gooseneck support.

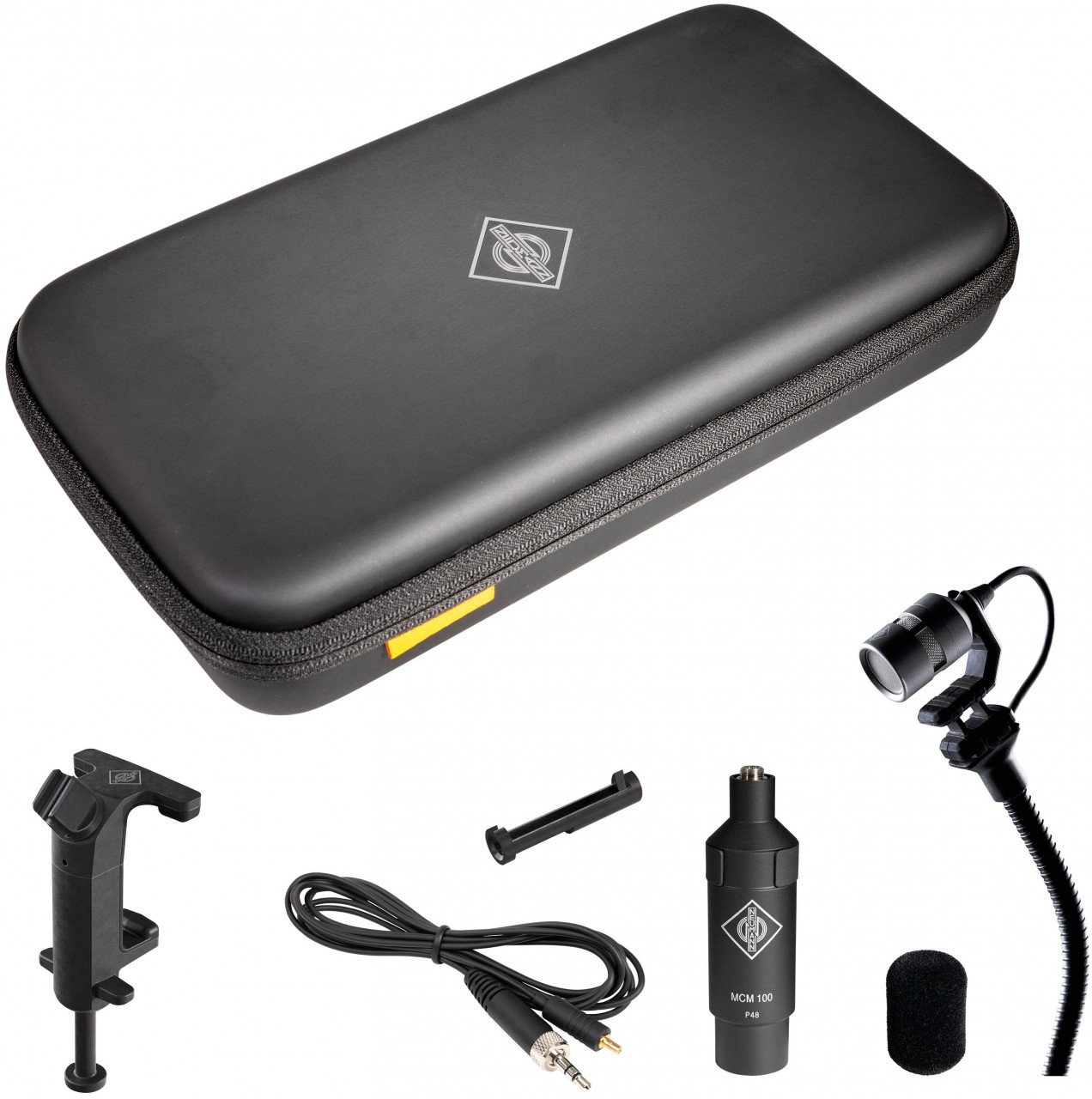

Included accessories:

• Neumann KK 14 - Microphone capsule
• Neumann SH 150 - Gooseneck support
• Neumann MCM 100 - Output stage with XLR adapter
• Neumann WS 110 - Soft windscreen for microphone
• Neumann AC 31 - Mini-jack 1.8 mm cable
• Neumann MC 1 - Microphone support for small string instruments compatible with violin, viola, mandolin, and other similar instruments
• Neumann KC 1 - Cable support
• Neumann Softcase - Transport case

Microphone specifications:

• Acoustic operating principle: Pressure gradient transducer
• Directional pattern: Cardioid
• Frequency range: 20 Hz - 20 kHz
• Sensitivity at 1 kHz in 1 kOhm: 3.6 mV/Pa ≅ -49 dBV
• Nominal impedance: 50 Ohms (MCM 100)
• Nominal load impedance: 1000 Ohms
• Equivalent noise level, CCIR: 31 dB
• Equivalent noise level, A-weighted: 23 dB
• Max SPL for THD 0.5%: 153 dB
• Signal-to-noise ratio, CCIR (ref. 94 dB SPL)¹⁾: 63 dB
• Signal-to-noise ratio, A-weighted (ref. 94 dB SPL)¹⁾: 71 dB
• Maximum output voltage: 12 dBu
• Capsule connector: XLR 3 F
• Operating temperature: 0 °C - +40 °C
• Operating humidity: 0 % - 75 % relative humidity
• Storage temperature: -20 °C - +70 °C
• Storage humidity: 0 % - 95 % relative humidity
