Neumann MCM 114 Set Bass

The Neumann MCM 114 Set Bass is a microphone system designed to produce excellent resolution in recordings of acoustic instruments. With a compact profile and a mounting system specially designed for double bass, the Neumann MCM 114 is recommended for both live performances and studio recordings.

.

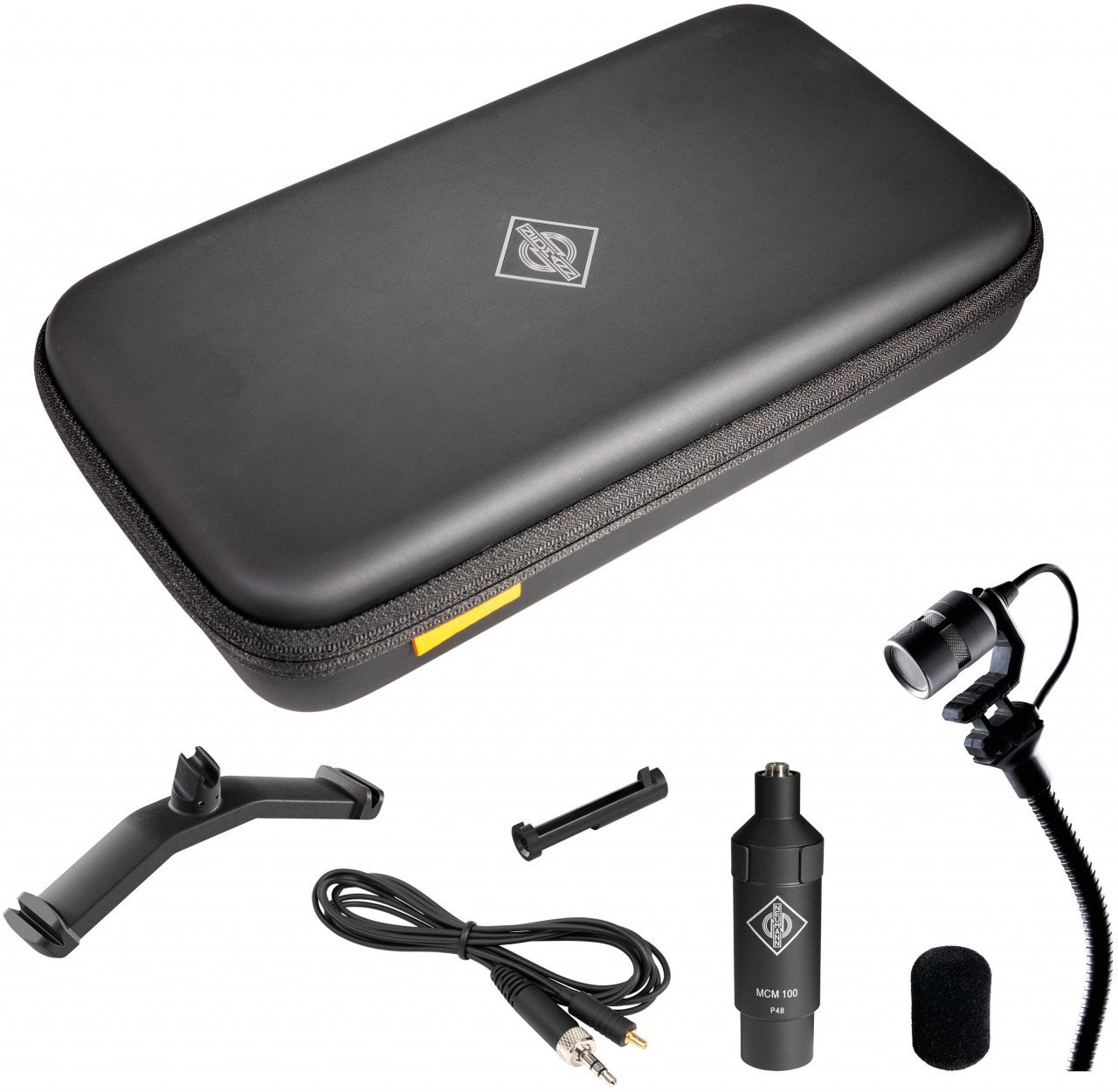

The Neumann MCM 114 is an ideal microphone set for recording the double bass. The equipment is an excellent technical solution for capturing the detailed and clear sound of this instrument. The set includes an instrument microphone with a miniaturised capsule, an instrument mounting system with a clip, and a gooseneck support.

Included Accessories:

• Neumann KK 14 - Microphone capsule
• Neumann SH 150 - Gooseneck support
• Neumann MCM 100 - Output stage with XLR adapter
• Neumann WS 110 - Soft windscreen for microphone
• Neumann AC 31 - Mini-jack 1.8 mm cable
• Neumann MC 3 - Microphone stand compatible with double bass
• Neumann KC 1 - Cable holder
• Neumann Softcase - Transport case

Microphone Specifications:

• Operating principle: Pressure gradient transducer
• Directional pattern: Cardioid
• Frequency range: 20 Hz - 20 kHz
• Sensitivity at 1 kHz in 1 kOhm: 3.6 mV/Pa ≈ -49 dBV
• Nominal impedance: 50 Ohms (MCM 100)
• Nominal load impedance: 1000 Ohms
• Equivalent noise level, CCIR: 31 dB
• Equivalent noise level, A-weighted: 23 dB
• Max SPL for THD 0.5%: 153 dB
• Signal-to-noise ratio, CCIR (ref. 94 dB SPL)¹⁸: 63 dB
• Signal-to-noise ratio, A-weighted (ref. 94 dB SPL)¹⁸: 71 dB
• Max output voltage: 12 dBu
• Capsule connector: XLR 3 F
• Operating temperature: 0 °C - +40 °C
• Operating humidity: 0 % - 75 % relative humidity
• Storage temperature: -20 °C - +70 °C
• Storage humidity: 0 % - 95 % relative humidity
