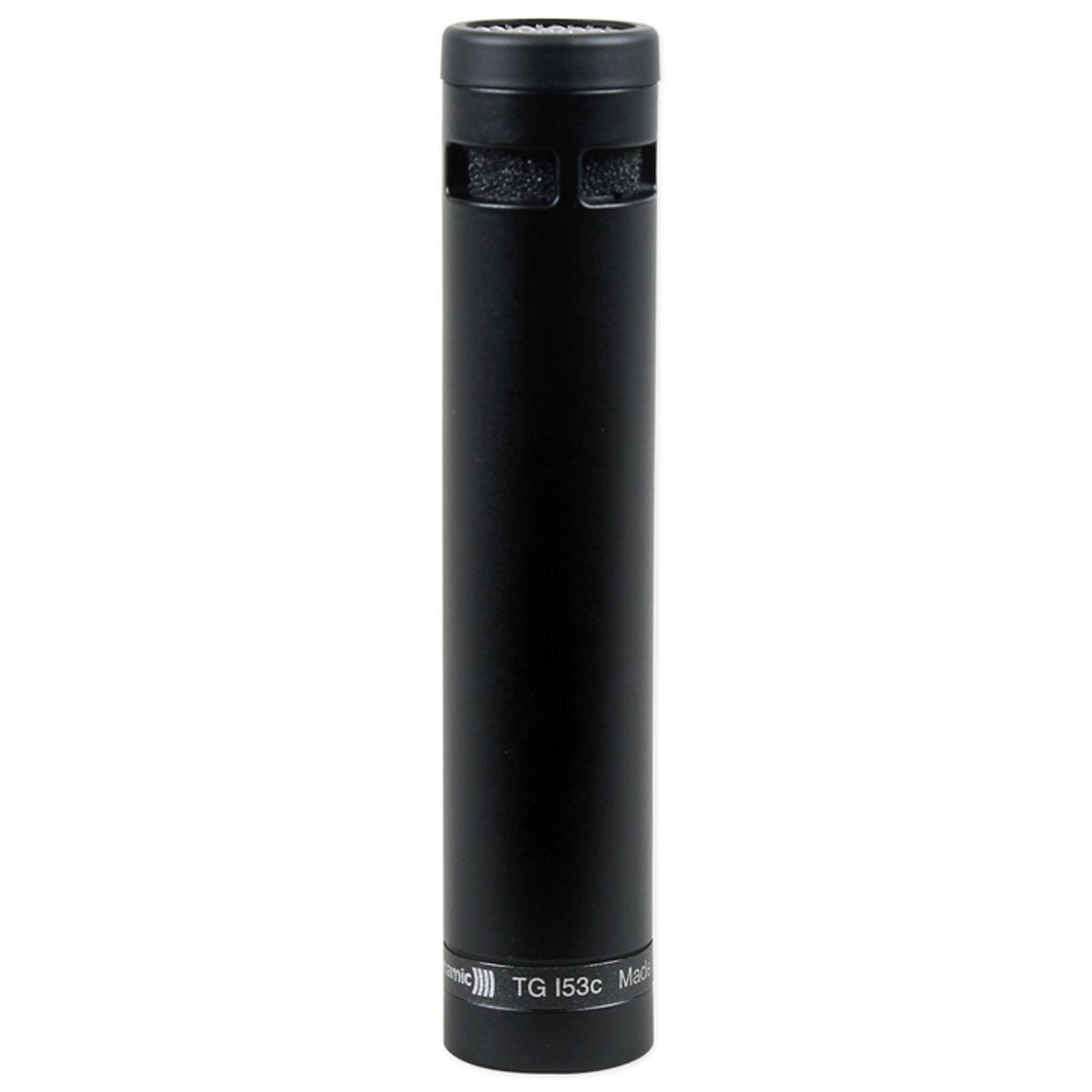

Beyerdynamic TG I53c - Condenser microphone, designed for recording acoustic instruments such as string instruments, percussion, wind instruments, or those with bows.
It is part of Beyerdynamic's Touring Gear (TG) series, designed to provide faithful sound reproduction and a robust construction, suitable for use on stage and in the studio.
Capsule type: Electret condenser (back electret)
Operating principle: Pressure gradient
Polar pattern: Cardioid
Frequency response:
at short distance: 20 – 20,000 Hz
at 1 metre: 35 – 20,000 Hz
Output voltage: 6.8 mV/Pa (-43.4 dBV) ±2.5 dB
Nominal impedance: 200 Ω
Load impedance: ≥ 1 kΩ
Maximum SPL: 140 dB
Signal-to-noise ratio:
61 dB (CCIR; Q-Peak)
71 dB (A; RMS)
Equivalent acoustic pressure level:
23 dB (A; RMS)
33 dB (CCIR; Q-Peak)
Power supply: Phantom 12 – 48 V (recommended 48 V)
