The Neumann MCM 114 Set Brass/Sax/Uni system represents a universal solution for recording brass wind instruments as well as percussion instruments. Due to its frequency range of 20 Hz to 20,000 Hz, the Neumann MCM 114 Set Brass/Sax/Uni microphone system produces a clear and detailed signal. The microphone system is recommended for both live performances and studio recordings.
.
The Neumann MCM 114 is an ideal microphone set for recording brass musical instruments and percussion instruments, also offering the possibility to be mounted on an instrument stand. This equipment is an excellent technical solution for capturing the detailed and clear sound of brass musical instruments such as trumpet, trombone, saxophone, French horn, or percussion instruments. The set includes an instrument microphone with a miniaturised capsule, an instrument mounting system with a clip, and a gooseneck support.

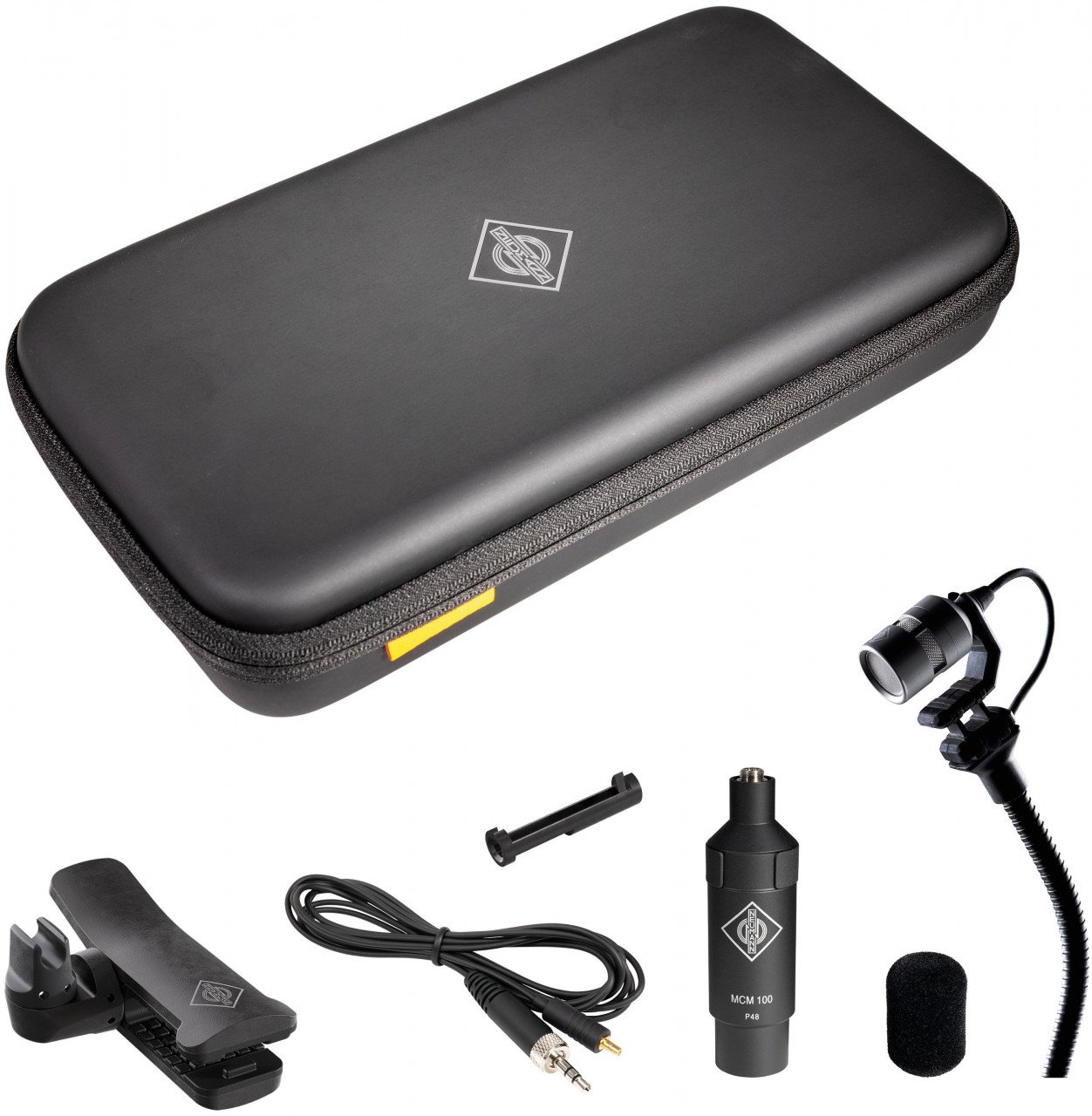

Included accessories:
Neumann KK 14 - Microphone capsule
Neumann SH 150 - Gooseneck support
Neumann MCM 100 - Output stage with XLR adapter
Neumann WS 110 - Soft windscreen for microphone
Neumann AC 31 - Mini-jack 1.8 mm cable
Neumann MC 6 - Microphone holder compatible with trumpet, trombone, saxophone, French horn, percussion instruments, stands
Neumann KC 1 - Cable holder
Neumann Softcase - Transport case
Microphone specifications:
Operating principle: Pressure gradient transducer
Directional pattern: Cardioid
Frequency range: 20 Hz - 20 kHz
Sensitivity at 1 kHz in 1 kOhm: 3.6 mV/Pa ≈ -49 dBV
Nominal impedance: 50 Ohms (MCM 100)
Nominal load impedance: 1000 Ohms
Equivalent noise level, CCIR: 31 dB
Equivalent noise level, A-weighted: 23 dB
Max SPL for THD 0.5%: 153 dB
Signal-to-noise ratio, CCIR (ref. 94 dB SPL)¹⁸: 63 dB
Signal-to-noise ratio, A-weighted (ref. 94 dB SPL)¹⁸: 71 dB
