Audio-Technica ATM350U - permanently polarized condenser microphone, with a universal clamp for brass wind instruments and other instruments, part of the new generation ATM350 and the best solution for discreet and super solid mounting. It has an exceptionally clear frequency response even at extreme sound pressure levels, making it perfect for capturing the desired sound regardless of the chosen instrument, built to withstand very powerful and dynamic sound sources. It can be connected to a wide selection of additional mounts.

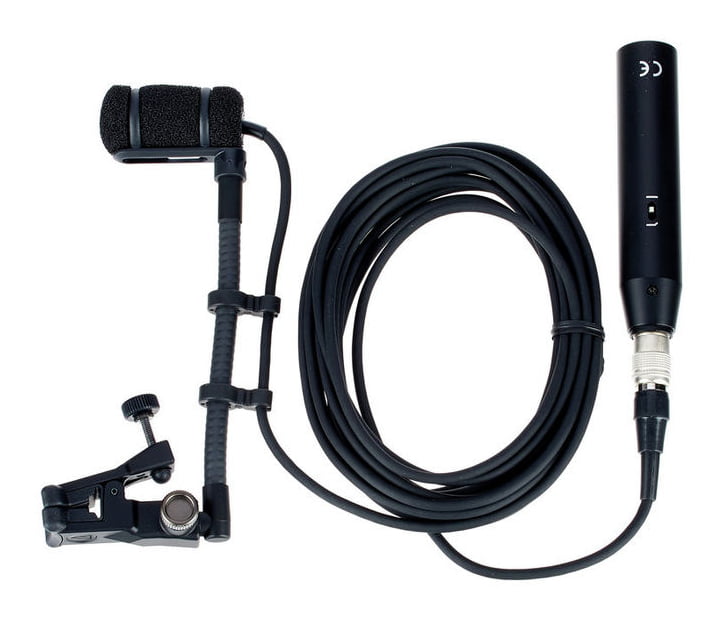

The package includes: the ATM350a microphone, the flexible arm AT8490, universal mount AT8491U, power module AT8543, velcro mount AT8468, and a hard case for transport.
Technical specifications:
- Element: Permanently polarized condenser with fixed-charge backplate
- Polar pattern: Cardioid
- Frequency response: 40 - 20,000 Hz
- High-pass filter: 80 Hz, 12 dB/octave
- Open circuit sensitivity: -49 dB (3.5 mV) re 1V at 1Pa
- Impedance: 200 ohms
- Maximum sound pressure level: 149 dB SPL, 1 kHz at 1% T.H.D.
- Dynamic range (typical): 130 dB, 1 kHz at Max SPL
- Signal-to-noise ratio: 65 dB, 1kHz at 1Pa
- Phantom power requirement: 11 to 52V DC, 3.5 mA typical
- Switch: Flat, roll-off
- Weight:
- Microphone 14.5g,
- Power module 90g
- Dimensions:
- Microphone: 37.8mm length, 12.2mm diameter;
- Power module: 92mm length, 18.9mm diameter
- Output connector:
- Power module: Integral 3-pin XLRM type
- Cable: 4.0m length, permanently attached to the microphone, 3.2mm diameter, shielded cable with 2 conductors equipped with HIROSE HR10 connector
- Optional interchangeable capsules: UE-O omnidirectional, UE-H hypercardioid
- Accessories: AT8543 power module; Universal mounting system with flexible arm AT8490 and universal mounting adapter AT8491U; AT8468 velcro mount; hard transport case
