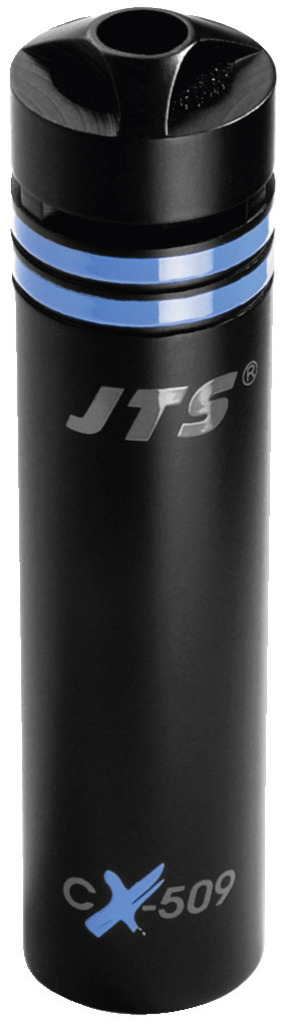

JTS CX-509

Instrument Microphone

miniature, compact design for easy handling.
wide frequency response from 30 to 18,000 Hz.
very low noise and distortion levels for high-quality sound.
ideal for overhead use with cymbals, toms, percussion, or acoustic guitars.
requires phantom power (9-52 VDC) and has a low current consumption of ≤3mA.

114²⁹ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

588 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

JTS CX-509 Add to cart: 114²⁹ €

JTS CX-509 - condenser microphone, with a miniature, compact design, wide frequency response, very low noise, very low distortion level, ideal for live or studio situations, recommended for use as an overhead microphone for cymbals, microphone for toms, snare, percussion or acoustic guitars.

Type: Uni-directional Condenser
Frequency response: 30~18,000 Hz
Sensitivity (at 1,000Hz): -65dB*(0.56mV)*0dB=1V/μbar
Impedance: 220Ω
Maximum sound pressure level (SPL) for 1% T.H.D.: 130 dB
Signal-to-noise ratio: 70dB
Output connector: XLR(M) with 3 pins
Phantom Power requirements: 9-52 VDC
Current consumption: ≤3mA
Weight: 60 grams
Dimensions: Ø19mm x 79mm

Product code: 234710

Unit of sale: piece

Specifications:

Capsule type:	condenser
Audio frequency range:	30 - 18 000 Hz
Polar pattern:	cardioid
mono/stereo/set:	mono
Digital interface:	without
Instrument type:	Cymbals
Instrument type:	Acoustic guitar
Instrument type:	Overhead drums
Instrument type:	Toms
Instrument type:	Percussion instruments - general
