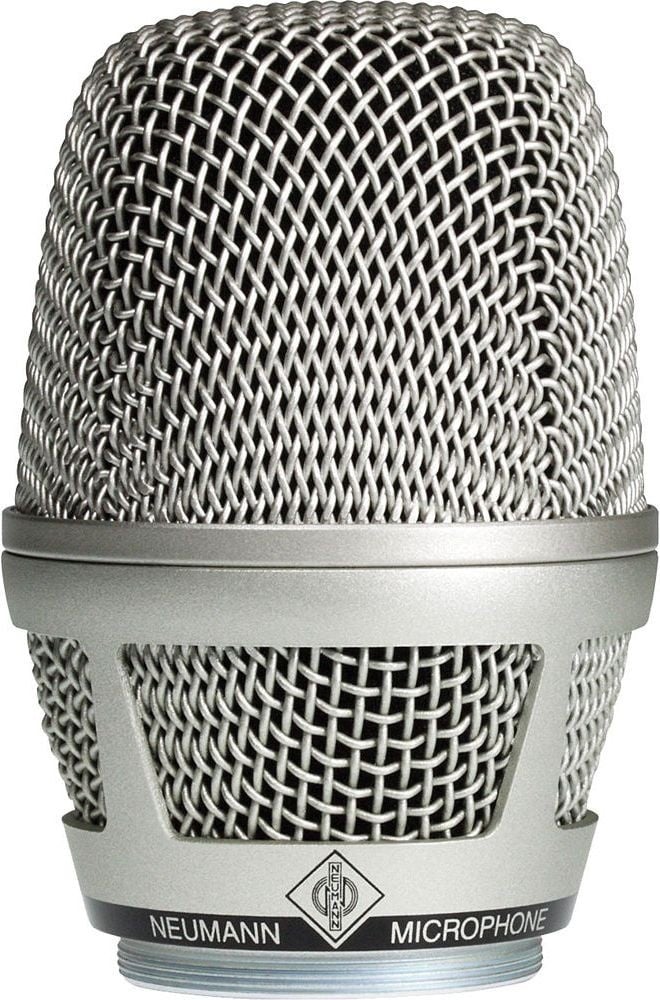

Neumann KK 205

The Neumann KK 205 wireless microphone capsule is designed for Sennheiser SKM 2000/6000/9000 and Sennheiser EW G4 300/500 wireless systems, as well as for Sennheiser EW-D wireless systems. It captures a transparent and warm sound, has a balanced and extended frequency response (40 Hz - 20 kHz), a sensitivity of 2.8 mV/Pa (±1 dB), and an exceptionally low self-noise level (24 dB-A). The supercardioid directivity ensures excellent resistance to feedback and optimal suppression of sounds from behind the microphone. The capsule features a nickel-plated housing, includes a pop filter type foam, and presents a modular design that allows for quick disassembly for cleaning and servicing. It supports up to 150 dB SPL without distortion, providing performance and reliability in any application.

General features:

• Low sensitivity to handling noise
• Integrated pop filter
• Easy disassembly for cleaning
• Clear, detailed, open, and neutral sound transmission
• Supercardioid directivity with high resistance to feedback
• Neumann studio quality condenser capsule
• Compatible with Sennheiser SKM 2000/6000/9000, EW G4 300/500, and EW-D wireless systems

Technical specifications:

• Polar pattern: Supercardioid
• Frequency response: 40 Hz - 20 kHz
• Sensitivity at 1 kHz in 1 kohm: 2.8 mV/Pa ± 1 dB equiv. 51 dBV
• Equivalent noise level, CCIR: 35 dB
• Equivalent noise level, A-weighted: 24 dB-A
• Maximum sound pressure level for 0.5% THD: 150 dB
• Signal-to-noise ratio, CCIR (ref. 94 dB SPL): 59 dB
• Signal-to-noise ratio, A-weighted (ref. 94 dB SPL): 70 dB-A
• Weight: approx. 500 g (weight with transmitter and power unit)
• Diameter: 55 mm
• Length: 272 mm (attached to Sennheiser SKM 2000 transmitter)
• The capsule does not include a transmitter or power unit
