Klotz StarQuad SQ422

Double Microphone Cable

quad connection with two opposite conductors for enhanced performance.
constructed with tinned copper for durability and low resistance.
features excellent shielding with over 90% coverage to reduce interference.
ideal for professional studio recording and live performance applications.
minimum bending radius of 30 mm ensures flexibility and ease of use.

3⁶³ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

19 points of loyalty

Shipping 8.00 €

Warranty 12 months

Returns 14 days

request details

Klotz StarQuad SQ422 Add to cart: 3⁶³ €

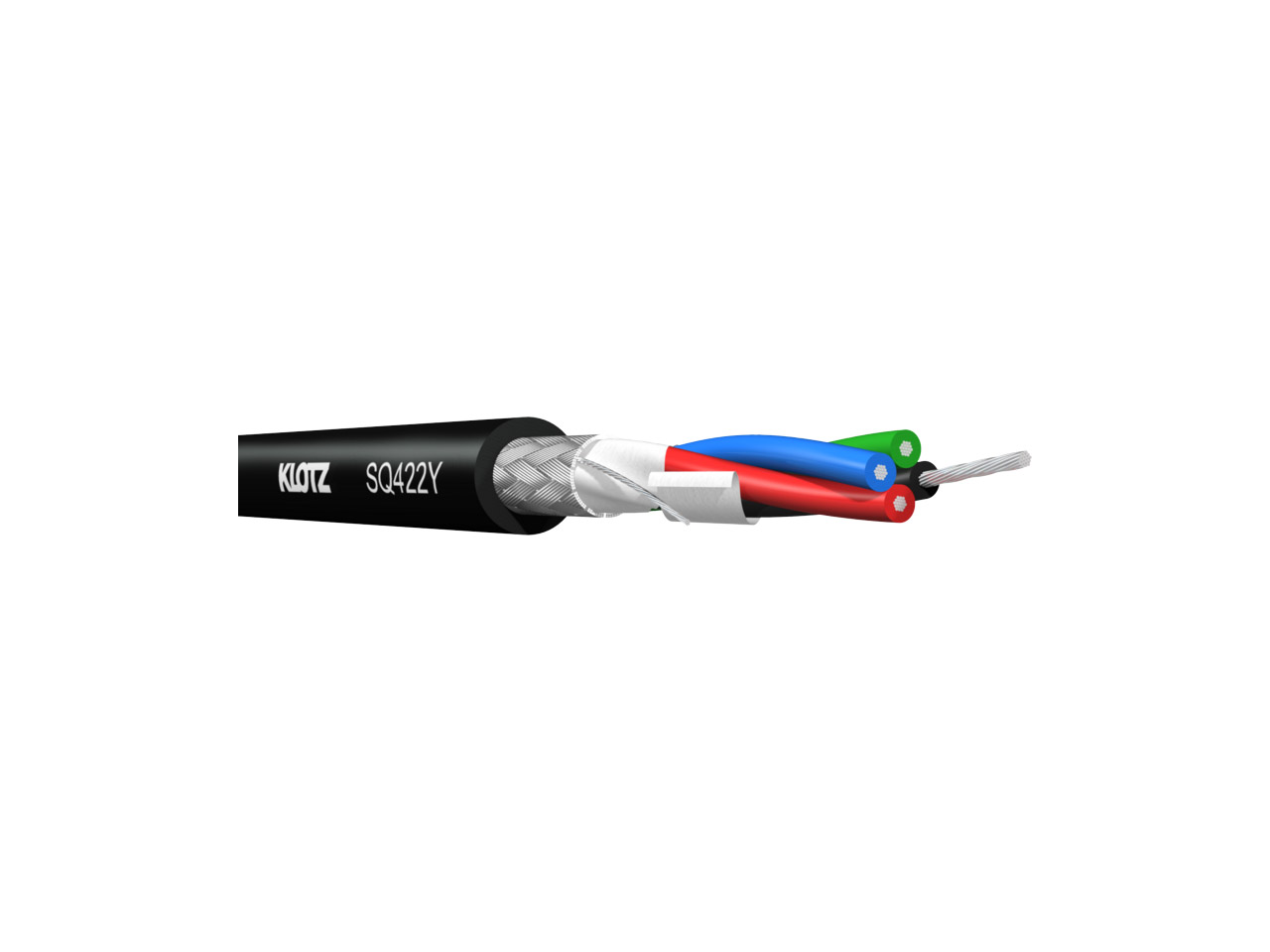

Klotz StarQuad SQ422, microphone cable with 4 conductors and remarkable features: very low capacitance, perfect symmetrical twisting (star-quad) and extremely dense shielding. To avoid noise and interference caused by induced magnetic fields, opposite pairs of conductors must be connected to each other. A drain wire under the shielding significantly facilitates handling.

Quad connection: two opposite conductors diagonally are connected to a single wire
Each pair formed by two opposite conductors diagonally forms a single transmission channel
Conductor construction: tinned copper, 28 x 0.10 mm
Conductor cross-section: 0.22 mm²
Insulation: polyethylene (PE)
Core arrangement: 4 twisted cores in star quad
Drain wire: tinned copper, 7 x 0.20 mm
Shielding: tinned copper braid, >90% coverage
Total diameter: 6.5 mm
Minimum bending radius: 30 mm
Conductor resistance: 85 Ω/km
Capacitance:
- cond./cond.: 125 pF/m
- cond./shield: 180 pF/m
Flame retardant: according to IEC 60332-1
Combustion heat: 200 kWh/km
