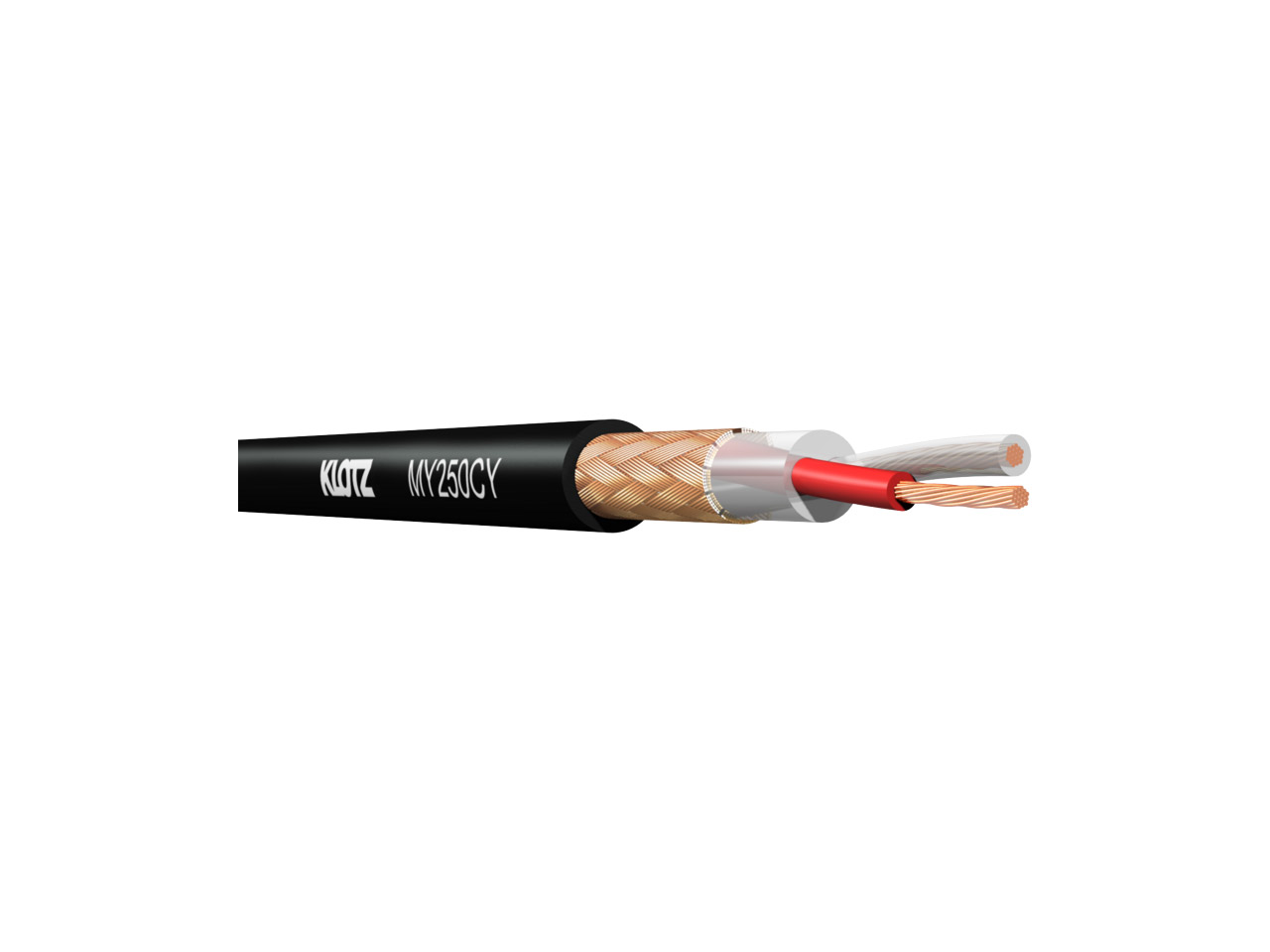

Klotz MY250CY

Microphone Cable

durable professional microphone cable
conductor construction: stranded bare copper, 16 x 0.20 mm
conductor cross-section: 0.50 mm² (AWG20)
total diameter: 5.7 mm
minimum bending radius: 40 mm

3²⁵ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

17 points of loyalty

Shipping 8.00 €

Warranty 12 months

Returns 14 days

request details

Klotz MY250CY Add to cart: 3²⁵ €

Klotz MY250CY, a professional microphone cable that offers excellent transmission properties and mechanical stability. The conductor's cross-section of 0.50 mm² ensures signal transmission with minimal loss. Its advanced features prevent interference; an intermediate layer of polyethylene maintains the twisting stability of the core under mechanical stress, preserving the cable's symmetry. The PE sheath increases crush resistance, making MY250 an ideal choice for installations. The tensile strength is enhanced by a braided copper shield that rejects interference.

Durable professional microphone cable
Conductor construction: stranded bare copper, 16 x 0.20 mm
Conductor cross-section: 0.50 mm² (AWG20)
Core arrangement: 2 twisted cores in a pair
Inner layer: extruded PE inner covering
Shielding: braided copper
Total diameter: 5.7 mm
Minimum bending radius: 40 mm
Conductor resistance: < 40 Ω/km
Capacitance:
- Cond./Cond.: 60 pF/m
- Cond./Shield: 115 pF/m
Insulation resistance: > 0.1 GΩ x km
