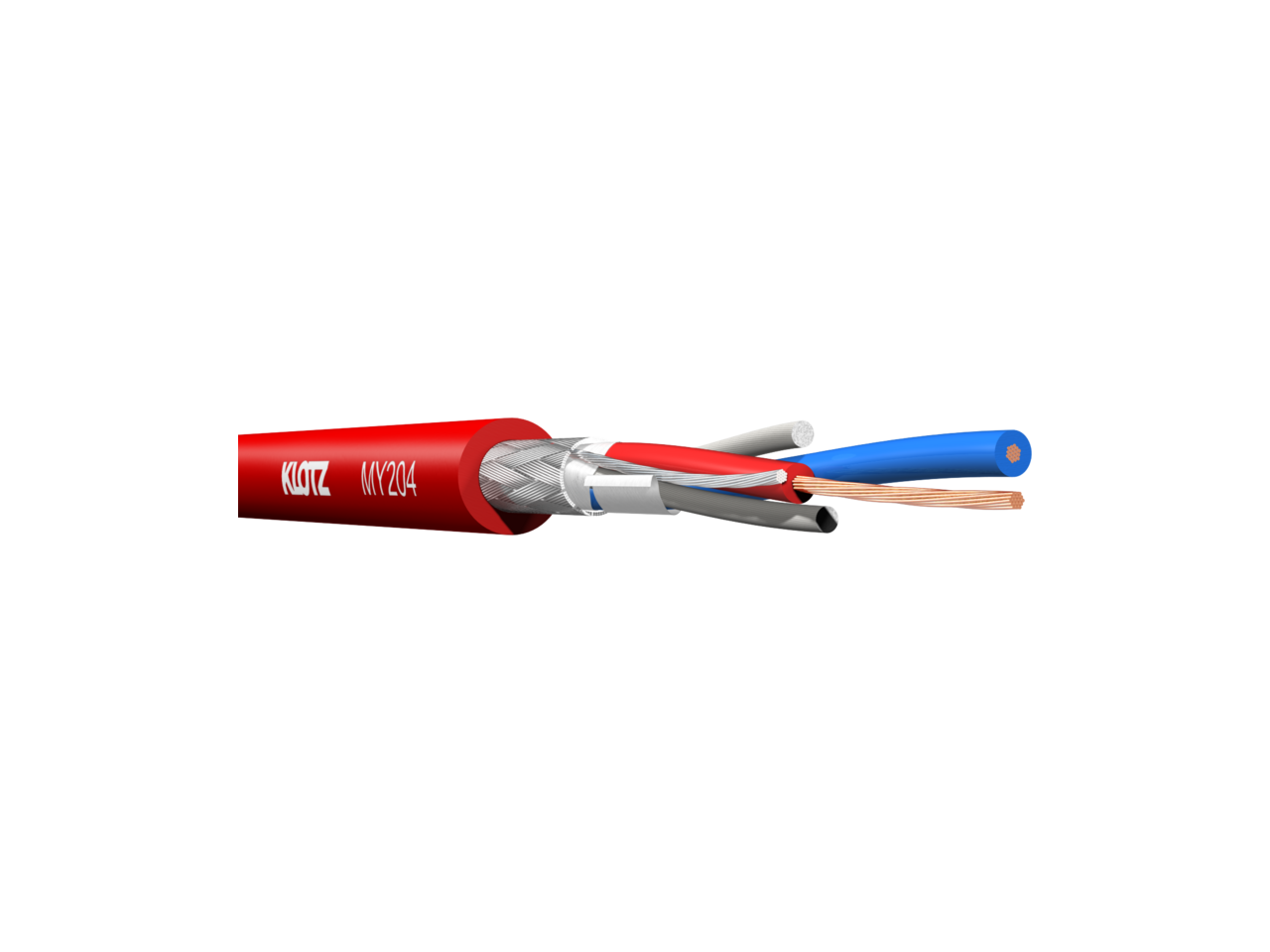

Klotz balanced patch and microphone cable high screen - PVC - red - 100 m

Patch/microphone cable

conductor 0,22 mm², ecranare spiralată
potrivit pentru patch, midi și microfon
potrivit pentru XLR fan-out și patch panel
temperatură de operare: -25°C / +70°C, lungime 100 m

Variants:

251⁵² €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

1294 points of loyalty

Shipping free

Warranty 12 months

Returns 14 days

request details

Klotz balanced patch and microphone cable high screen - PVC - red - 100 m Add to cart: 251⁵² €

0.22 mm² conductor cross section (AWG 24)
very dense tinned copper spiral shield
low capacitance
drain wire for fast and convenient assembly

Bantam (TT phone) patch cable, midi cable, stable microphone cable with ultra-low outer diameter - the MY204 is ideal for all these applications. Its braided shield offers superior tensile strength, making the MY204 suitable for uses such as XLR fan-outs or XLR patch panels. The MY204 features a copper drain wire in contact with the braided shield, which can significantly speed up custom cable production.

design

cond. construction: stranded bare copper, 28x 0.10 mm

cond. cross section: 0.22 mm²

insulation: polyethylene (PE)

core arrangement: 2 cores + twisted cotton tracers

outer jacket: PVC, matt

mechanical & thermal characteristics

operating temperature: -25°C / +70°C

min. bending radius:

installed: 5x overall diameter

mobile use: 10x overall diameter

no hazardous substances: acc. to EU directivo RoHS 2011/65/EU from 08.06.2011

CE conformity: acc. to EU directivo LVD 2006/95/EG

flame retardancy: acc. to IEC 60332-1-2

heat of combustion: 481 kJ/m

electric

conductor resistance:

capacitance:

cond./cond.: 75 pF/m

cond./shield: 130 pF/m

insulation resistance: > 10 GΩ x km

Caracteristici

cable color	red
length	100 m

Product code: MY204RT.100

Unit of sale: rolă
