Audio-Technica AT8024

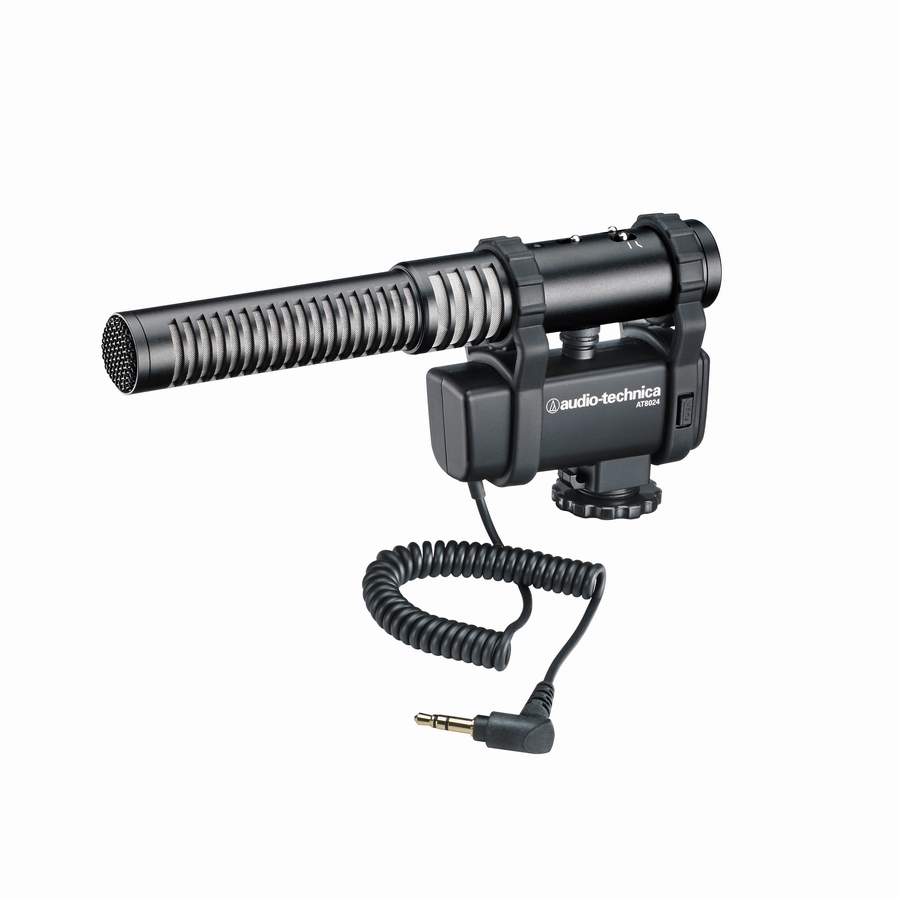

Audio-Technica AT8024 - permanently polarised condenser shotgun microphone designed for camera mounting. It features selectable operation modes of line-cardioid mono or matrixed mid-side stereo, allowing focus on a single audio source or expanding the acoustic field, providing a simple yet powerful solution for high-resolution audio capture in video applications. It has selectable internal attenuation with 3 levels for capturing weak or very strong signals without distortion. Additionally, it includes a low-cut filter to reduce ambient noise, room reverberation, or handling noise. It contains internal rubber noise attenuators to isolate sounds produced by the camera. Powered by a single AA battery for maximum performance and SPL, it is equipped with a mount for DSLR cameras, digital cameras, or those fitted with a shoe-mount system. It features a compact, lightweight construction, with a red/green LED power indicator. Supplied with a foam windscreen and a faux fur windscreen.

Technical specifications:

• Element: permanently polarised condenser, fixed-charge back plate

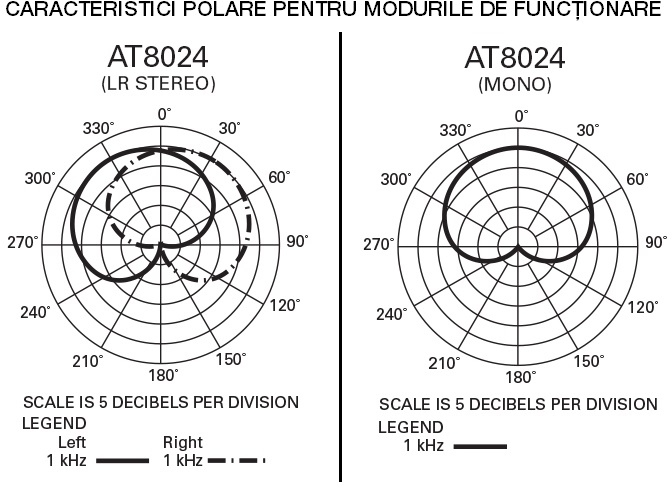

• Polar pattern: Line-cardioid, LR stereo

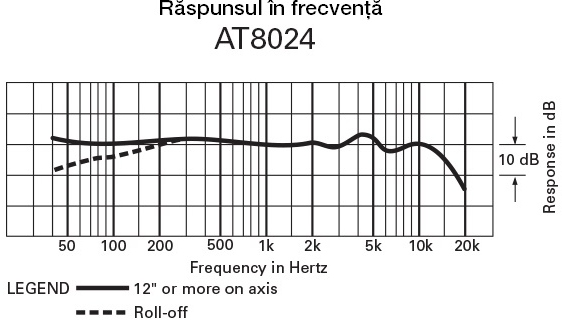

• Frequency response: 40-15,000 Hz
• Low-cut filter: 80 Hz, 12 dB/octave
• Open circuit sensitivity: –37 dB (14.1 mV) re 1V at 1 Pa (Mono and LR Stereo)
• Impedance: 50 Ohms
• Maximum input signal level (SPL): 128 dB SPL, 1 kHz at 1% T.H.D.
• Dynamic range (typical):
  • Mono: 106 dB, 1 kHz at Max SPL
  • Stereo: 104 dB, 1 kHz at Max SPL
• Signal-to-noise ratio:
  • Mono: 72 dB, 1 kHz at 1 Pa;
  • Stereo: 70 dB, 1 kHz at 1 Pa
• Power supply: 1x 1.5V AA battery (included), approximately 80 hours of operation
• Switches:
  • Mono, M-S Stereo;
  • 3-position attenuation;
  • Flat, low-cut filter
• Weight: 114 g
• Dimensions: 172.0 mm length / 24.0 mm maximum diameter of the housing
• Output connector: 3.5 mm stereo mini jack at 90 degrees
• Cable: coiled type, permanently attached, length 0.2 m - 1 m, with 3.5 mm stereo mini jack at 90 degrees
• Accessories: foam windscreen, faux fur windscreen, AA battery
