LD Systems U305 Handheld-Headset Dual


Dual Wireless System

  • uHF diversity wireless system with a range of 100 metres.
  • available in five frequency bands: 584–608 MHz, 655–679 MHz, 823–832 MHz + 863–865 MHz, 470–490 MHz, or 514–542 MHz.
  • convenient one-touch infrared synchronisation for quick setup.
  • includes cardioid handheld microphones and bodypack transmitters.
  • over 10 hours of operation with 2 x AA batteries.
LD Systems
41914
Currently unavailable. Request details
Central warehouse: 0
Add to cart
also deliverable via  Deliverable via parcel locker
2153 points of loyalty
Shipping free
Warranty 24 months
Returns 14 days

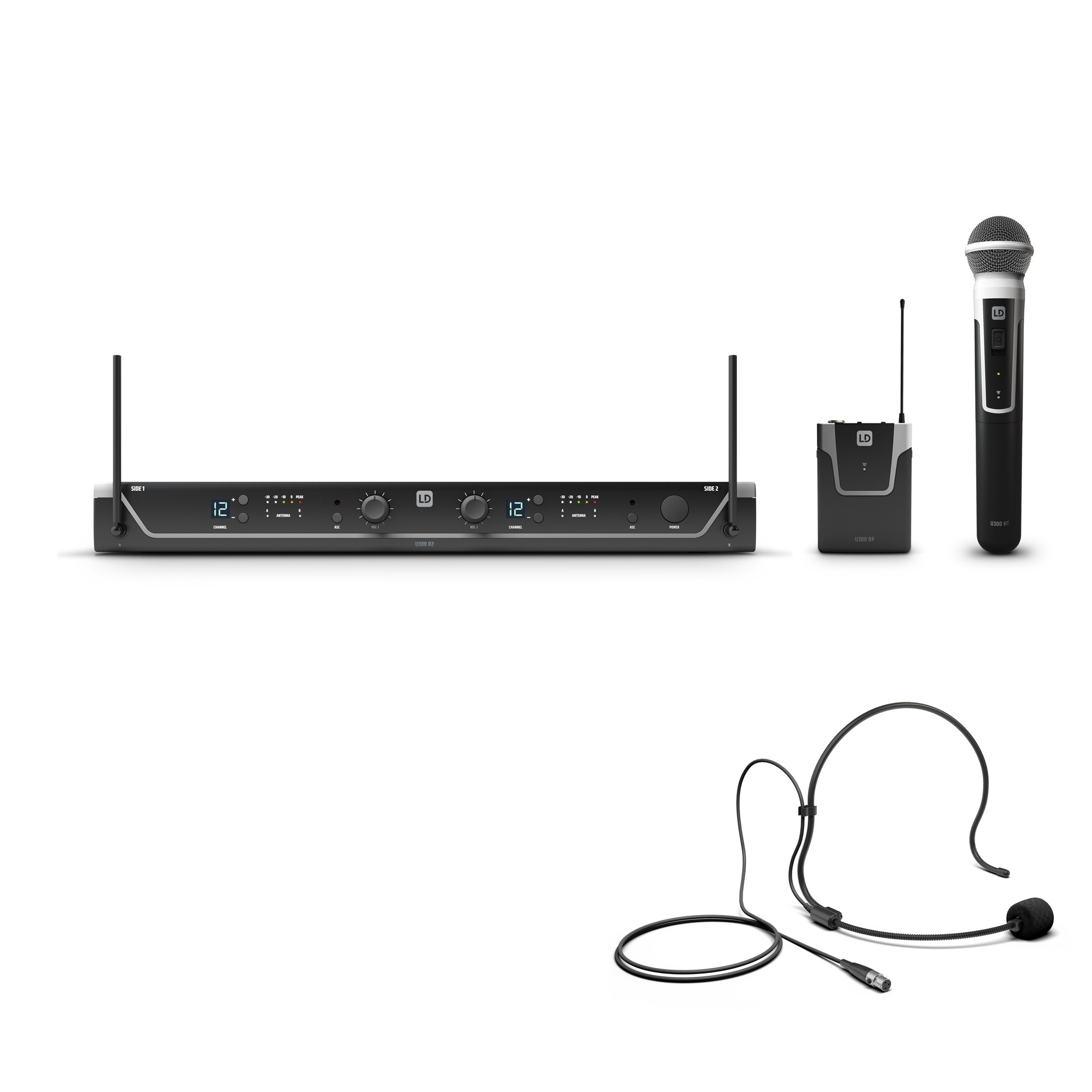

LD Systems U305 HBH 2 - The UHF diversity wireless systems from the U300® series, developed in Germany, offer excellent audio performance. They achieve a range of 100 metres under ideal conditions and are available in five frequency bands: 584–608 MHz, 655–679 MHz, 823–832 MHz + 863–865 MHz, 470–490 MHz or 514–542 MHz. Up to six U300® systems can be used simultaneously in each frequency band. Convenient one-touch infrared synchronisation ensures a quick and hassle-free wireless connection between transmitter and receiver, while a pilot tone squelch function ensures uninterrupted operation.

The wireless systems from the U300® series have a modern design and are available with receivers and two cardioid handheld microphones (HHD2) or with two bodypacks and two sets of headphones (BPH2). The microphone characteristic can be changed using interchangeable heads from the U500® series.

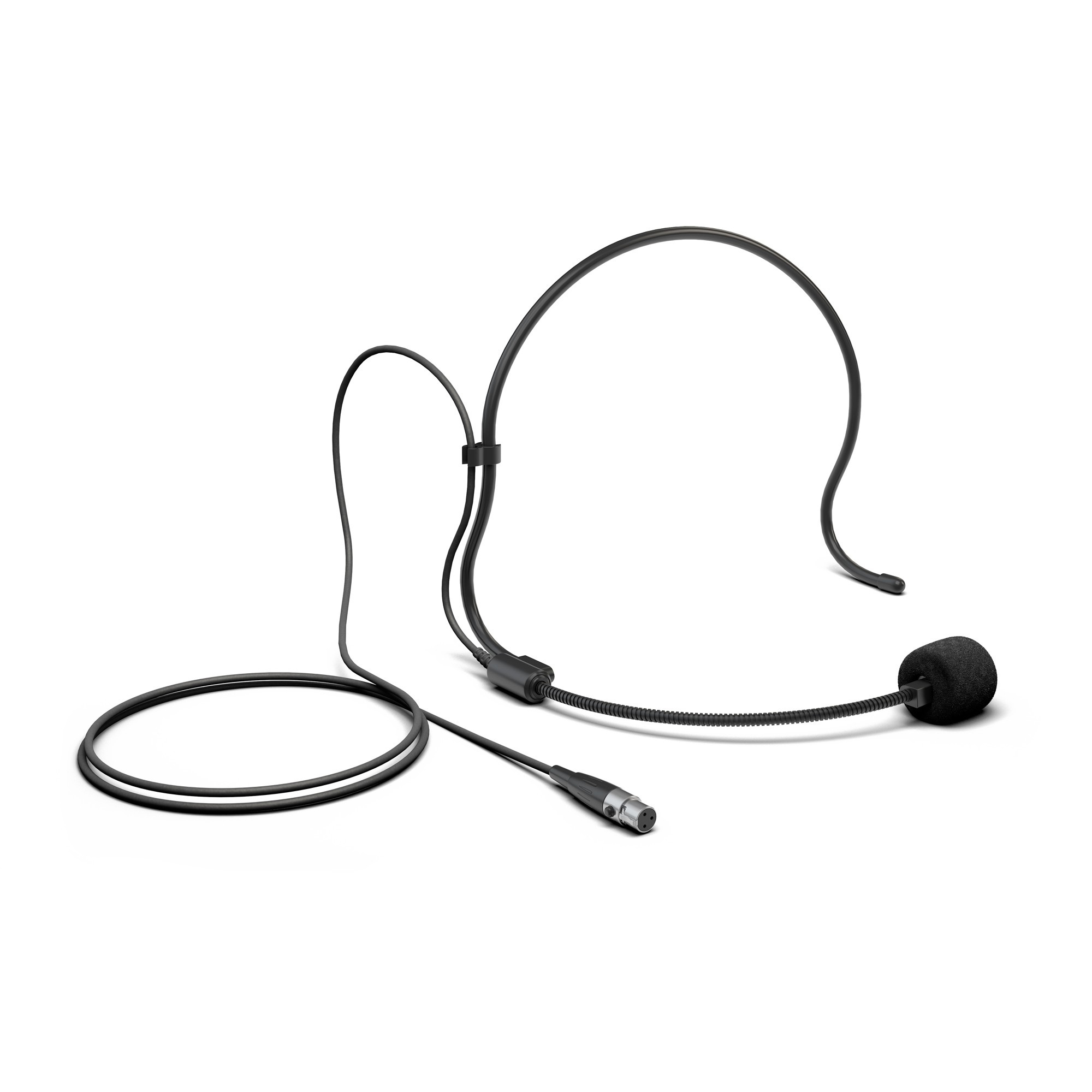

LD Systems WS 100 MH 1 Headphones:

  • Type: Headphones
  • Frequency response: 20 - 20,000 Hz
  • Directivity: Cardioid
  • Nominal impedance: 680 ohms
  • Phantom power requirements: 5 V
  • Microphone input: Mini-XLR (3-pin, female)
  • Included accessories: Foam windscreen
  • Weight: 0.049 kg

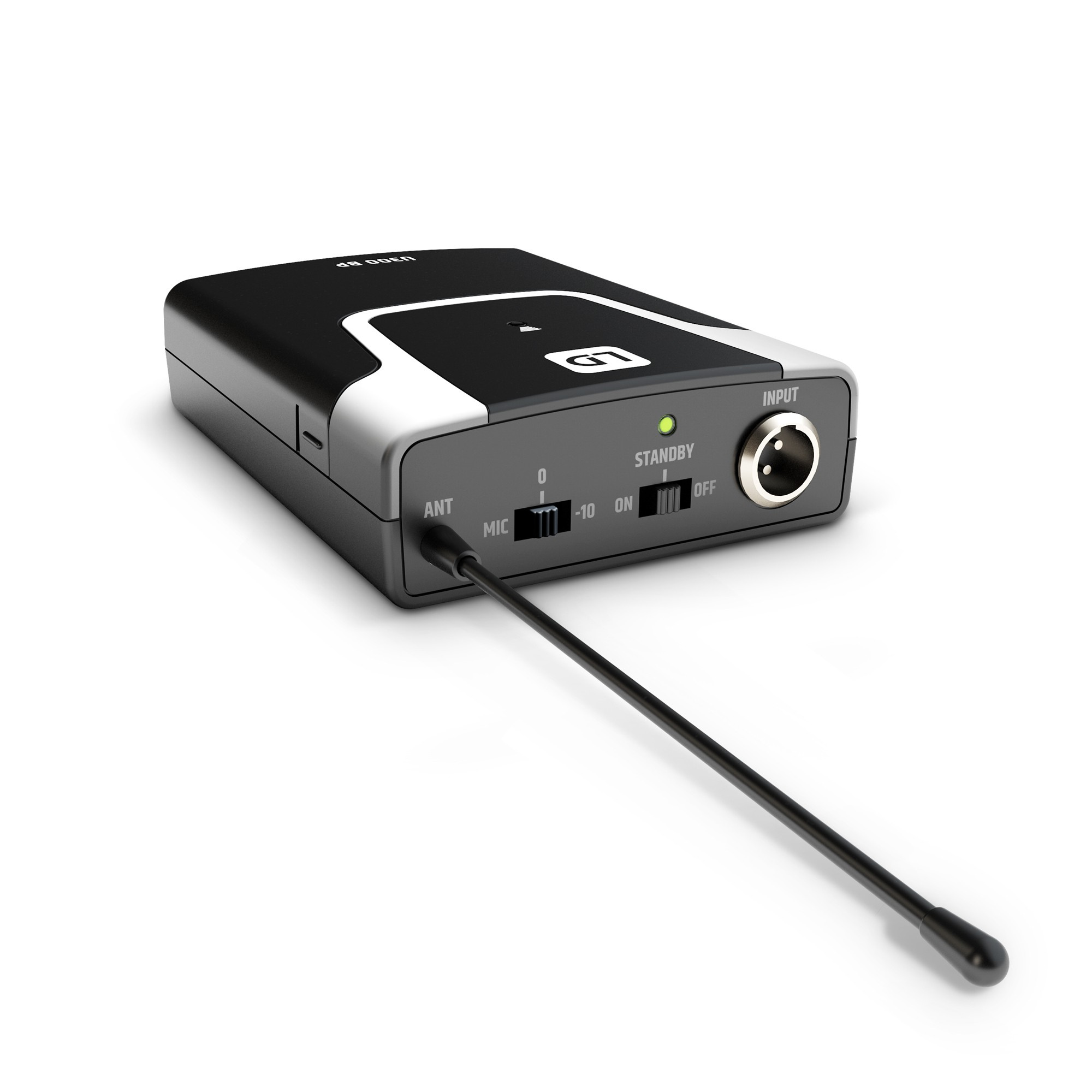

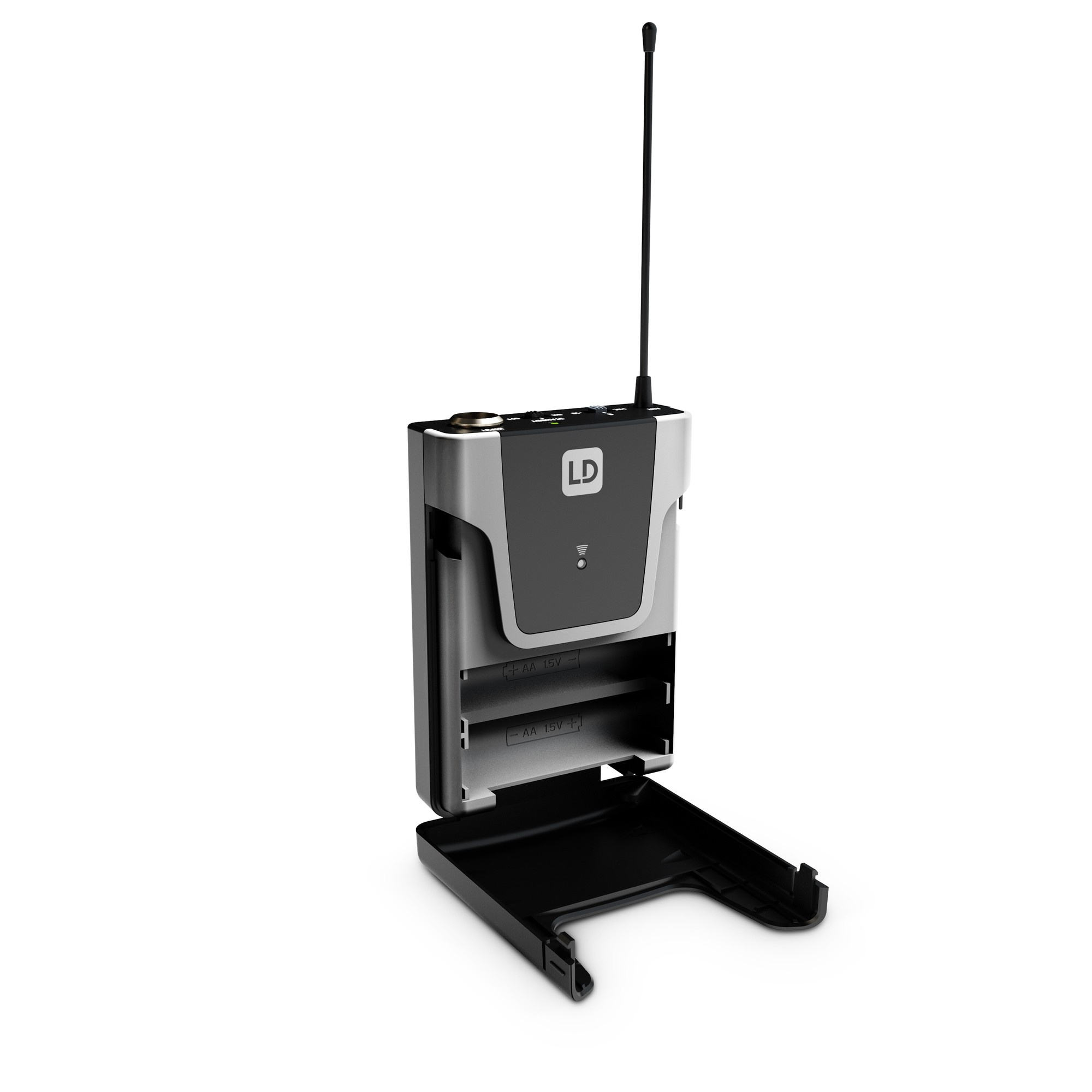

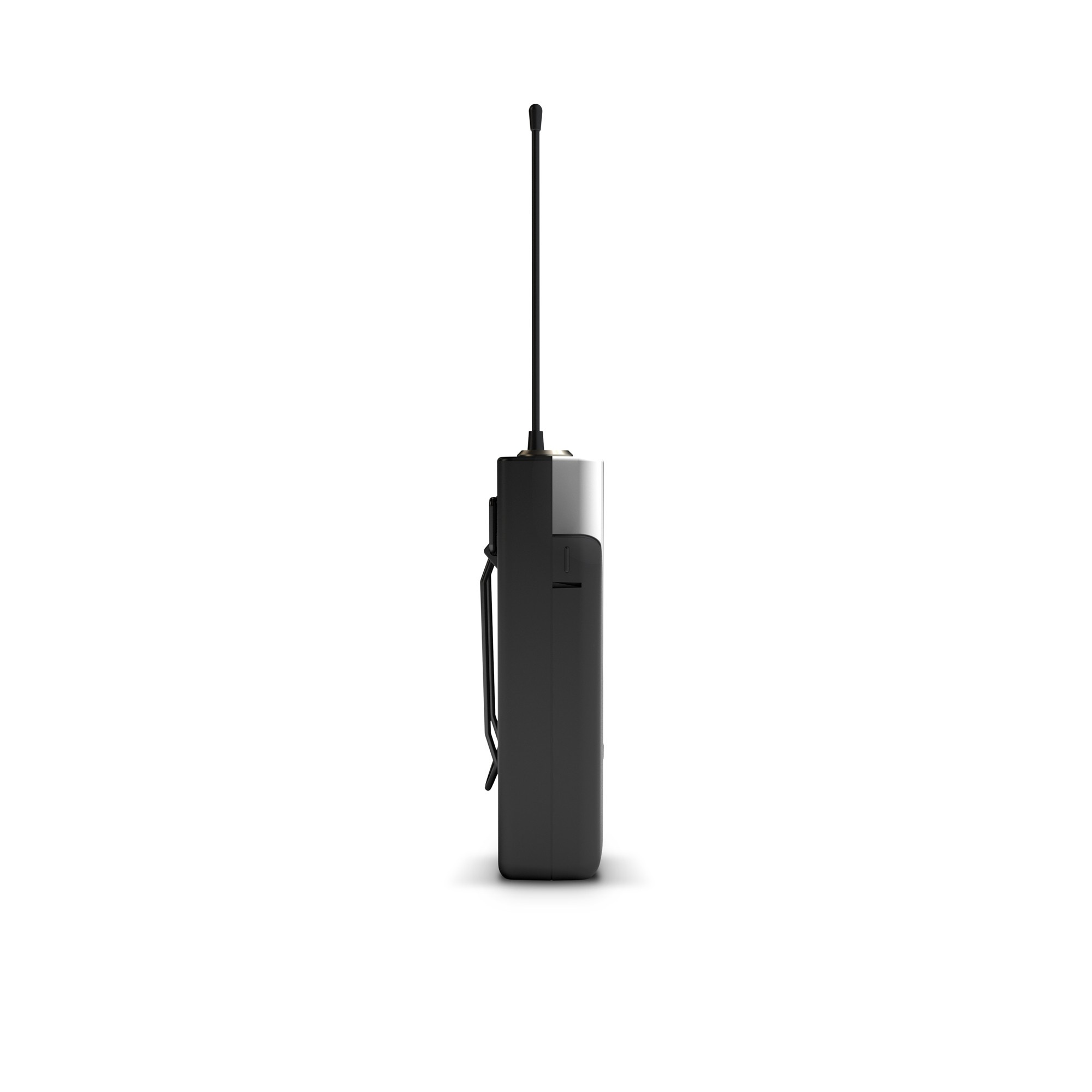

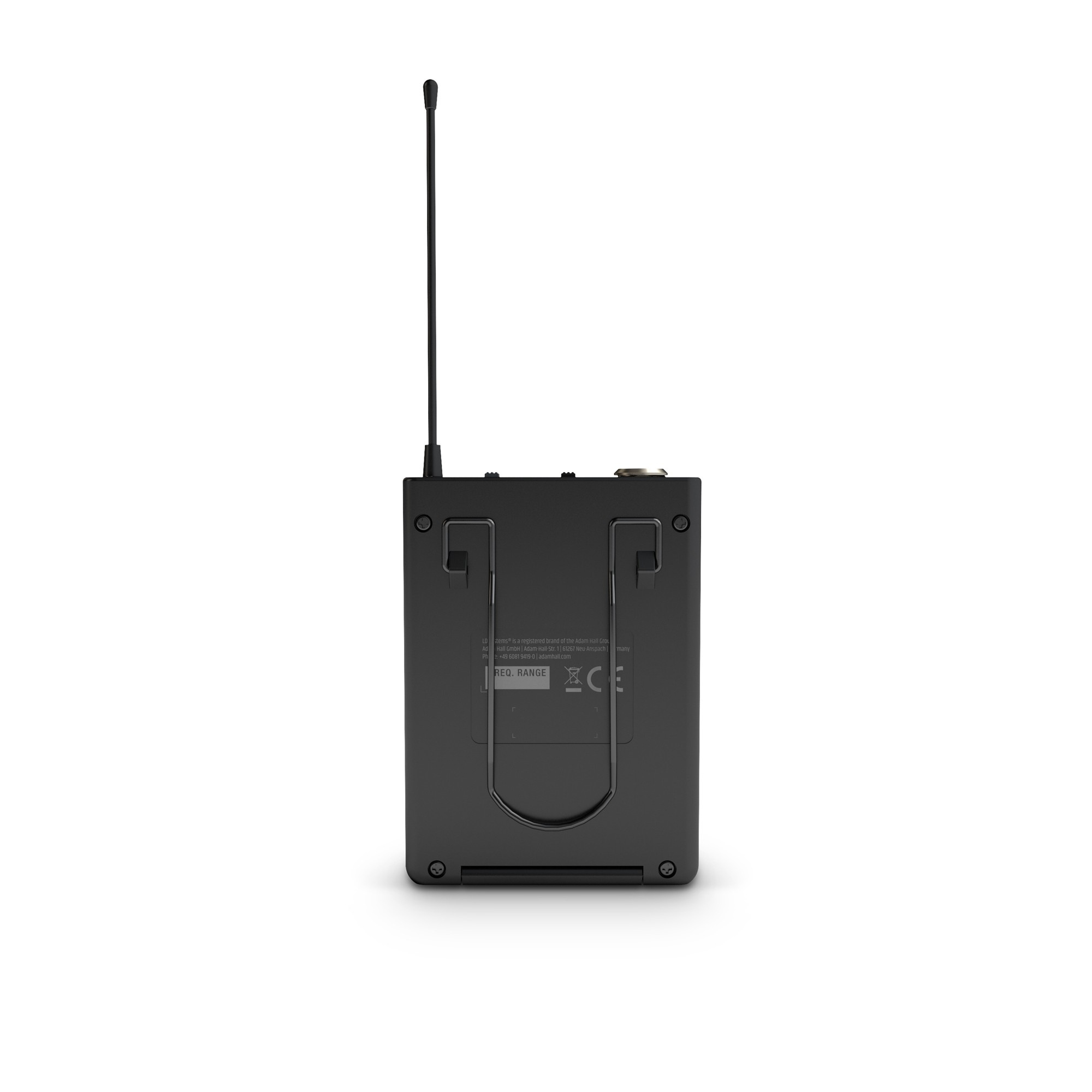

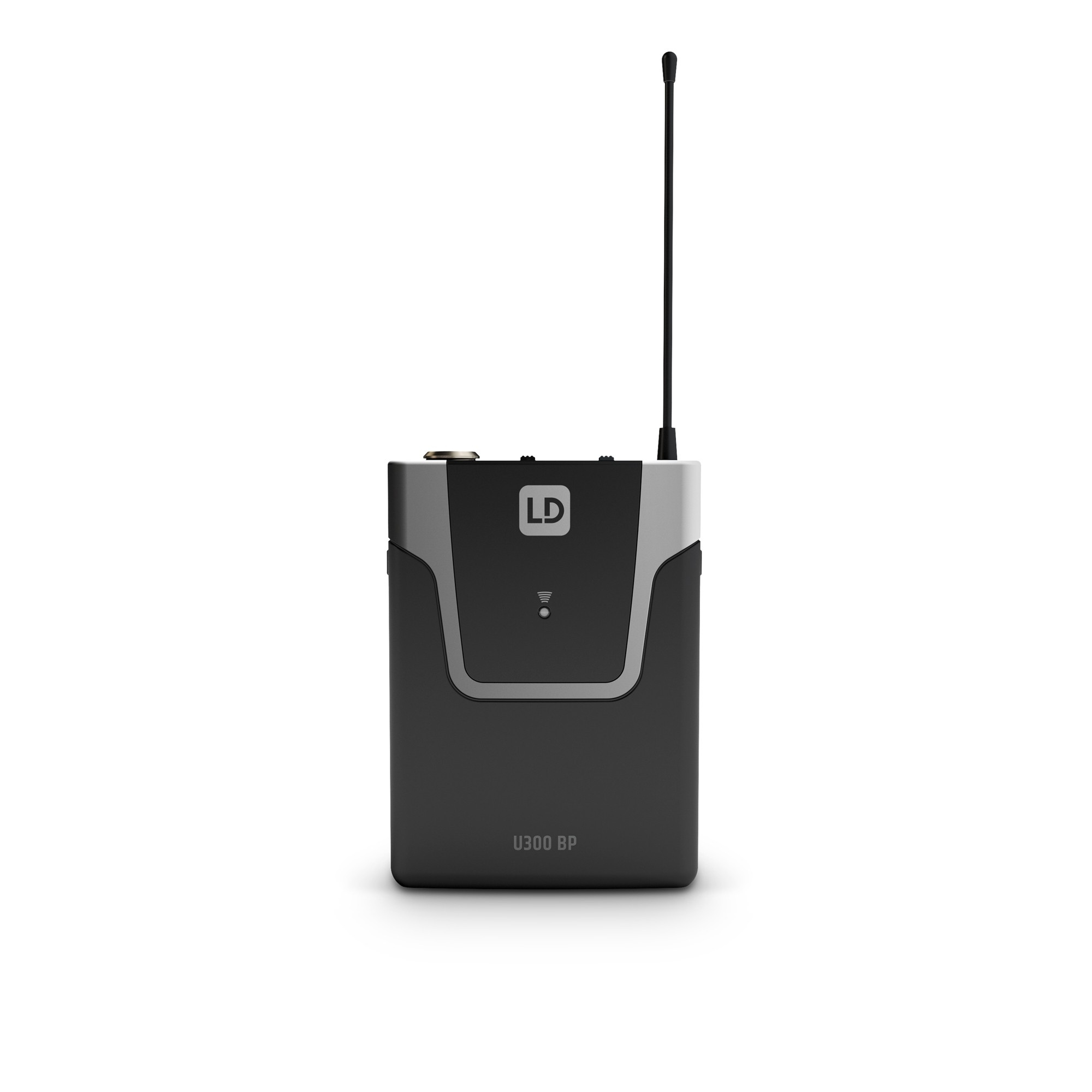

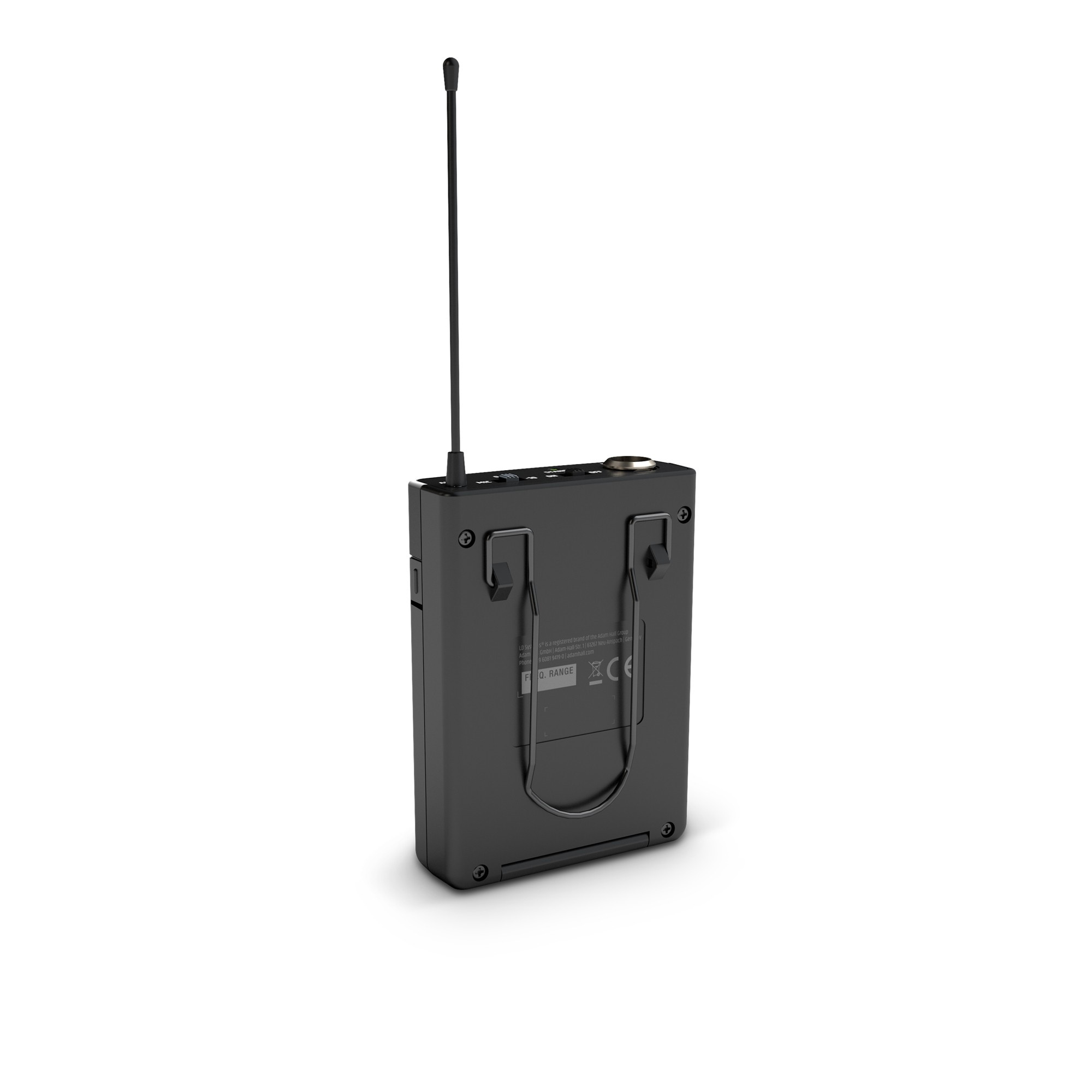

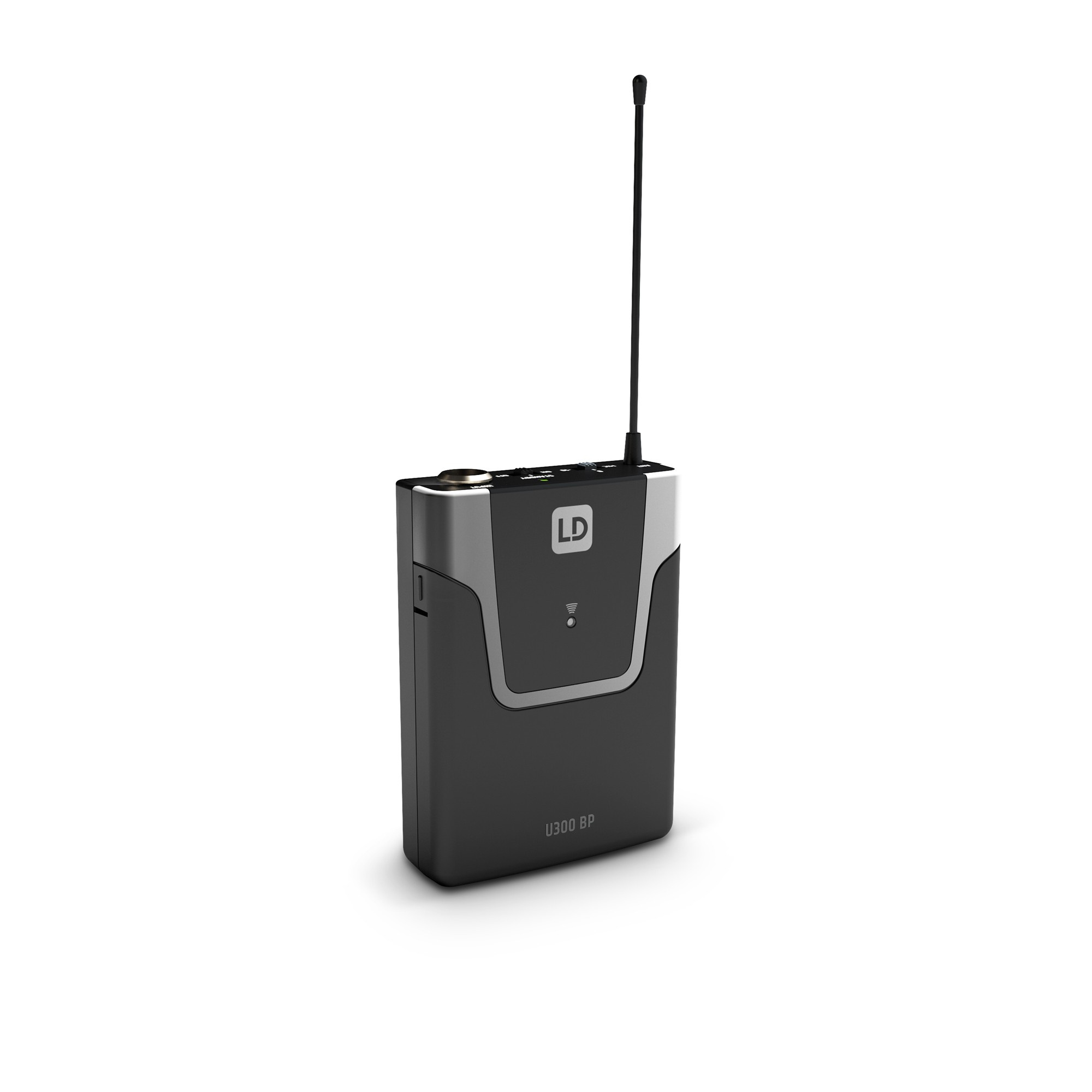

LD Systems U305 BP Bodypack transmitter:

  • Type: Bodypack (transmitter)
  • Frequency response: 25 - 16,000 Hz
  • Transmission frequency range: 584 - 608 MHz
  • Channels: 12
  • Groups: 1
  • Inputs: Mini-XLR (Phantom Powered Low-Z / High-Z Instrument)
  • Nominal HF output power: 10 mW
  • Signal-to-noise ratio: 104 dB
  • Operating voltage: 2 x AA batteries
  • Operating time: Over 10 hours
  • Weight: 0.085 kg
  • Controls: Adjustment (3-position switch), On/Off
  • Indicators: IR ASC Sync (flashing green/amber LED), Battery (low battery: red LED), Power LED (On: green)
  • Dimensions: 65 x 91 x 25 mm
  • Other features: Belt clip, Frequency IR Synchronisation, Pilot tone

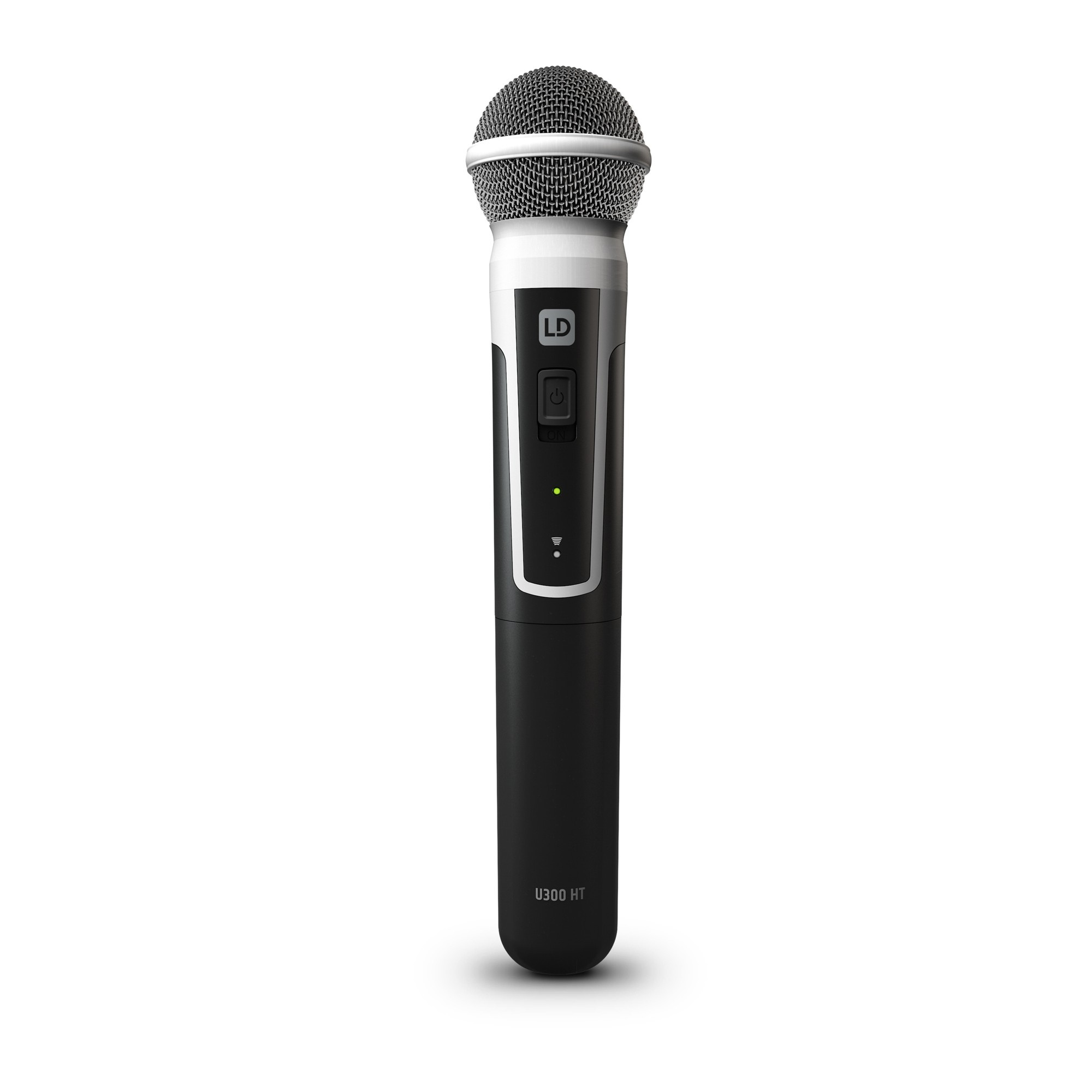

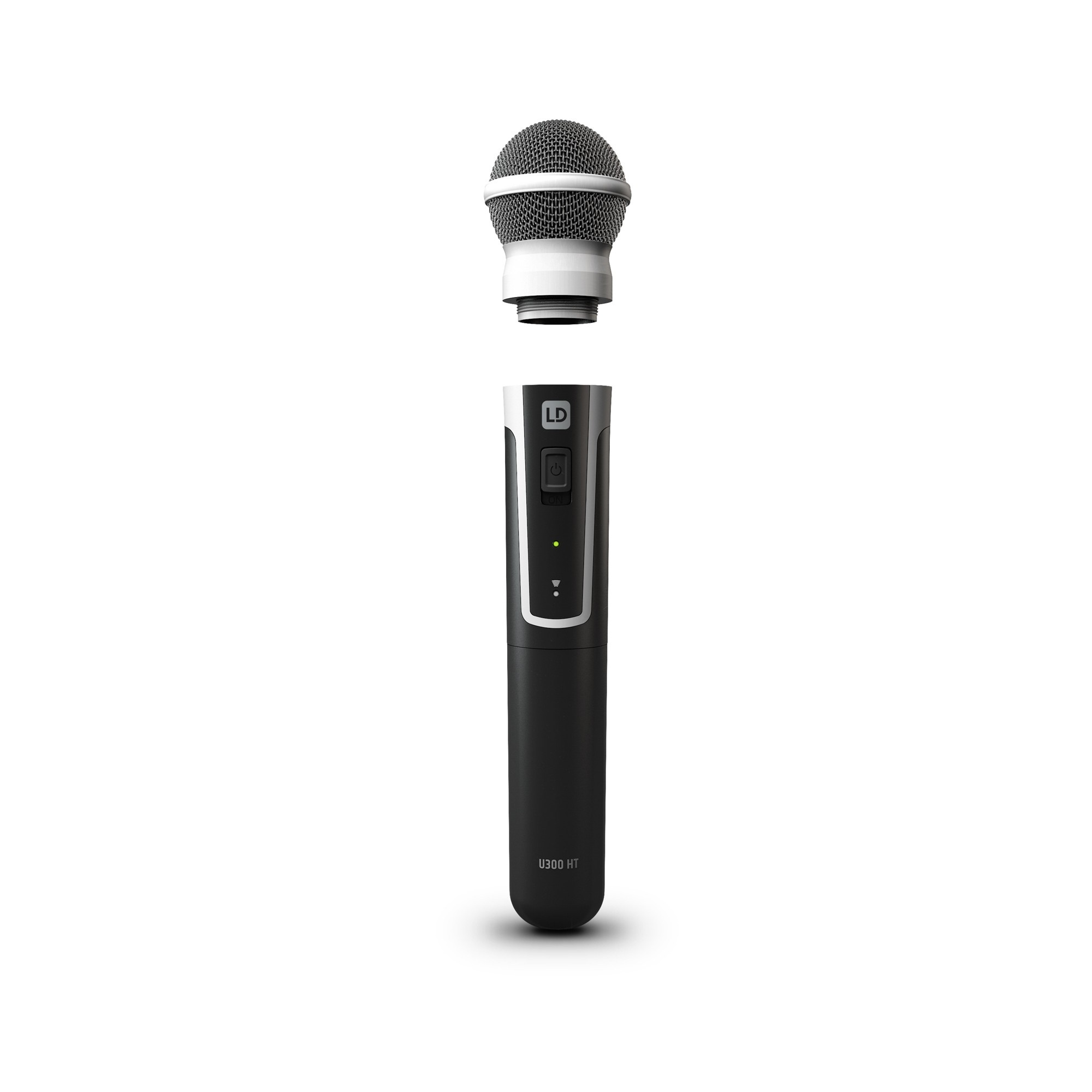

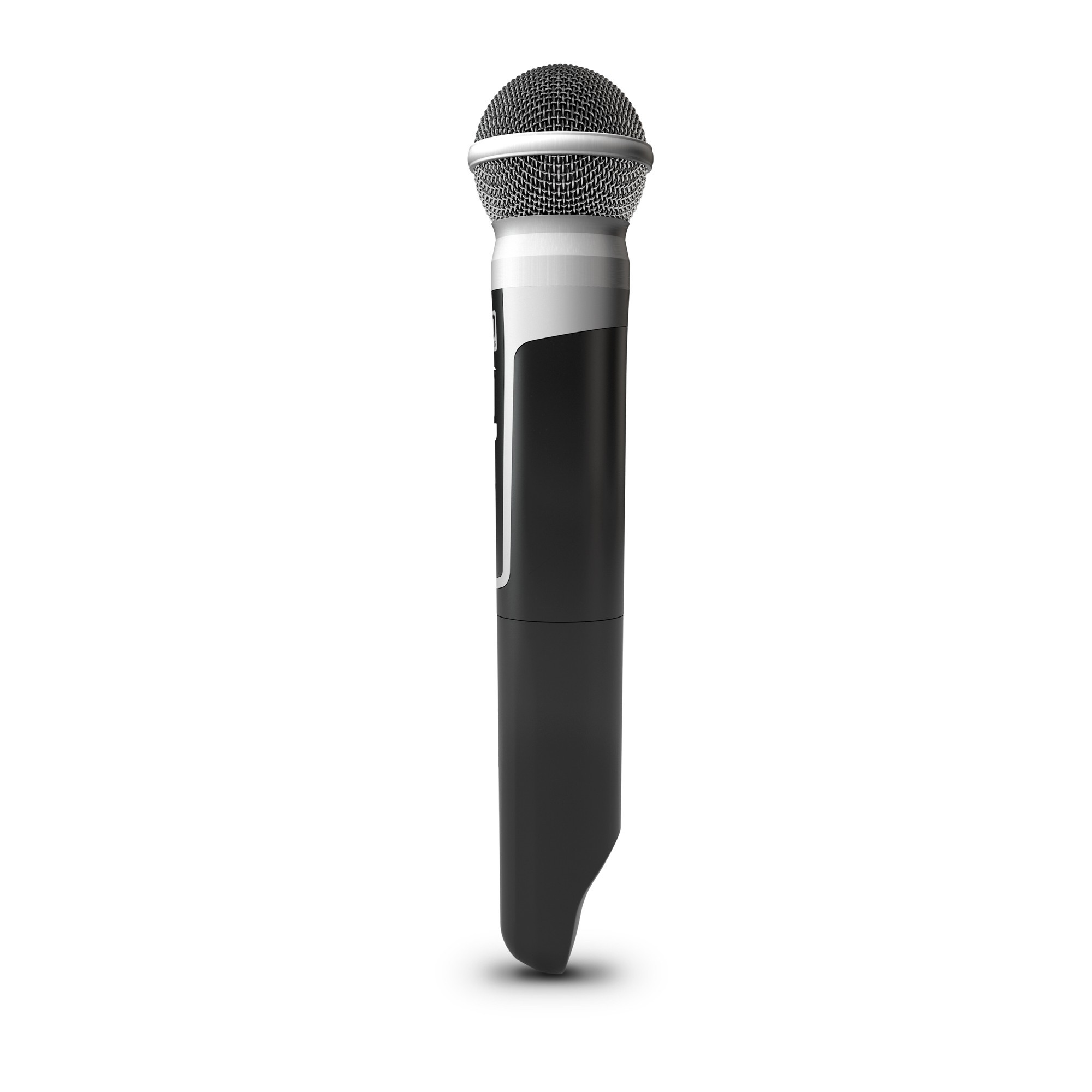

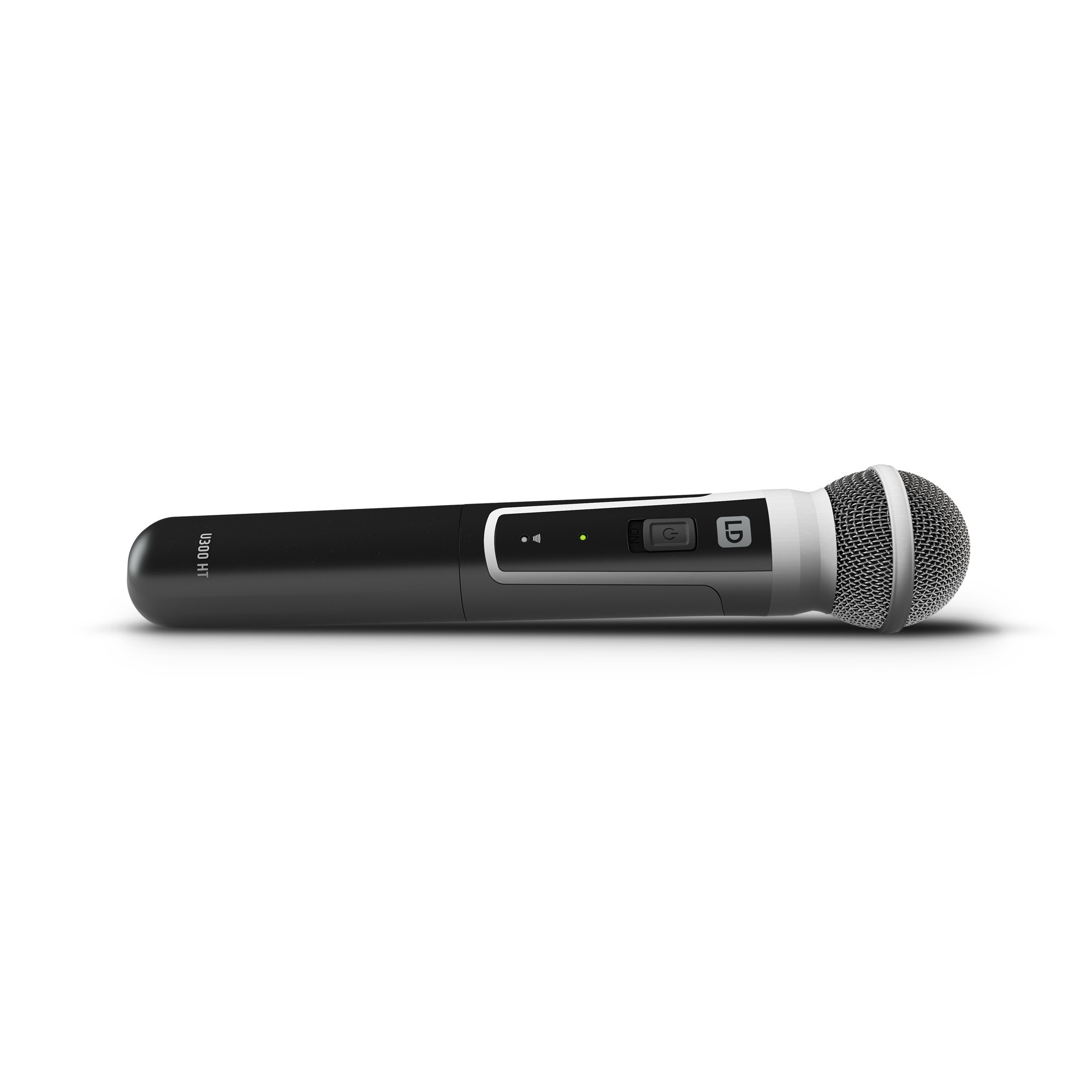

LD Systems U305 MD Dynamic handheld microphone:

  • Type: Microphone
  • Frequency response: 55 - 16,000 Hz
  • Transmission frequency range: 584 - 608 MHz
  • Channels: 12
  • Groups: 1
  • Directivity: Cardioid
  • Microphone type: Dynamic
  • Nominal HF output power: 10 mW
  • Signal-to-noise ratio: 104 dB
  • Operating voltage: 2 x AA batteries
  • Operating time: Over 10 hours
  • Weight: 0.235 kg
  • Dimensions: 257 x 50 mm
  • Controls: On/Off
  • Indicators: IR ASC Sync (flashing green/amber LED), Battery (low battery: red LED), Power LED (On: green)
  • Other features: Frequency IR Synchronisation, Pilot tone

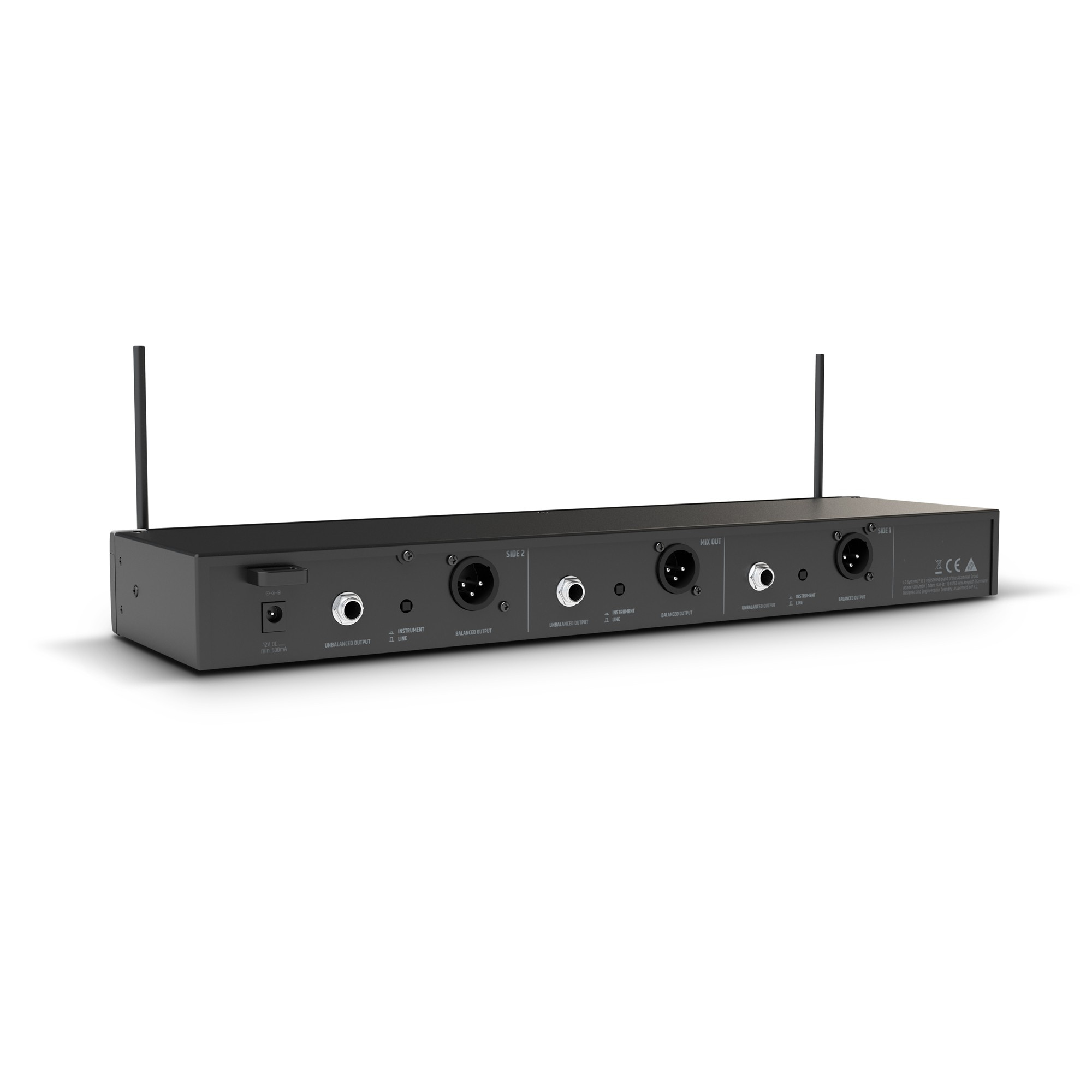

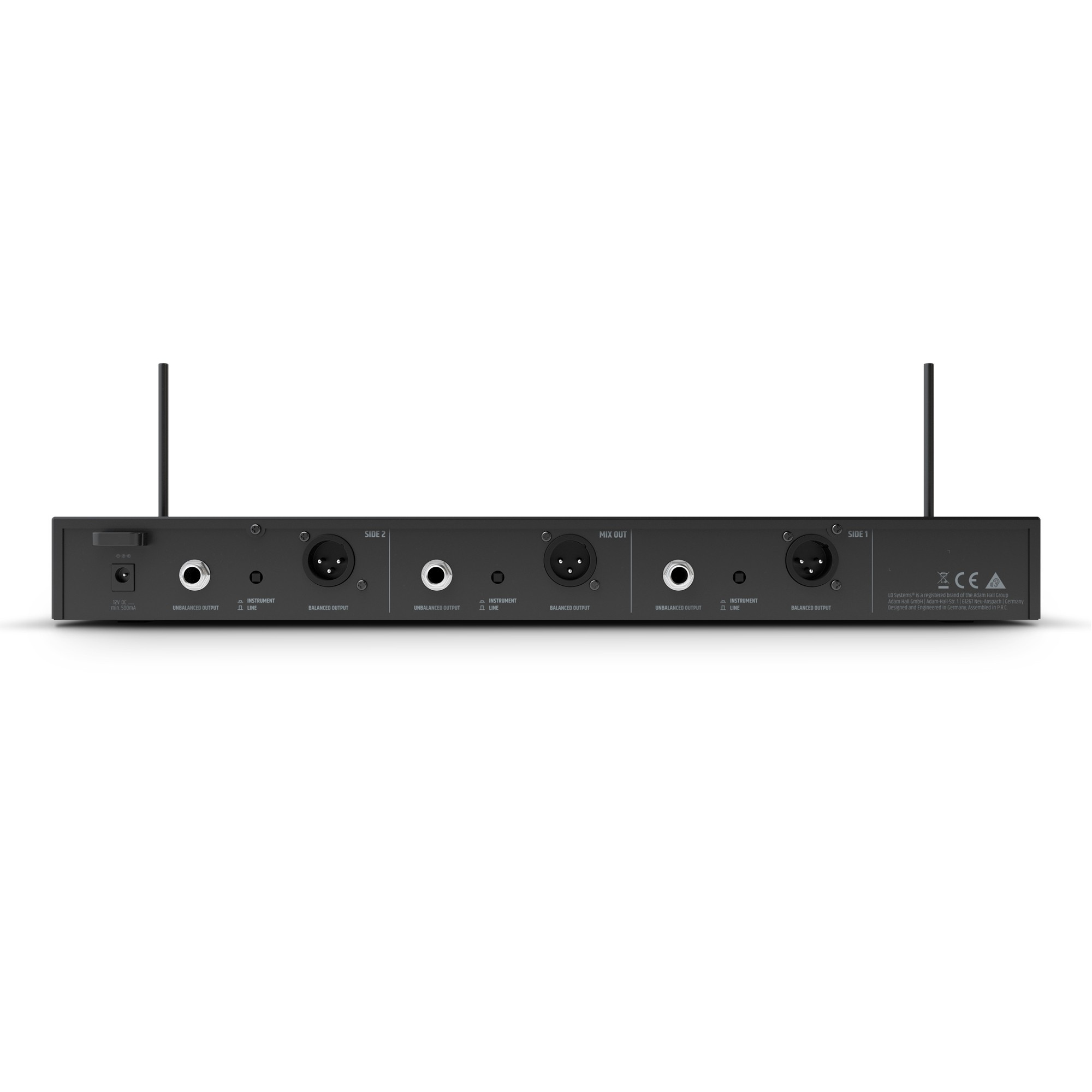

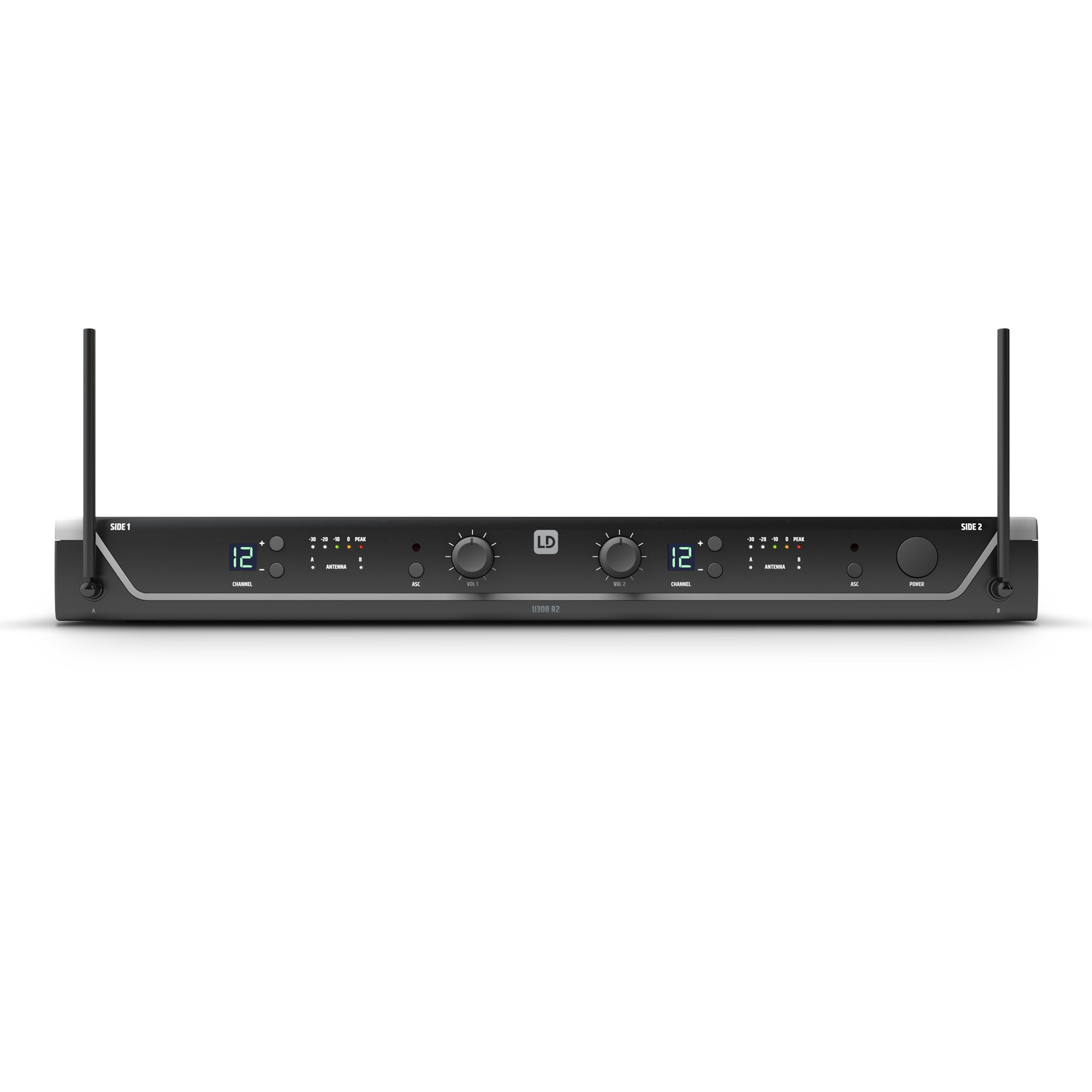

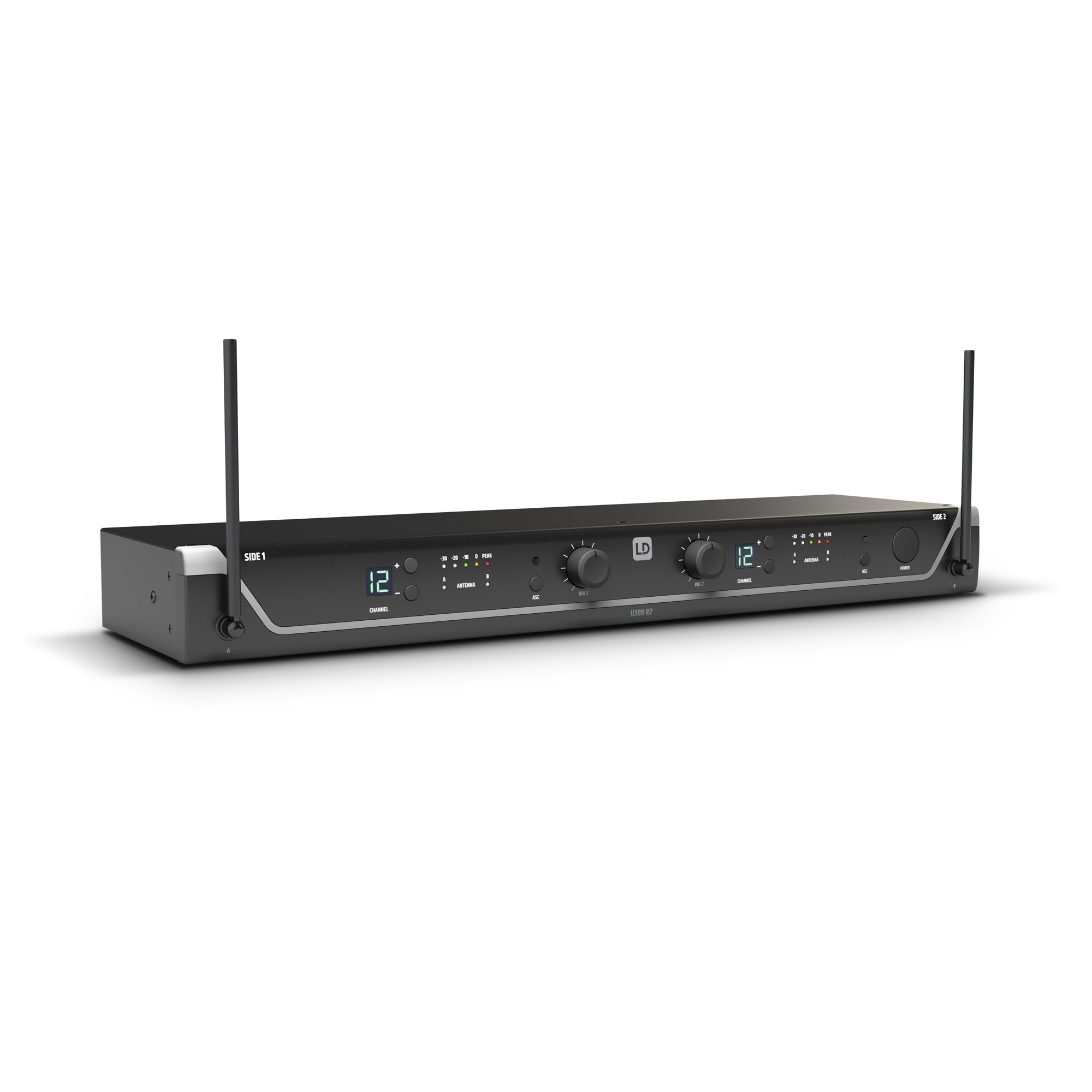

LD Systems U305 R2 Dual receiver - 584 - 608 MHz:

  • Type: Receiver
  • Modulation type: FM
  • Frequency response: 35 - 16,000 Hz
  • Transmission frequency range: 584 - 608 MHz
  • Channels: 12
  • Groups: 1
  • Antenna inputs: 2 x fixed
  • Noise reduction: Squelch
  • Optimisation for transmission: Pilot tone
  • Total harmonic distortion (THD): < 0.3%
  • Signal-to-noise ratio: 104 dB
  • Balanced audio output: 3 x XLR
  • Unbalanced audio output: 6.35 mm jack socket, switchable unbalanced output level (Line/Instrument)
  • Balanced audio mix output: XLR
  • Included accessories: 2 x AA batteries, Power supply
  • Unbalanced audio mix output: 6.35 mm jack socket
  • Maximum output level: +10 dBu (Balanced), +7 dBV (Unbalanced, Line), +2.5 dBV (Unbalanced, Instrument)
  • Weight: 1.265 kg
  • Controls: 2 x Volume, Channel down scroll, Channel up scroll, Line/Instrument level, On/Off
  • Indicators: VU display with 5 LEDs, Antenna A/B, LCD screen
  • Operating voltage: 12 V DC, 500 mA
  • Dimensions: 410 x 43 x 120 mm
  • Other features: Frequency IR Synchronisation, Pilot tone

Product code: LDU305HBH2

Unit of sale: set

Specifications:
Number of transmission/reception channels: 1
System type: digital
Capsule type: dynamic
Polar pattern: cardioid
Receiver type: Stationary
Communication frequency, global classification: 400 - 500 MHz
Communication frequency, global classification: 500 - 600 MHz
