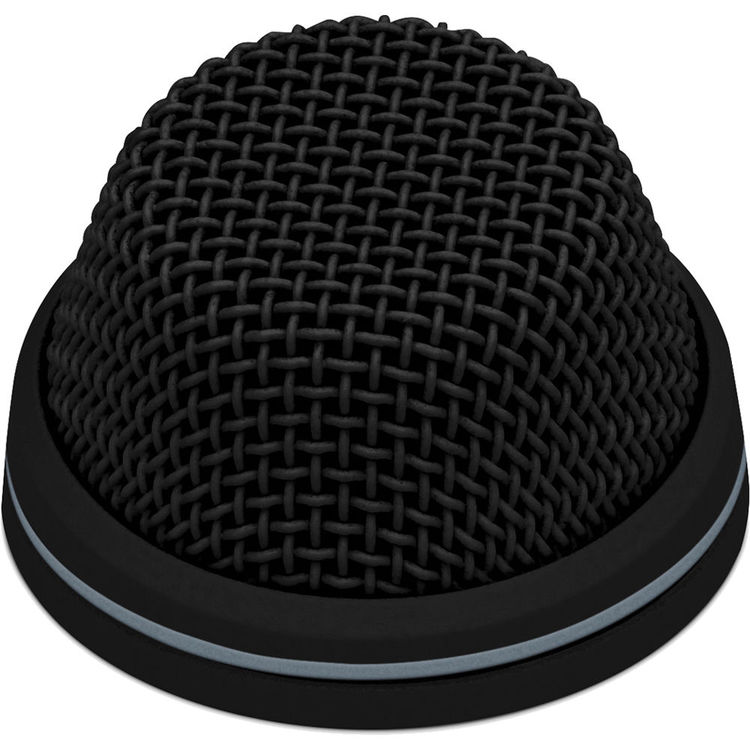

Sennheiser MEB 104-L B

Surface Microphone

cardioid pre-polarized condenser microphone for fixed installations.
powered by Phantom Power 24-48 V.
xLR-5 pin connector with specific pin assignments.
impedance of 200 Ω and maximum SPL of 125 dB.
programmable modes for versatile control options.

187⁶⁸ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

966 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

Sennheiser MEB 104-L B Add to cart: 187⁶⁸ €

Sennheiser MEB 104-L B - condenser microphone with a cardioid polar pattern, designed for fixed installations and surface mounting. It is powered by Phantom Power 24-48 V. Programmable modes for On, On/Off, PTT, PTM, and TTL Logic out for controlling media systems/cameras. Bi-colour LED status indicator. Its properties make it suitable for speeches and conferences. It offers the possibility of mounting on tables, flat surfaces, and ceilings. XLR-5 pin connector. It comes with a nut and two rubber gaskets for mounting. Immunity to RF interference.

Type: pre-polarized condenser
Polar pattern: cardioid
Impedance: 200 Ω
Power supply: Phantom Power 24-48 V
Maximum sound pressure level SPL: 125 dB
Equivalent noise level: 28 dB
Dynamic range: 97 dB
Sensitivity: 14 mV/Pa
Mounting thread diameter: metric 20
Current consumption: 6 mA
Connector: XLR-5 pins: 1 = gnd, 2 = + (mic +), 3 = − (mic −), 4 = green LED, 5 = red LED.
Frequency response: 40 Hz - 20 kHz
Weight: 60.1 g
Dimensions: height 89.92 mm, diameter 28.45 mm
Finish: Black
