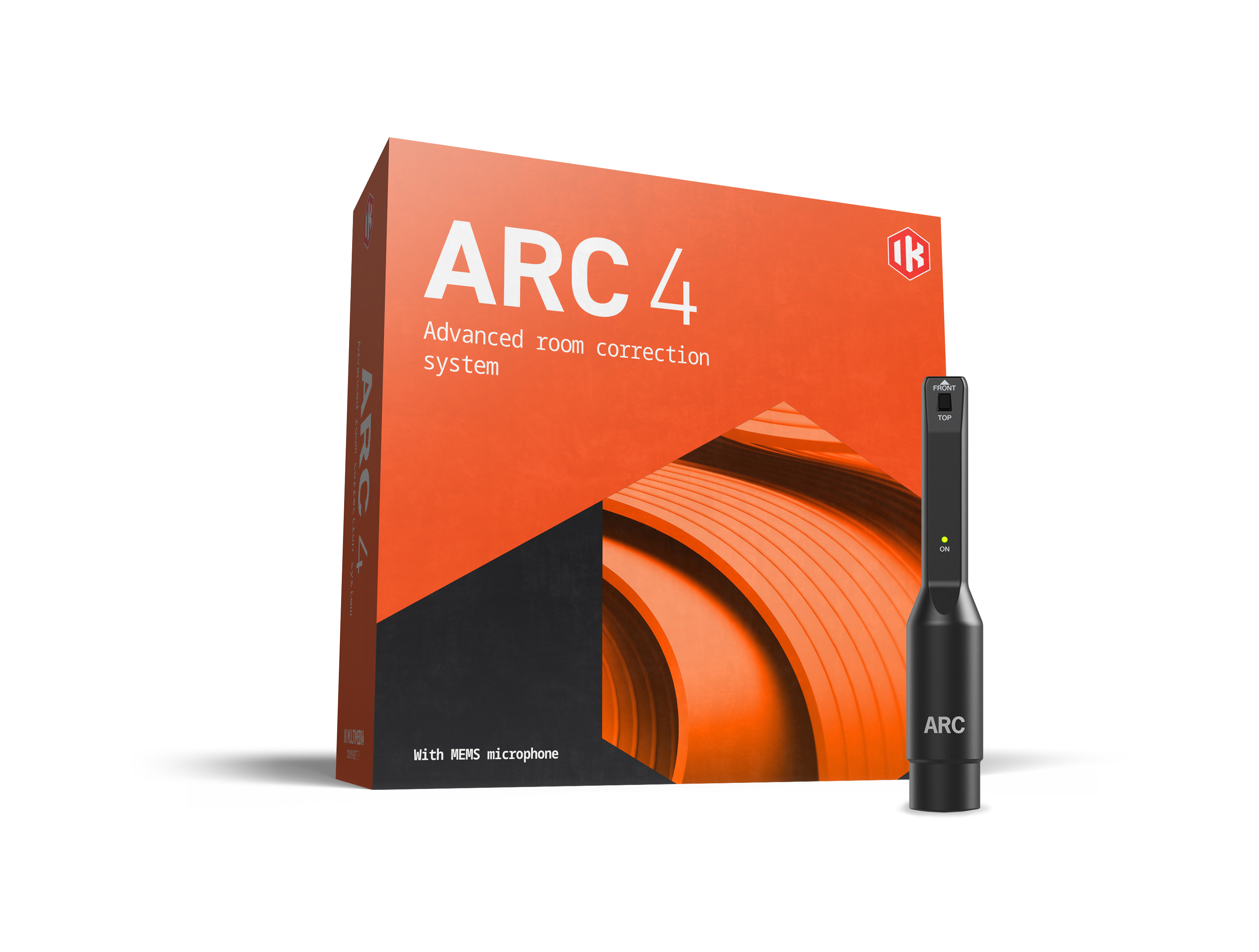

IK Multimedia ARC 4 - Software for speaker calibration (includes MEMS measurement microphone):
Application analysis features
- Simplified measurement system for rooms at multiple points, based on 3D VRM technology
- Measurement accuracy when used with the ARC System microphone: +/- 0.5 dB
- Also works with any RTA microphone with or without calibration file
- Save measurement sets to be opened with the ARC System Correction plug-in
Correction plug-in features
- High-quality correction plug-in in the frequency and time domain
- Resizable user interface
- Natural and linear phase modes for the best L-R phase coherence
- Real-time spectrum analyser showing how the room affects sound before correction
- Adjustable Low and Hi correction range to maintain monitor voice
- Three different resolution/smoothing options
- High-precision multistandard measurement derived from T-RackS 5: offers Peak, RMS, LUFS and DR
- Correction processor resolution: 32-bit floating point
- Supported sample rates by the correction processor: 44.1 kHz up to 192 kHz
- Virtual monitoring function mimics the sound of different listening devices
The package includes
- Precision measurement microphone
- Microphone clamp
- Software license
System requirements
- Mac® (64-bits)
- Minimum: Apple M1 or Intel® Core i5 processor, 4 GB RAM, macOS® 10.15 or newer (macOS 11 or newer is required for Apple Silicon processors).
- Supported plug-in formats: Audio Units, VST 2, VST 3, AAX.
- Works with any audio interface with an XLR microphone input with phantom power and a pair of outputs for monitoring.
- A sample rate of 44.1 kHz or 48 kHz is required for the measurement process.
- Windows® (64-bit)
- Minimum: Intel® Core i5 processor or equivalent, 4 GB RAM, Windows 10 (64-bit) or newer.
- Supported plug-in formats: VST 2, VST 3, AAX.
- Works with any audio interface with ASIO drivers, an XLR microphone input with phantom power, and a pair of outputs for monitoring.
- A sample rate of 44.1kHz or 48kHz is required for the measurement process.
- Requires a graphics adapter compatible with OpenGL 2.
