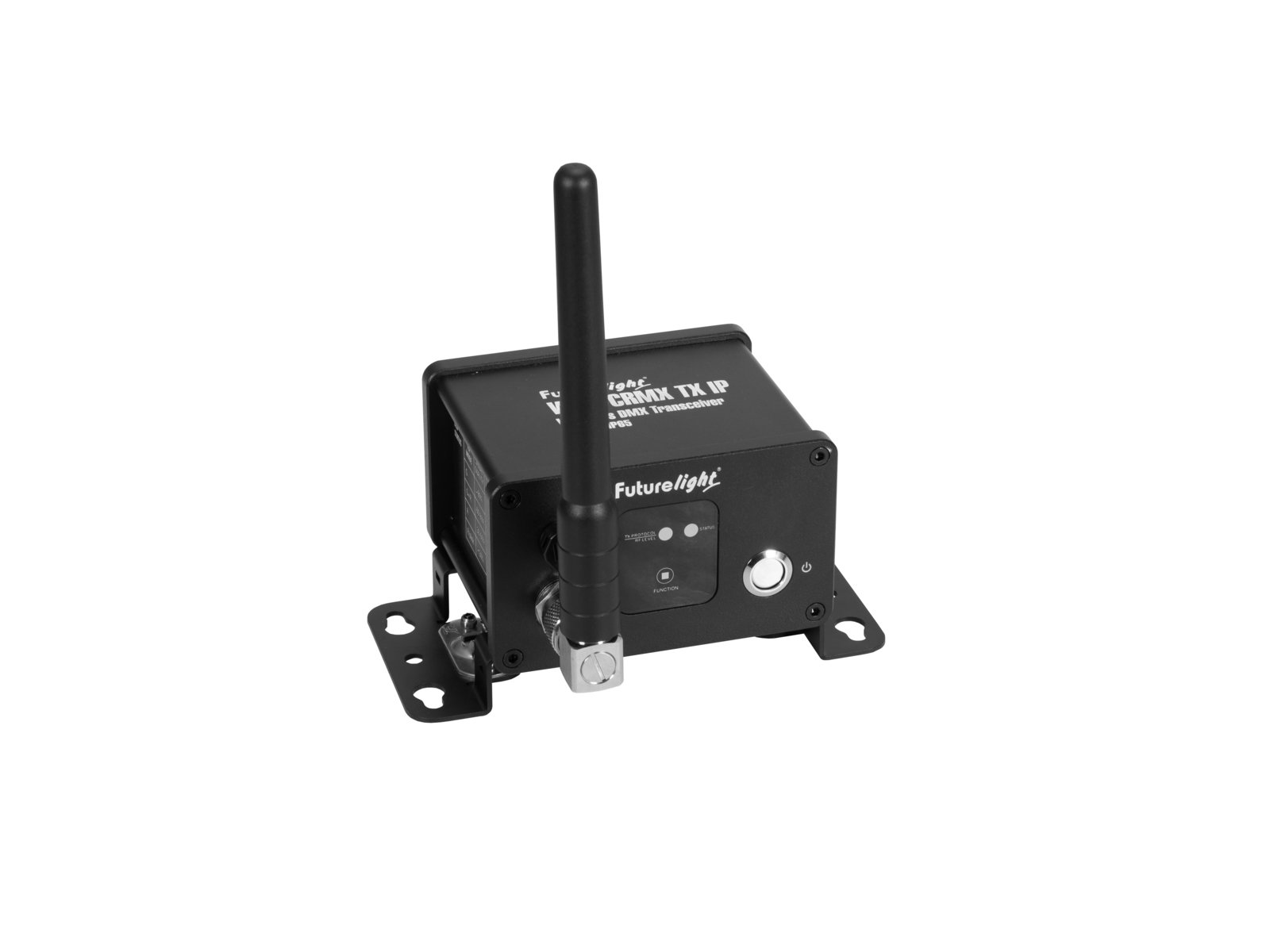

FutureLight WDS-CRMX TX IP Wireless DMX Transceiver Outdoor

DMX Transceiver

transceiver, to be used as transmitter or receiver
control via W-DMX by wireless solution; CRMX by LumenRadio
adaptive frequency hopping ensures interference-free operation in the 2.4 GHz band
can receive and process up to 512 DMX channels
can transmit up to 512 DMX channels

357³⁸ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

Shipping free

Warranty 24 months

Returns 14 days

request details

FutureLight WDS-CRMX TX IP Wireless DMX Transceiver Outdoor Add to cart: 357³⁸ €

Weather-proof wireless DMX transceiver, IP65

Transceiver, to be used as transmitter or receiver
Control via W-DMX by wireless solution; CRMX by LumenRadio
Adaptive frequency hopping ensures interference-free operation in the 2.4 GHz band
Can receive and process up to 512 DMX channels
Can transmit up to 512 DMX channels
Operating range up to 600m with line-of-sight
Multicolored LED indicator
Lockable power input (IP T-Con)
2.4 GHz license-free worldwide
With Omega bracket
OLED display
Suitable for outdoor use IP65

Package contents

1 x device, 1 x user manual, 1 x power cord, 1 x omega bracket, 1 x declaration of conformity

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	1,6 W
IP classification:	IP65
Protection class:	Protection class I
Power connection:	Mains input via IP T-Con (M) mounting version power supply cord with safety plug
DMX channels:	Input 512 Output 512
DMX input:	1 x 3-pin XLR (M) mounting version IP
DMX output:	1 x 3-pin XLR (F) mounting version IP
Control:	W-DMX by wireless solution; CRMX by LumenRadio
Attachment system:	Omega bracket
Display type:	OLED display
Status LED:	DMX, level meter
Frequency band:	2.4 GHz
Modulation:	GFSK
Antenna gain:	5 dBi
Parallel mode:	Max. 10 transmitter
Range:	Range up to 600m with line-of-sight
Color:	Black
Dimensions:	Length: 17,3 cm Width: 15,6 cm Height: 9,2 cm
Weight:	1,30 kg
