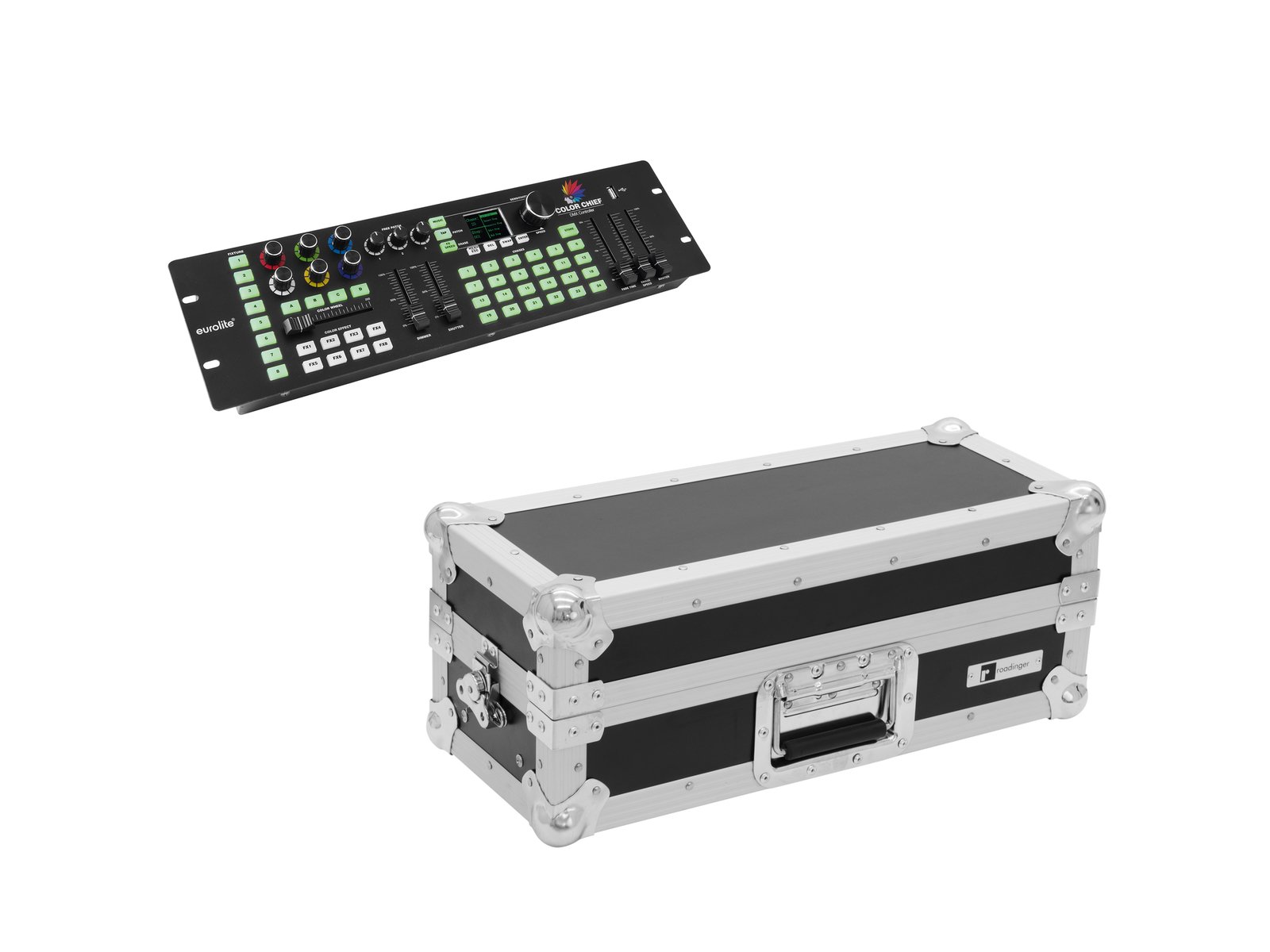

DMX lighting desk with an innovative control concept for LED spots, including flight case
EUROLITE DMX LED Colour Chief controller
DMX lighting desk with an innovative control concept for LED spots
- Easy control of LED spots with up to 6 colours, light bars, as well as simple lighting effects
- For 8 devices or groups of devices, each with up to 4 segments
- Each device can occupy up to 30 channels
- Quick and easy programming
- Additional fixtures can be configured manually
- 8 directly selectable colour effects
- 3 additional channels available per device (e.g., for rotations)
- Colour wheel selection and simulation
- 24 memory spaces for scenes and chases
- Multiple chases can be executed simultaneously
- USB port for program data storage
- Sound control via audio signal or TAP button
- Master dimming, fade time, and run time are easy to adjust
- Firmware update via USB
- 24 programmable sequences
- Can transmit up to 240 DMX channels
- Control via DMX; Sound to light via RCA mounting version (F); Sound to light via microphone
- (19") 48.3 cm rack installation 3 U
- Desktop console case
Package contents
- 1 x controller, 1 x user manual, 1 x external power adapter
ROADINGER Mixer Case Pro MCA-19-N, 3U, black
Flight case for devices of 483 mm (19")
- Angled profile rails for top-driven units
- High-quality workmanship with 7 mm glued multilayer plywood, black, laminated
- Interior with foam lining
- Detachable cover
- 30mm aluminium profile frames with rounded edges
- Robust transport handle
- 2 high-quality butterfly locks
- Rubber feet
- With profile rails suitable for units (19") of approximately 48 cm
- 3 U
Package contents
| Weight: | 7.35 kg |
| EUROLITE DMX LED Colour Chief controller |
| Power supply: | 100-240 V AC, 50/60 Hz 9 V DC 800 mA |
| Power consumption: | 10 W |
| IP rating: | IP20 |
| Power connection: | Mains input via coaxial power connector (M) power cable mounting version with AC adapter (supplied) |
| Programs: | Programmable 24 sequences |
| DMX channels: | Output 240 |
| DMX output: | 1 x XLR mounting version (F) with 3 pins |
| Control: | DMX; Sound to light via RCA mounting version (F); Sound to light via microphone |
| Case colour: | Black |
| Available storage supports: | USB devices (FAT 32) |
| USB port: | Type A |
| Colour: | Black |
| Case design: | (19") 48.3 cm rack installation 3 U Desktop console case |
| Dimensions: | Width: 48.3 cm Depth: 13.35 cm Height: 8.5 cm |
| Weight: | 2.25 kg |
| ROADINGER Mixer Case Pro MCA-19-N, 3U, black |
| Maximum capacity: | 25 kg |
| Detachable covers: | 1 pc/pcs |
| Aluminium profile frames: | 30 mm |
| Transport handle: | 1 pc/pcs |
| Lock: | Butterfly lock: 2 pcs/pcs |
| Transport aid: | Rubber feet |
| Material: | 7 mm glued multilayer plywood |
| Colour: | Black, laminated; dark brown, laminated |
| Interior dimensions: | 45 cm x 20 cm x 10.5 cm |
| Front panel width: | (19") approximately 48 cm |
| Mounting height: | Approximately. 13.5 cm (3 U) |
| Mounting depth: | 105 mm |
| Case design: | 3 U |
| Dimensions: | Width: 55 cm Depth: 24 cm Height: 23.5 cm |
| Weight: | 5.10 kg |
