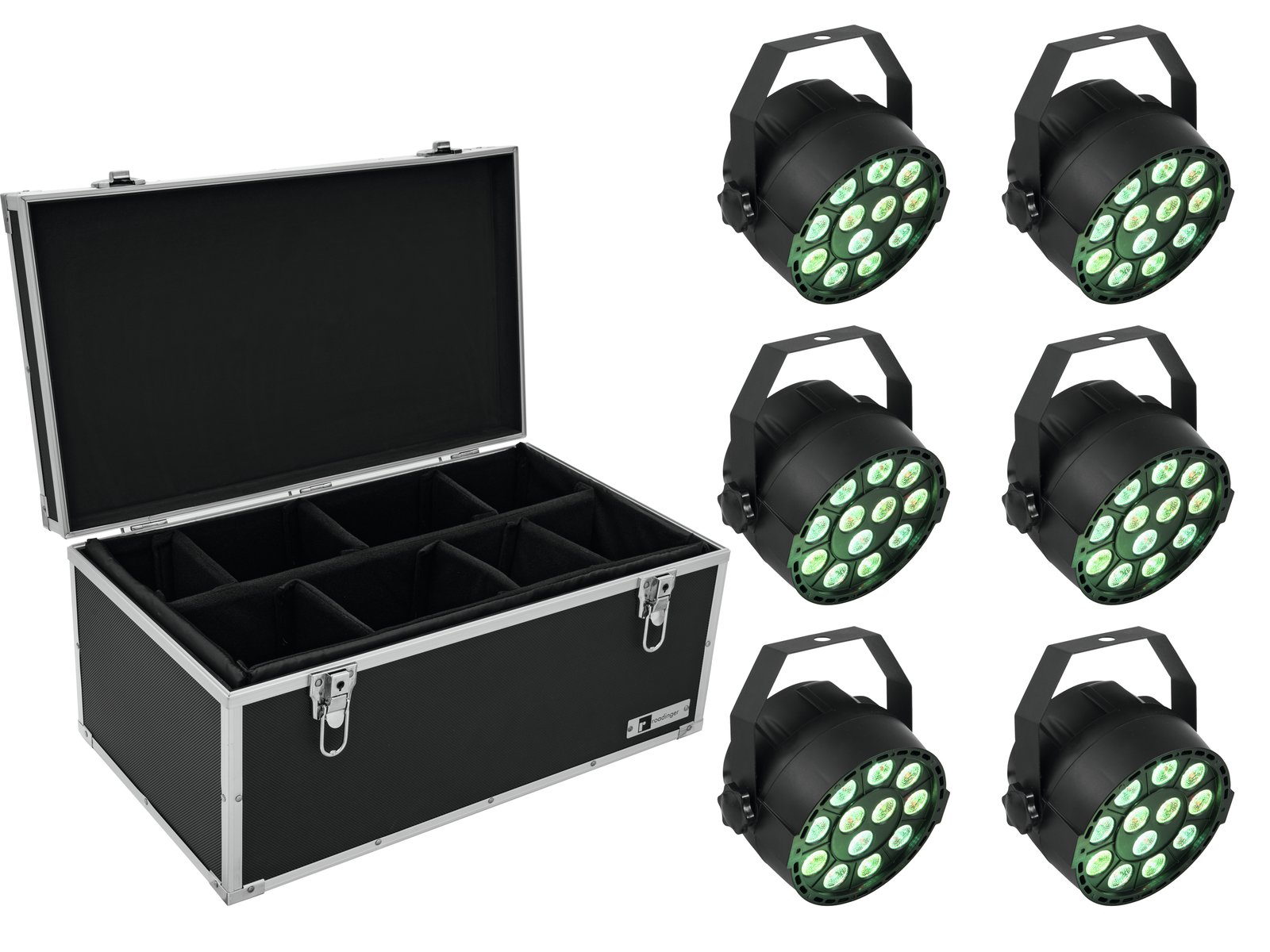

6x compact spots with 12 x 3 W 3in1 RGB LEDs including universal case
EUROLITE LED PARTY TCL Spot
Compact spot with 12 x 3 W 3in1 LED in RGB and DMX control
- 12 powerful 3 W 3in1 TCL RGB LEDs (homogeneous colour mixing)
- Strobe effect
- Direct colour selection for 18 preset colours
- Can be operated in 5 CH mode
- The device is cooled by a cooling fan
- Standalone control; DMX; Sound to light via microphone
- Flicker-free
- With a beam angle of 17°
- With mounting bracket
- LED display with 4 digits and 7 segments
- For applications such as: Carnival; Party room; Gift idea
- Colour change programmes; seamless colour mixing; adjustable pulse effect; electronic dimmer
- Preprogrammed in LED PC-Control 512; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; Light'J
Package contents
- 1 x spotlight, 1 x mounting bracket, 2 x knurled screws, 2 x washers, 1 x user manual
Universal case ROADINGER TDV-1
Universal case with flexible foam dividers
- With dividers
- High-quality workmanship with 3 mm birch multiplex, black, laminated
- Interior with foam lining
- Frames made of 12mm aluminium profile with rounded edges
- Robust transport handle
- 3 chrome locks for overturning
- 2 high-quality spring locks with stop function
- For more information about this product, please refer to the technical data sheet in "Downloads"
Package contents
| Weight: | 6.02 kg |
| EUROLITE LED PARTY TCL Spot |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 10 W |
| IP rating: | IP20 |
| Protection class: | Protection class II |
| Power connection: | Fixed power cable with Euro plug |
| Cable construction: | 2 x 0.75 mm² H03VVH2-F |
| Cable length: | Approx. 0.9 m |
| Lamp type: | LED lamp |
| LED: | 12 x 3 W high-power 3in1 TCL RGB (homogeneous colour mixing) |
| DMX channels: | 5 |
| DMX input: | XLR (M) mounting version with 3 pins |
| DMX output: | XLR (F) mounting version with 3 pins |
| Cooling: | 1 x cooling fan |
| Control: | Standalone; DMX; Sound to light via microphone |
| Preprogrammed in: | LED PC-Control 512; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; Light'J |
| Beam angle: | 17° |
| Beam angle (1/2 peak): | 17° |
| Beam angle (1/10 peak): | 38° |
| Case colour: | Black |
| Attachment system: | Mounting bracket |
| Display type: | LED display with 4 digits and 7 segments |
| Dimensions: | Width: 15 cm
Depth: 9 cm
Height: 16 cm |
| Weight: | 430 g |
| Mounting bracket |
| Mounting hole diameter: | 1 x Ø12mm; 2 x Ø8mm |
| Material: | Metal, 1 mm, painted |
| Colour: | Black, matte |
| Legal specifications |
| special product: | Not designed for lighting domestic rooms |
| Intended use: | Show effect lighting |
| Universal case ROADINGER TDV-1 |
| Maximum capacity: | 25 kg |
| Aluminium profile frames: | 12 mm |
| Transport handle: | 1 pcs/piece |
| Stop hinge: | 3 pcs/piece |
| Lock: | Spring lock: 2 pcs/piece with stop function |
| Material: | Birch multiplex, 3 mm |
| Colour: | Black, laminated |
| Interior dimensions: | 52 cm x 28.5 cm x 20 cm |
| Dimensions: | Width: 54 cm
Depth: 31 cm
Height: 26 cm |
| Weight: | 3.45 kg |
