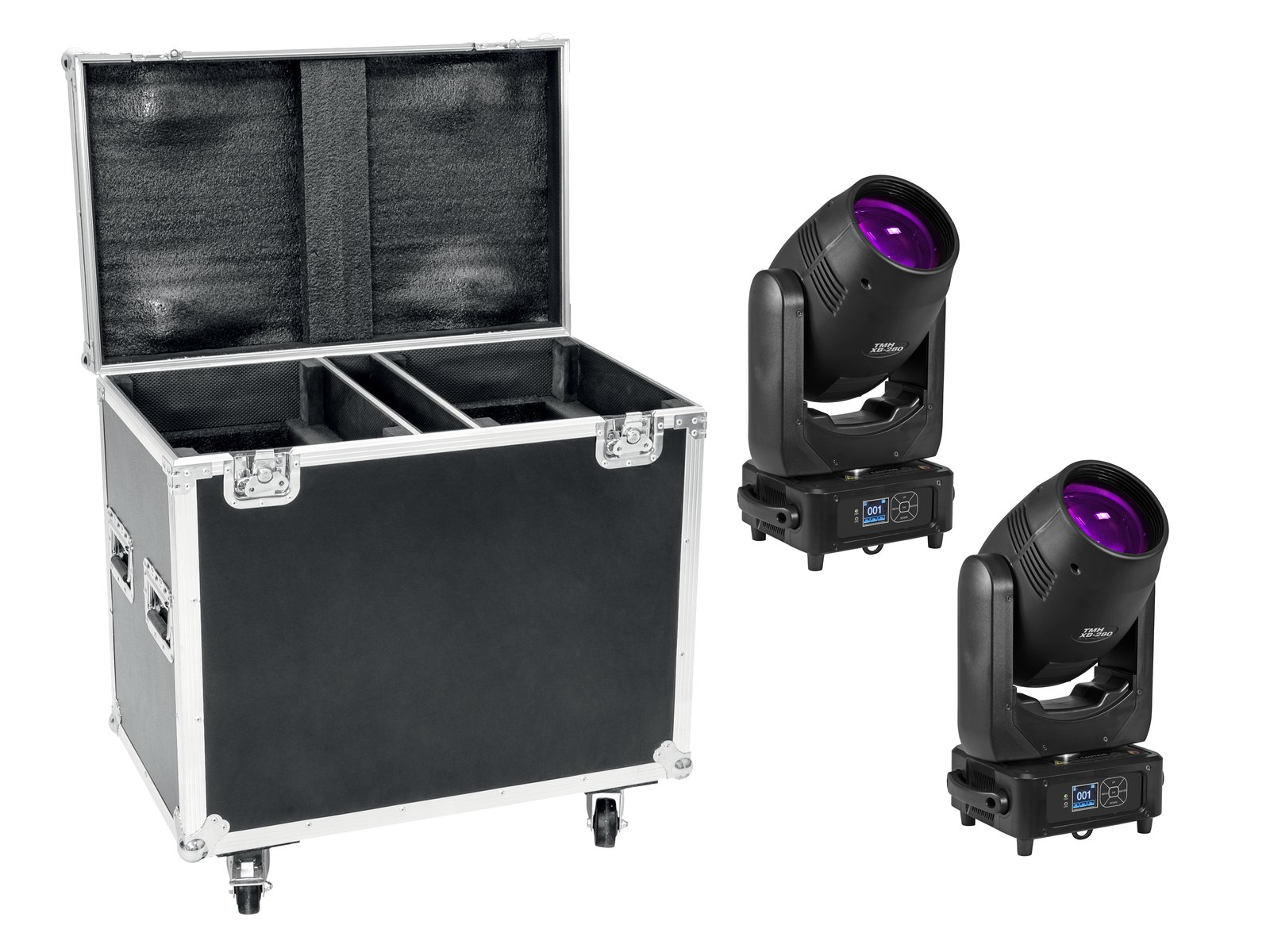

2x narrow beam light, 280 W OSD 10 discharge lamp incl. PRO flight case with wheels
- Positioning in PAN and TILT
EUROLITE TMH XB-280 Moving Head Beam
Narrow beam light with 280 W OSD 10 discharge lamp, colour wheel, gobo and prisms
- Equipped with a 280W OSD 10 discharge lamp
- Positioning at 540° PAN and 270° TILT
- Precise positioning (16-bit resolution)
- Colour palette; motorised focus; gobo wheel with static gobos; frost filter; 8-facet rotating prism; 24-facet rotating prism
- Rainbow effect with adjustable speed in both directions
- Gobo wheel with static gobos, 13 gobos and open
shaking effect - With a beam angle of 2°
- Electronic dimmer
- Strobe effect
- Colour wheel with 14 dichroic filters plus open
- Preprogrammed in LED PC-Control 512; Light Captain; Lumina'J
Package contents
- 1 x moving light, 1 x user manual, 1 x power cable, 2 x Omega bracket
ROADINGER Flightcase 2x TMH-XB-280
PRO flight case with wheels for 2 x TMH XB-280
- For optimal security
- With 2 compartments for devices
- High-quality workmanship with 7 mm glued multilayer plywood, black, laminated
- Interior with foam lining
covered with foam padding - 30mm aluminium profile frames with rounded edges
- 2 chrome-plated case handles with hinges
- 2 chrome locks for overturning
- 2 high-quality butterfly locks with stop function
- 4 wheels with 2 locking brakes
| Weight: | 46.30 kg |
| EUROLITE TMH XB-280 Moving Head Beam |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 385 W |
| IP rating: | IP20 |
| Power connection: | Network input via P-Con (blue), power cable mounting version with safety plug (supplied) |
| Fuse: | T 5 A replaceable fuse |
| Type of lamp: | Discharge lamp |
| Max. TILT movement: | Precise positioning 270° (16-bit resolution) |
| Max. PAN movement: | Precise positioning 540° (16-bit resolution) |
| Strobe rate: | 1 - 18 Hz |
| Equipment: | Colour palette; motorised focus; gobo wheel with static gobos; frost filter; 8-facet rotating prism; 24-facet rotating prism |
| Colour generation: | Colour wheel with 14 dichroic filters plus open |
| Gobo: | Gobo wheel with static gobos, 13 gobos and open
shaking effect |
| DMX channels: | 16; 19 |
| DMX input: | XLR (M) mounting version with 3 pins |
| DMX output: | XLR (F) mounting version with 3 pins |
| Cooling: | Cooling fan |
| Control: | DMX; standalone; Master/slave function; Sound to light via microphone; QuickDMX via USB (optional); W-DMX via wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Preprogrammed in: | LED PC-Control 512; Light Captain; Lumina'J |
| Beam angle: | 2° |
| Beam angle (1/2 peak): | 2° |
| Case colour: | Black |
| Display type: | Multicolour LCD display |
| Dimensions: | Width: 30.0 cm
Depth: 20.5 cm
Height: 50.5 cm |
| Weight: | 14.80 kg |
| Noise rating: | Class 4 (loud noises) |
| ROADINGER Flightcase 2x TMH-XB-280 |
| Max capacity: | 50 kg |
| Aluminium profile frames: | 30 mm |
| Case handles: | 2 pcs |
| Stop hinges: | 2 pcs |
| Lock: | Butterfly lock: 2 pcs with stop function |
| Transport assistance: | 4 x wheels with 2 locking brakes |
| Material: | 7 mm glued multilayer plywood |
| Colour: | Black, laminated |
| Device compartment: | 22 cm x 32 cm x 50 cm |
| Accessory compartment: | 7 cm x 32 cm x 22 cm |
| Internal dimensions: | 53 cm x 32 cm x 50 cm |
| Dimensions: | Width: 58 cm
Depth: 37 cm
Height: 67 cm |
| Weight: | 16.70 kg |
