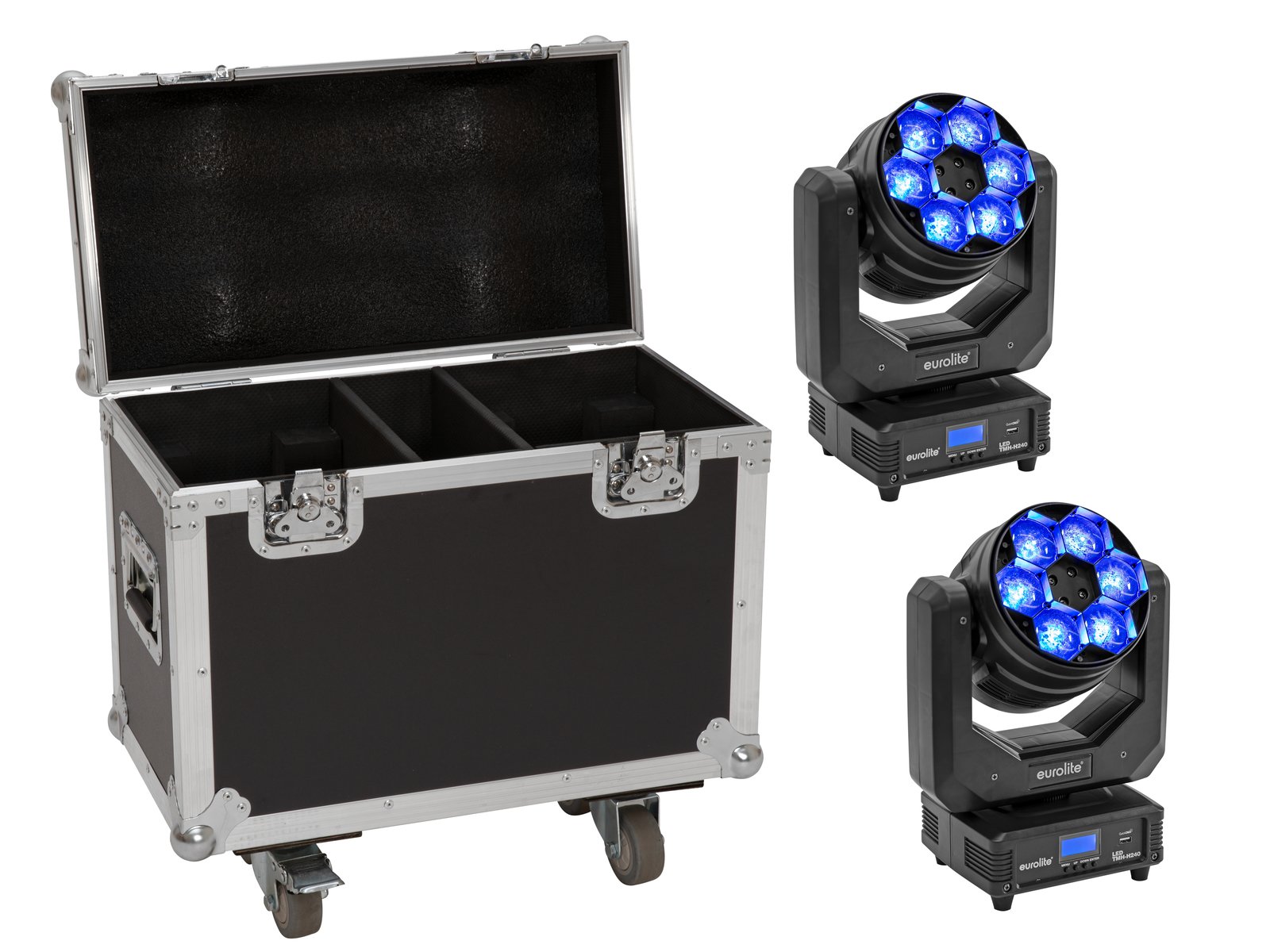

EUROLITE LED TMH-H240 Beam/Wash/Flower Effect
Hybrid moving head with RGBW LEDs, zoom, macros, patterns, and colour temperature presets
- 3-in-1 moving head beam, wash, and flower effect in one device
- 6 powerful 40 W 4in1 QCL RGBW LEDs (homogeneous colour mixing)
Individually controlled LEDs - 540° PAN and 240° TILT positioning
- Switchable PAN angle between 540° and 360°
- Automatic position correction (feedback)
- Precise positioning (16-bit resolution)
- Motor-driven zoom; rotating lens
- Stepless colour mixing; colour change; preset colours; preset patterns; adjustable background colour; adjustable response dimmer curves
- Strobe effect; fan effect; flower effect; multiple beam effect
- Integrated show programs
- Can be operated in 16; 21; 24; 32; 56 CH mode
- The device is cooled by a temperature-controlled fan
- Standalone control; Sound to light via microphone; DMX; QuickDMX via USB (optional); W-DMX wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Master/slave function
- Flicker-free
- With a beam angle of 2° - 40°
- With Omega bracket
- LCD display
- Preprogrammed in Light´J; Light Captain; Easy Show 3
- Network input and output for power connection up to 8 units
Package contents
- 1 x moving light, 1 x user manual, 1 x power cable, 2 x Omega bracket, 1 x XLR cable
ROADINGER Flightcase 2x TMH-S90/H90/B90
Flightcase for 2 x moving head spot EUROLITE LED TMH-S90
- For optimal security
- With 2 compartments for devices
- High-quality workmanship with 7 mm glued multilayer plywood, black, laminated
- Interior padded with foam
covered with foam lining - 30mm aluminium profile frames with rounded edges
- 2 case handles with hinges, chrome-plated
- 2 chrome-plated latches for overturning
- 2 high-quality butterfly latches
- Wheels
| Weight: | 26.80 kg |
| EUROLITE LED TMH-H240 Beam/Wash/Flower Effect |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 190 W |
| IP rating: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), power cable mounting version with safety plug (supplied) |
| Power output: | P-Con (grey), mounting version |
| Fuse: | 5 x 20 mm, T 3 A |
| Lamp type: | LED lamp |
| LED: | 6 x 40 W 4in1 QCL RGBW (homogeneous colour mixing) |
| Max. TILT movement: | 240° Precise positioning (16-bit resolution) Automatic position correction (feedback) |
| Max. PAN movement: | 540°, 360° Precise positioning (16-bit resolution) Automatic position correction (feedback) |
| Flash rate: | 1 - 25 Hz |
| Equipment: | Motor-driven zoom; rotating lens |
| DMX channels: | 16; 21; 24; 32; 56 |
| DMX input: | Mounting version XLR (M) with 3 pins |
| DMX output: | Mounting version XLR (F) with 3 pins |
| Cooling: | Temperature-controlled fan |
| Control: | Standalone; Sound to light via microphone; DMX; QuickDMX via USB (optional); W-DMX wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Master/slave function |
| Preprogrammed in: | Light'J; Light Captain; Easy Show 3 |
| Beam angle: | 2° - 40° |
| Beam angle (1/2 peak): | 2 - 25° |
| Beam angle (1/10 peak): | 8 - 40° |
| Illuminance in lux (lx): | Narrow Red (R) 1m: 11423 lx, 3m: 5703 lx, 6m: 1423 lx
Narrow Green (G) 1m: 28573 lx, 3m: 11882 lx, 6m: 2992 lx
Narrow Blue (B) 1m: 3089 lx, 3m: 1835 lx, 6m: 513 lx
Narrow Cool White (CW) 1m: 35392 lx, 3m: 15489 lx, 6m: 3899 lx
Narrow at all 1 m: 67721 lx, 3m: 30843 lx, 6m: 7807 lx |
| Housing colour: | Black |
| Mounting system: | 2x Omega bracket |
| Display type: | LCD screen |
| Dimensions: | Width: 26 cm
Depth: 18 cm
Height: 33 cm |
| Weight: | 6.10 kg |
| Legal specifications |
| special product: | Not designed for lighting a household room |
| Intended use: | Show lighting with effect |
| ROADINGER Flightcase 2x TMH-S90/H90/B90 |
| Maximum capacity: | 50 kg |
| Aluminium profile frames: | 30 mm |
| Case handles: | 2 pcs/piece |
| Stop hinge: | 2 pcs/piece |
| Lock: | Butterfly lock: 2 pcs/piece |
| Transport aid: | Wheels |
| Material: | Glued multilayer plywood, 7 mm |
| Colour: | Black, laminated |
| Device compartment: | 20 cm x 26 cm x 37 cm |
| Accessory compartment: | 9.5 cm x 26 cm x 37 cm |
| Dimensions: | Width: 57 cm
Depth: 31 cm
Height: 54 cm |
| Weight: | 13.15 kg |
