This fixture offers a range of special features. Its color mixing based on red, green, blue, and lime allows not only for vibrant, punchy colors but also for subtle pastel tones, as well as high-quality yellow and orange shades. It can even produce convincing white light.Thanks to its fanless design, the fixture operates completely silently. It is also highly versatile in terms of mounting: the bracket allows for both hanging and standing use, but can also be removed entirely if needed.Its design also allows the fixture to be placed directly on its back, making it suitable for use as an uplight. An extendable stand foot enables precise angle adjustment. The side-mounted connectors ensure clean and flexible installation.

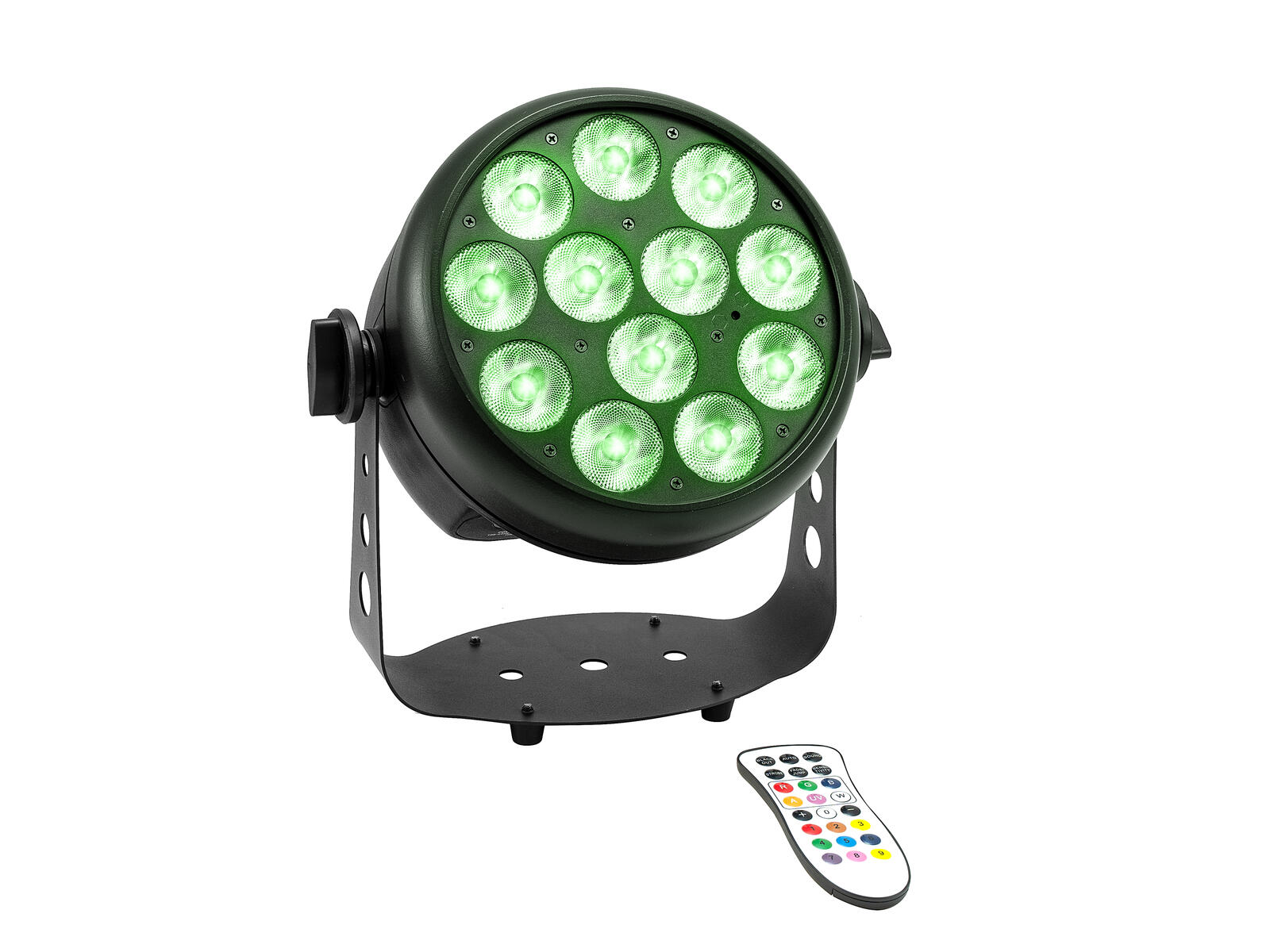

Fanless spot with RGBL color mixing and standing bracket
12 LEDs 10 W SMD 5050 4in1 RGBL (homogenous color mix)
With a beam angle of 15°
Good color rendering index (CRI)
Silent operation
Spot effect; uplight effect
Direct color selection for 255 preset colors
Control via DMX; stand-alone; sound to light via microphone; master/slave function; RDM; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); IR remote control
With bracket for floor use; with mounting bracket
Rubber feet
Direct color temperature selection for 15 preset values
Variable color temperature 1800 K - 12000 K
22 integrated show programs
Color change adjustable speed; color fade adjustable speed; color blend stepless; Dimmer electronic
Mains input and output for power linking up to 8 units
The device is cooled by passive convection cooling
For application areas such as: Party room; mobile djs / entertainer; clubs/dancing school; stage
Application possibility: Standing; suspended; on stand
Scope of delivery
1 x light effect
1 x mounting bracket
2 x screw
2 x washer
1 x user manual
1 x power cord
1 x battery
1 x remote control
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
70 W
Protection class:
Protection class I
Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Cable construction:
3 x 1 mm² H05VV-F
Power output:
1 x P-Con (gray), mounting version Bypass
Device fuse:
5 x 20 mm, F 3 A fuse replaceable
Lamp type:
LED lamp
LED type:
12 x 10 W SMD 5050 4in1 RGBL (homogenous color mix)
Flash rate:
2 - 20 Hz
DMX channels:
4; 6; 9
DMX input:
1 x 3-pin XLR (M) mounting version
DMX output:
1 x 3-pin XLR (F) mounting version Bypass
Cooling:
Passive convection cooling
Control:
DMX; stand-alone; sound to light via microphone; master/slave function; RDM; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); IR remote control
Fixtures available for:
Light´J; Light Captain
DMX features:
RDM For bidirectional communication over the DMX line
