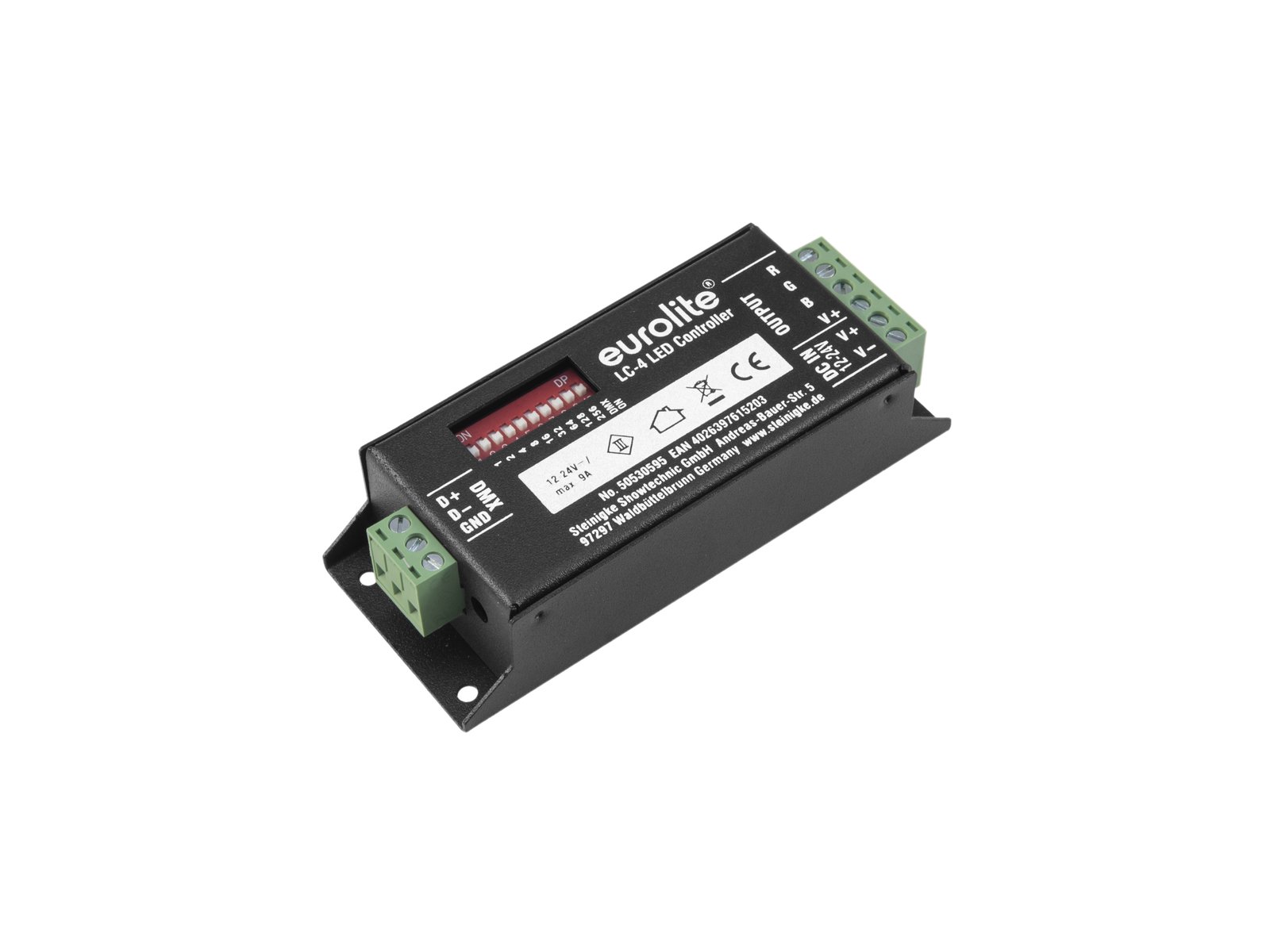

Eurolite LC-4 LED Strip RGB DMX Controller

DMX controller

compact LED controller for controlling RGB LEDs (12-24 V) via DMX
converts standard DMX512 signals to PWM signals e.g. for driving LED strips
3 separate control channels for individual color mixing of red, green and blue LEDs
plug-in screw terminals for connecting the LEDs and the power supply
rugged black metal housing

34⁶¹ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

Shipping 8.00 €

Warranty 24 months

Returns 14 days

request details

Eurolite LC-4 LED Strip RGB DMX Controller Add to cart: 34⁶¹ €

3-channel LED controller with DMX interface for RGB LEDs 12-24 V

Compact LED controller for controlling RGB LEDs (12-24 V) via DMX
Converts standard DMX512 signals to PWM signals e.g. for driving LED strips
3 separate control channels for individual color mixing of red, green and blue LEDs
Plug-in screw terminals for connecting the LEDs and the power supply
Rugged black metal housing
Integrated Showprograms
Can be operated in 4 CH mode
The device is cooled by passive convection cooling
Controlling by DMX; stand-alone

Package contents

Power supply:	12/24V DC
Power consumption:	Max. 144 W 12 V DC Max. 216 W 24 V DC 36 W 12 V DC per channal 72 W 24 V DC per channal
IP classification:	IP20
Output current:	Max. 3 x 3 A per channal
Power connection:	Via screw terminal
Power output:	Screw terminal
DMX channels:	4
DMX input:	Screw terminal
Cooling:	Passive convection cooling
Control:	DMX; stand-alone
Housing color:	Black
Dimensions:	Width: 4,5 cm Depth: 10,9 cm Height: 2,7 cm
Weight:	150 g
