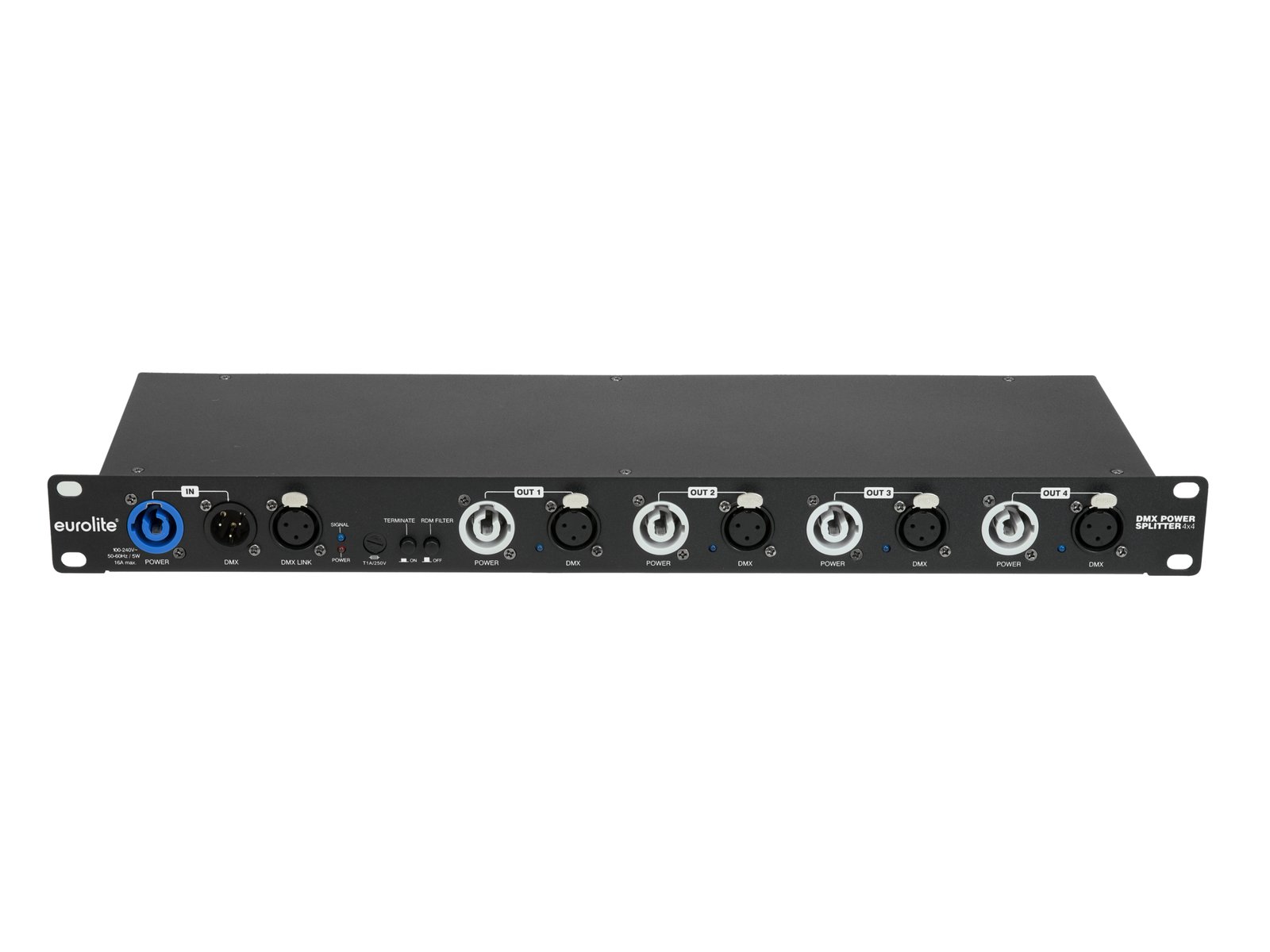

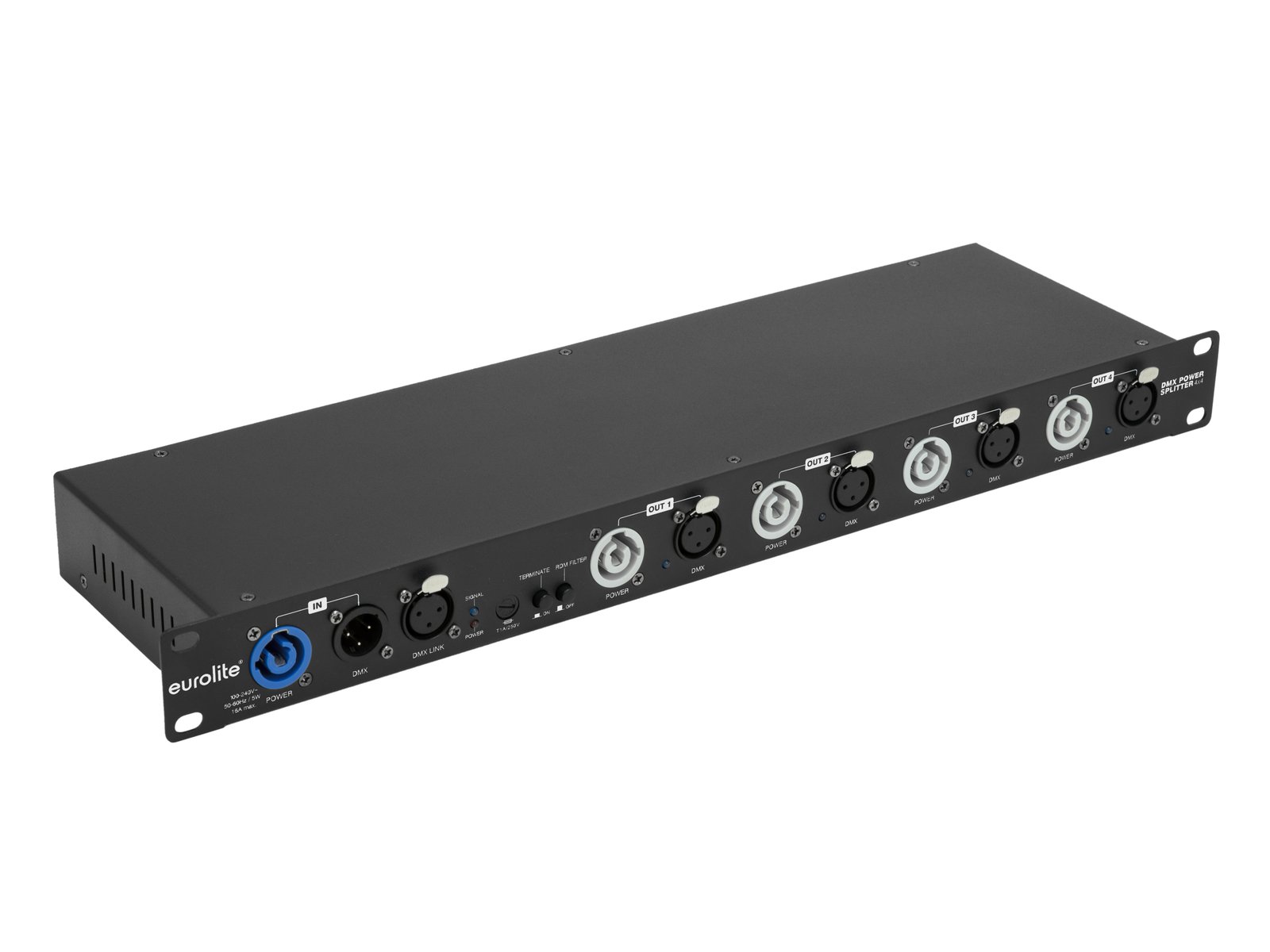

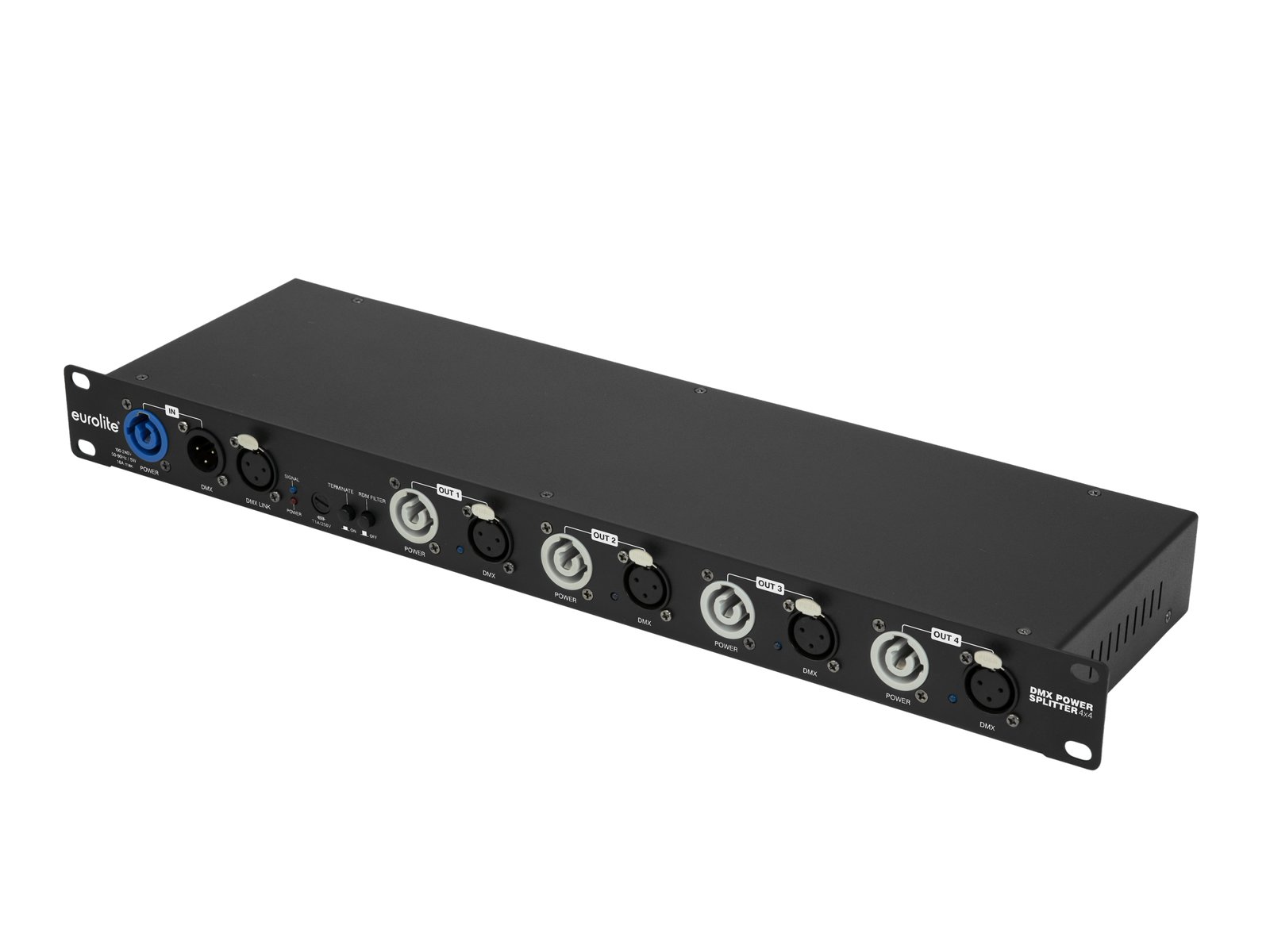

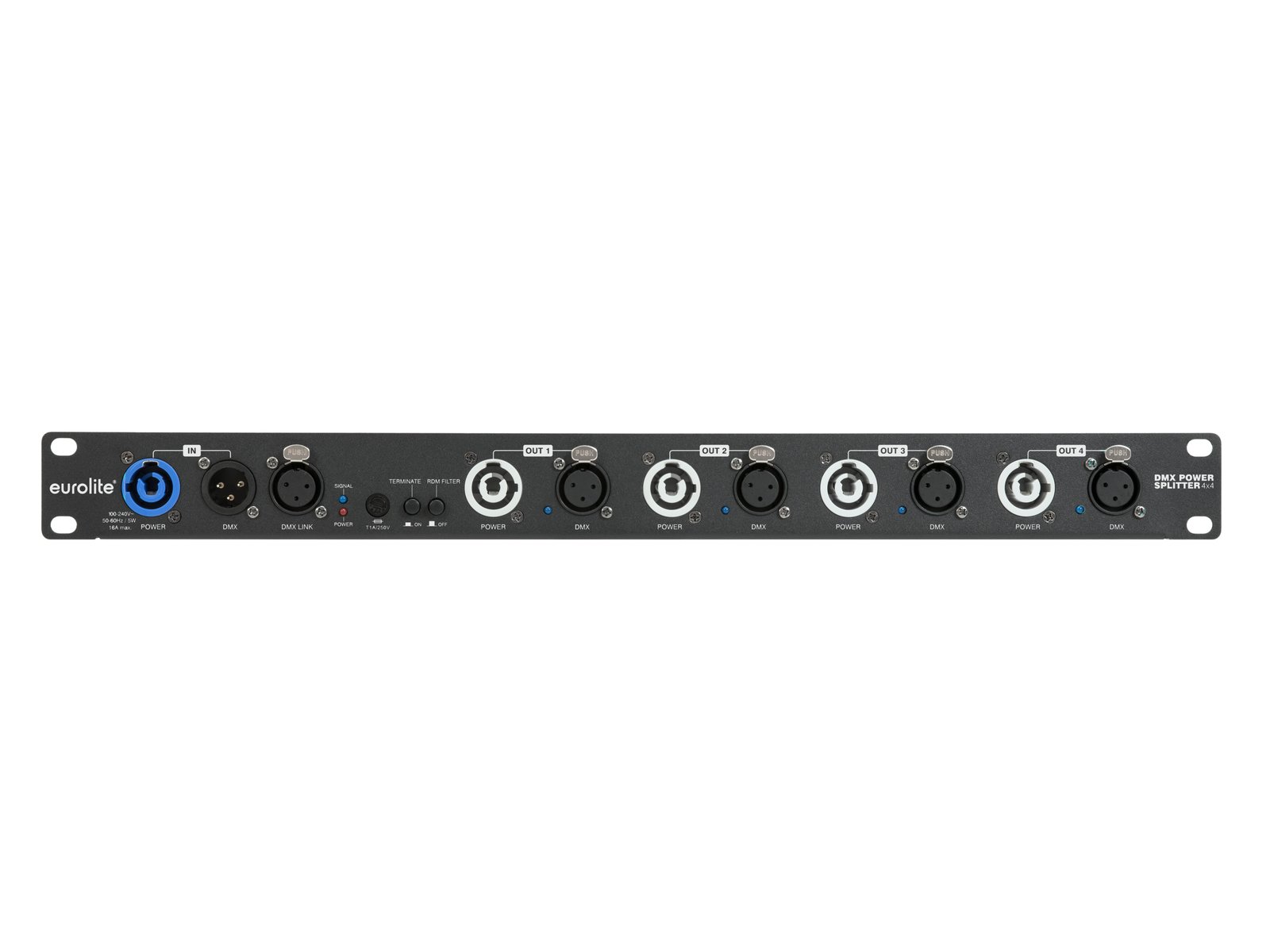

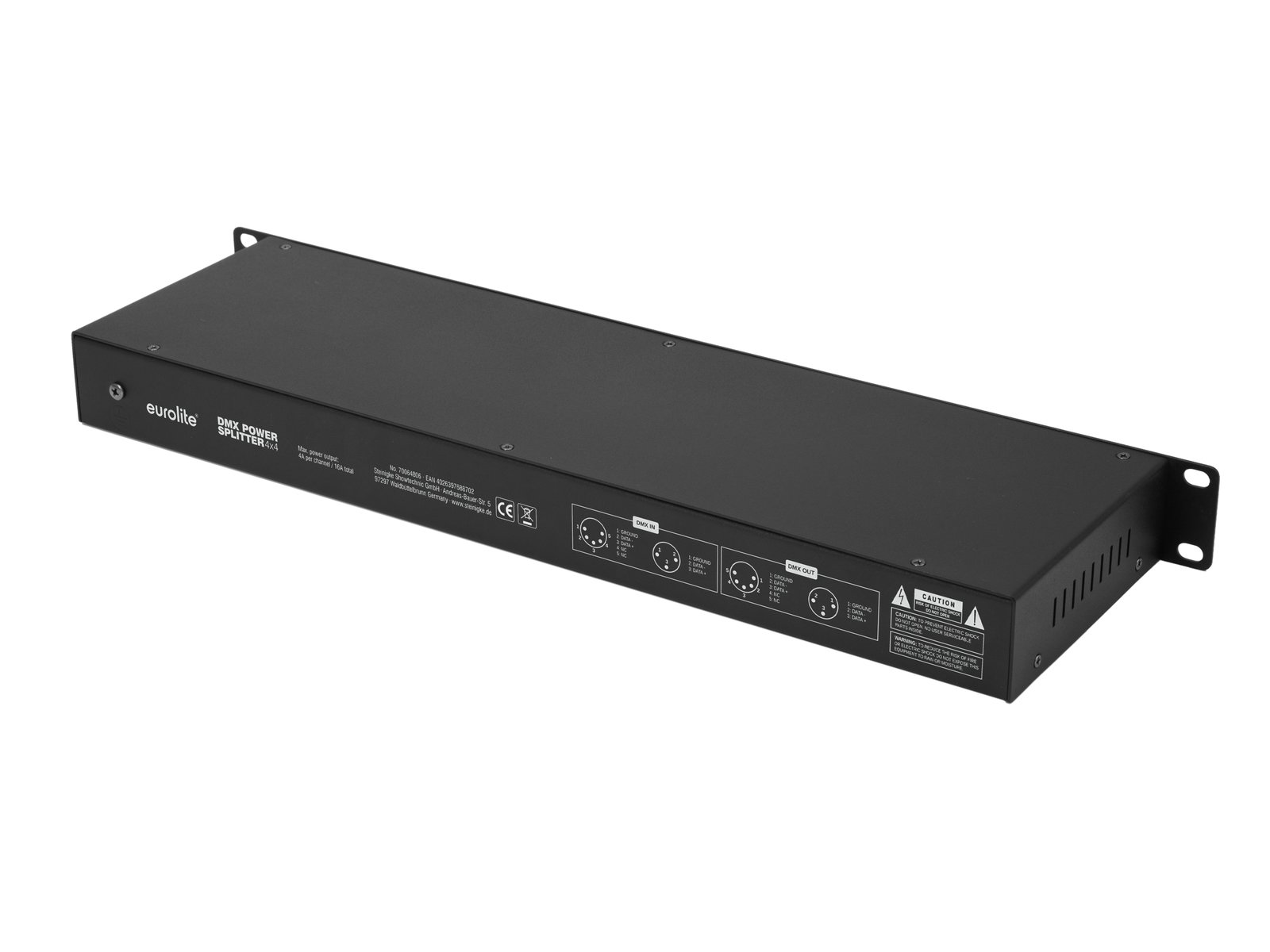

Eurolite DMX Power Splitter 4x4 3-pin XLR

DMX Splitter

1 P-Con input to 4 outputs, max. 16 A
1 DMX input to 4 outputs
1 DMX feed-through output
switchable RDM filter mode
switchable termination resistor

Variants:

159²⁸ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

Shipping free

Warranty 24 months

Returns 14 days

request details

Eurolite DMX Power Splitter 4x4 3-pin XLR Add to cart: 159²⁸ €

The 4-fold splitter is designed for reliable distribution of DMX512 signals and operation voltage (max. 16 A). The unit features one DMX input and four DMX outputs with status indicators as well as a feed-through terminal for connection to an additional splitter. The mains connectors are designed as P-Con sockets. The splitter supports RDM for bidirectional communication over the DMX line and is suitable for mounting in an equipment rack.

1 in/4 out power and DMX splitter with RDM support for rack mounting

1 P-Con input to 4 outputs, max. 16 A
1 DMX input to 4 outputs
1 DMX feed-through output
Switchable RDM filter mode
Switchable termination resistor
Input and outputs galvanically isolated
Each DMX output with independent driver and status indicator
Controlling by RDM
(19") 48.3 cm rack installation 1 U

Package contents

1 x device, 1 x user manual, 1 x power cord

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	5 W
Output current:	Max. 4 x 4 A per channal
Power connection:	Via P-Con (blue), mounting version
Power output:	4 x P-Con (gray), mounting version
DMX input:	1 x 3-pin XLR (M)
DMX output:	4 x 3-pin XLR (F)
Control:	RDM
Housing design:	(19") 48.3 cm rack installation 1 U
Dimensions:	Width: 48,3 cm Depth: 13,8 cm Height: 4,3 cm
Weight:	2,56 kg
