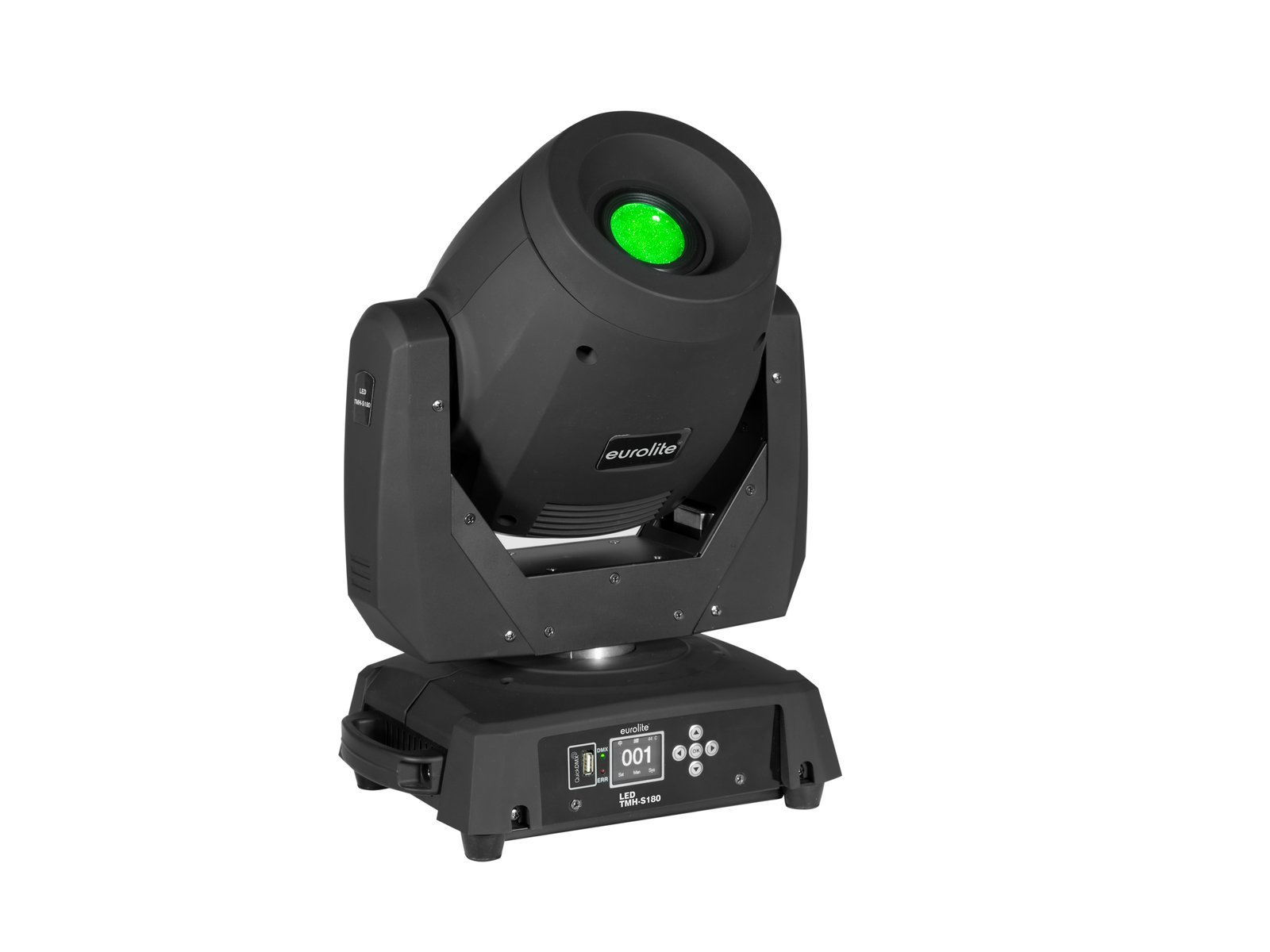

Eurolite LED TMH-S180 Moving-Head Spot

Moving Head

1 powerful LED 200 W COB (chip-on-board) cold white (CW)
positioning within 540° PAN and 270° TILT
auto position correction (feedback)
exact positioning (16 bit resolution)
gobo wheel with rotating gobos; Prism 3-fold rotating; Focus motor-driven

718⁷⁷ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

Shipping free

Warranty 24 months

Returns 14 days

request details

Eurolite LED TMH-S180 Moving-Head Spot Add to cart: 718⁷⁷ €

LED moving head spot with 200 W LED, rotating gobos, color wheel, prism and QuickDMX port

1 powerful LED 200 W COB (chip-on-board) cold white (CW)
Positioning within 540° PAN and 270° TILT
Auto position correction (feedback)
Exact positioning (16 bit resolution)
Gobo wheel with rotating gobos; Prism 3-fold rotating; Focus motor-driven
Multi beam effect; gobo effect
Color wheel with 8 dichroic filters plus open
half colors selectable, Rainbow effect with adjustable speed
Gobo wheel with rotating gobos, 7 gobos and open
shake effect
Gobos changeable
Slot-in gobo system for easy gobo replacement
Integrated show programs
The device is cooled by cooling fan
Control via stand-alone; DMX; Sound to light via Microphone; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); Master/slave function
Flicker-free
With a beam angle of 10°
LCD display
Dimmer electronic
Preprogrammed in LED PC-Control 512; Light Captain
Mains input and output for power linking up to 8 units
For application areas such as: Clubs/dancing school; Stage; Rental
Application possibility: Standing; suspended

Package contents

1 x moving light, 1 x user manual, 1 x power cord, 2 x omega bracket

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	265 W
IP classification:	IP20
Protection class:	Protection class I
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:	P-Con (gray), mounting version
Fuse:	5 x 20 mm, T 3,15 A Fuse replaceable
Lamp type:	LED lamp
LED:	1 x 200 W COB (chip-on-board) cold white (CW)
Max. TILT movement:	270° Exact positioning (16 bit resolution) Auto position correction (feedback)
Max. PAN movement:	540° Exact positioning (16 bit resolution) Auto position correction (feedback)
Flash rate:	0 - 18 Hz
Equipment:	Gobo wheel with rotating gobos; Prism 3-fold rotating; Focus motor-driven
Color generation:	Color wheel with 8 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed
Gobos:	Gobo wheel with rotating gobos, 7 gobos and open Outside diameter 23,5mm Image diameter 15mm Shake effect Gobos changeable Slot-in gobo system for easy gobo replacement
DMX channels:	13; 15
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	Cooling fan
Control:	Stand-alone; DMX; Sound to light via Microphone; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); Master/slave function
Preprogrammed in:	LED PC-Control 512; Light Captain
Beam angle:	10°
Beam angle (1/2 peak):	10°
Illuminance in Lux (lx):	Cold white (CW) 3m: 20700 lx, 6m: 5273 lx
Housing color:	Black
Display type:	LCD display
Dimensions:	Width: 32,5 cm Depth: 27,0 cm Height: 45,5 cm
Weight:	11,35 kg
Noise classification:	Class 3 (clearly perceptible sounds)
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Product code: 51786086

Unit of sale: piece

Specifications:
