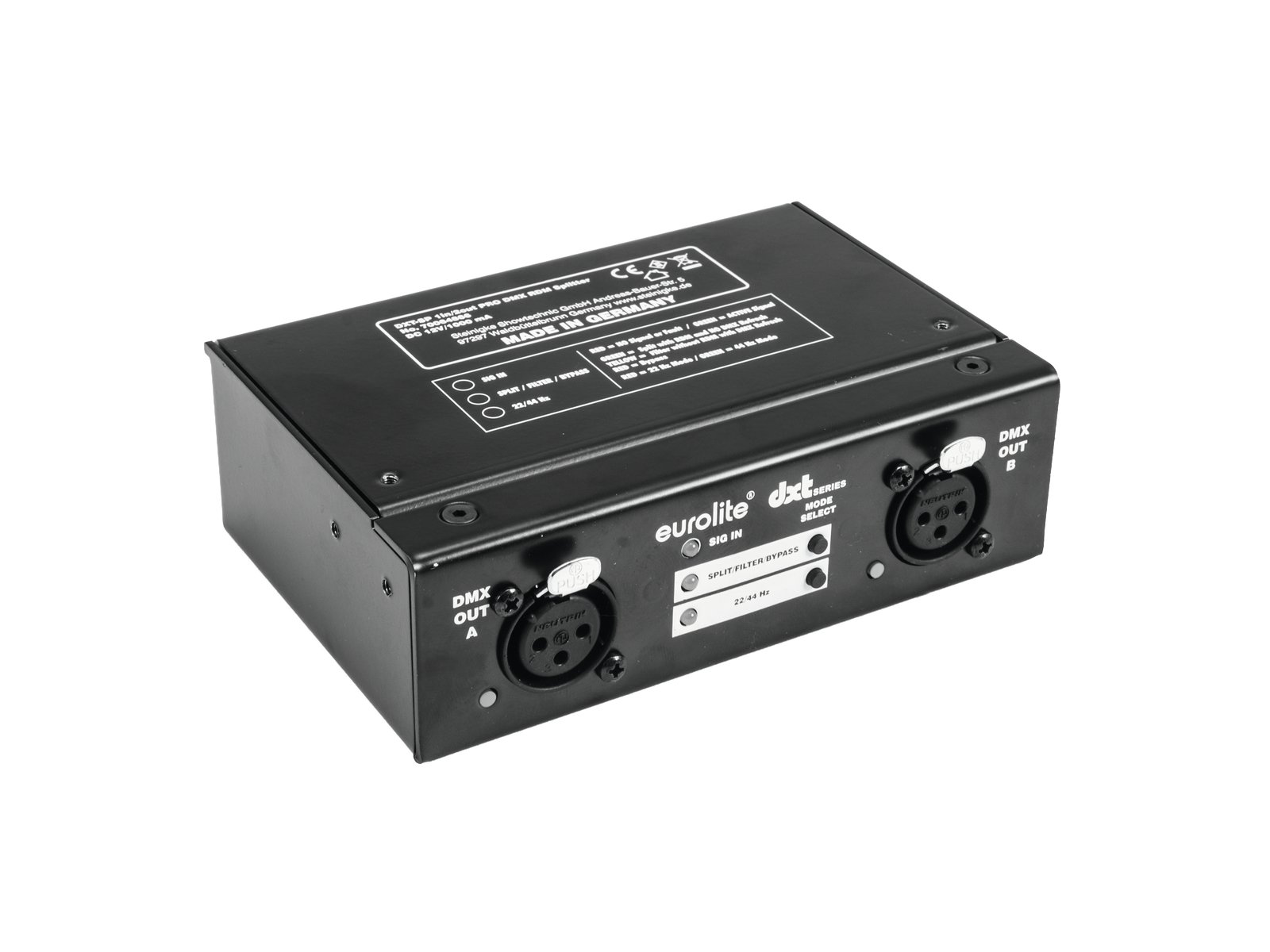

Eurolite DXT-SP 1in/2out PRO DMX RDM Splitter

DMX Splitter

dMX splitter for splitting one DMX input signal to 2 DMX outputs
switchable filter mode allows all RDM data to be filtered out in order to prevent problems when using fixtures intolerant of RDM
bypass function to process signals from older devices similar to DMX signals
output frequency adjustable: 22/44 Hz
outputs galvanically isolated

183⁵⁷ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

Shipping free

Warranty 24 months

Returns 14 days

request details

Eurolite DXT-SP 1in/2out PRO DMX RDM Splitter Add to cart: 183⁵⁷ €

RDM-capable DMX splitter, 1in/2out with signal boost

DMX splitter for splitting one DMX input signal to 2 DMX outputs
Switchable filter mode allows all RDM data to be filtered out in order to prevent problems when using fixtures intolerant of RDM
Bypass function to process signals from older devices similar to DMX signals
Output frequency adjustable: 22/44 Hz
Outputs galvanically isolated
Each DMX output can be connected to 32 DMX devices
Control via RDM
DMX feed-through for up to 32 further DMX devices
RDM For bidirectional communication over the DMX line
RDM switchable to prevent problems when using fixtures without RDM
Built with NEUTRIK connector
Made in Germany
Each DMX output with active signal processing
DMX fail mode (hold; blackout; null)

Package contents

Power supply:	100-240 V AC, 50/60 Hz 12 V DC 1 A
Power consumption:	1,8 W
Power connection:	Fixed power supply cord with safety plug

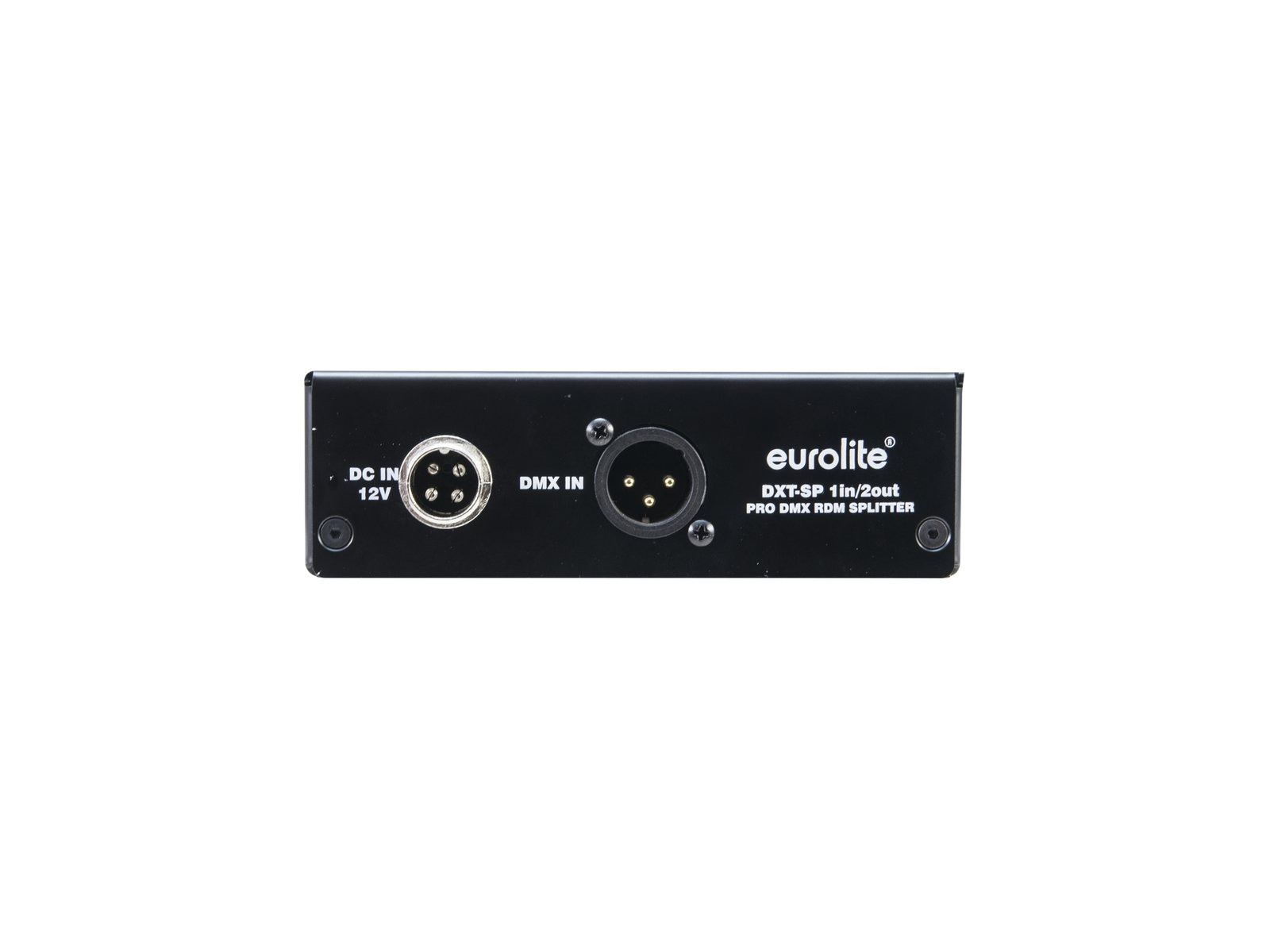

DMX input:	1 x 3-pin XLR (M) mounting version

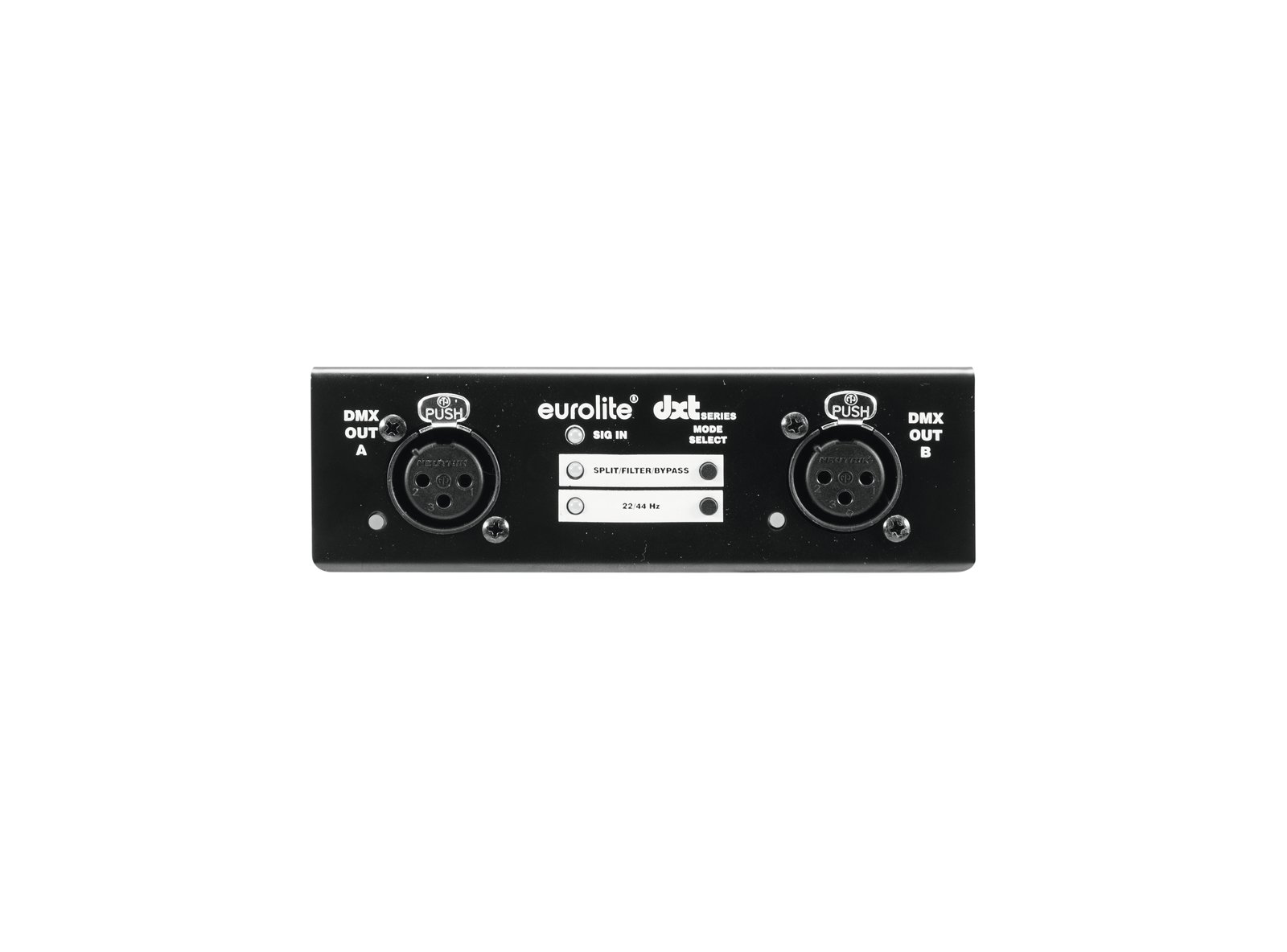

DMX output:	2 x 3-pin XLR (F) mounting version Separate (galvanic) with active signal processing
Control:	RDM
DMX features:	DMX feed-through for up to 32 further DMX devices RDM For bidirectional communication over the DMX line RDM switchable to prevent problems when using fixtures without RDM
DMX fail mode:	Hold; blackout; null
Use of brands:	Built with NEUTRIK connector
Dimensions:	Width: 13 cm Depth: 10 cm Height: 4,1 cm
Weight:	650 g
