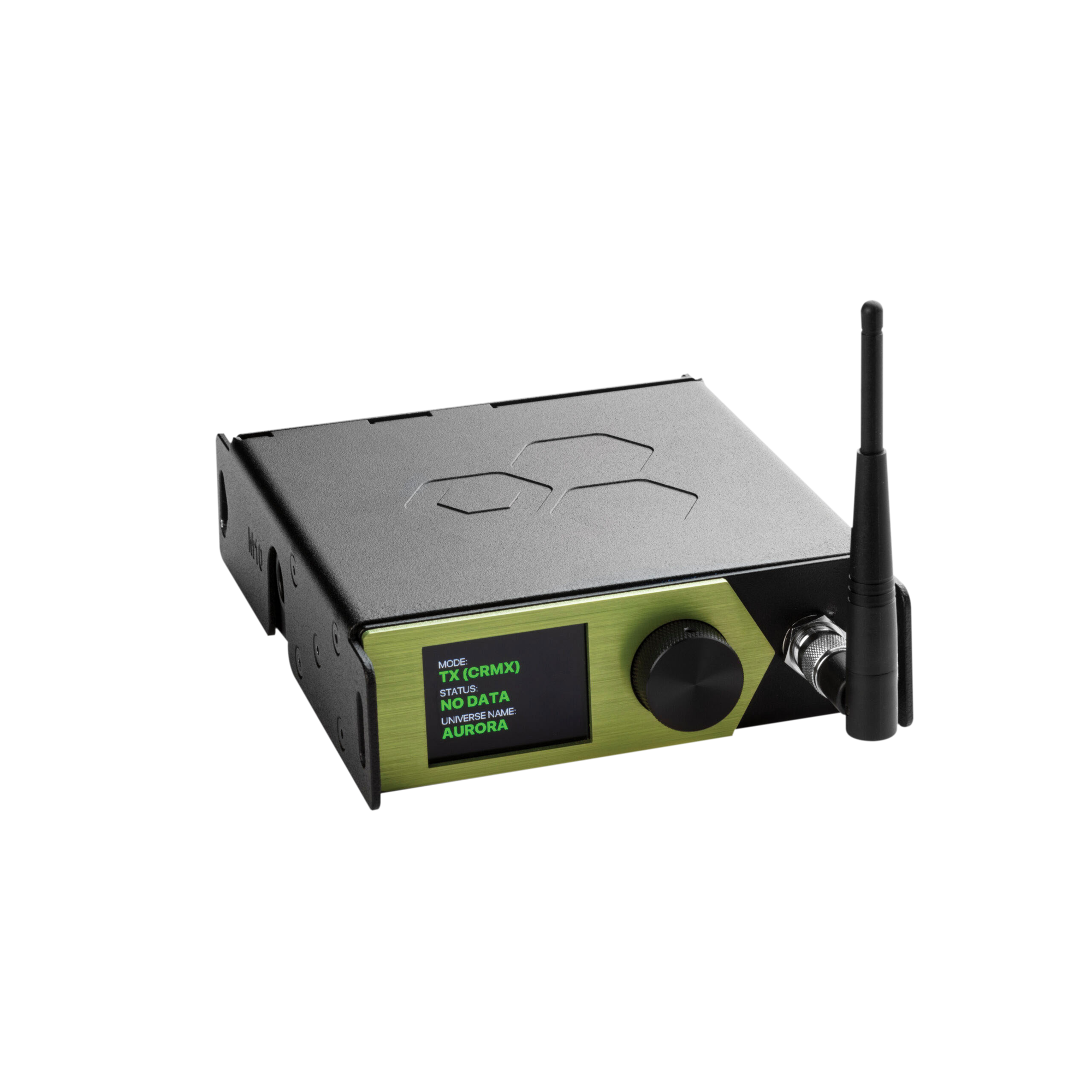

Lumenradio CRMX Aurora – Wireless DMX/RDM compatible transmitter/receiver, featuring 512 channels, designed for controlling stage lighting. Thanks to its switchable mode, it can function both as a transmitter and a receiver, perfectly adapting to any stage or installation configuration. It offers full support for the RDM protocol, allowing configuration and monitoring of connected devices remotely. The transmission is stable and reliable due to DMX error correction and automatic detection of frame rate and size, eliminating the need for complex settings.
It is compatible with CRMX and W-DMX systems (G3/G4 series, and G6 with upgrade), ensuring quick integration into existing networks. Configuration is simplified through an intuitive colour display, the free CRMX Toolbox application, and an integrated web server. Firmware updates are done wirelessly, and the Adaptive Frequency Hopping technology avoids interference in 2.4 GHz networks, ensuring optimal performance even in crowded environments. The device also features a dedicated display for RF signal strength, useful for precise real-time monitoring.
Main features:
- Switchable transmission/reception mode – Can function as a transmitter or receiver, depending on needs.
- Complete RDM compatibility – Full support for the RDM protocol for remote configuration and monitoring.
- DMX error correction – Stable and precise transmission, without signal loss.
- Automatic detection of DMX frame rate and size – Operates without complex configurations.
- Compatible with CRMX and W-DMX G3/G4 (with CRMX upgrade for G6) – Seamless integration into existing systems.
- Colour display for configuration – Easy navigation through settings directly from the device.
- Advanced configuration via the free CRMX Toolbox application or integrated web server.
- Wireless firmware updates – The device stays updated without additional cables.
- Compatible with all standard 2.4 GHz products – Can coexist with other wireless devices.
- Adaptive Frequency Hopping – Automatically adapts to avoid interference.
- RF signal strength display – Precise monitoring of radio connection quality.
Connectivity & Interfaces:
- Supported protocols: DMX 512 A (including RDM), ArtNet I/II/III/IV, sACN
- DMX connections: 5-pin XLR – Input & Output
- WiFi: 5 GHz (802.11b/g/n/ac)
- Bluetooth: version 5.0
Technical specifications:
- Transmission/reception power: 10, 50, 100, 300 mW (selectable)
- Frequency band: 2.4 GHz
- Maximum transmission range: approx. 700 m
- Power supply: 100–240 V AC, 50/60 Hz (or 10–20 V DC)
- Integrated protections: reverse polarity protection and electrostatic discharge (ESD)
- Protection class: IP20
- Dimensions: 14 x 20 x 4.4 cm
- Weight: 0.8 kg
Main differences between CRMX Luna and CRMX Aurora
| Feature | CRMX Luna | CRMX Aurora |
| Operating modes | Transmitter / Receiver | Transmitter / Receiver |
| RDM support | Only in RX mode | Complete (TX and RX) |
| DMX channels | 512 channels (1 DMX universe) | 512 channels (1 DMX universe) |
| Wireless technology | CRMX + W-DMX G3/G4 (G6 with upgrade) | CRMX + W-DMX + support for Art-Net & sACN |
| Additional connectivity | Bluetooth 5.0 | Bluetooth 5.0 + WiFi 5 GHz |
| Local configuration | Status LEDs, selection button | Colour screen + rotary button + advanced menu |
| External configuration | CRMX Toolbox App | CRMX Toolbox App + Integrated Web Server |
| Firmware updates | Wireless | Wireless |
| Frequency spectrum analysis | Yes | Advanced analysis with graphical display |
| Power supply | 100–240 V AC or 12–20 V DC | 100–240 V AC or 10–20 V DC |
| Dimensions | 11 x 5 x 16 cm | 14 x 20 x 4.4 cm |
| Weight | 0.7 kg | 0.8 kg |
