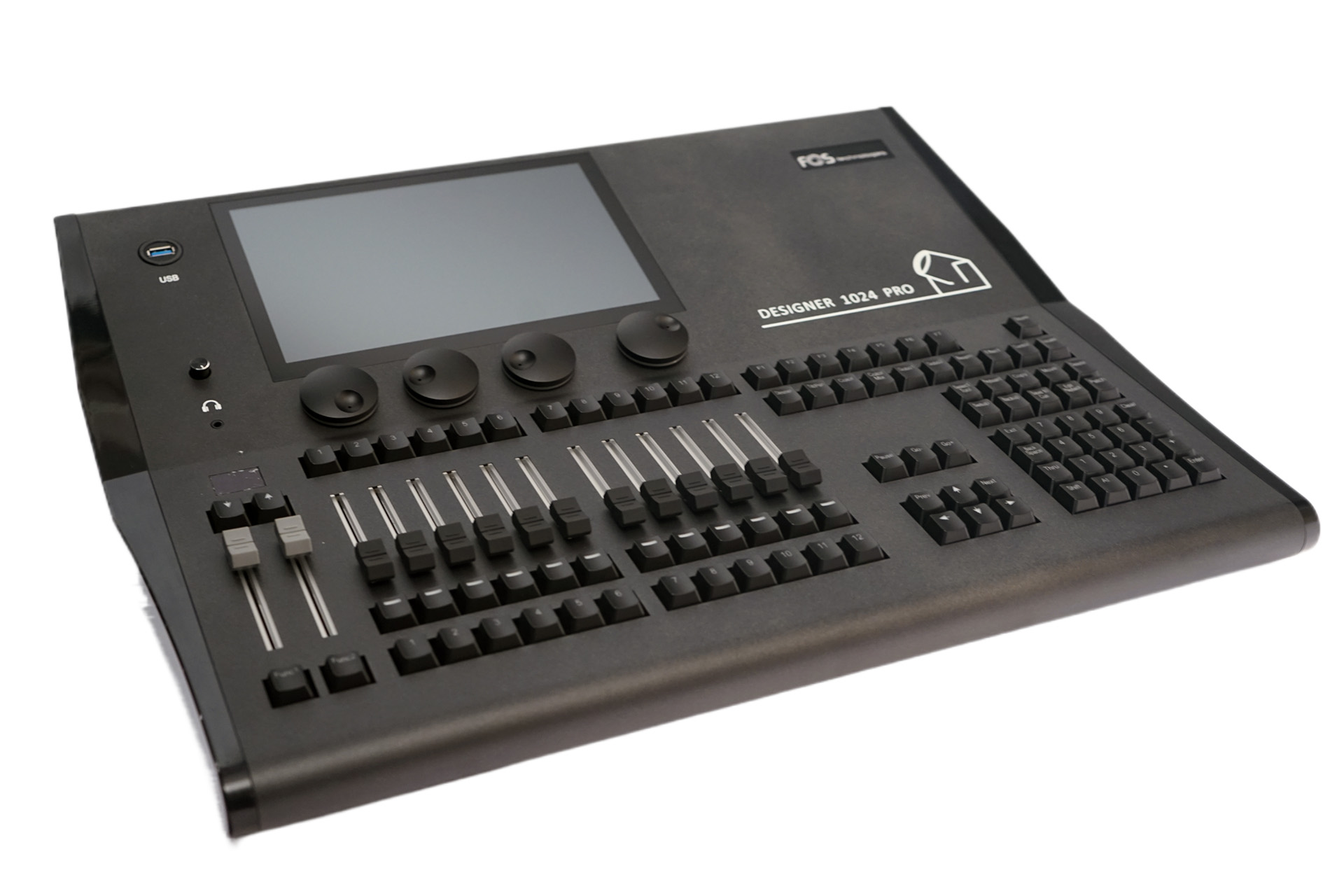

FOS Designer 1024 PRO

FOS Designer 1024 PRO - Professional lighting console with 1024 DMX channels and Art-Net control, equipped with a 10.1-inch touchscreen. It is designed for advanced control of lighting equipment on stage or in the studio.

• DMX / Art-Net lighting console
• DMX channels: 2048 Art-Net channels (1024 DMX channels via XLR)
• DMX outputs: 2x optically isolated XLR, 1x Art-Net interface
• Screen: 10.1" capacitive LCD touchscreen (resolution 1920 x 1080)
• Video output: HDMI for external monitor
• Faders: 12 playback faders and 80 pages
• Buttons: 12 playback buttons, Flash and Pause keys
• Encoders: 4 backlit optical encoders
• Fader lighting: configurable backlight in 3 colours
• Wireless connectivity: integrated WiFi with antenna for control via mobile/tablet app
• MIDI interface: MIDI In, Out, Thru
• Audio connection: RCA, optical and Jack socket for headphones
• USB ports: USB 2.0 for saving/backing up shows
• Other connections: dedicated port for console lamp
• Power supply: 100/240V, 50/60Hz
• Dimensions: 570 x 445 x 152 mm
• Weight: 11 kg
