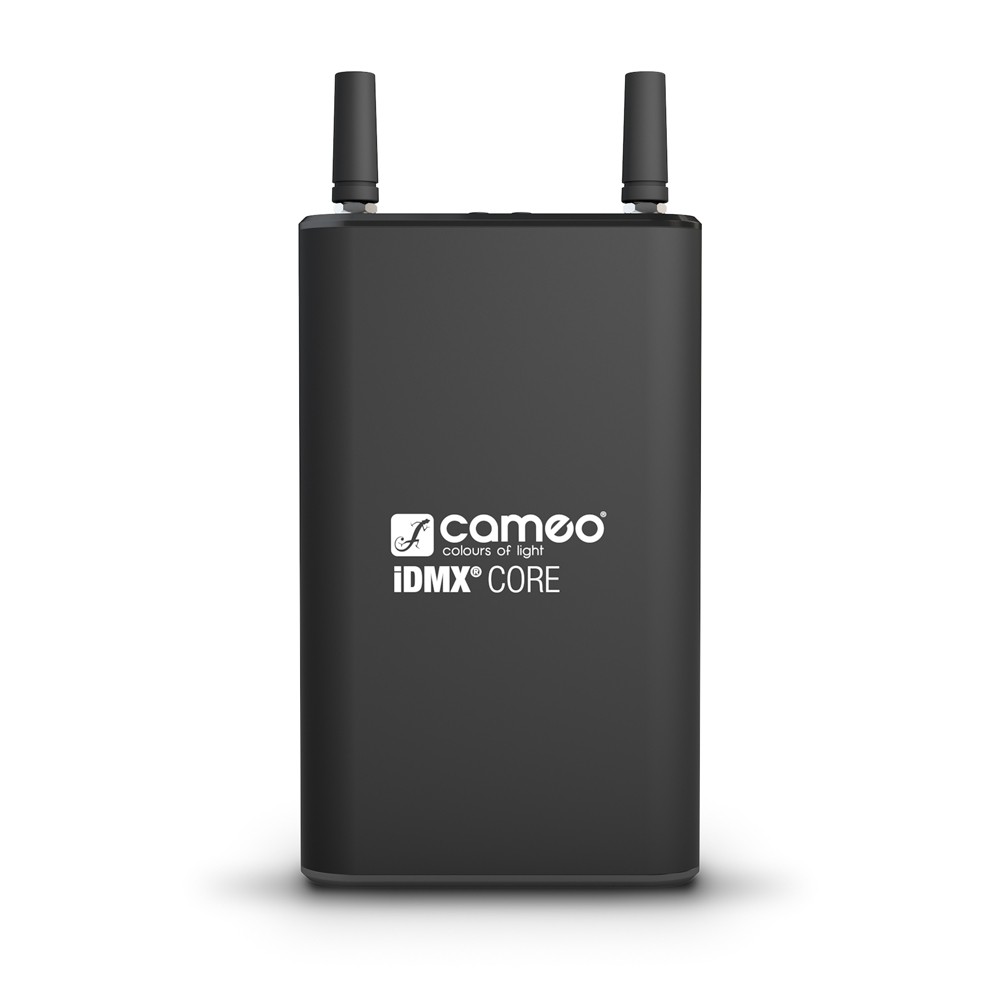

Cameo iDMX CORE

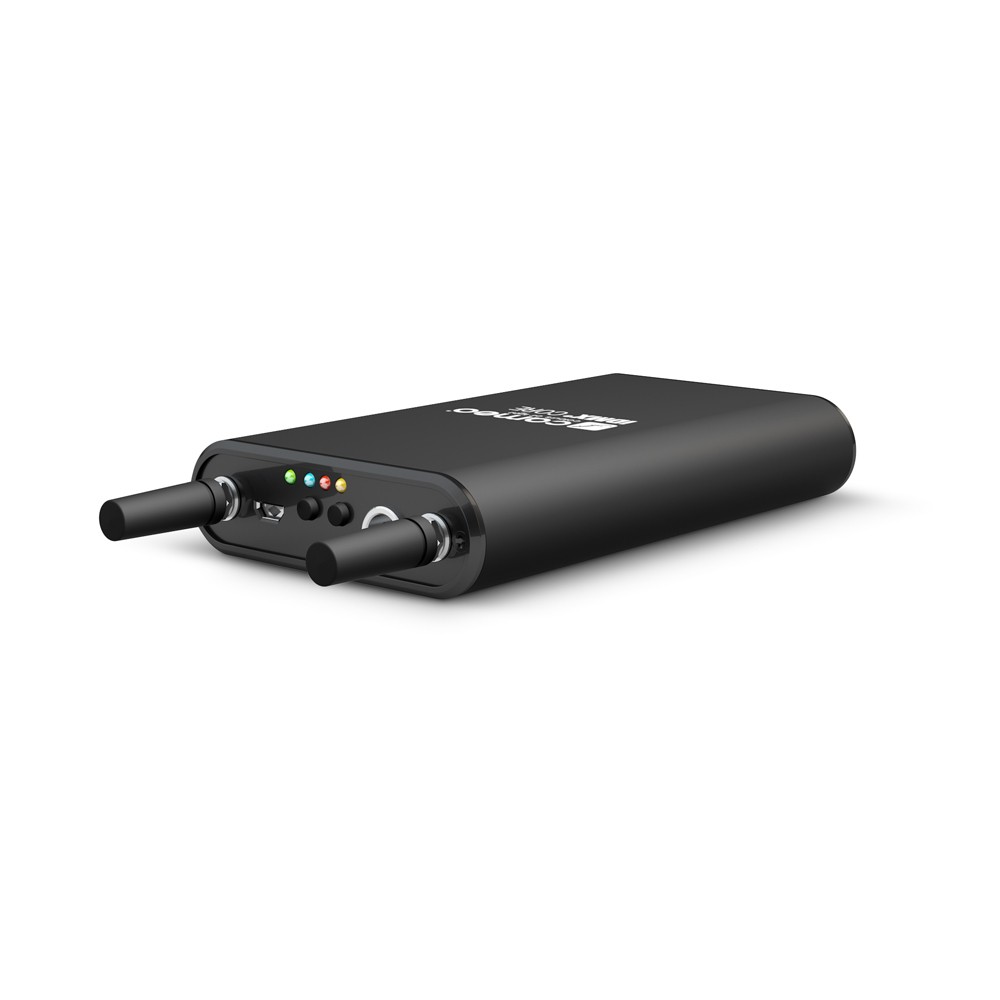

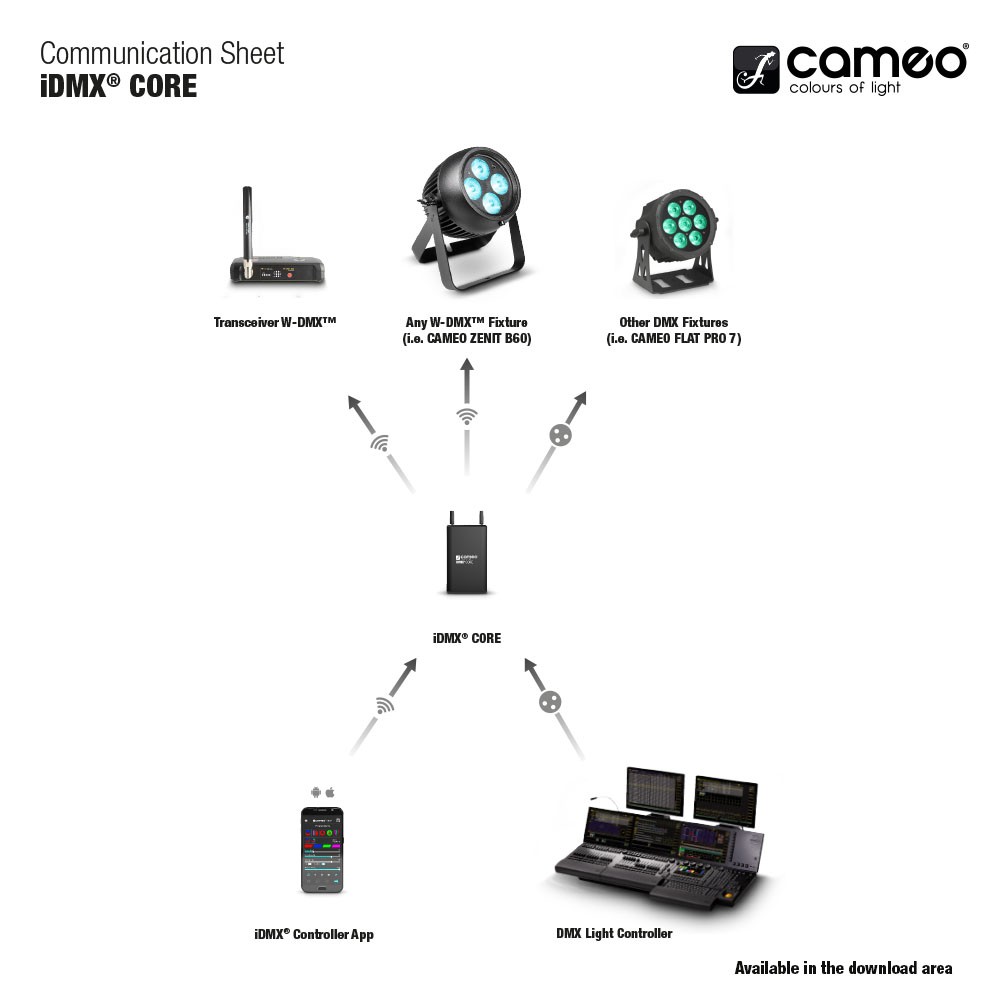

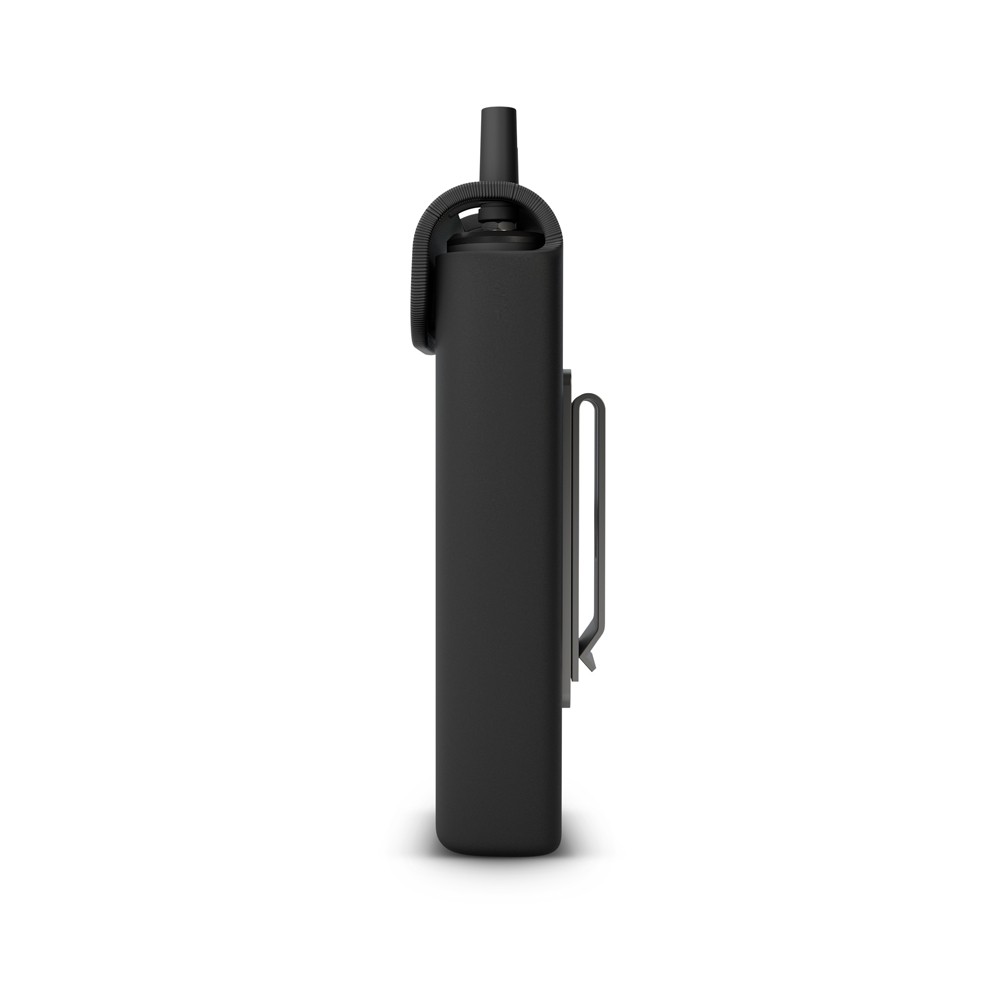

Cameo iDMX CORE - Wireless light controller compatible with iOS and Android devices. The unit functions on batteries and is specially designed to work with the Cameo Controller iDMX app. It features a 2.4 GHz W-DMX transmitter with a range of up to 300 m. The 3-pin and 5-pin DMX inputs and outputs allow the transmitter to be used with DMX lighting desks, as well as wireless control of conventional DMX spots via W-DMX (the Wi-Fi connection is achievable only between the mobile device and iDMX CORE).

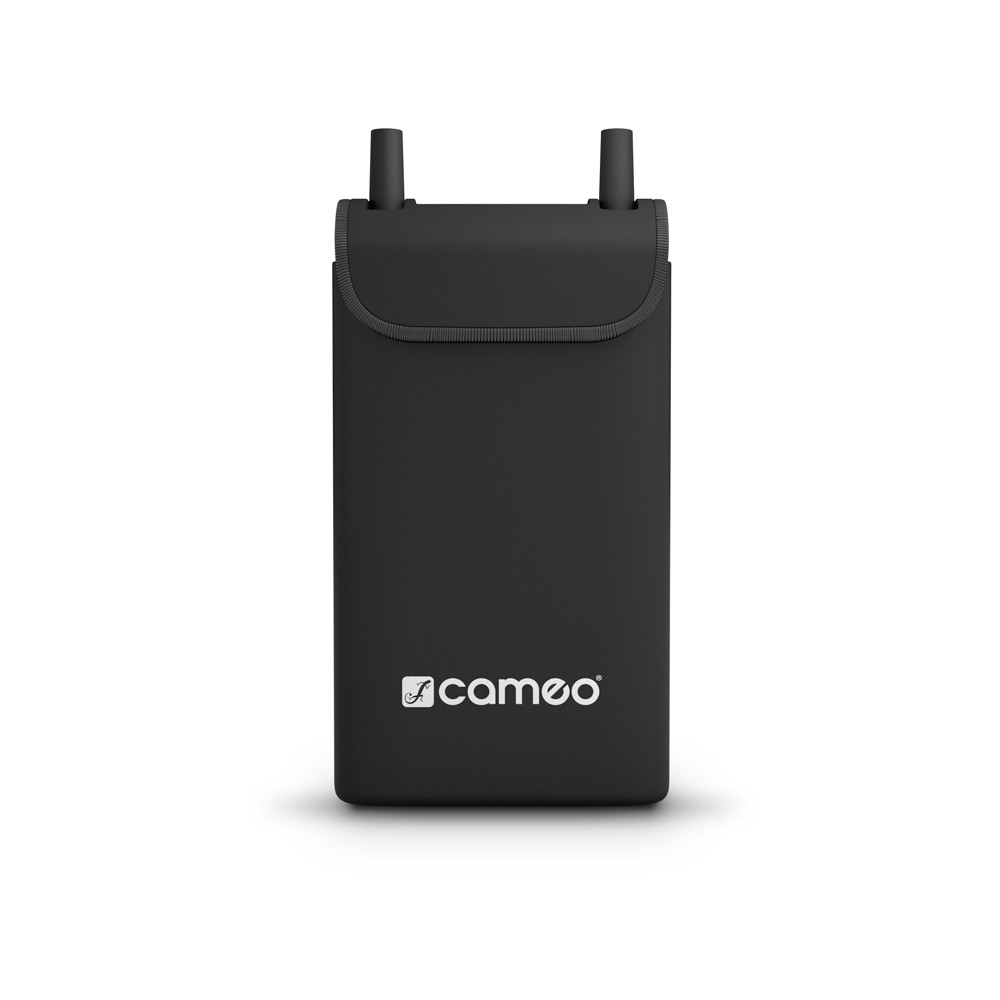

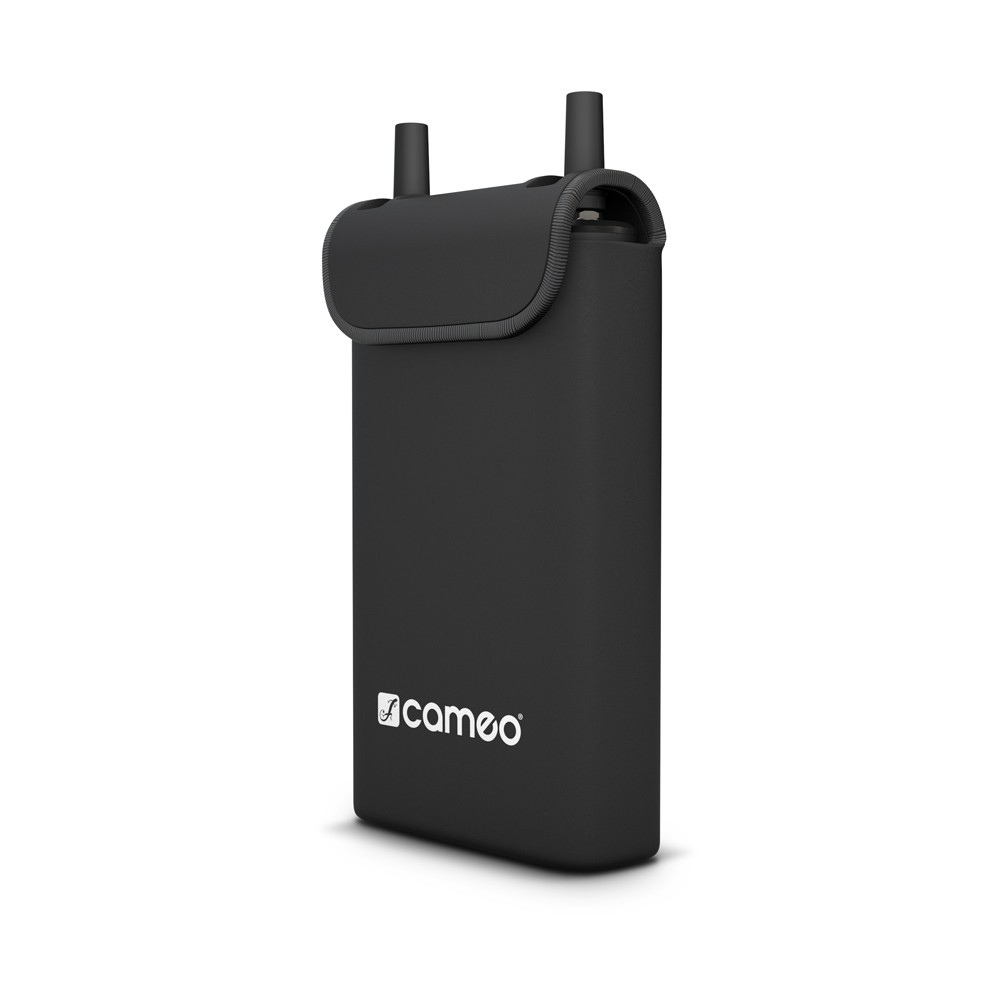

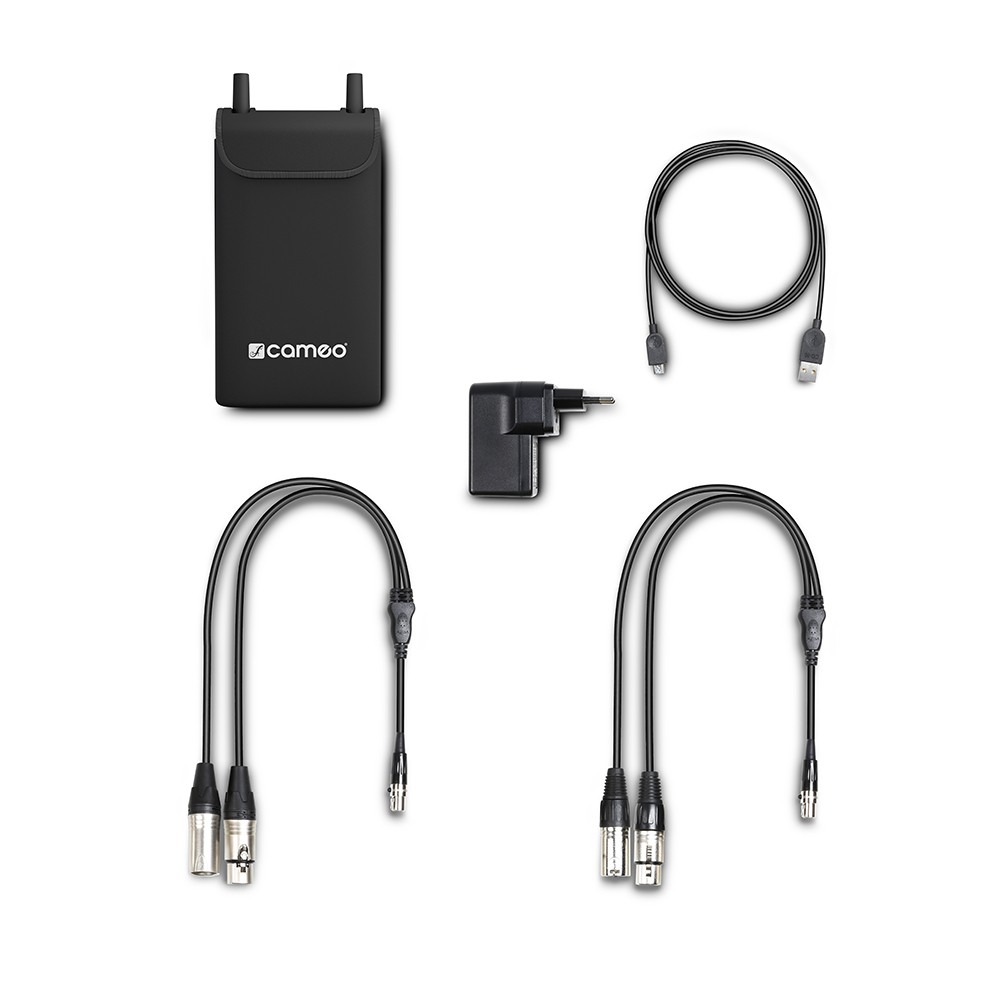

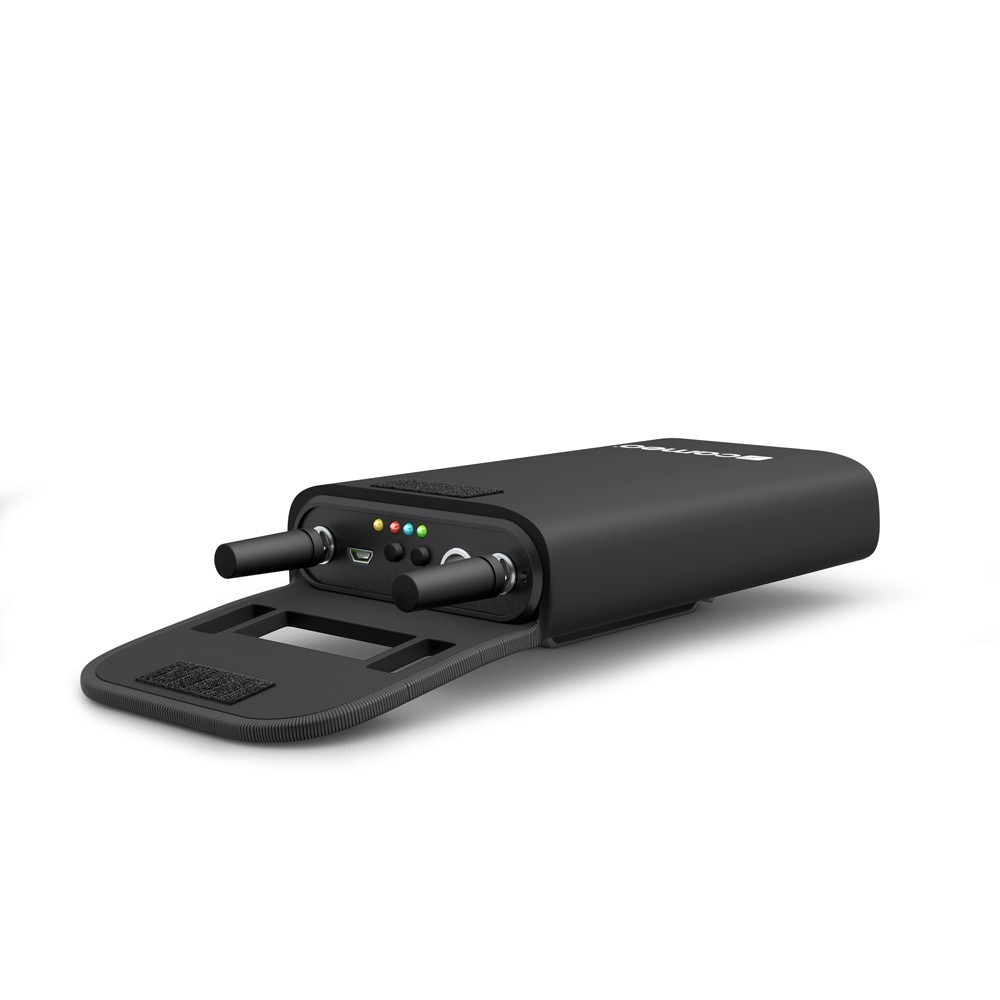

The integrated LG lithium battery provides up to eight hours of continuous operation and can be extended with an external power bank. An integrated battery management system prevents overcharging and sudden discharging of the device to ensure a long battery life. In the package are included: a charger, a DMX Y cable, and a carry case.

• iDMX CORE operating range: up to 300 m
• Wi-Fi operating range: up to 15 m
• Frequency: 2400 MHz

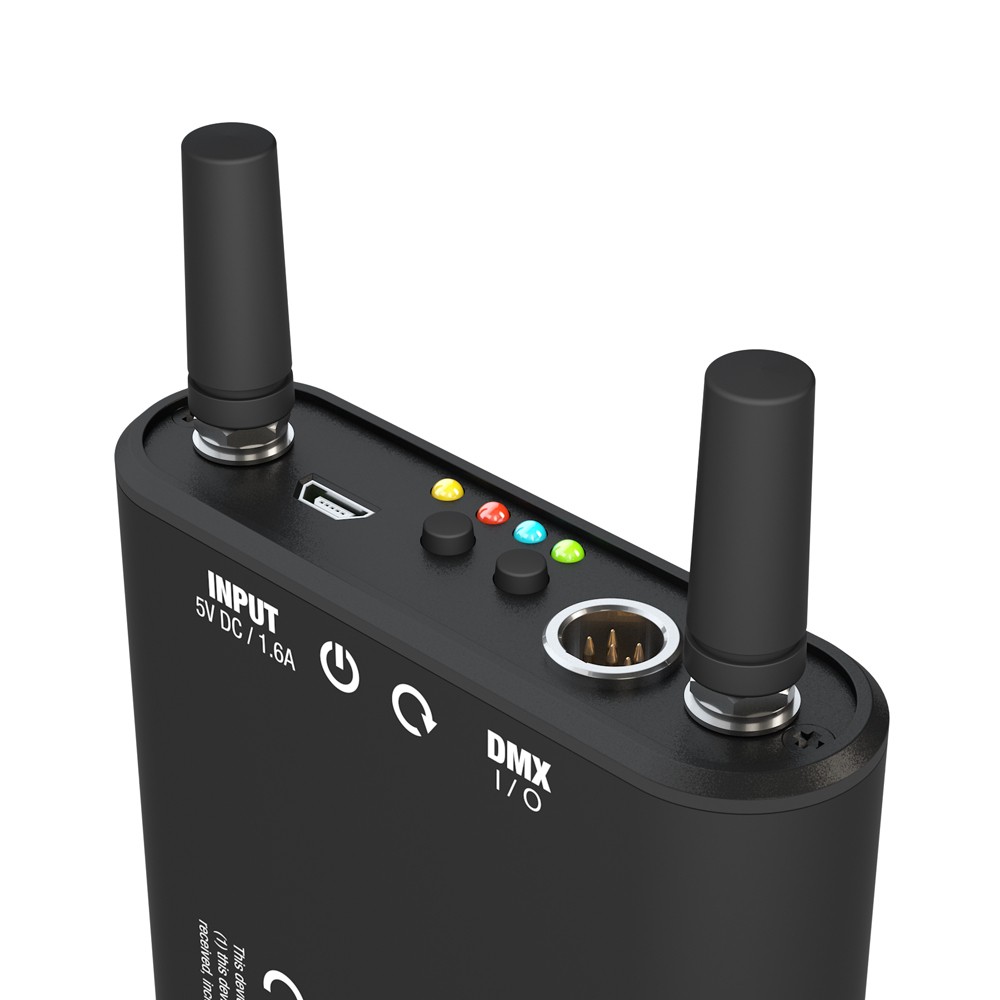

• DMX inputs: 3-pin and 5-pin
• Controls: On / Off, reset
• Indicators: LED status
• Battery capacity: 24 Wh
• Charging time: 6 hours
• Battery runtime at maximum load: up to 8 hours
• Housing material: aluminium
• Protection class IP: 20
• Cooling: Convection
• Width: 85 mm
• Height: 25 mm
• Length: 170.5 mm
• Weight: 0.939 kg
