High-quality winch support with a robust adapter

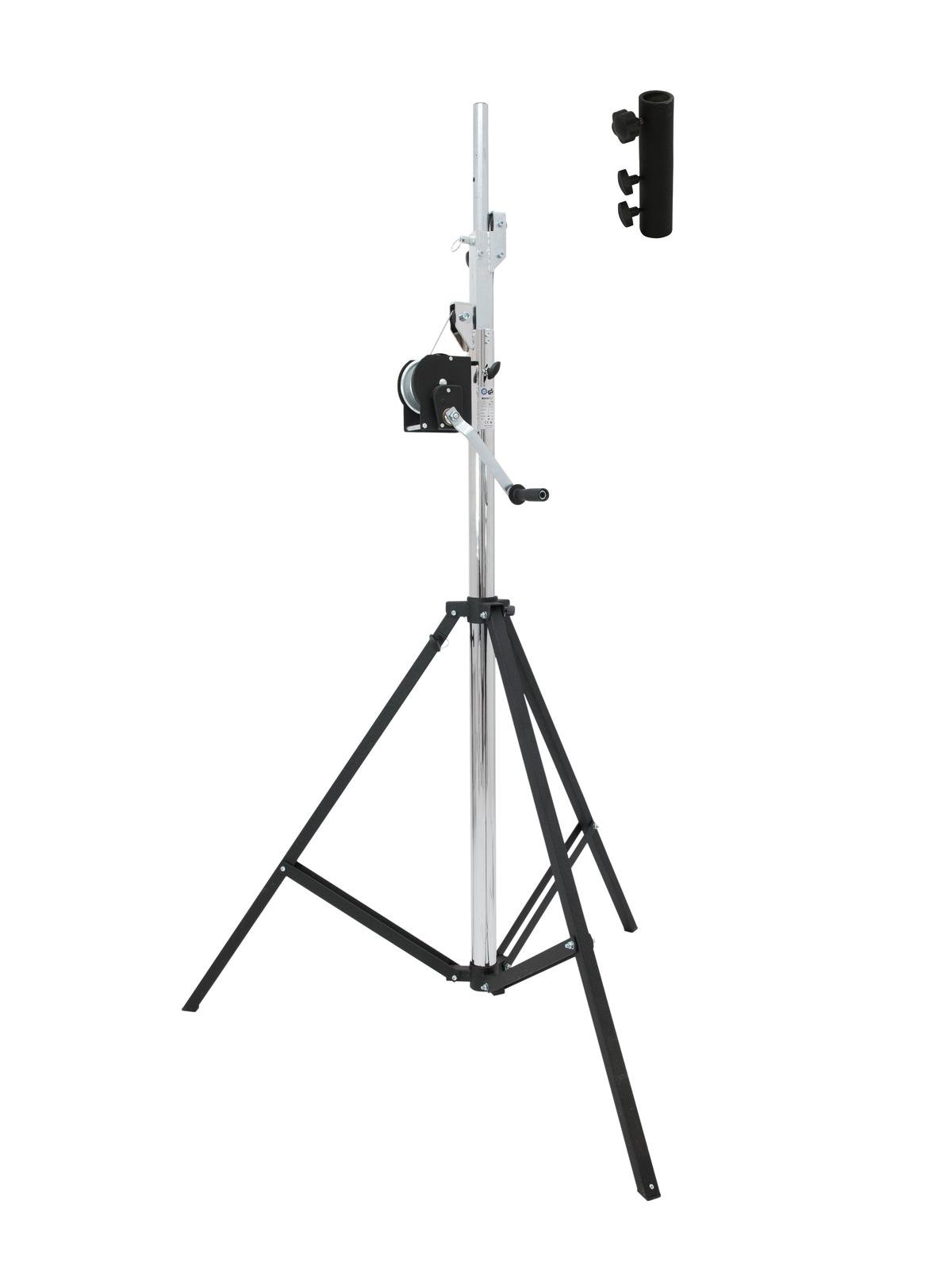

EUROLITE STT-400/85 TÜV/GS winch support
High-quality winch support, maximum load 85 kg, maximum height 400 cm
- Single-speed winch for easy lifting of loads
- Automatic braking system
- Safety screw for mechanical locking
- Easy handling
- TÜV Süd certified
- For applications such as: Mobile use
Package contents
EUROLITE STV-3529 Long Adapter
Robust adapter for 35 mm tube, TV connector 28 mm, maximum load WLL 100 kg
- For stands with 35 mm telescopic tube
- Connection element for truss with 28 mm rod
- With M6 and M8 fixing screws
- Heavy version for maximum stability
- TV pin
Package contents
- 1 x device, 1 x user manual, 2 x knurled screws
| Weight: | 25.60 kg |
| EUROLITE STT-400/85 TÜV/GS winch support |
| Maximum transport capacity: | 85 kg |
| Minimum load: | 25 kg |
| Height: | Max: 400 cm over 3 sections
Min: 175 cm |
| Attachment system: | Ø 35mm |
| Construction standards: | DIN 15560-27, DIN EN ISO 12100-2 |
| Steel rope: | Ø 4 mm |
| Type (general supports): | Lightweight stand/closure |
| Transport dimensions: | 1.75 m x 30 cm x 27 cm |
| Base area: | Ø 1.6 m |
| Weight: | 24.10 kg |
| EUROLITE STV-3529 Long Adapter |
| Maximum load BGV C1 (8 times): | 50 kg |
| Max. WLL load (4 times): | 100 kg |
| Attachment system: | TV chip Ø 28mm
Ø 35mm |
| Type (general supports): | Accessories |
| Material: | Steel, 6 mm, powder-coated |
| Dimensions: | Width: 8.50 cm
Depth: 5 cm
Height: 19.50 cm |
| Weight: | 1.50 kg |
