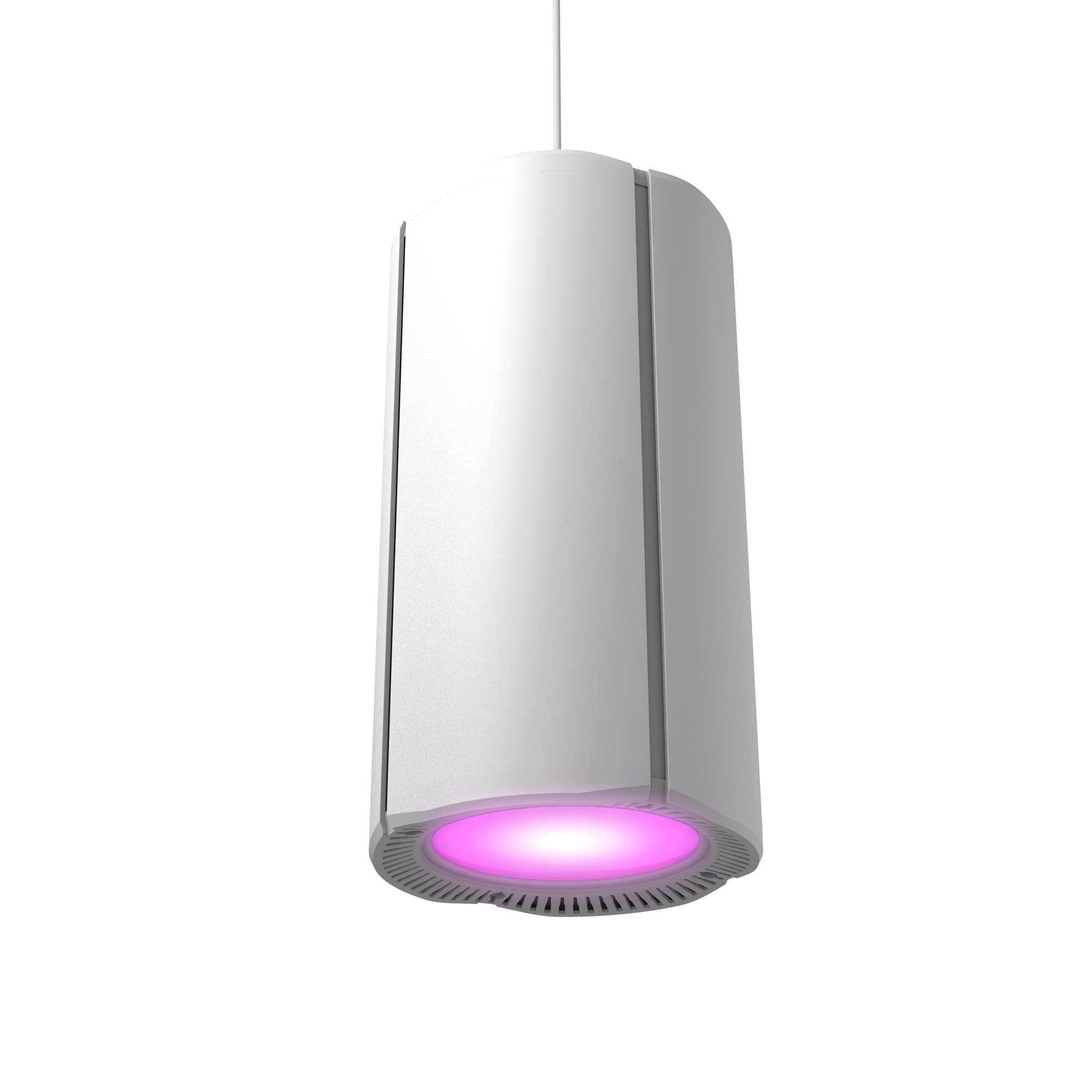

Discerning interior designers and lighting engineers particularly appreciate the CAMEO H2 FC house light. Featuring 5-pin XLR and terminal block connectors, this house light can be easily integrated into any hall lighting or stage equipment to discretely fulfil its function in a minimalistic design. Exchangeable lenses allow the beam angle to be adjusted between 21° and 64°. It can also be mounted on trusses, on walls and even on ceilings. The optional installation kit means that it can also be discretely installed flush with the ceiling.
This intelligent house light fully exploits the potential of LED technology to discerningly flood theatres, restaurants, event venues and places of worship with almost any selectable colour temperature of white. Perfectly suited to video recording, this pendant light with a CRI of over 90 has flicker-free operation thanks to selectable PWM frequencies of up to 25 kHz. This allows concerts, theatre performances, conventions and events to be recorded for posterity in high quality. The 16-bit technology enables high colour resolution with smooth, stepless dimming. As well as this, DMX control, or wireless control via W-DMX™, allows especially flexible and refined operation. At the same time, convection cooling with noiseless operation offers outstanding performance properties in compact housing.
Specifications:
Product type: LED Lighting
Type: Installation spotlights
Colour spectrum: RGBAL
Color temperature: adjustable K
Number of LEDs: 1
Average LED lifetime: 30000 hours
LED type: 180 W COB
LED PWM Frequency: 800 Hz, 1200 Hz, 2000 Hz, 3600 Hz, 12 kHz, 25 kHz - adjustable
Dispersion: 20 °, 25 °, 60 °
DMX input: RJ45, Terminal block
DMX output: RJ45, Terminal block
DMX Functions: Colour presets, Colour shade, Device Settings, Dimmer, Dimmer Fine, Hue Saturation, RGBAL, Strobe
Control: DMX512, RDM, W-DMX
Standalone Functions: Static
Controls: Down, Enter, menu, Up
Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz
Power consumption: 165 W
Luminous flux: 7400 lm
Colour rendering index (Ra): >90
Power connector: Blue Power Twist, Terminal block
Ambient temperature (operating): 0 - 40 °C
Relative Humidity: < 80 %, not condensing
Cabinet colour: white
Housing material: Metal
Housing Cooling: Convection
Recommended cable for operation as pendant lamp: H07RN-F 3G1.5
Width: 200 mm
Length: 380 mm
Weight: 8,3 kg
Accessories (included): 1 x omega mounting, 2 x exchange lenses
Optional accessories: Ceiling installation kit, Half and full glare shield, Wall mounting bracket
