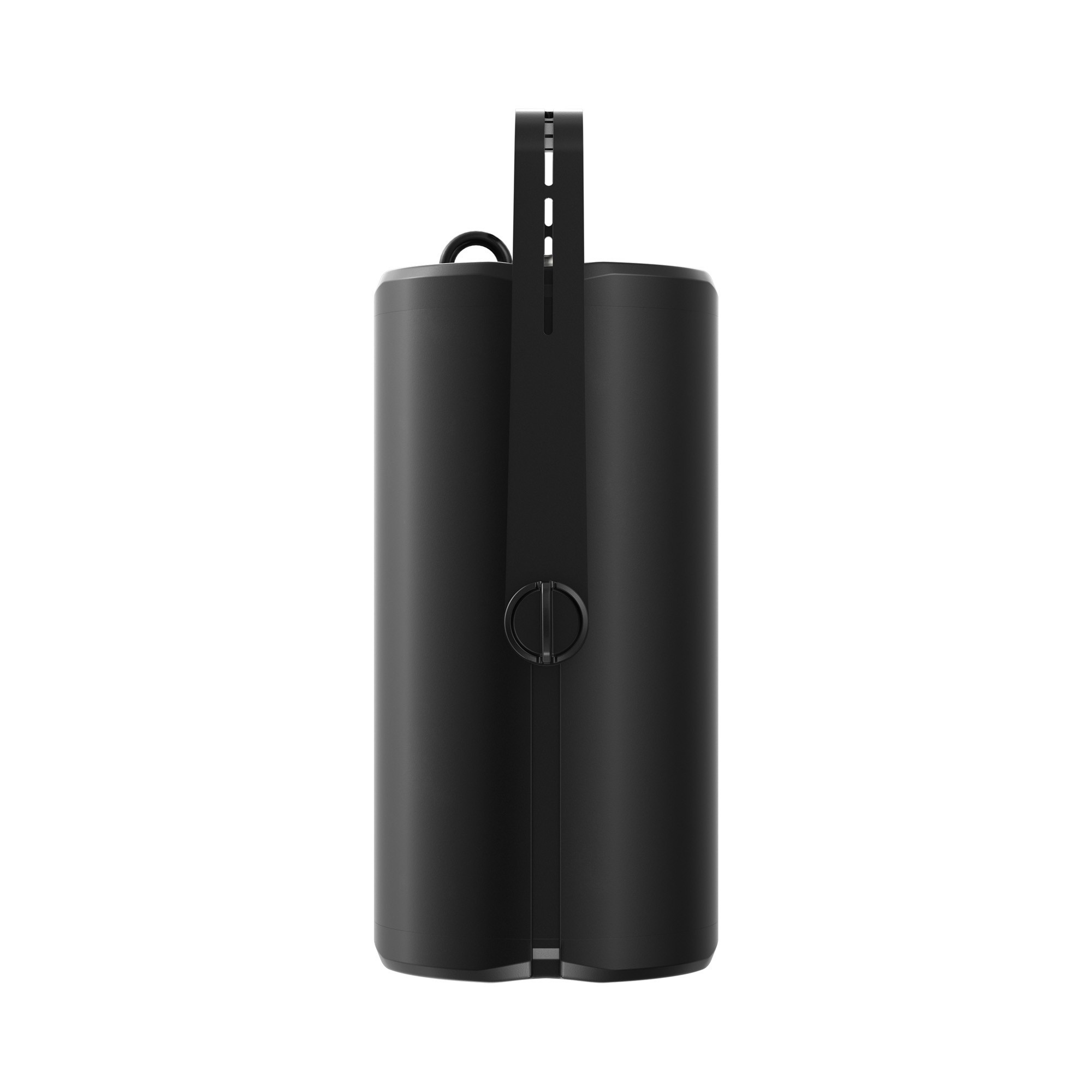

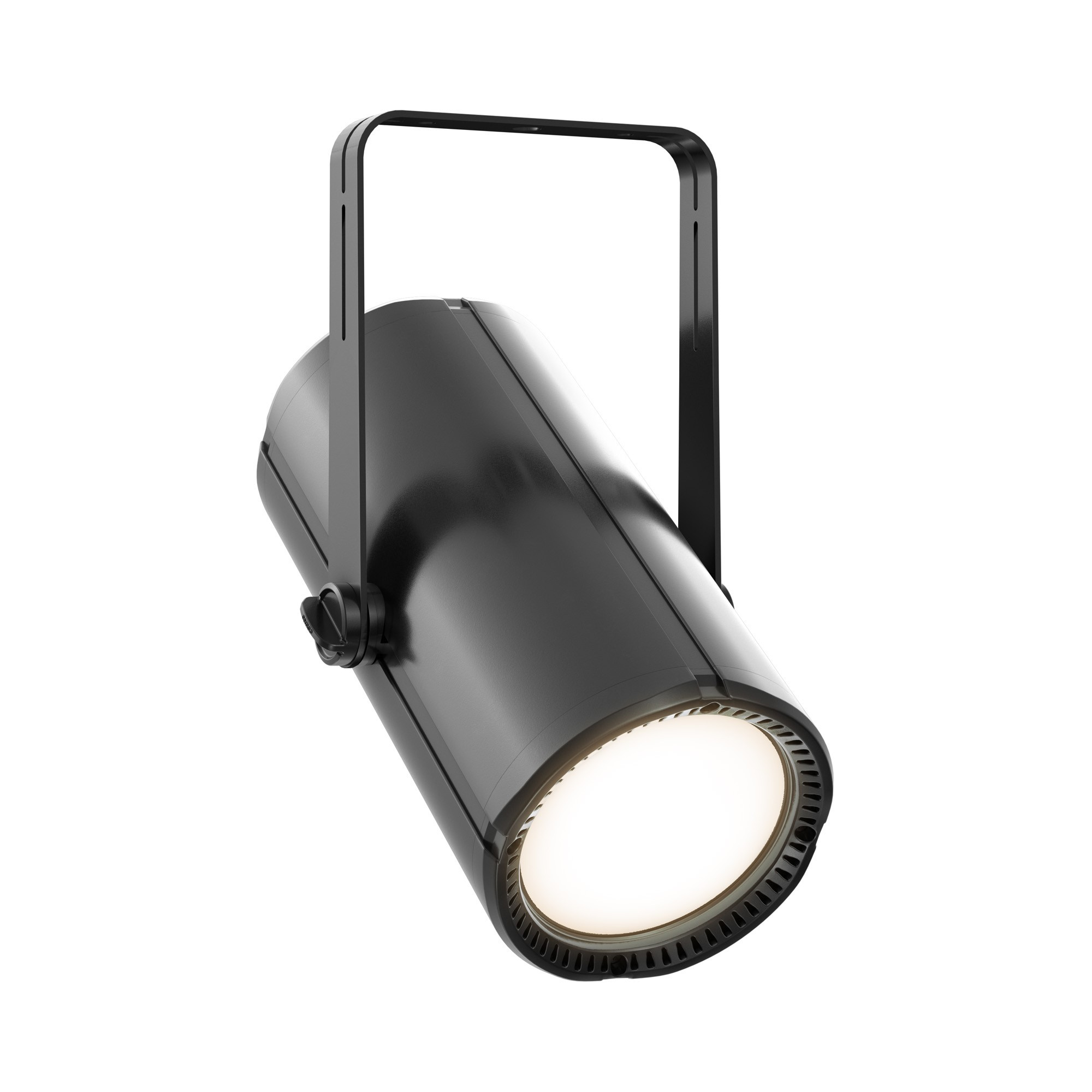

Cameo H1 T


DMX controllable warm white LED light

  • 80 W tungsten LED with total light ouput of 5200 lm
  • 3000 K colour temperature, CRI > 97 for optimal colour reproduction
  • adjustable beam angle from 20° to 65° via exchangeable lenses
  • completely silent operation thanks to convection cooling without fans
  • controllable via DMX, W-DMX ™, RDM and optional UNICON® remote control
Cameo
Variants:
H1 T WH
H1 T WH
63778
Currently unavailable. Request details
Central warehouse: 0
Add to cart
3282 points of loyalty
Shipping free
Warranty 24 months
Returns 14 days
Minimally designed installation light for sophisticated lumen beings

The tungsten version of the Cameo® H1 T makes it possible for light installers, interior designers and lighting technicians to meet the challenges of creating atmospheric lighting in a wide variety of locations. You can take the ambience in theatres, restaurants, hotels, at trade fair stands, and in many other places to the next level with this modern house light and emotionally inspire your audience. The installation fixture fits seamlessly into existing interior design with its deliberate minimalistic design. Its housing comes in either black or white and discreetly blends into interior spaces without drawing attention.

Efficient lighting technology for lighting architecture and comprehensive installation projects

The high lighting efficiency of the tungsten LED module combined with uniform warm white lighting lets you benefit in many ways . For one, Cameo's H1 T doesn't make any noise during operation thanks to its convection cooling, making it the ideal choice for sound-sensitive environments. Secondly, the tungsten light with its high colour fidelity across all measurable categories creates visually stunning aesthetics without any distorted colour effects and allows the natural colours of costumes, objects and food to really pop. Finally, the H1 T features a flicker-free light with high-resolution, soft dimmer response based on 16-bit technology so it can't be told apart from conventional lighting. Creating the perfect feel-good environment with a pleasant atmosphere is always guaranteed!

Controls based on the individual set-up

Our H1 series house light offers you maximum flexibility in terms of controls. You can integrate the installation light into your set-up using DMX, wireless W-DMX ™ and RDM. The device was deliberately designed with no built-in display to make it practical to use in interior design. The optionally available UNICON® remote control is the best way to intially configure the device and can be used to control, retrieve and save all device functions, so that you can transfer them to other devices and conveniently set up the entire lighting installation. In addition, the firmware on a vast array of compatible end devices can be updated using the UNICON® remote control.

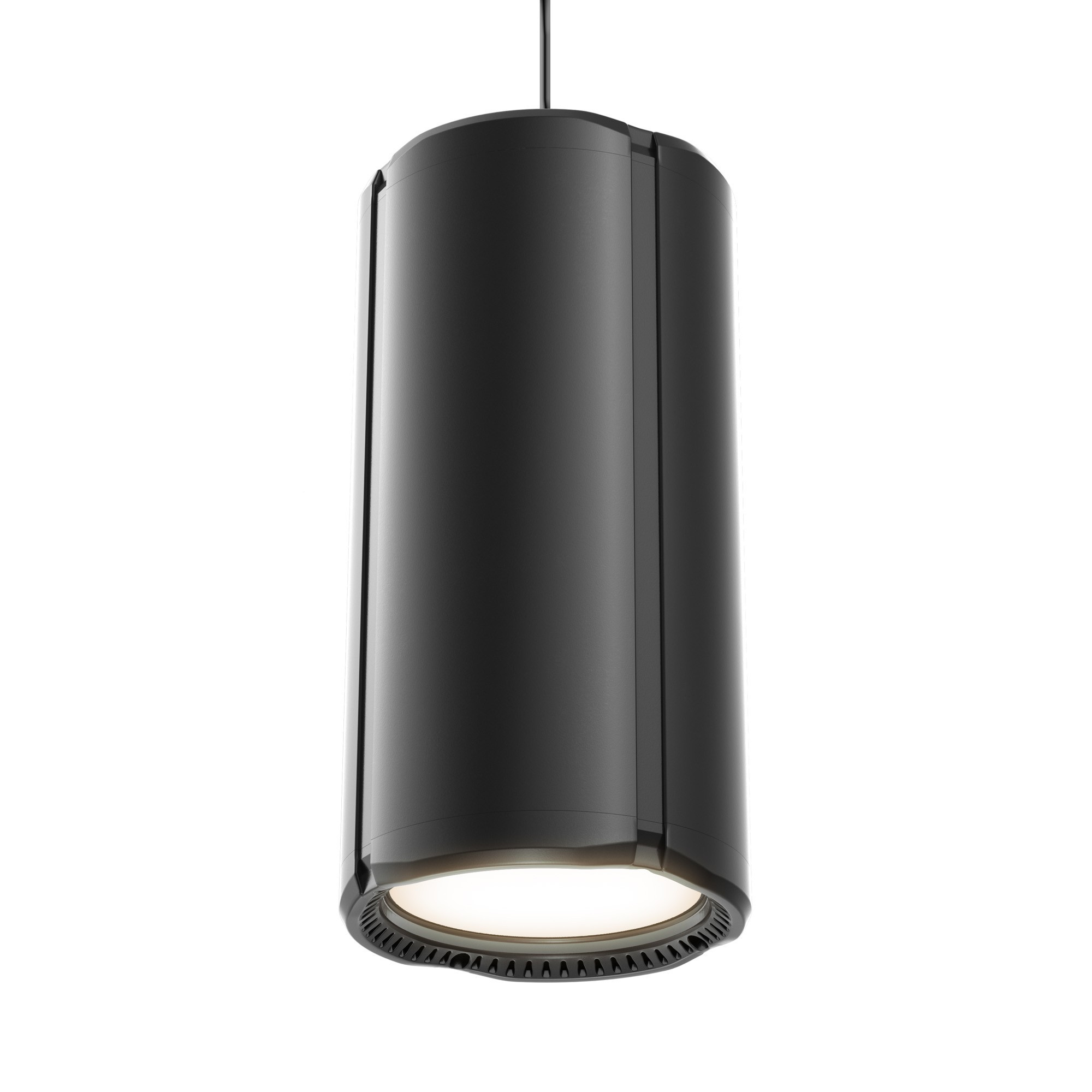

Flexible installation possibilities as a pendant, sconce or integrated ceiling light

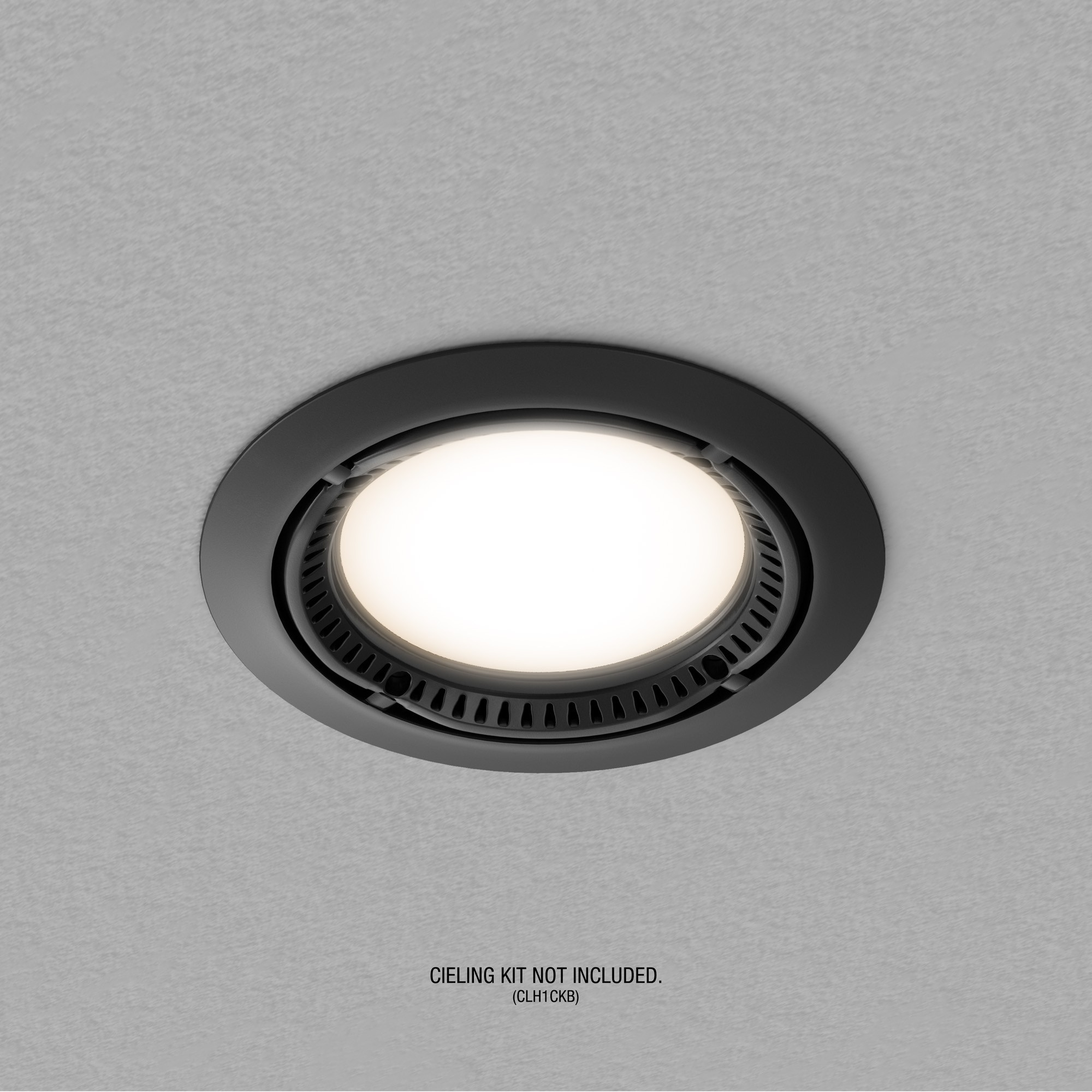

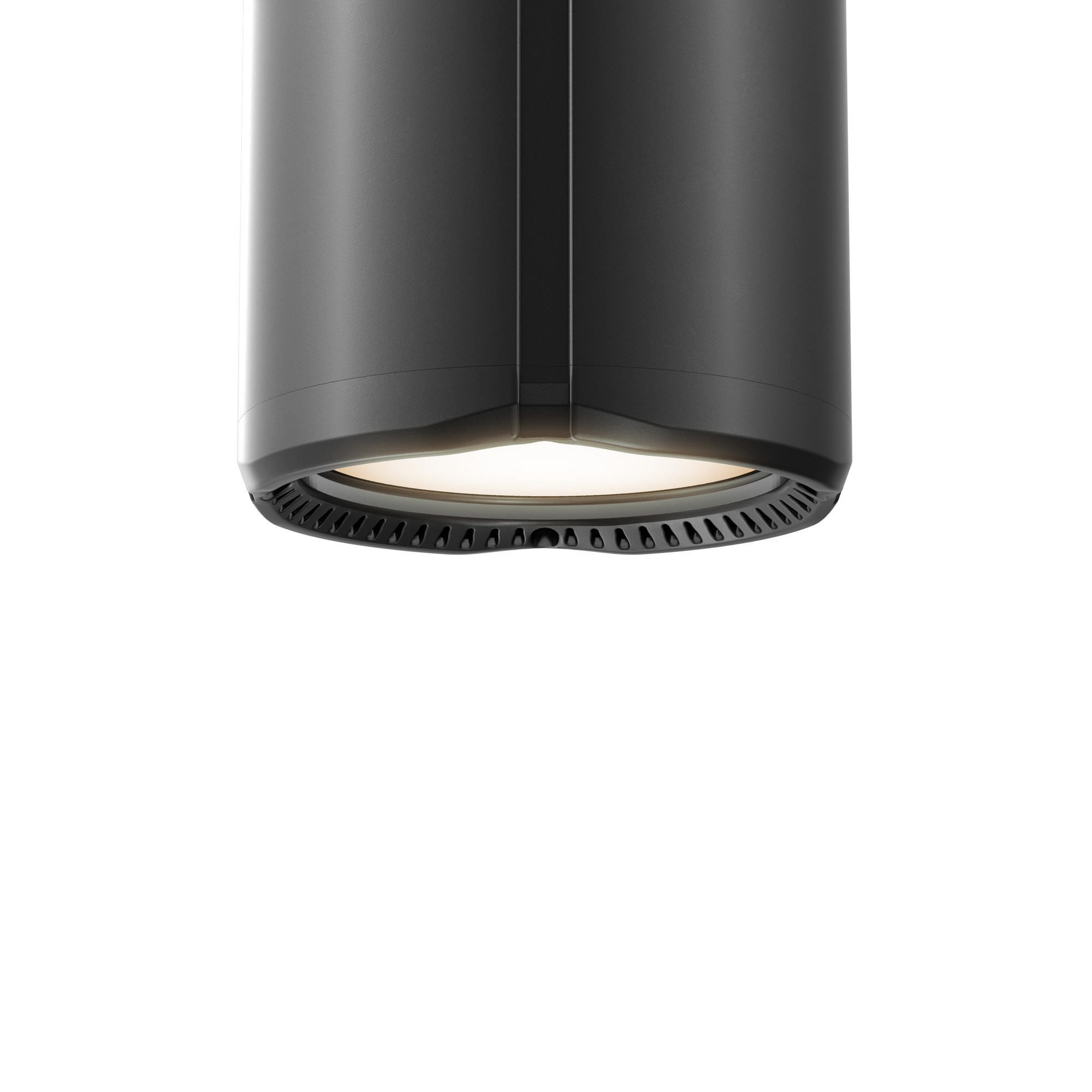

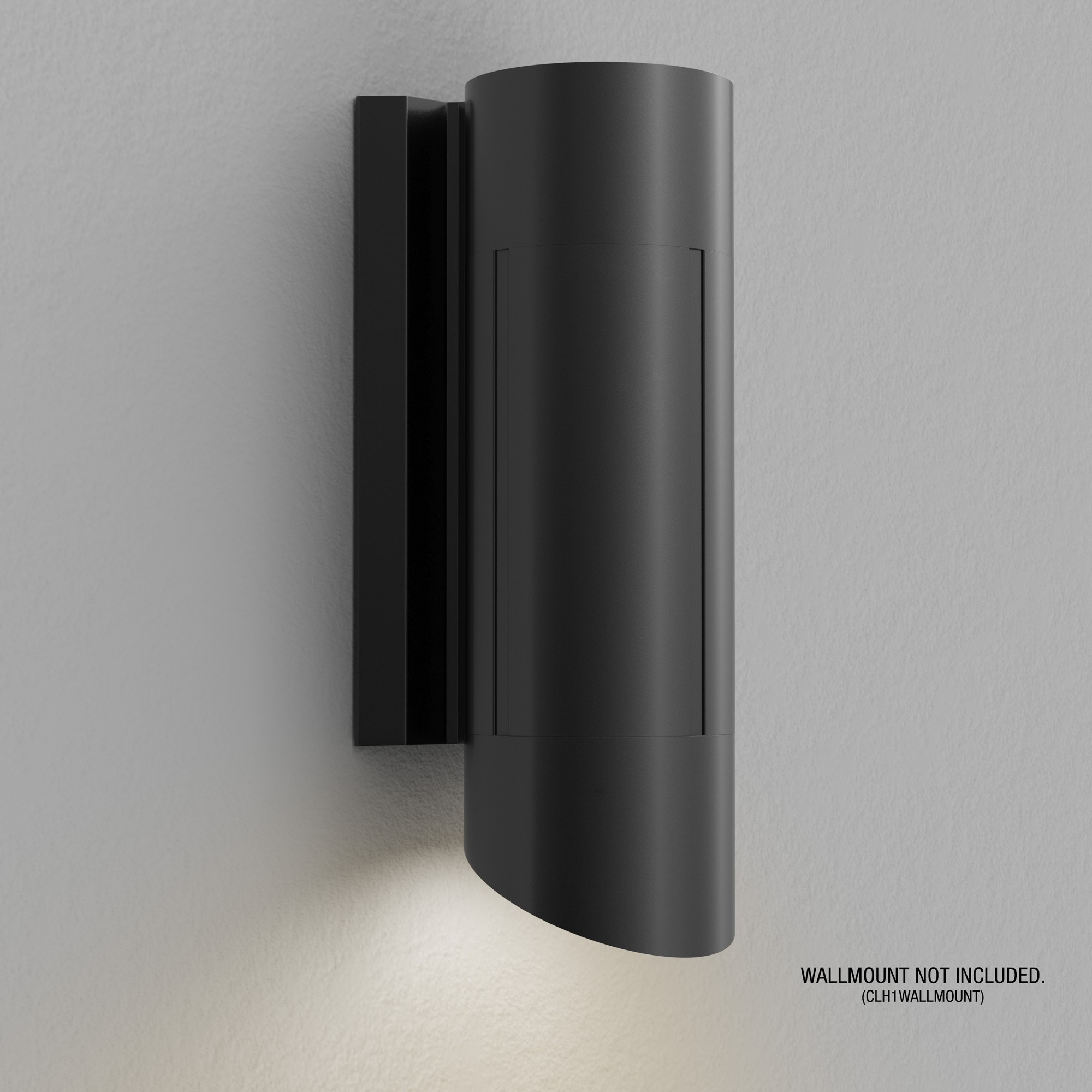

No less impressive are the wide variety of ways to install this modern house light. The H1 T can be incorporated into your lighting concept based on your specific requirements as a hanging theatre light, a downlight on the wall or a built-in ceiling light. Quick installation flush to the ceiling is instantly possible with the optionally available installation kit. Cable connections can easily be tucked away and hidden from sight during installation with the wall bracket specially designed for the H1 series, which can also be used to install the spotlight as an uplight.

The Cameo H1 series combines extensive installation and control options and elegant design with the latest LED technology to cover all your modern architectural lighting needs.

Specifications:

Product type: LED Lighting
Type: Installation spotlights
Colour spectrum: Warm white
Color temperature: 3000 K
Number of LEDs: 1
Average LED lifetime: 30000 hours
LED type: 80 W COB
LED PWM Frequency: 800 Hz, 1200 Hz, 2000 Hz, 3600 Hz, 12 kHz, 25 kHz - adjustable
Dispersion: 20 °, 30 °, 65 °

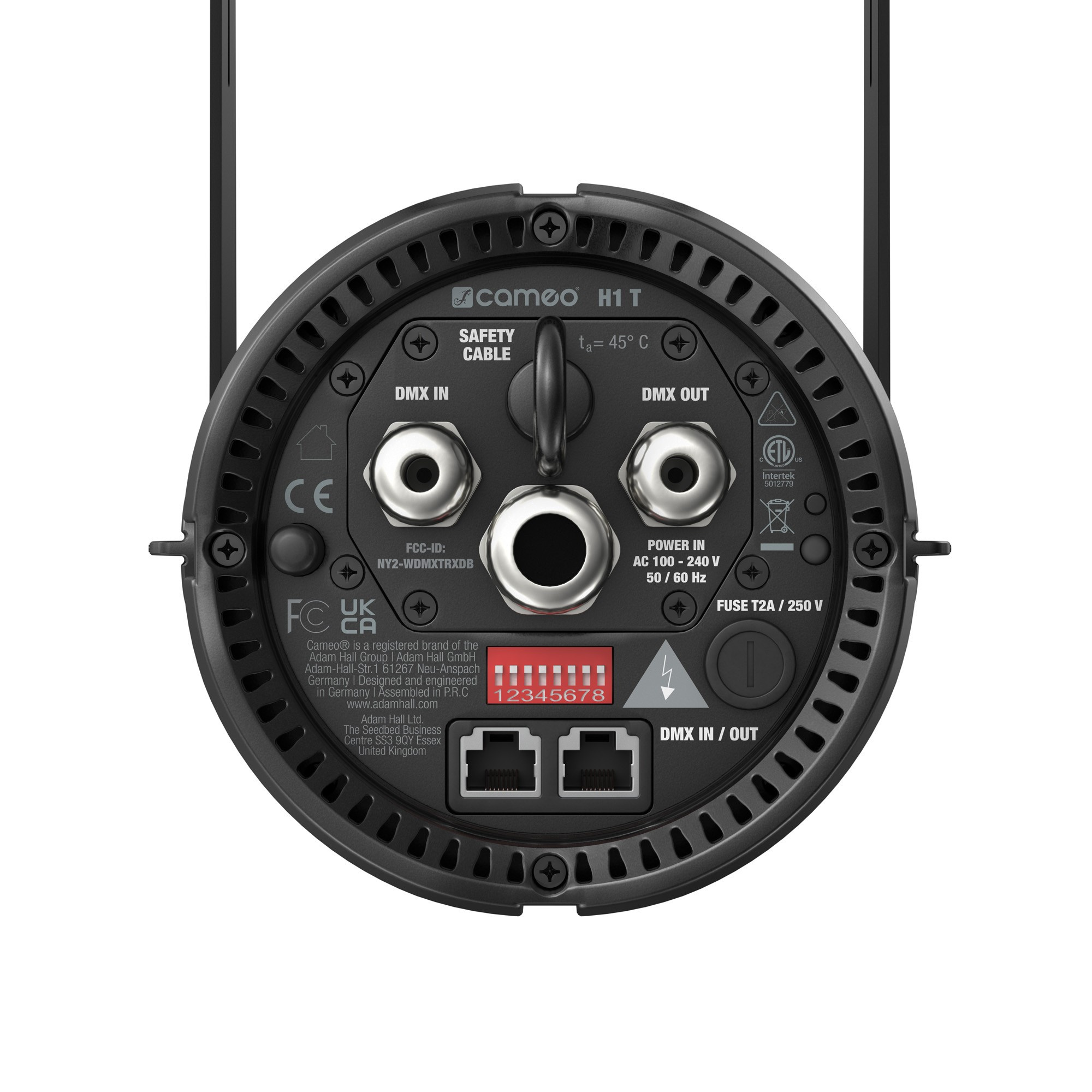

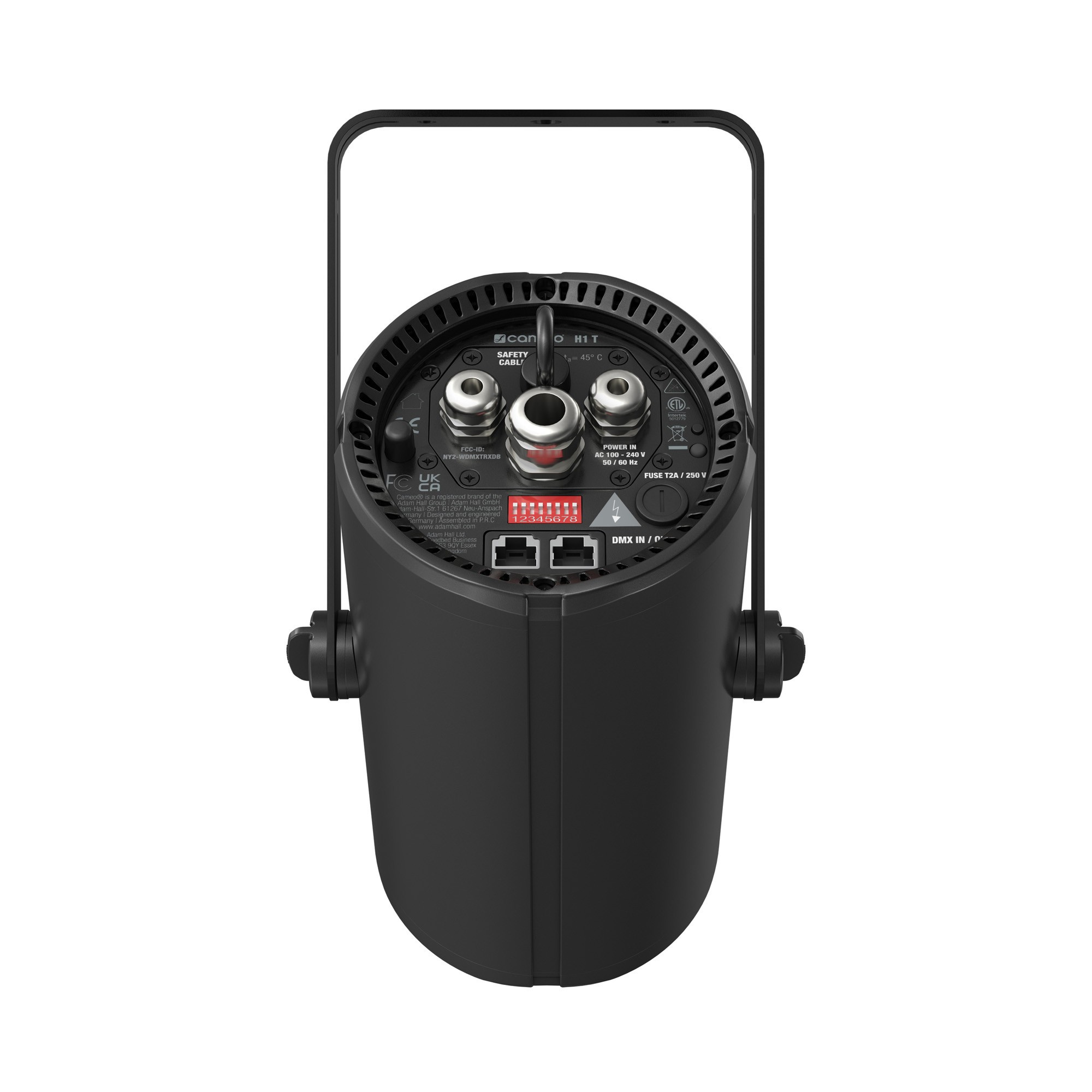

DMX input: RJ45, Terminal block
DMX output: RJ45, Terminal block
DMX Functions: Device Settings, Dimmer, Dimmer Fine, Strobe
Control: DMX 512, RDM, W-DMX
Standalone Functions: Static
Controls: 8 DIP Switch, External Remote Control, W-DMX Button
Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz
Power consumption: 80 W
Inrush Current Power @ 10 ms: 2.7 A @ 240 V / 50 Hz
Luminous flux: 5200 lm
Colour rendering index (Ra): > 97
Power connector: Terminal block
Ambient temperature (operating): 0 - 40 °C
Cabinet colour: Black
Housing material: Metal
Housing Cooling: Convection
Recommended cable for operation as pendant lamp: H07RN-F 3G1.5
Width: 128 mm
Length: 255 mm
Weight: 3 kg

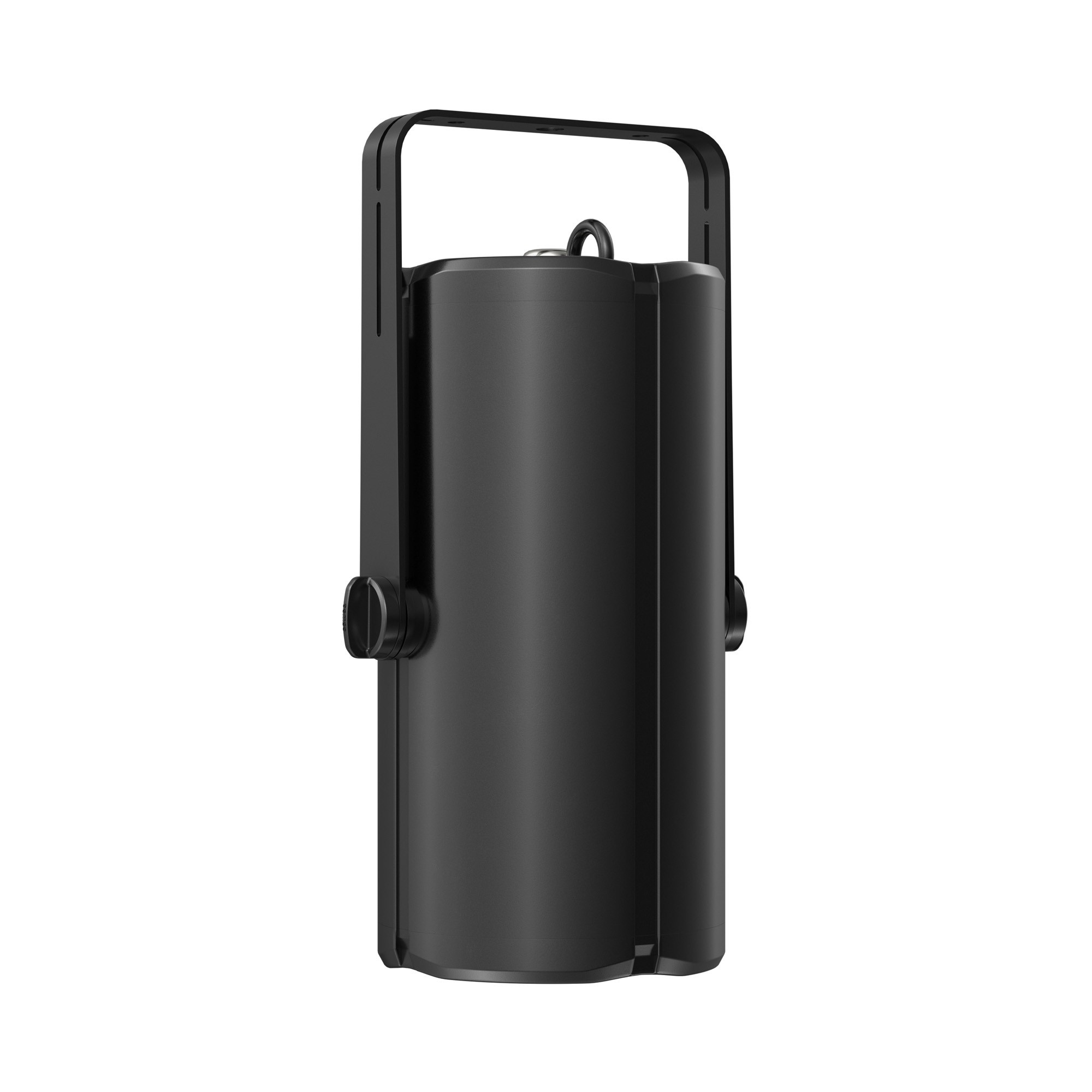

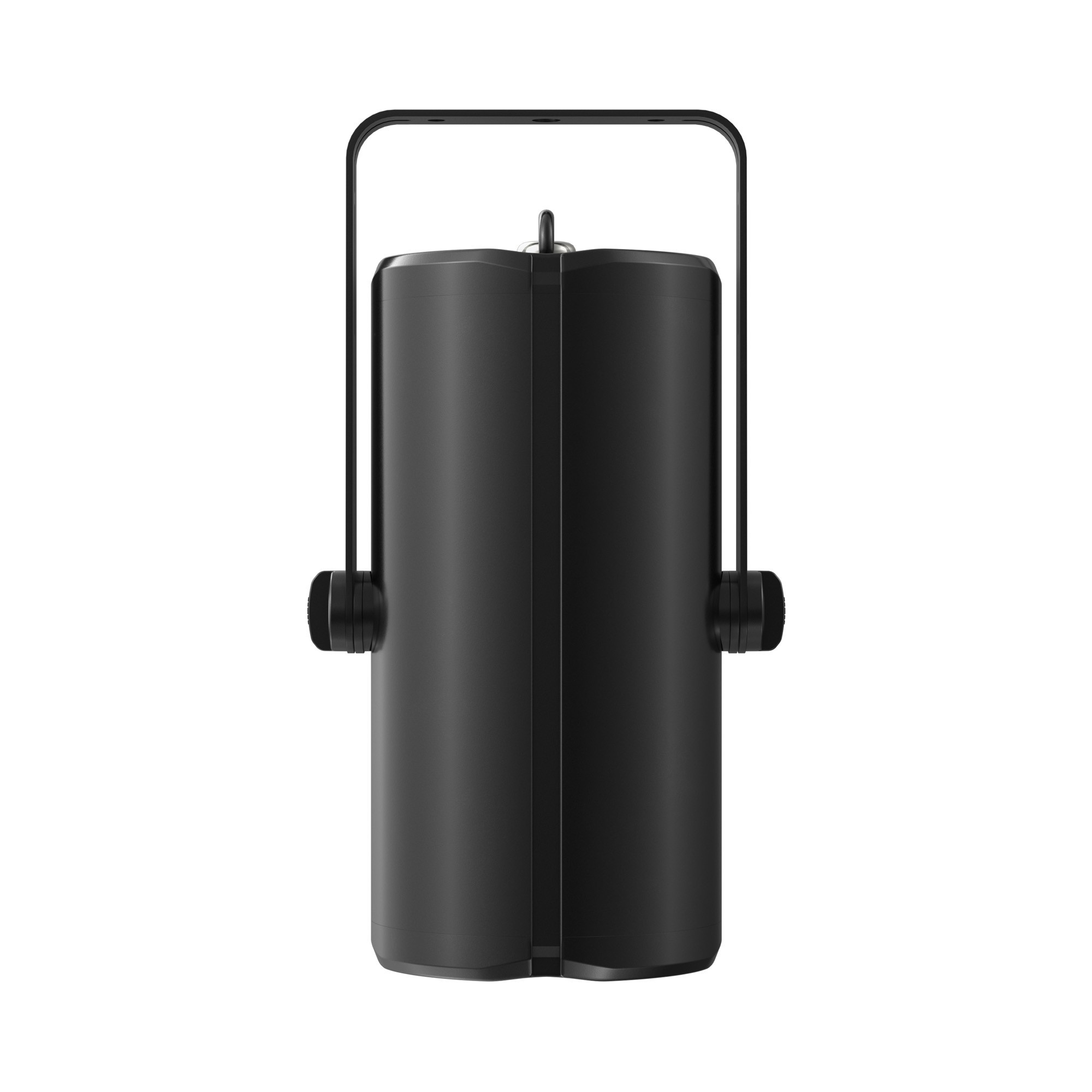

Accessories (included): 1 x omega mounting, 2 x exchange lenses
Optional accessories: Ceiling installation kit, Half and full glare shield, Wall mounting bracket

Product code: CLH1T

Unit of sale: piece
