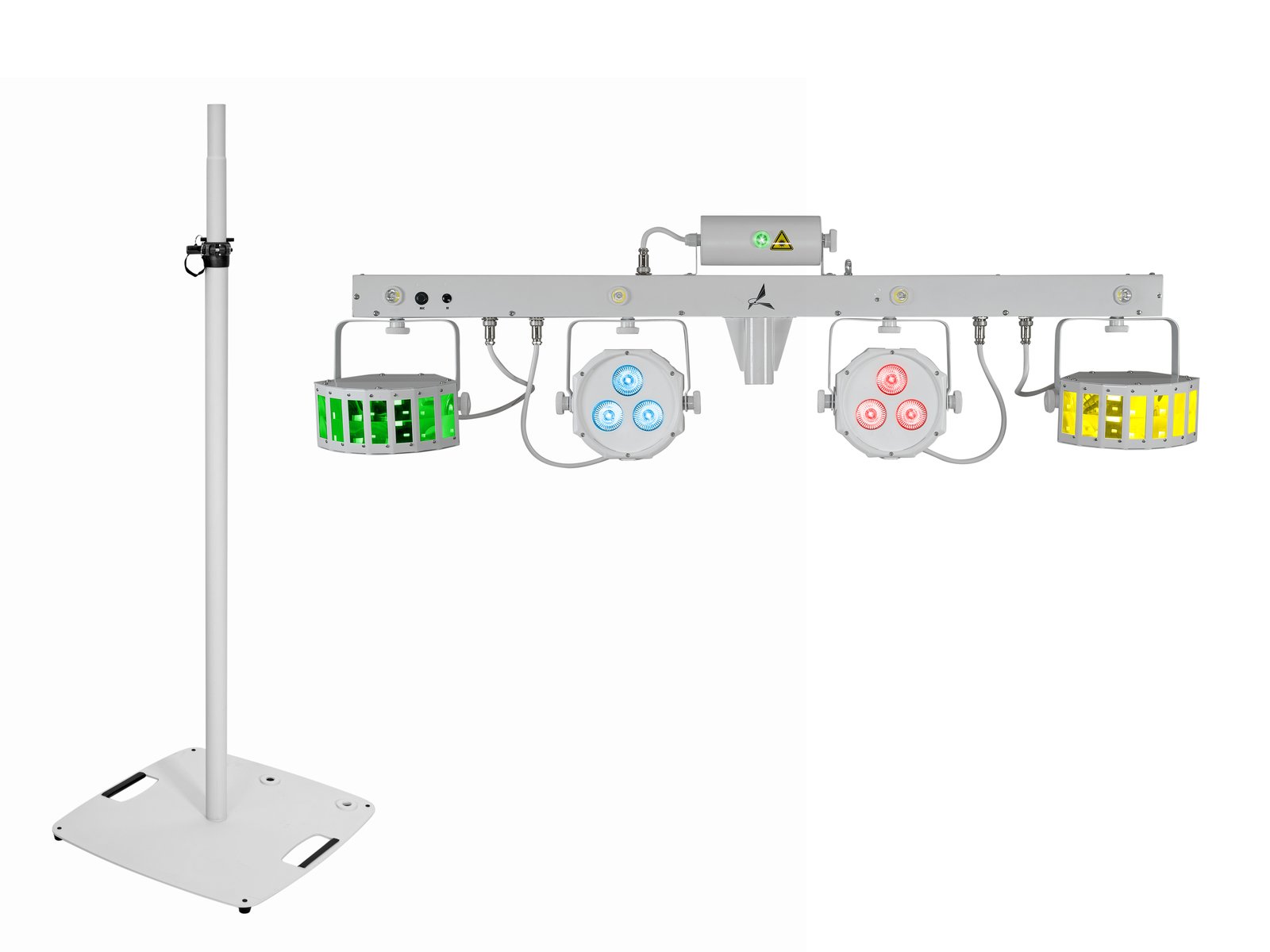

FX light set with EUROLITE LED KLS laser bar with
Bar with 2 derby lights, 2 spots, white strobe LEDs, laser (RG, 2M), foot switch
- Compact and lightweight
- Crossbar with integrated DMX control unit and handle for support
- 2 laser diodes project hundreds of red and green laser beams
- Two rotating derby lights for mirror ball effects with three bright LEDs (red, green, and blue) each
- When used together, this effect becomes particularly attractive
- 37 integrated Show programs
- Can be operated in 3; 5; 9; 19; 27 CH mode
- The device is cooled by a cooling fan
- Control via wireless switch; IR remote control; DMX; Master/slave function; Sound to light via microphone; W-DMX through wireless USB solution (optional); QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); standalone
- With mounting support
- For applications such as: Wedding/gala/events; mobile use
- Preprogrammed in Light’J; EASY SHOW 1; LED PC-Control 512; Light captain
- Network input and output for connecting power up to 8 units
laser
- Laser
- Laser class 2M
does not require additional protective measures or the appointment of a laser safety officer
spotlight
- 3 powerful 3 W 3in1 TCL RGB LEDs (homogeneous colour mix)
separate control spots
light effect
- 3 powerful 1 W R/G/B LEDs
- flower effect; multiple beam effect
bar
- 4 powerful 1 W cold white LEDs (CW)
- Strobe effect
Package contents
- 1 x device, 1 x user manual, 1 x power cable, 1 x declaration of conformity, 1 x control foot, 1 x remote control, 2 x battery, 2 x mounting bracket, 1 x bag, 2 x knurled screw, 2 x washer
OMNITRONIC BPS-3 white speaker stand
XL speaker/light stand with square base, adjustable height 136-230 cm, max. load 18 kg
- Robust square base plate (55 x 55 cm)
- 3 x M20 thread for off-centre installation
- Reinforcement handles for optimal connection from base to pole
- 35 mm extension tube with M10 thread for lighting fixtures
| Weight: | 25.45 kg |
| FX light set with EUROLITE LED KLS laser bar with |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 50 W |
| IP rating: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Network input via IEC (M) connector, cable mounting version with safety plug (supplied) |
| Output power: | 1 x IEC (F) connector mounting version |
| Fuse: | 5 x 20 mm, F 1 A replaceable fuse |
| Type of lamp: | LED lamp |
| Flash rate: | 0 - 30 Hz |
| DMX channels: | 3; 5; 9; 19; 27 |
| DMX input: | 1 x mounting version XLR (M) with 3 pins |
| DMX output: | 1 x mounting version XLR (F) with 3 pins |
| Cooling: | Cooling fan |
| Control: | Wireless foot switch; IR remote control; DMX; Master/slave function; Sound to light via microphone; W-DMX through wireless USB solution (optional); QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); standalone |
| Preprogrammed in: | Light’J; EASY SHOW 1; LED PC-Control 512; Light captain |
| Case colour: | white |
| Mounting system: | 2x Mounting bracket |
| Dimensions: | Width: 1.03 m
Depth: 6.1 cm
Height: 38.7 cm |
| Weight: | 9.05 kg |
| Noise classification: | Class 2 (slight noise) |
| Laser |
| Laser class: | 2M |
| Laser colour: | R/G |
| Laser mode: | Red (R) 100 mW 650 nm
Green (G) 30 mW 532 nm |
| In spotlight |
| LED: | 3 x 3 W high power 3in1 TCL RGB (homogeneous colour mix) |
| Light effect |
| LED: | 3 x 1 W R/G/B high power |
| Bar |
| LED: | 4 x 1 W cold white high power (CW) |
| Foot control |
| Battery: | 1 x 9.0 V block 6LR61 alkaline manganese included |
| Remote control |
| Battery: | 1 x Button battery 3.0 V CR2025 lithium manganese integrated |
| OMNITRONIC BPS-3 white speaker stand |
| Weight: | 13.61 kg |
