EUROLITE LED PLL-480 CW/WW Panel
DMX controlled surface light with 240 cool white LEDs and 240 warm white LEDs
- 480 powerful 0.5 W SMD 2835 CW/WW LEDs (homogeneous colour mix)
- Energy-saving, durable and environmentally friendly
- Variable colour temperature 3200 K - 5600 K
- Frost filter provides soft, even light
- 4 barn doors to avoid blinding the audience and for protection during transport
- Silent operation
- Electronic dimmer; Adjustable dimmer speed (step response)
- Strobe effect
- Can be operated in 5 CH mode
- The device is cooled by passive convection cooling
- DMX control; Master/slave function
- Flicker-free
- With a beam angle of 120°
- Very high colour rendering index (CRI)
- With mounting bracket
- LCD display
- Support or truss installation
- Thin and robust metal housing
- For applications such as: Video and Photography; Stage
- Preprogrammed in Light´J; Light captain
- Robust transport handle
- Power input and output for connecting power up to 8 units
Package contents
- 1 x reflector, 1 x user manual, 1 x power cable, 1 x plug (male)

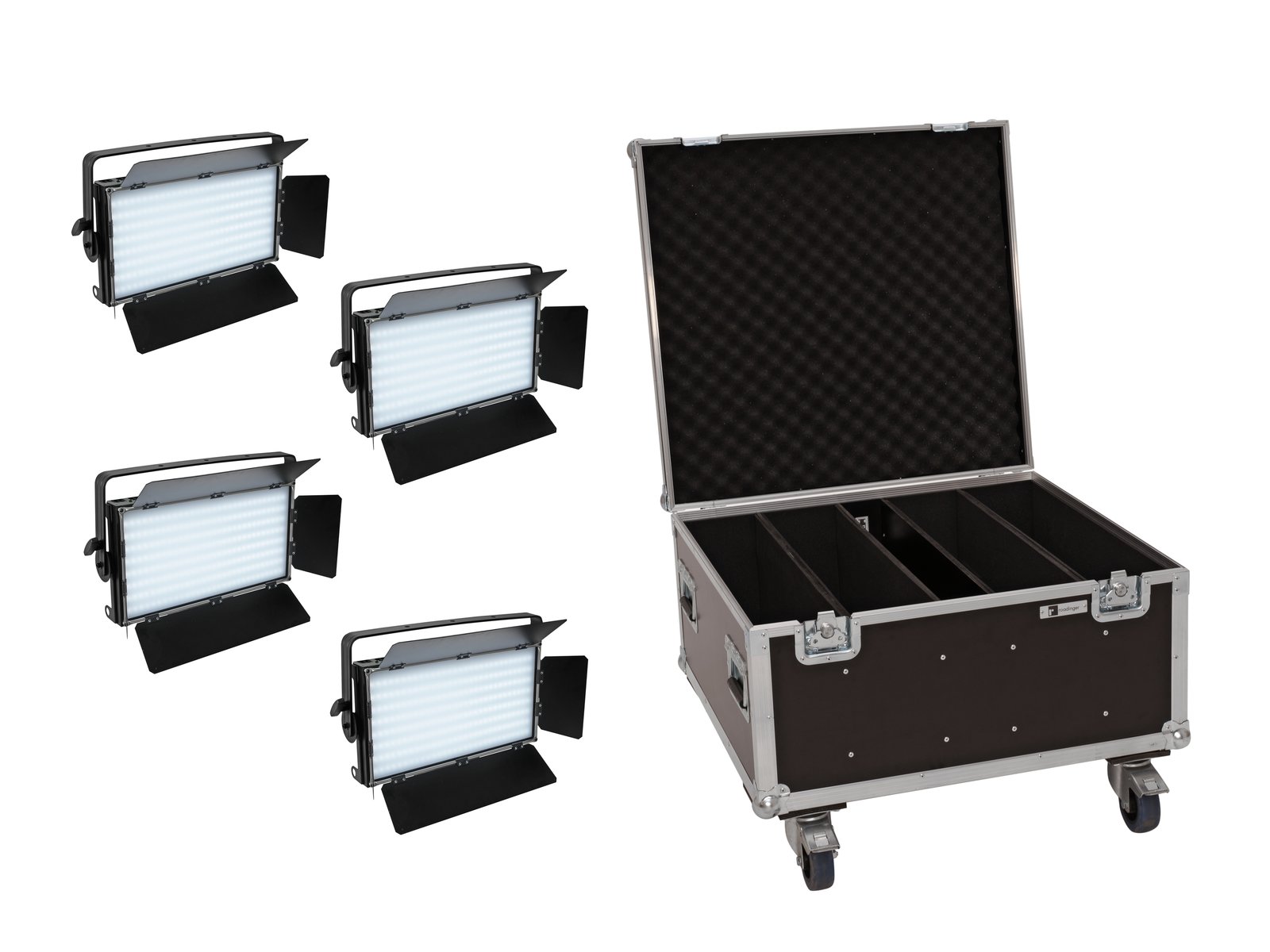

ROADINGER Flightcase 4x LED PLL-480
- 7 mm, dark brown, laminated
- Wheels
- Branded hardware
| Weight: | 72.20 kg |
| EUROLITE LED PLL-480 CW/WW Panel |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 217 W |
| IP rating: | IP20 |
| Power connection: | Via P-Con (blue), power cable mounting version with safety plug (supplied) |
| Output power: | P-Con (grey), mounting version |
| Lamp type: | LED lamp |
| LED: | 480 x 0.5 W SMD 2835 CW/WW (homogeneous colour mix) |
| Colour temperature: | 3200K - 5600K adjustable |
| DMX channels: | 5 |
| DMX input: | Mounting version XLR (M) with 3 pins |
| DMX output: | Mounting version XLR (F) with 3 pins |
| Cooling: | Passive convection cooling |
| Control: | DMX; Master/slave function |
| Preprogrammed in: | Light'J; Light captain |
| Beam angle: | 120° |
| Beam angle (1/2 peak): | 120° |
| Colour rendering index (CRI): | 96 Ra |
| Illumination in lux (lx): | Cool white (CW) 3m: 398 lx, 6m: 119 lx
Warm white (WW) 3m: 391 lx, 6m: 117 lx
All 3m: 787 lx, 6m: 234 lx |
| Lamp lifespan: | 50000 h |
| Luminous flux: | 17470 lm |
| Housing colour: | Black |
| Mounting system: | Mounting bracket |
| Display type: | LCD display |
| Transport handle: | 1 pcs/piece |
| Dimensions: | Width: 64 cm
Depth: 12.5 cm
Height: 33 cm |
| Weight: | 12.60 kg |
| Noise classification: | Class 0 (no noise) |
| Energy efficiency class (A - G): | F |
| ROADINGER Flightcase 4x LED PLL-480 |
| Maximum capacity: | 100 kg |
| Transport aid: | Wheels |
| Brand usage: | Branded hardware |
| Colour: | Dark brown, laminated |
| Internal dimensions: | 70 cm x 66 cm x 35 cm |
| Accessory compartment: | 8 cm x 66 cm x 35 cm |
| Device compartment: | 14 cm x 65.5 cm x 35 cm |
| Material thickness: | 7 mm |
| Dimensions: | Length: 74 cm
Width: 71 cm
Height: 52.5 cm |
| Weight: | 21.80 kg |
