EUROLITE LED B-40 laser effect
- 2 laser diodes project hundreds of red and green laser beams
- 5 powerful 8 W 4in1 QCL RGBW LEDs
3 separate control segments - Laser; multiple beam effect; Strobe effect
- Laser class 2M
does not require additional protective measures or the appointment of a laser safety officer - 7 integrated Show programs
- Can be operated in 3; 10; 22 CH Mode
- The device is cooled by passive convection cooling
- Standalone control; DMX; Sound to light via microphone; Master/slave function; QuickDMX via USB (optional); W-DMX via wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); IR remote control
- With mounting bracket
- Monochrome LED display with 4 digits and 7 segments
- Rotation speed without steps; colour mixing without steps; electronic dimmer
- Preprogrammed in Light´J; LED PC-Control 512; EASY SHOW 1; Light Captain; EASY SHOW 2; Easy Show 3
- Network input and output for connecting power up to 8 units
Package contents
- 1 x light effect, 1 x power cable, 1 x Omega bracket, 1 x user manual, 1 x remote control, 4 x screws, 4 x washers

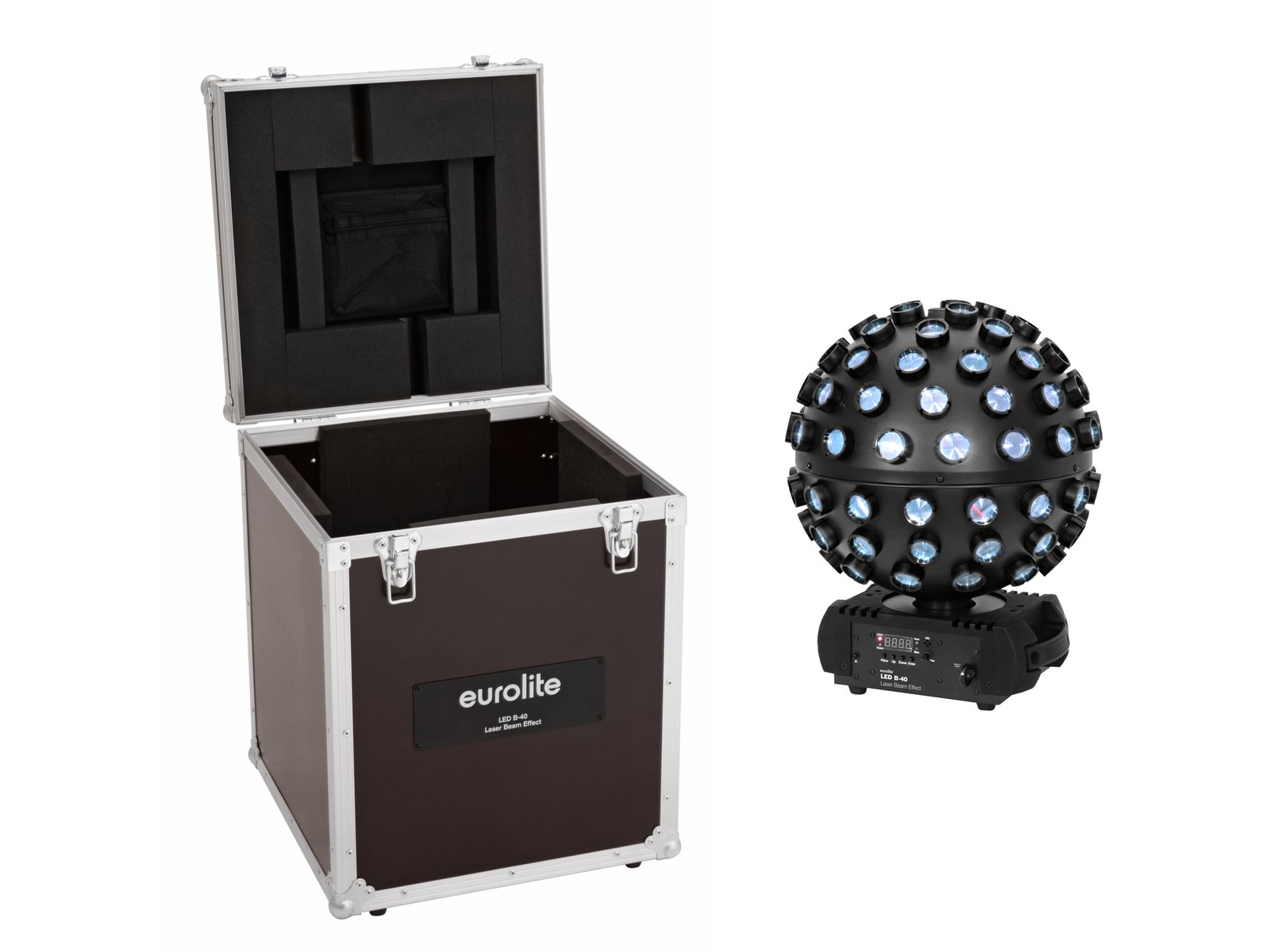

ROADINGER Flightcase 1x B-40 HCL/Laser
Flightcase for 1x B-40 HCL/Laser
- High-quality workmanship with 6.5 mm birch multiplex, dark brown
- Interior with foam lining
- 20mm aluminium profile frames with rounded edges
- Case handle with hinges, chrome-plated
- 2 chrome locks for overturning
- 2 high-quality spring locks
- Brand hardware
- European engineering
| Weight: | 11.10 kg |
| EUROLITE LED B-40 laser beam effect |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 65 W |
| IP rating: | IP20 |
| Power connection: | Network input via IEC (M) connector, power cable mounting version with safety plug (supplied) |
| Output power: | 1 x IEC (F) connector mounting version |
| Fuse: | 5 x 20 mm, T 1 A replaceable fuse |
| Type of lamp: | LED lamp |
| LED: | 5 x 8 W high-power 4in1 QCL RGBW |
| Flash rate: | 0 - 20 Hz |
| Laser class: | 2M |
| Laser colour: | R/G |
| Laser mode: | Green (G) 40 mW 532 nm
Red (R) 100 mW 650 nm |
| DMX channels: | 3; 10; 22 |
| DMX input: | 1 x mounting version XLR (M) with 3 pins |
| DMX output: | 1 x mounting version XLR (F) with 3 pins |
| Cooling: | Passive cooling by convection |
| Control: | Standalone; DMX; Sound to light via microphone; Master/slave function; QuickDMX via USB (optional); W-DMX via wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); IR remote control |
| Preprogrammed in: | Light´J; LED PC-Control 512; EASY SHOW 1; Light Captain; EASY SHOW 2; Easy Show 3 |
| Case colour: | Black |
| Mounting system: | Mounting bracket |
| Display type: | Monochrome LED display with 4 digits and 7 segments |
| Dimensions: | Width: 31 cm
Depth: 31 cm
Height: 39 cm |
| Weight: | 4.20 kg |
| Noise rating: | Class 2 (light noise) |
| ROADINGER Flightcase 1x B-40 HCL/Laser |
| Maximum capacity: | 25 kg |
| Aluminium profile frames: | 20 mm |
| Case handles: | 1 pcs/piece |
| Stop hinge: | 2 pcs/piece |
| Lock: | Spring lock: 2 pcs/piece |
| Brand usage: | Brand hardware |
| Material: | Birch multiplex, 6.5 mm, laminated |
| Colour: | Dark brown |
| Device compartment: | 32.5 cm x 32.5 cm x 39 cm |
| Dimensions: | Length: 40 cm
Width: 40 cm
Height: 48 cm |
| Weight: | 6.90 kg |
